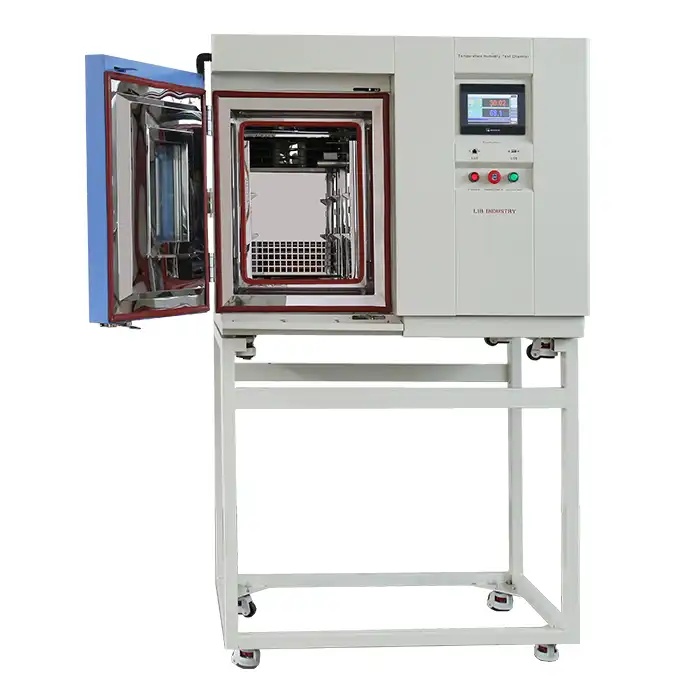

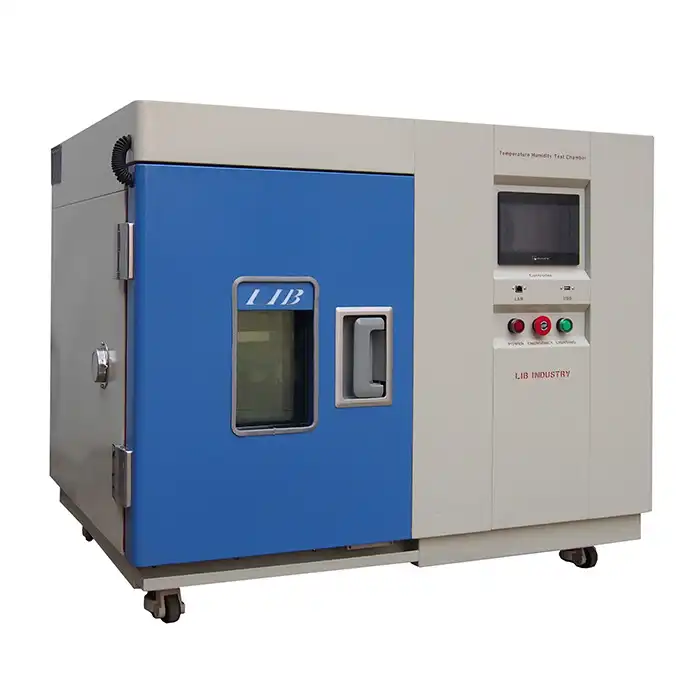

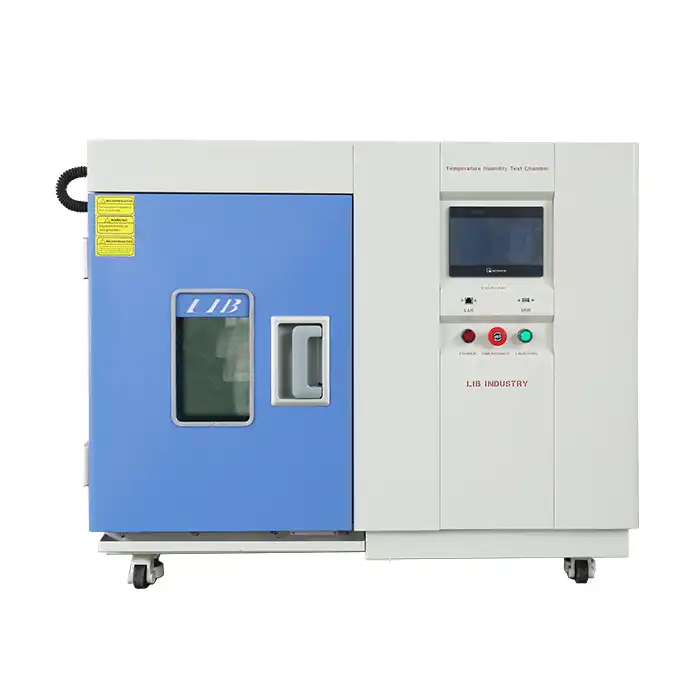

Benchtop Environmental Chamber
Lowest Temperature:-20℃/-40℃/-60℃/-86℃;
Temperature Range:-40℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Safety options for testing lithium-ion batteries
Built-in lighting for observing the test
Water Purification and Recirculation System
Benchtop Environmental Chamber - Compact Testing Solutions for Your Laboratory
Our compact testing solution delivers professional-grade environmental simulation without taking up valuable laboratory real estate. Whether you're conducting research and development, quality control testing, or product validation, this Benchtop Environmental Chamber provides the precision and reliability you need. With its space-saving design and powerful performance, you can now perform comprehensive environmental testing right at your workstation. Experience the perfect balance of compact size and advanced functionality that makes environmental testing more accessible than ever before.
Built to Last
· Interior: SUS304 stainless steel construction resists corrosion and maintains structural integrity
· Exterior: 4mm A3 steel frame with powder coating for industrial-grade durability
· Safety: Multiple protection systems including leakage protection, grounding protection, and over-temperature shutdown
Why Choose Our Benchtop Environmental Chamber?
Compact Yet Powerful Design
Our chamber demonstrates that great things come in little bundles. With its negligible impression, this item effortlessly sits on your standard research facility seat whereas giving liberal inside capacity for your tests. You'll be astounded at how much testing space fits into such a compact unit.
Whisper-Quiet Operation
Working in a active lab or office environment? No issue. Our ultra-quiet plan works at less than 65dB – proportionate to typical discussion levels. The progressed vibration hosing framework guarantees your workspace remains tranquil and focused.
Plug-and-Play Convenience
Forget almost complex establishments. Basically plug into your standard office control supply (110V/220V single-phase) and you're prepared to begin testing. No costly electrical work or extraordinary wiring required – it's genuinely out-of-the-box prepared.
Advanced Control System
The full-color touchscreen interface makes operation intuitive and straightforward. Program hundreds of test steps with our sophisticated controller. Plus, monitor your tests remotely via smartphone or web browser – perfect for today's connected laboratory environment.
Technical Specifications
Model | TH-50 | TH-80 |
Internal Dimension (mm) | 320*350*450 | 400*400*500 |
Overall Dimension (mm) | 820*1160*950 | 900*1210*1000 |
Interior Volume | 50L | 80L |
Heat load | 1000W | |
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | |
Temperature Fluctuation | ± 0.5 ℃ | |
Temperature Deviation | ± 2.0 ℃ | |
Humidity Range | 20% ~ 98% RH | |
Humidity Deviation | ± 2.5% RH | |
Cooling Rate | 1 ℃ / min | |
Heating Rate | 3 ℃ / min | |
Cooling system | Mechanical compression refrigeration system | |
Controller | Programmable color LCD touch screen controller Ethernet connection | |
Safety Device | Humidifier Dry-combustion protection; Over-temperature Protection; Over-current Protection; Refrigerant High-pressure protection; Water Shortage Protection; Earth leakage Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Thermal Insulation | Polyurethane foam and insulation cotton | |
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | |
Product Details
|
|
|
| Sample shelf SUS304 stainless steel punching sample shelf 2pcs; The height of the shelf is adjustable and can be removed | Controller PID programmable color touch screen controller network connection computer. Can create120 programs 100 segment. | Viewing Window Double layer insulating glass 8cm thick, made of tempered glass. built-in LED light for the work room lighting |
|
|
Why Choose LIB Industry?
Proven Quality Assurance
We take after strict ISO 9001 Quality Administration Framework benchmarks. All our items carry CE certification and experience third-party testing by SGS and TUV. You can believe that your venture meets universal benchmarks for execution and safety.
Exceptional After-Sales Support
Every chamber comes with our comprehensive 3-year guarantee and lifetime benefit commitment. Our 24/7 worldwide back group guarantees you're never alone. If we can't repair your unit inside the guarantee period, we'll give a brand-new substitution – that's our guarantee to you.
Custom Solutions Available
Need something particular? Our experienced building group exceeds expectations at custom plan and non-standard applications. We'll work with you to make the culminate arrangement for your one of a kind testing prerequisites.
Applications
Our Benchtop Environmental Chamber serves diverse testing needs across multiple industries:
Investigate & Improvement: Culminate for examining how natural conditions influence materials, biologics, gadgets, and pharmaceuticals in controlled research facility settings.
Quality Control & Testing: Hardware, aviation, car, and pharmaceutical companies depend on our chambers to approve item unwavering quality and execution some time recently mass production.
Life Sciences: Perfect for natural and restorative inquire about, reenacting particular development conditions, testing sedate solidness, and considering natural impacts on living organisms.
Food & Bundling: Guarantee item quality and rack life by recreating capacity conditions and testing bundling fabric effectiveness.
Instrument Calibration: Give exact temperature and stickiness references for calibrating thermometers, hygrometers, and other measuring disobedient.
Get Started Today
Contact us today at ellen@lib-industry.com to discuss your specific requirements and discover how our Benchtop Environmental Chamber can streamline your testing processes while saving valuable laboratory space.
