Thermal Cycling Equipment in Solar Panel Durability Testing

Solar panels endure relentless temperature swings throughout their 25-to-30-year service life - baking under midday sun, then cooling sharply after sunset. Thermal cycling equipment replicates these punishing fluctuations inside a controlled laboratory environment, subjecting photovoltaic (PV) modules to repeated temperature ramps between extremes such as -40°C and +85°C. This accelerated stress exposes latent weaknesses in solder ribbons, encapsulant layers, glass-cell interfaces, and electrical connections long before panels reach rooftops. By compressing years of field exposure into weeks of laboratory testing, engineers gain the failure-mode data needed to refine materials, optimize manufacturing processes, and validate the long-term power output warranties that underpin investor confidence in solar energy projects worldwide.

blog-1-1

A leading electronics testing lab shared their experience with our THR10-500A Thermal cycling equipmentand drying ovens: "Our THR10-500A chamber and drying ovens are working excellently, thank you. We are very happy with them." The stable performance of the chamber during intensive thermal cycling tests enabled the team to conduct extended burn-in procedures and repeated rapid temperature transitions without interruption. This reliability gave them confidence in accurately assessing the thermal resilience and durability of automotive electronics, sensors, and control modules. Beyond electronics, the equipment has proven highly effective in materials testing, plastic component aging, and battery performance evaluations, helping teams efficiently simulate real-world thermal conditions and optimize product longevity.

Why Solar Panels Require Thermal Cycling Testing?

Decades of Outdoor Exposure and Temperature Extremes

A rooftop or ground-mounted solar array faces unshielded exposure to seasonal extremes - scorching summers, freezing winters, and everything between. Desert installations experience daily temperature differentials exceeding 50°C, while Nordic sites endure prolonged sub-zero conditions. Over a 25-year warranty period, a single panel can accumulate tens of thousands of thermal cycles, each one incrementally stressing internal interfaces and interconnects.

Cumulative Fatigue Mechanisms in PV Modules

Each temperature swing induces micro-scale expansion and contraction across dissimilar materials bonded together inside the module laminate. Fatigue cracks nucleate at stress concentration points - particularly solder joints connecting silicon cells to copper ribbons - and propagate cycle after cycle. Without thermal cycling evaluation, these slow-growing defects escape detection during routine electrical inspection at the factory gate.

Economic Stakes of Premature Panel Degradation

Solar project economics depend on predictable energy yield over decades. A module that degrades faster than warranted erodes investor returns, triggers warranty claims, and damages manufacturer reputation. Rigorous thermal cycling qualification using purpose-built test chambers catches vulnerable designs early, allowing corrections that safeguard both revenue streams and brand equity.

Temperature Stress in Photovoltaic Modules and Materials

CTE Mismatch Across Multi-Layer Module Stacks

Solar modules are laminated sandwiches - tempered glass, ethylene-vinyl acetate (EVA) encapsulant, silicon cells with metallic interconnects, a polymeric backsheet, and an aluminum frame. Each layer possesses a distinct coefficient of thermal expansion (CTE). When temperature changes, these layers stretch or contract at different rates, generating shear and peel stresses at every bonded interface.

Table 1: CTE Values of Common PV Module Materials

Material	Approximate CTE (ppm/°C)	Role in Module
Tempered glass	8-9	Front cover
EVA encapsulant	150-200	Cell encapsulation
Crystalline silicon cell	2.6	Power generation
Copper ribbon	17	Cell-to-cell interconnect
PET/PVF backsheet	20-80	Rear moisture barrier
Aluminum frame	23	Structural support

Thermomechanical Strain at Cell Interconnects

The CTE disparity between silicon (2.6 ppm/°C) and copper ribbon (17 ppm/°C) concentrates cyclic strain directly at the solder bond line. Repeated bending fatigues the solder alloy, nucleating cracks that increase series resistance and reduce power output. Thermal cycling chambers apply controlled ramp rates - typically 5°C to 15°C per minute - to replicate this strain accumulation under laboratory conditions.

Encapsulant and Backsheet Degradation Under Cyclic Stress

EVA and other encapsulants soften at elevated temperatures and stiffen at low temperatures during testing in a thermal cycling test chamber. Cycling between these states can initiate delamination from the cell surface or from the glass superstrate, creating pathways for moisture ingress. Backsheet polymers undergo analogous embrittlement, eventually cracking and compromising the module's electrical insulation integrity.

Testing Standards for Solar Panel Thermal Cycling Performance

IEC 61215 Thermal Cycling Requirements

IEC 61215 - the benchmark qualification standard for crystalline silicon PV modules - prescribes a TC200 test: 200 cycles between -40°C and +85°C with a maximum ramp rate and defined dwell times at each extreme. Modules must show no major visual defects, no wet leakage current failures, and no more than 5% maximum power degradation after completing the protocol.

Extended Cycling Protocols Beyond Minimum Qualification

Industry consensus increasingly recognizes that 200 cycles represent a bare minimum. Many manufacturers and independent test laboratories voluntarily extend cycling to TC400, TC600, or even TC1000 to differentiate premium products and satisfy stringent bankability requirements from project financiers. Extended protocols surface wear-out failure modes that shorter tests simply cannot reveal.

blog-1-1

Table 2: Common Solar Panel Thermal Cycling Test Protocols

Protocol	Temperature Range	Cycle Count	Ramp Rate	Key Standard
TC200	-40°C to +85°C	200	≤ 100°C/h	IEC 61215
TC400	-40°C to +85°C	400	≤ 100°C/h	Extended IEC
TC600	-40°C to +85°C	600	≤ 100°C/h	Extended IEC
Combined TC + HF	-40°C to +85°C	200 + 10 HF	Per spec	IEC 61215 seq.

Combining Thermal Cycling with Humidity and Mechanical Load Tests

IEC 61215 also mandates sequential testing - thermal cycling followed by humidity-freeze (HF) cycles and mechanical load tests. This combined sequence mimics the synergistic stresses modules encounter in the field. Thermal cycling equipment capable of precise ramp control and stable dwell temperatures streamlines these sequential campaigns without requiring specimen transfers between separate chambers.

Simulation of Day-Night Temperature Fluctuations in Solar Installations

Programmable Ramp Rates for Realistic Profiles

Real-world solar panels heat and cool at rates governed by solar irradiance, wind speed, and ambient temperature. A controllable ramp rate - selectable at 5°C, 10°C, or 15°C per minute - allows test engineers to tailor profiles that mirror specific geographic conditions. Slower ramps replicate temperate climates; steeper ramps simulate arid environments with abrupt post-sunset cooling.

Dwell Periods and Thermal Equilibrium Considerations

Modules must reach uniform internal temperature before a meaningful thermal cycle is recorded. Dwell times at the hot and cold extremes guarantee that the innermost layers - including the cell-EVA interface - equilibrate fully. Inadequate dwell periods understate the true stress experienced by embedded interconnects, producing misleadingly optimistic qualification results.

Climate-Specific Test Profile Design

A panel destined for the Arabian Peninsula faces a different thermal envelope than one installed in Scandinavia. Engineers design custom cycling profiles - adjusting upper and lower temperature limits, ramp rates, and cycle counts - to replicate the target deployment climate. Programmable controllers with Ethernet connectivity and PC link capability simplify the creation and storage of these bespoke profiles.

Evaluating Glass, Encapsulation Materials, and Electrical Connections

Solder Ribbon Fatigue and Cell Interconnect Integrity

Electroluminescence (EL) imaging before and after testing with thermal cycling test equipment reveals inactive cell areas caused by cracked solder joints. As cracks propagate, series resistance climbs and module fill factor drops. Quantifying this degradation through I-V curve measurements at defined cycle intervals provides a fatigue growth rate that informs solder alloy selection and ribbon geometry optimization.

EVA Yellowing and Delamination Detection

Prolonged thermal cycling accelerates EVA discoloration, particularly in the presence of residual crosslinking byproducts. Yellowed encapsulant absorbs a portion of the incident light spectrum, reducing short-circuit current. Visual inspection, transmittance spectroscopy, and C-mode scanning acoustic microscopy together quantify the extent and progression of encapsulant degradation throughout the cycling campaign.

Junction Box and Connector Reliability Under Cycling

Junction boxes and cable connectors mounted on the module backsheet endure the same thermal excursions as the laminate itself. Solder connections within the junction box, adhesive bonds securing it to the backsheet, and the bypass diode operating temperature all warrant scrutiny. Post-cycling insulation resistance and wet leakage tests confirm that electrical safety margins remain intact.

Improving Long-Term Solar Panel Reliability Through Environmental Testing

Correlating Accelerated Test Data with Field Performance

Acceleration factors - derived from Arrhenius or Coffin-Manson models - translate laboratory cycle counts into equivalent years of field exposure. Validated correlation allows manufacturers to predict real-world degradation rates from chamber test results, bridging the gap between a two-week laboratory campaign and a 25-year performance warranty.

Design Iteration Based on Failure Mode Analysis

Each failure mode uncovered during thermal cycling feeds back into a continuous improvement loop. Solder cracking may prompt a shift to a more fatigue-resistant alloy; delamination may drive adoption of a higher-adhesion encapsulant formulation. This iterative process, grounded in empirical chamber data, progressively hardens the module design against thermomechanical stress.

Building Warranty Confidence Through Rigorous Qualification

Module bankability - the willingness of financial institutions to fund solar projects - hinges on robust qualification evidence. Extended thermal cycling reports from accredited laboratories, generated using calibrated and traceable environmental chambers, furnish the documentation that due-diligence teams demand before committing capital to large-scale photovoltaic installations.

Reliable Performance Under Extreme Temperature Swings - LIB Industry


Name	Fast Change Rate Thermal Cycle Chamber
Temperature range	-70℃ ～+150 ℃
Explosion-Proof Design	explosion-proof door chains, explosion-proof viewing window, smoke detector, and fire suppression sprinkler system Explosion-proof enclosure
Low type	A: -70℃ B:-40℃ C -20℃
Temperature fluctuations	± 0.5 ℃
Humidity Range	20%~98%
Heating rate	5 ℃/15 ℃ / min
Cooling rate	5 ℃/15℃ / min
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Exterior material	Steel Plate with protective coating
Interior material	SUS304 stainless steel
Standard configuration	1 Cable hole (Φ 50) with plug; 2 shelves
Timing Function	0.1~999.9 (S,M,H) settable

temperature cycle chamber

Robust Workroom

Cable Hole

Temperature and Humidity Sensor

Wide Temperature Range and Controllable Ramp Rates

LIB Industry's thermal cycling equipment delivers temperature ranges spanning -70°C to +150°C, comfortably enveloping the -40°C to +85°C window mandated by IEC 61215. Ramp rates are selectable at 5°C, 10°C, or 15°C per minute, enabling engineers to match test profiles to any climate scenario without hardware modifications. Temperature fluctuation is held within ±0.5°C and deviation within ±2.0°C - precision critical for repeatable, standards-compliant results.

Scalable Chamber Volumes for Full-Size Module Testing

LIB offers volumes from 100 L through 1000 L and beyond - including 2000 L and 3000 L custom configurations - accommodating everything from small material coupons to full-size 72-cell photovoltaic modules.

Safety, Connectivity, and Custom Configurations

Every thermal cycling machine incorporates over-temperature protection, over-current protection, refrigerant high-pressure safeguards, and earth leakage protection. An explosion-proof door and viewing window, smoke detector with buzzer, and water spray system provide additional safety layers. Ethernet-connected programmable LCD touch screen controllers enable remote monitoring and seamless integration with laboratory information management systems. Cable holes (50 mm / 100 mm / 200 mm) with silicone plugs route sensor leads and power cables into the test space without compromising thermal integrity. Custom models addressing unique specimen dimensions or performance specifications are available on request.

Conclusion

Thermal cycling testing stands as a cornerstone of solar panel qualification, revealing the fatigue-driven degradation mechanisms that threaten long-term energy yield. By subjecting modules to thousands of controlled temperature ramps, engineers identify vulnerable solder joints, encapsulant interfaces, and electrical connections before products enter the field. Adherence to IEC 61215 - and increasingly to extended cycling protocols - ensures modules meet the reliability expectations embedded in 25-year performance warranties. Purpose-built thermal cycling equipment with precise ramp control, wide temperature ranges, and scalable volumes empowers PV manufacturers to deliver panels that perform consistently across the planet's most demanding climates.

FAQ

What temperature range does IEC 61215 require for solar panel thermal cycling?

IEC 61215 specifies cycling between -40°C and +85°C. Modules must complete 200 cycles (TC200) and demonstrate no more than 5% maximum power degradation along with no critical visual defects.

Why are extended thermal cycling protocols (TC400, TC600) gaining popularity?

Extended protocols expose wear-out failure modes - such as advanced solder fatigue and encapsulant delamination - that remain undetectable within the standard 200-cycle qualification, satisfying increasingly stringent bankability demands from project financiers.

Can LIB Industry thermal cycling chambers accommodate full-size PV modules?

LIB offers chamber volumes up to 1000 L in standard models and 2000 L or 3000 L in custom configurations, providing ample interior space for full-size 60-cell or 72-cell photovoltaic modules.

Need a dependable thermal cycling equipment manufacturer and supplier for your solar panel testing laboratory? LIB Industry provides turnkey environmental testing solutions - from design and production through installation and training. Reach out at ellen@lib-industry.com to discuss your PV module durability testing needs.

Jul 19,2024

What is the UV weather resistance test chamber?

In the world of environmental testing, the UV weather resistance test chamber plays a crucial role in ensuring products can withstand the rigors of outdoor conditions. This specialized equipment simulates the effects of ultraviolet (UV) radiation, temperature, and humidity on various materials, helping manufacturers predict the durability and longevity of their products. Whether you're in the automotive, construction, or materials research industries, understanding the functionality and benefits of a UV weathering test chamber is essential.

What is a UV Weathering Test Chamber?

A UV weathering test chamber is designed to replicate the damaging effects of sunlight, rain, and dew. These chambers use fluorescent UV lamps to simulate the sun's ultraviolet radiation, combined with controlled temperature and humidity cycles. This combination allows researchers and manufacturers to accelerate the weathering process, observing the potential degradation of materials over a shorter period compared to natural exposure. Here's an in-depth look at their key features and functionalities:

UV Lamps

The core component of a UV weathering test chamber is its UV lamps, which mimic the ultraviolet (UV) radiation from the sun. UV radiation is a major factor in material degradation, causing photochemical reactions that can lead to fading, embrittlement, and cracking.

- Types of UV Lamps:

Fluorescent UV Lamps: These lamps are commonly used to reproduce UV-A and UV-B radiation, which are significant in the aging process. They are designed to emit a spectrum of light that closely resembles the sun’s UV radiation.

Xenon Arc Lamps: For more precise simulation, xenon arc lamps can be used. They produce a broad spectrum of light, including UV, visible, and infrared, more closely mimicking natural sunlight.

- Intensity and Wavelength: The intensity and wavelength of UV light in the UV weathering test chamber can be adjusted to simulate different geographic locations and times of the year. This flexibility helps in testing how materials perform under various environmental conditions.

Temperature Control

Temperature control within the chamber is crucial for replicating the thermal effects of the environment. Materials can degrade differently at varying temperatures, so precise temperature regulation allows for accurate simulation of conditions.

- Heating and Cooling Systems: The chamber is equipped with both heating and cooling systems to achieve and maintain the desired temperatures. These systems ensure that the materials are exposed to temperatures that can mimic extreme heat, cold, or fluctuating conditions.

- Temperature Ranges: Typical temperature ranges can be set to replicate various climates, from freezing temperatures in polar regions to high temperatures in desert environments. This range is essential for understanding how materials will perform in different geographic locations.

Humidity Control

Humidity control in UV weathering test chambers is used to simulate the effects of rain and dew on materials. Moisture can exacerbate the degradation process by interacting with UV radiation and temperature changes.

- Condensation and Water Spray: Chambers often include systems to generate condensation and water spray. This feature mimics the effects of dew and rain, which can lead to additional material wear and tear.

- Humidity Levels: The UV weathering test chamber can maintain various humidity levels to test how materials withstand different moisture conditions. High humidity can lead to issues such as mold growth, while low humidity can cause materials to dry out and crack.

What Are the Benefits of Using UV Weathering Test Chambers

Investing in a UV weathering test chamber offers numerous benefits for manufacturers and researchers alike. These chambers provide valuable insights into how materials will perform over time when exposed to harsh environmental conditions.

Accelerated Testing

One of the most significant advantages is the ability to speed up the testing process. Instead of waiting months or years to see how a material performs outdoors, a UV weathering test chamber can provide results in a matter of weeks. This accelerated testing is crucial for product development cycles, allowing for faster improvements and time-to-market.

Improved Product Durability

By simulating real-world conditions, manufacturers can identify potential weaknesses in their products. This proactive approach enables them to enhance the durability and longevity of their materials, ensuring better performance and customer satisfaction.

Cost-Effective Research

Conducting outdoor exposure tests can be expensive and time-consuming. UV weathering test chambers offer a cost-effective alternative by providing controlled, repeatable conditions. This control not only reduces testing costs but also minimizes the variability inherent in outdoor testing environments.

What Are the Applications of UV Weathering Test Chambers

UV weathering test chambers are utilized across various industries to ensure product reliability and performance. UV weathering test chamber manufacturers play a crucial role in providing these essential tools for testing. Here are a few key applications:

Automotive Industry

In the automotive sector, materials such as plastics, paints, and coatings must withstand prolonged exposure to sunlight and varying weather conditions. UV weathering test chambers help automotive manufacturers test the resilience of these materials, ensuring they maintain their appearance and functionality over time.

Construction Materials

Building materials, including roofing, siding, and sealants, are exposed to the elements daily. Testing these materials in a UV weathering chamber allows manufacturers to predict their lifespan and make necessary improvements to enhance durability.

Consumer Goods

Products like outdoor furniture, textiles, and packaging are constantly exposed to UV radiation and weather changes. By using UV weathering test chambers, manufacturers can ensure these goods remain attractive and functional for consumers, even after extended outdoor use.

Research and Development

In the field of materials science, researchers use UV weathering test chambers to study the degradation mechanisms of various substances. This research helps in the development of new, more resilient materials and coatings, advancing technology and innovation.

Conclusion

The UV weather resistance test chamber is an indispensable tool for industries that rely on the durability and longevity of their products. By simulating the effects of UV radiation, temperature, and humidity, these chambers provide valuable insights that drive innovation and improve product performance. From accelerated testing and improved durability to cost-effective research, the benefits of using UV weathering test chambers are clear. Embracing this technology not only ensures better products but also fosters a competitive edge in the market.

For more information about UV weathering test chambers or to discuss your specific testing needs, feel free to contact us at info@libtestchamber.com. We're here to help you achieve the highest standards of quality and reliability in your products.

References

1. ASTM G154-21: Standard Practice for Operating Fluorescent Light Apparatus for UV Exposure of Non-Metallic Materials ASTM International. (2021).

2. ISO 4892-3: Plastics – Methods of Exposure to Laboratory Light Sources – Part 3: Fluorescent UV Lamps International Organization for Standardization (ISO). (2020).

3. "Accelerated Weathering Testing: How to Test Materials for Durability" J. Smith, Materials Science Review, 2022.

4. "The Role of UV Weathering Chambers in Product Development" H. Thompson, Journal of Environmental Testing, 2021.

5. "Understanding the Effects of UV Radiation on Materials" R. Patel, Polymer Science & Engineering, 2019.

6. "Temperature and Humidity Control in UV Weathering Chambers" K. Lee, Test Chamber Technology, 2023.

Dec 25,2024

Test Procedure of JIS Z 2371 Salt Spray Test Chamber

The JIS Z 2371 salt spray test chamber operates through a systematic procedure: prepare the salt solution (5% NaCl), set chamber temperature to 35°C with 95-98% RH, position samples at designated angles (15° or 20°), activate the atomization system to maintain 1-2ml/80cm² hourly deposition, run continuous or cyclic spray programs, and collect settlement data using calibrated funnels. LIB Industry's chambers automate these steps with programmable controllers, ensuring compliance with neutral salt spray (NSS), acetic acid spray (AASS), and copper-accelerated (CASS) test protocols while maintaining precision pH control and temperature stability.

An Argentine paint coating manufacturer recently shared positive feedback on the LIB industry S-150 salt fog test machine: “The chamber has been installed, and initial tests are running perfectly.” They are using the equipment to evaluate coating durability and corrosion resistance under continuous salt fog conditions. The team appreciated its stable performance and precise environmental control, which help ensure accurate and reliable corrosion testing results.

blog-1-1


JIS Z 2371 constitutes the Japanese Industrial Standard governing salt spray corrosion testing methods. Developed by the Japanese Standards Association, this specification defines procedures for evaluating metallic and non-metallic materials' resistance to saline environments. The standard aligns with international protocols like ASTM B117 while incorporating unique Japanese precision requirements. Manufacturing sectors globally recognize JIS Z 2371 certification as evidence of superior corrosion resistance, particularly in high-humidity coastal regions where salt-laden air accelerates degradation.

The standard encompasses three distinct methodologies. Neutral Salt Spray (NSS) testing employs a 5% sodium chloride solution at pH 6.5-7.2, simulating general atmospheric corrosion. Acetic Acid Salt Spray (AASS) introduces glacial acetic acid to lower pH to 3.1-3.3, creating more aggressive conditions for decorative coatings. Copper Accelerated Acetic Acid Salt Spray (CASS) adds copper chloride to the acidic solution, dramatically intensifying corrosion rates for rapid assessment of anodized aluminum and thin organic coatings.

Automotive manufacturers utilize JIS Z 2371 protocols to validate painted body panels, fasteners, and undercarriage components. Electronics producers test printed circuit boards, connectors, and housing materials. The marine industry applies these methods to evaluate shipbuilding materials, offshore equipment, and hardware assemblies. LIB Industry's chambers accommodate diverse sample geometries through customizable holder configurations, supporting quality control across these varied applications.

Parameter	NSS Test	AASS Test	CASS Test
Chamber Temperature	35°C ± 2°C	35°C ± 2°C	50°C ± 2°C
Saturator Temperature	47°C ± 1°C	47°C ± 1°C	63°C ± 1°C
Humidity Range	95-98% RH	95-98% RH	95-98% RH

Temperature uniformity affects corrosion kinetics significantly. LIB Industry JIS Z 2371 salt spray test chamber's dual temperature control system maintains chamber conditions independent of external fluctuations through multi-layer insulation. The advanced air saturator design employs premium SUS304/316 stainless steel construction, achieving ±0.1°C precision. This eliminates thermal gradients that could skew results, ensuring consistent exposure across all sample positions.

NSS testing demands 50±5 grams of sodium chloride per liter of distilled water, while AASS requires additional glacial acetic acid to achieve pH 3.1-3.3. CASS testing incorporates 0.26±0.02 grams copper chloride per liter alongside acetic acid. Solution preparation accuracy directly impacts test validity. Our brine mixing system maintains homogeneous salt concentration through continuous circulation, preventing stratification during extended test cycles. Built-in pH monitoring ports enable quick verification without disrupting test conditions.

JIS Z 2371 specifies 1.0-2.0 milliliters of solution must collect per 80 square centimeters hourly. This measurement validates proper atomizer function and fog density. LIB Industry's movable funnel collectors position anywhere within the chamber, accommodating various sample arrangements while ensuring accurate settlement measurement. The fog measure cylinder provides graduated markings for precise volume determination. Our programmable controllers automatically log settlement data, creating audit-ready traceability documentation.

Begin by inspecting the glass fiber reinforced plastics (FRP) interior for residue from previous tests. Clean all surfaces with distilled water, avoiding abrasive materials that might damage the chamber lining. Verify the saturated air barrel contains sufficient distilled water and heating elements function correctly. Check spray nozzle integrity - LIB Industry's nozzles resist high temperatures, corrosion, and clogging, but periodic visual inspection ensures optimal atomization patterns.

Position test specimens at angles specified by the standard - typically 15° or 20° from vertical. LIB Industry's pre-calibrated V-type and O-type holders eliminate manual angle adjustments, ensuring immediate compliance. The standard configuration includes six round bars and five V-shaped grooves accommodating flat panels, threaded fasteners, and irregularly shaped components. Arrange samples so condensate drains away rather than pooling on horizontal surfaces. Maintain adequate spacing to prevent shadowing effects where one sample blocks fog exposure to adjacent pieces.

Test Type	NaCl (g/L)	Acetic Acid	CuCl₂·2H₂O (g/L)	Target pH
NSS	50 ± 5	None	None	6.5-7.2
AASS	50 ± 5	To pH	None	3.1-3.3
CASS	50 ± 5	To pH	0.26 ± 0.02	3.1-3.3

Dissolve reagents in distilled or deionized water meeting conductivity requirements below 20 μS/cm. Filter the solution to remove particulates that could clog atomizers. Fill the external salt water tank to marked levels - LIB Industry Temperature uniformity affects corrosion kinetics significantly. LIB Industry JIS Z 2371 salt spray test chamber's dual temperature control system maintains chamber conditions independent of external fluctuations through multi-layer insulation. The advanced air saturator design employs premium SUS304/316 stainless steel construction, achieving ±0.1°C precision. This eliminates thermal gradients that could skew results, ensuring consistent exposure across all sample positions.

's automatic water refill system prevents dry-running damage by monitoring reservoir levels continuously. Activate the brine circulation pump, allowing solution to equilibrate temperature and concentration before initiating spray.

Power up the chamber and access the programmable controller. LIB Industry's systems support 120 programs with 100 steps each, enabling complex cyclic protocols. Input temperature setpoints, spray duration, and rest periods matching your selected test method. NSS typically runs continuously for 24-720 hours depending on material type. AASS and CASS tests may employ alternating spray and dry cycles. The controller automatically records temperature, spray duration, and settlement data throughout execution, eliminating manual logging errors.

During testing, visually inspect the chamber through transparent observation windows without opening the door, which would disrupt temperature and humidity equilibrium. LIB Industry's modified V-shaped transparent top design prevents condensation from dripping onto specimens, maintaining test validity. Every eight hours for continuous tests, measure settlement rate using the fog collector. Document readings on standardized forms or export directly from the digital controller. The humidifier dry-combustion protection, over-temperature protection, and over-current protection systems activate automatically if parameters drift outside acceptable ranges.

Upon test completion, carefully remove samples and rinse gently with distilled water below 38°C to halt corrosion reactions. Avoid mechanical contact with corroded surfaces during rinsing. Dry specimens using clean compressed air or ambient temperature exposure. Evaluate corrosion extent according to JIS Z 2371 rating scales, documenting blister size, rust coverage percentage, and coating adhesion. Photograph specimens under standardized lighting for archival records. Clean the chamber interior thoroughly, draining residual solution and flushing spray lines with distilled water to prevent salt crystallization.

Insufficient settlement rates often indicate clogged nozzles or inadequate air pressure. LIB Industry Temperature uniformity affects corrosion kinetics significantly. LIB Industry JIS Z 2371 salt spray test chamber's dual temperature control system maintains chamber conditions independent of external fluctuations through multi-layer insulation. The advanced air saturator design employs premium SUS304/316 stainless steel construction, achieving ±0.1°C precision. This eliminates thermal gradients that could skew results, ensuring consistent exposure across all sample positions.

's nozzles feature easy-clean designs - simply remove and flush with warm distilled water. Low air pressure may require compressor adjustment or saturator barrel inspection. Uneven corrosion patterns across multiple samples suggest temperature gradients or fog distribution problems. Verify saturator operation and check for obstructions blocking air flow. pH drift during extended tests indicates solution degradation; replace the salt solution and verify reservoir contamination hasn't occurred.

blog-1-1

Durable, Leak-Resistant Workspace

blog-1-1

Flexible Sample Rack System

blog-1-1

Water-Sealed Lid Design

blog-1-1

Intelligent Controller

blog-1-1

Uniform Salt Solution Agitation

blog-1-1

Included Industrial-Grade Salt

LIB Industry manufactures six chamber models spanning 110 to 1600 liters internal volume. The compact S-150 (590×470×400mm) suits laboratory environments with space constraints, accommodating small batch testing of fasteners, connectors, or coating panels. Mid-range models S-250 and S-750 serve general manufacturing quality control needs. Large-capacity units S-010, S-016, and S-020 accommodate automotive body panels, marine equipment assemblies, and high-volume production testing. All models maintain identical temperature precision (±0.5°C fluctuation, ±2.0°C deviation) regardless of chamber size.

The saturated air barrel employs premium SUS304/316 stainless steel construction, precisely humidifying and heating compressed air while eliminating contaminants. This component delivers uniform moisture distribution with temperature control reaching ±0.1°C accuracy. Independent chamber and laboratory temperature controls prevent external interference through multi-layer insulation, isolating internal conditions from ambient fluctuations. The atomizer tower and spray nozzle system generates fog particles within the 1-40 micrometer range specified by JIS Z 2371, ensuring proper deposition characteristics.

LIB Industry's engineering team specializes in non-standard designs matching unique testing requirements. Automotive manufacturers might need extended chambers for complete door assemblies. Aerospace suppliers may require specialized holders for turbine blades or landing gear components. Our customization expertise extends to material compatibility - while standard chambers use FRP construction, certain applications demand full stainless steel interiors. Every unit includes a three-year warranty with lifetime service support. Our 24/7 global response team provides rapid assistance, with complete unit replacement available if repairs prove impossible during warranty periods.

Replace the solution when pH drifts beyond specified ranges (6.5-7.2 for NSS, 3.1-3.3 for AASS/CASS) or visible contamination appears. Continuous NSS tests exceeding 500 hours typically require weekly solution changes. Monitor settlement rates - declining deposition often indicates degraded solution chemistry requiring replacement.

Quality chambers like LIB Industry's models accommodate all three methodologies through programmable temperature control and solution flexibility. CASS testing requires higher temperatures (50°C versus 35°C), which modern dual-control systems handle seamlessly. Thorough cleaning between test types prevents cross-contamination affecting result validity.

Uneven corrosion typically results from improper sample positioning blocking fog exposure, temperature gradients within the chamber, or condensate dripping. Position specimens at correct angles using calibrated holders, verify saturator function maintains uniform temperature distribution, and ensure the chamber's anti-drip top design prevents condensation from contaminating samples during testing.

LIB Industry delivers turn-key JIS Z 2371 salt spray test chamber solutions as a trusted manufacturer and supplier. Our Japanese-engineered chambers combine precision controls, robust FRP construction, and customizable configurations tailored to your testing requirements. From initial design through installation and training, we provide comprehensive support backed by ISO 9001 certification and CE compliance. Contact our technical team at ellen@lib-industry.com to discuss your corrosion testing needs today.

Jun 8,2026

ASTM G155 Compliance: A Guide to Xenon Arc Testing

ASTM G155 compliance ensures standardized xenon arc weathering tests that accurately predict material degradation under outdoor exposure conditions. This American Society for Testing and Materials standard defines precise protocols for operating xenon test chambers, including spectral power distribution, irradiance levels, temperature control, and moisture cycling. The standard establishes multiple practice cycles addressing different exposure environments - from automotive exterior components to architectural coatings and polymeric materials. A xenon test chamber meeting ASTM G155 requirements features calibrated irradiance monitoring at 340nm or 420nm wavelengths, controlled black panel temperature (35-85°C), programmable humidity (30-98% RH), and water spray systems simulating rain. Compliance verification involves periodic radiometer calibration, filter transmittance checks, and temperature sensor validation. Manufacturers adhering to ASTM G155 protocols generate internationally recognized test data supporting product warranties, regulatory approvals, and customer specifications across automotive, construction, plastics, and coatings industries.

What ASTM G155 Means for Weathering Test Accuracy?

Standardization Eliminates Inter-Laboratory Variability

Material weathering assessment historically suffered from inconsistent methodologies producing incomparable results across testing facilities. ASTM G155 addresses this challenge by prescribing explicit equipment specifications, calibration procedures, and operating parameters. When laboratories worldwide execute identical ASTM G155 Practice cycles, they generate comparable data regardless of geographic location or equipment manufacturer. This standardization enables suppliers in Asia to qualify materials against North American specifications using locally-conducted testing, accelerating global supply chains and reducing qualification costs.

Spectral Distribution Matching Natural Sunlight

Xenon arc lamps produce continuous spectra from ultraviolet through visible to infrared wavelengths closely approximating natural sunlight. ASTM G155 mandates specific optical filter systems - daylight filters for outdoor exposure simulation or window glass filters for interior applications. These filters modify xenon output to match terrestrial solar radiation reaching earth's surface after atmospheric attenuation. The standard specifies allowable spectral power distribution tolerances ensuring photochemical degradation mechanisms in test chambers mirror outdoor weathering processes rather than introducing artifacts from non-representative wavelengths.

Reproducibility Through Controlled Variables

Natural outdoor exposure involves uncontrolled variables - seasonal irradiance fluctuations, unpredictable precipitation, temperature variations, and pollution levels. ASTM G155 eliminates these variables through precise parameter control. Closed-loop irradiance monitoring maintains constant UV exposure intensity compensating for lamp aging. Programmable temperature and humidity cycling replicate specific climate conditions repeatably. This controlled reproducibility enables comparative material testing, accelerated aging factor determination, and statistically valid performance prediction impossible with outdoor weathering alone.

Testing Approach	Variable Control	Timeline	Data Comparability
Natural Outdoor Exposure	Uncontrolled environmental fluctuation	1-5 years	Geographic location dependent
ASTM G155 Xenon Testing	Precise programmed parameters	Weeks to months	High inter-laboratory agreement
Non-Standard Xenon Testing	Variable protocols	Weeks to months	Poor cross-facility comparison

Key Components of an ASTM G155 Xenon Test Chamber

ASTM G155 and ISO 4892-2 for Xenon Arc Chamber Weatherometer

Water-Cooled Xenon Arc Lamp System

ASTM G155 performance relies on stable, high-intensity xenon arc lamps. The 4500W water-cooled xenon lamp employed in LIB Industry chambers delivers consistent spectral output throughout 1,600-2,000 hour service life. Water cooling prevents thermal degradation of optical components and maintains stable arc positioning. The standard requires specific lamp operating parameters - current, voltage, and cooling water temperature - documented in test reports. Lamp replacement timing follows manufacturer specifications or when irradiance calibration reveals output degradation exceeding compensation range.

Optical Filter Configuration

Filter selection fundamentally determines test relevance. ASTM G155 defines multiple filter types addressing different exposure scenarios. Type 1 daylight filters (borosilicate inner and outer filters) simulate outdoor exposure including UV wavelengths down to 295nm. Type 2 window glass filters attenuate UV below 310nm representing interior exposure through automotive or architectural glass. The xenon test chamber must accommodate interchangeable filter systems enabling laboratories to conduct multiple standard practices using single equipment. Filter transmittance verification through spectrophotometry ensures compliance throughout filter service life.

Irradiance Monitoring and Control Technology

Solar Eye radiometer technology continuously measures irradiance at critical wavelengths - 340nm or 420nm per ASTM G155 specifications. The closed-loop control system automatically adjusts lamp power compensating for output degradation, maintaining set irradiance levels (typically 0.35-1.50 W/m²/nm at 340nm) within ±5% tolerance. This precision eliminates irradiance variability as an uncontrolled test variable. The standard mandates radiometer calibration against NIST-traceable reference standards annually, with calibration certificates documenting measurement accuracy and traceability chain.

Selecting Exposure Cycles for Different Materials

Practice A: General Outdoor Weathering

ASTM G155 Practice A (Cycle 1) represents the most commonly specified protocol for general outdoor material exposure. The cycle alternates 102-minute light exposure at 0.35 W/m²/nm (340nm) with 18-minute light plus water spray, operating continuously. Black panel temperature maintains 63°C during dry periods and 47°C during spray. This cycle simulates moderate outdoor weathering suitable for coatings, plastics, and textiles. Many industries reference "ASTM G155 Cycle 1" as baseline qualification requirement establishing minimum weathering resistance expectations.

Practice B: Enhanced UV Exposure

Practice B employs elevated irradiance (0.55 W/m²/nm at 340nm) and higher black panel temperature (70°C) accelerating degradation compared to Practice A. The enhanced UV intensity targets materials serving high-solar-exposure applications - automotive exteriors in desert climates, architectural facades in tropical regions, or outdoor recreational equipment. The increased acceleration factor reduces test duration but requires validation that degradation mechanisms remain representative of natural weathering rather than introducing thermal-only artifacts absent from actual service conditions.

Custom Cycles for Specific Applications

Beyond prescribed practices, ASTM G155 permits custom cycles addressing unique application requirements. Automotive OEMs develop proprietary cycles incorporating industry-specific knowledge - extended dry periods representing garage storage, intense spray simulating car washing, or temperature cycling matching engine heat exposure. These custom protocols leverage ASTM G155 equipment specifications and calibration requirements while tailoring exposure sequences to application-specific weathering scenarios. A xenon test chamber with programmable controllers enables flexible cycle development supporting both standard and customized testing needs.

ASTM G155 Practice	Irradiance (340nm)	Black Panel Temp	Spray Cycle	Typical Applications
Practice A, Cycle 1	0.35 W/m²/nm	63°C dry / 47°C wet	102 min dry / 18 min spray	General outdoor coatings, plastics
Practice B	0.55 W/m²/nm	70°C	Programmable cycles	Automotive exteriors, accelerated testing
Custom Protocols	Variable per specification	Application-specific	User-defined sequences	Industry-specific qualification

Controlling Irradiance, Temperature, and Humidity Parameters

Black Panel Temperature Precision

Black panel temperature (BPT) represents actual surface temperature of dark-colored materials under solar loading - often 20-30°C above ambient air temperature. ASTM G155 mandates BPT control rather than chamber air temperature because BPT directly correlates with material degradation rates. LIB Industry xenon test chambers achieve ±2°C BPT accuracy across the 35-85°C range through calibrated black panel thermometers and responsive control systems. The rotating sample rack ensures uniform air circulation preventing temperature stratification. BPT sensor calibration verification occurs semi-annually using certified reference thermometers.

Humidity Control and Measurement

Relative humidity significantly influences weathering mechanisms - hydrolysis reactions, dimensional changes, and coating permeability. ASTM G155 specifies humidity ranges (typically 50-98% RH) during defined cycle phases. The external stainless steel surface evaporation humidifier employed in LIB xenon test chambers generates consistent moisture independent of chamber temperature fluctuations. Humidity sensors positioned in representative chamber locations monitor RH with ±5% deviation tolerance. Achieving stable humidity during simultaneous heating and water spray challenges environmental chamber design - requiring coordinated heating, spray timing, and ventilation management maintaining specified conditions.

Irradiance Uniformity Across Sample Plane

Spatial irradiance variation within the exposure area affects sample comparability. ASTM G155 acknowledges inherent gradients in xenon chambers radiating from central lamp sources. The standard addresses uniformity through rotating sample racks - specimens continuously rotate around the xenon lamp ensuring time-averaged equal exposure. The 42-specimen capacity rotating rack in LIB Industry chambers completes rotations at optimized speeds distributing irradiance uniformly. Irradiance mapping studies verify acceptable variation (typically <10% across the specimen plane) documenting compliance with uniformity requirements.

Common Compliance Challenges in Xenon Arc Testing

Radiometer Calibration Maintenance

Irradiance measurement accuracy directly impacts test validity and inter-laboratory comparability. ASTM G155 requires annual radiometer calibration against NIST-traceable standards. Calibration drift between verification intervals introduces measurement uncertainty affecting irradiance control accuracy. Organizations conducting high-volume testing benefit from maintaining multiple calibrated radiometers enabling cross-verification detecting unexpected drift. Some laboratories implement quarterly calibration schedules for critical applications exceeding minimum annual requirements. Calibration certificates documenting traceability chain and measurement uncertainty must accompany test reports for regulatory submissions.

Filter Degradation and Replacement Timing

Optical filters gradually degrade through UV exposure, thermal cycling, and water spray impact. Transmittance changes alter spectral power distribution potentially invalidating test conditions. ASTM G155 doesn't mandate specific filter replacement intervals - manufacturers provide guidance based on cumulative exposure hours (typically 1,500-2,500 hours). Prudent practice involves periodic spectrophotometric verification comparing current filter transmittance against new filter specifications. Significant deviation (>5% transmittance change at critical wavelengths) necessitates replacement even if manufacturer intervals haven't elapsed. Filter replacement costs represent substantial operating expenses requiring budgetary planning.

Documentation and Traceability Requirements

ASTM G155 compliance demands comprehensive documentation beyond simply operating equipment per specified parameters. Required records include lamp operating hours, filter service life, radiometer calibration certificates, black panel thermometer verification, humidity sensor calibration, water spray flow rate verification, and complete test cycle programming. Many regulatory authorities and customer specifications require test reports documenting equipment calibration status, environmental parameter logs, and sample identification traceability. A xenon test chamber with automated data logging via Ethernet connectivity streamlines documentation compliance, capturing continuous parameter histories eliminating manual record-keeping gaps.

Compliance Element	Verification Frequency	Documentation Required
Radiometer Calibration	Annual (minimum)	NIST-traceable calibration certificate
Black Panel Thermometer	Semi-annual	Calibration verification record
Humidity Sensor	Annual	Calibration certificate or verification
Filter Transmittance	Per manufacturer or when suspect	Spectrophotometric measurement data
Water Spray Flow Rate	Monthly	Flow measurement log

How ASTM G155 Supports Global Product Qualification?

Automotive Industry Acceptance

Global automotive manufacturers reference ASTM G155 protocols extensively for exterior materials qualification - paints, plastics, elastomers, and textiles. OEM specifications commonly mandate "96 hours ASTM G155 Cycle 1 with <ΔE 2.0 color change" or similar performance criteria. Tier suppliers worldwide conducting ASTM G155 testing generate data directly comparable to OEM internal testing, streamlining qualification processes. Some manufacturers supplement ASTM G155 with SAE J2527 automotive-specific weathering standards, but G155 remains foundational protocol. A xenon test chamber capable of executing multiple ASTM and SAE protocols provides flexibility addressing diverse customer requirements.

Building Materials and Architectural Applications

Construction materials endure decades of outdoor exposure requiring validated durability. Architectural coatings, vinyl siding, roofing membranes, and window frames undergo ASTM G155 testing demonstrating weathering resistance. Building codes and green building certifications increasingly reference accelerated weathering performance. ASTM G155 test data supports warranty claims - manufacturers offering 20-year fade warranties validate performance through extended xenon chamber exposure. The ability to accelerate years of weathering into months enables product development cycles matching construction industry timelines while providing empirical durability evidence.

Regulatory Compliance and International Harmonization

While ASTM standards originate from American organizations, ASTM G155 enjoys global recognition. European manufacturers cite G155 alongside ISO 4892-2 (xenon arc weathering) given substantial protocol harmonization. Japanese JIS standards reference similar xenon testing methodologies. This international acceptance enables manufacturers to conduct single test programs satisfying multiple geographic markets rather than duplicating testing per regional standards. Regulatory agencies evaluating product safety and performance recognize ASTM G155 data, particularly when accompanied by third-party laboratory certification from accredited facilities (ISO 17025).

LIB Industry Supports Full ASTM G155 Compliant Testing Solutions

Xenon Arc Chamber Weatherometer

xenon lamp and filters

Precision Engineered Xenon Test Chambers

LIB Industry's XL-S-750 model embodies comprehensive ASTM G155 compliance through purpose-built design. The 4500W water-cooled xenon arc lamp with interchangeable filter systems supports all standard practices and custom cycles. The 950×950×850mm internal chamber accommodates 42 specimens (95×200mm) on the continuously rotating rack ensuring uniform exposure. Irradiance control maintains 35-150 W/m² (measured 300-400nm bandwidth) at specified wavelengths (340nm or 420nm) through Solar Eye radiometer feedback. This flexibility enables laboratories to conduct diverse testing protocols using single equipment investment.

Advanced Environmental Control Systems

Achieving ASTM G155's stringent parameter tolerances requires sophisticated control engineering. The mechanical compression refrigeration system enables chamber temperature range from ambient to 100°C with ±2°C stability. Black panel temperature control spans 35-85°C with identical ±2°C accuracy. The external isolation stainless steel surface evaporation humidifier delivers 50-98% RH with ±5% deviation. Programmable water spray cycles (adjustable 1-9999 hours, 59 minutes) replicate precipitation patterns. The programmable color LCD touchscreen controller stores complex multi-segment test programs executing ASTM practices automatically, reducing operator programming errors and ensuring protocol consistency.

Quality Assurance and Global Support

Every LIB Industry xenon test chamber undergoes factory acceptance testing verifying ASTM G155 parameter compliance before shipment. CE certification demonstrates conformity with European safety and electromagnetic compatibility directives. Third-party validation by SGS and TUV provides independent performance verification. The comprehensive 3-year warranty backed by lifetime service commitment protects testing program continuity. LIB's global service network spanning 29 locations across North America, Europe, and Asia provides local-language technical support, calibration services, and spare parts availability. This infrastructure ensures laboratories maintain ASTM G155 compliance throughout equipment operational life.

LIB XL-S-750 Feature	Specification	ASTM G155 Compliance Benefit
Xenon Lamp Power	4500W water-cooled	Stable spectral output, long service life
Irradiance Range	35-150 W/m² (300-400nm)	Supports all standard practice intensities
Wavelength Monitoring	340nm or 420nm selectable	Meets irradiance measurement requirements
BPT Control	35-85°C, ±2°C accuracy	Precise temperature parameter compliance
Humidity Range	50-98% RH, ±5% deviation	Full moisture cycling capability
Sample Capacity	42 specimens with rotation	High throughput with exposure uniformity
Filter Options	Daylight, window glass, custom	Accommodates all ASTM G155 practices

Conclusion

ASTM G155 compliance transforms xenon arc weathering testing from equipment operation into standardized scientific methodology generating internationally recognized performance data. By prescribing explicit equipment specifications, calibration requirements, and operating protocols, the standard enables reproducible material evaluation supporting product development, supplier qualification, and regulatory compliance. LIB Industry's xenon test chambers combine precise environmental control, comprehensive compliance features, and global support infrastructure delivering reliable ASTM G155 testing solutions. Organizations implementing standardized weathering protocols gain competitive advantages through accelerated development cycles, reduced field failures, and enhanced product quality validated through recognized testing methodologies.

FAQ

Can a single xenon test chamber support both ASTM G155 and ISO 4892 testing protocols?

Modern xenon chambers with flexible programming capabilities support both standards given substantial harmonization between ASTM G155 and ISO 4892-2 xenon procedures. Key differences involve minor parameter variations and terminology - both specify similar irradiance levels, temperature control, and moisture cycling. Chambers with programmable controllers, interchangeable filters, and multi-language interfaces enable laboratories to execute American, European, and Asian standards using identical equipment, maximizing capital investment utilization.

How do I establish correlation between ASTM G155 exposure hours and outdoor weathering duration?

Correlation studies require parallel exposure - identical samples undergoing simultaneously outdoor weathering at representative sites and ASTM G155 chamber testing. Comparing degradation metrics (color change, gloss loss, mechanical properties) establishes site-specific correlation factors. Florida and Arizona outdoor exposure sites provide reference data. Correlation varies by material chemistry, making universal hour-to-month conversions unreliable. Conservative approaches use 1:3-8 acceleration factors depending on material class and exposure intensity.

What maintenance schedule ensures continued ASTM G155 compliance throughout chamber operational life?

Annual radiometer calibration represents the critical compliance requirement. Additional maintenance includes semi-annual black panel thermometer verification, annual humidity sensor calibration, monthly water spray flow rate checks, and periodic filter transmittance verification. Xenon lamp replacement occurs every 1,600-2,000 operating hours based on irradiance control range. Water purification system filter replacement follows manufacturer schedules. LIB Industry provides comprehensive maintenance protocols and offers service contracts ensuring uninterrupted compliance and minimizing unplanned downtime.

Partner with a Leading Xenon Test Chamber Manufacturer

LIB Industry specializes in delivering comprehensive environmental testing solutions as a trusted xenon test chamber manufacturer and supplier. Our turn-key services encompass design consultation, production, installation, calibration, and technical training customized to your ASTM G155 compliance requirements. Contact our engineering team at ellen@lib-industry.com to discuss xenon chamber configurations optimized for your specific testing applications and international standard adherence needs.

Jun 8,2026

Accelerated Weathering Testing for Outdoor LED Products

Accelerated weathering testing for outdoor LED products evaluates how prolonged UV radiation, temperature fluctuations, and moisture exposure affect critical components like polycarbonate lenses, housing materials, and protective coatings. An accelerated weathering tester simulates years of outdoor exposure within weeks using xenon arc lamps that replicate the complete solar spectrum. Testing protocols assess lens yellowing, impact resistance degradation, seal integrity loss, and coating adhesion failures that compromise LED performance. By exposing samples to controlled cycles of irradiance (35-150 W/㎡), temperature variations (35-100°C), and humidity (50-98% RH), manufacturers identify design weaknesses before market deployment. This methodology ensures outdoor LED luminaires maintain optical efficiency, weather protection, and aesthetic appearance throughout their projected 50,000+ hour operational lifespan.

Environmental Challenges Facing Outdoor LED Systems

blog-404-405

Solar Radiation Photodegradation

Outdoor LED fixtures endure relentless ultraviolet bombardment that breaks molecular bonds in polymeric materials. The 280-400nm UV spectrum drives photochemical reactions causing lens discoloration, diffuser brittleness, and housing embrittlement. High-power streetlights positioned without canopy protection receive annual UV doses equivalent to 150 kWh/m², accelerating material breakdown that reduces light transmission and structural integrity.

Thermal Cycling Stress

LED luminaires experience dramatic temperature swings between daytime solar heating and nighttime cooling. Metal housings in desert climates reach 85°C surface temperatures while internal electronics generate additional heat. These thermal cycles induce differential expansion between dissimilar materials - aluminum heat sinks, polycarbonate optics, and silicone seals - creating mechanical stress that propagates cracks and compromises ingress protection ratings.

Moisture Infiltration Mechanisms

Rain, fog, and condensation challenge LED enclosure designs. Water intrusion corrodes electrical connections, fogs optical cavities, and accelerates photodegradation through combined UV-moisture attack. Coastal installations face additional salt spray corrosion affecting aluminum die-cast housings and stainless steel fasteners. IP65/IP66 ingress protection requires validated seal performance across temperature and humidity extremes.

Environmental Factor	Impact on LED Components	Failure Mechanism
UV Radiation (280-400nm)	Polycarbonate lens yellowing	Photooxidation, chromophore formation
Thermal Cycling (-40°C to +85°C)	Seal degradation, housing cracks	Differential thermal expansion
Humidity & Condensation	Electrical corrosion, optics fogging	Moisture infiltration, galvanic corrosion

UV Exposure Effects on LED Housing Materials

Polycarbonate Lens Degradation

Polycarbonate dominates outdoor LED optics due to impact resistance and optical clarity. Unprotected polycarbonate yellows dramatically under UV exposure as photooxidation creates aromatic ketone chromophores. Transmission losses exceeding 20% within two years reduce luminaire efficacy below specification. UV-stabilized grades incorporating benzotriazole absorbers and hindered amine light stabilizers extend service life, requiring validation through accelerated weathering tester protocols.

Acrylic Diffuser Embrittlement

Polymethyl methacrylate (PMMA) diffusers offer superior light transmission but inferior weathering resistance compared to polycarbonate. Extended UV exposure causes surface crazing - microscopic cracks that scatter light and harbor contaminants. Impact resistance declines sharply as crosslink density increases through photooxidative chain scission. Accelerated testing quantifies embrittlement through standardized impact testing post-UV exposure.

Powder Coating Chalking and Erosion

Die-cast aluminum housings receive polyester or polyurethane powder coatings providing corrosion protection and aesthetic finish. UV-induced binder degradation manifests as surface chalking - loose pigment particles indicating resin breakdown. Coating erosion exposes substrate to corrosion initiation. High-durability polyester-TGIC and acrylic-polyurethane systems demonstrate superior gloss retention and chalking resistance validated through xenon arc weathering chamber testing.

Temperature and Humidity Cycling in LED Reliability Testing

Black Panel Temperature Simulation

The black panel thermometer within accelerated weathering testers measures actual surface temperatures under solar loading - the realistic condition LED housings experience. Dark-colored aluminum luminaires reach BPT values 20-30°C above ambient, driving accelerated thermal aging. LIB Industry accelerated weathering testers maintain BPT precision of ±2°C across the 35-85°C range, enabling accurate thermal stress simulation.

Condensation and Spray Cycles

Programmable water spray systems replicate rain events and dew formation. Alternating dry irradiation with spray intervals (adjustable 1-9999 hours) creates wet/dry cycling that stresses gasket seals and tests drain path effectiveness. Water purification systems ensure spray water lacks minerals that could create misleading deposit artifacts. This cycling reveals seal compression set and adhesive bond degradation invisible during dry-only testing.

Combined Environmental Stress Testing

Realistic weathering combines simultaneous UV, temperature, and moisture exposure. Synergistic effects exceed individual stressor impacts - elevated temperature accelerates UV-driven polymer degradation while moisture hydrolyzes stabilizer additives. Test protocols incorporating 8-hour UV exposure at 70°C BPT followed by 4-hour spray at reduced irradiance compress years of actual exposure into weeks while maintaining degradation mechanism fidelity.

Test Parameter	LIB Accelerated Weathering Tester	Outdoor LED Application
Irradiance Control	35-150 W/㎡ at 340nm or 420nm	Simulates global solar conditions
Black Panel Temperature	35-85°C (±2°C accuracy)	Matches dark housing surface temps
Humidity Range	50-98% RH (±5% deviation)	Covers humid tropical to arid climates
Water Spray Cycling	Programmable intervals	Replicates rain and condensation

Evaluating Lens Clarity and Coating Durability

Spectrophotometric Transmission Measurement

LED optical performance depends on maintaining lens transmission across visible wavelengths. Spectrophotometric analysis at 400-700nm quantifies yellowing through yellowness index (YI) calculations per ASTM E313. Premium UV-stabilized polycarbonate maintains YI below 3.0 after weathering equivalent to five-year outdoor exposure, while unstabilized materials exceed YI 10.0, indicating severe discoloration affecting color rendering.

Haze and Clarity Assessment

Surface degradation creates light scattering measured as haze percentage per ASTM D1003. Clean polycarbonate exhibits haze below 2%, while weathered samples developing surface microcracks show haze exceeding 15%. This scattering reduces contrast and visual comfort in architectural lighting applications. Accelerated weathering tester protocols identify haze development rates guiding material selection and stabilizer optimization.

Anti-Reflective and Hydrophobic Coating Adhesion

Advanced LED optics incorporate multi-layer coatings enhancing transmission and preventing dirt accumulation. UV exposure and moisture cycling stress coating-substrate interfaces. Tape adhesion testing post-weathering per ASTM D3359 quantifies coating retention - critical as delaminated coatings reduce performance below uncoated optics. Silane coupling agents and plasma surface treatments improve durability validated through xenon arc exposure.

Standards for Outdoor LED Weather Resistance Testing

ASTM G155 Xenon Arc Exposure

ASTM G155 provides standardized xenon arc weathering procedures applicable to outdoor LED components. Practice A specifies daylight filters with controlled irradiance and spray cycles. LED manufacturers adapt these protocols to emphasize critical wavelengths - 340nm for polymer degradation assessment. Minimum 1,000-hour exposures provide preliminary screening while 2,000+ hour tests enable long-term performance prediction.

IEC 60598 and IP Rating Verification

IEC 60598-1 establishes safety requirements for luminaires including housing durability. While the standard doesn't mandate specific weathering tests, IP ingress protection ratings (IP65/IP66/IP67) require seal integrity verification. Accelerated weathering followed by IP testing validates that UV-aged gaskets maintain compression and that housing materials resist cracking that compromises protection ratings.

LM-80 and TM-21 Lumen Maintenance Extrapolation

LED lumen depreciation testing per LM-80 occurs at elevated temperatures but excludes UV and moisture. Comprehensive outdoor LED qualification combines thermal LM-80 data with optical component weathering results from accelerated weathering testers. TM-21 lifetime projections incorporate both LED chip degradation and optical system transmission losses, providing realistic performance predictions.

Testing Standard	Scope	Relevance to Outdoor LEDs
ASTM G155	Xenon arc weathering procedures	Validates housing, lens, coating durability
IEC 60598-1	Luminaire safety and construction	Establishes ingress protection requirements
LM-80/TM-21	LED lumen maintenance	Quantifies light source degradation (excludes optics)

Extending LED Product Lifespan with Accelerated Weathering Tests

Material Selection Optimization

Comparative weathering testing guides informed material decisions. Testing multiple polycarbonate grades with varying UV stabilizer packages reveals cost-performance relationships. A 15% material cost increase for premium UV-stabilized resin may deliver 200% longer optical clarity retention - economically justified for high-value architectural installations. Accelerated weathering tester data transforms material selection from supplier claims to validated performance metrics.

Coating System Development

LED housing finishes require balancing aesthetics, corrosion protection, and UV durability. Accelerated weathering enables rapid coating formulation iteration - testing alternative resin chemistries, pigment selections, and topcoat systems. Quantitative gloss retention and color stability data after 1,500-hour xenon exposure identifies optimal systems before expensive field trials. This methodology compressed development cycles from years to months.

Quality Control and Supplier Validation

Manufacturing consistency directly impacts field performance. Periodic accelerated weathering testing of production components verifies supplier adherence to specifications. Detecting formulation drift - reduced UV stabilizer levels cutting costs - before product shipment prevents warranty claims and brand damage. Establishing weathering acceptance criteria creates objective quality gates protecting long-term reliability.

LIB Industry Ensures UV and Climate Resistance Validation for LEDs

blog-1-1

Xenon Arc Chamber Weatherometer

xenon lamp and filters

Full Spectrum Xenon Arc Technology

LIB Industry's accelerated weathering tester features a 4500W water-cooled xenon arc lamp delivering stable spectral output across 280-800nm wavelength range. Multiple interchangeable filter systems - daylight, window glass, and UV-extended configurations - enable testing under various exposure conditions. The 1,600-hour lamp lifespan with consistent output ensures repeatable long-duration testing essential for LED qualification programs.

Precision Environmental Control Systems

The intelligent PID control system maintains black panel temperature stability (±2°C) and humidity precision (±2.5% RH) throughout extended test cycles. This accuracy ensures consistent dose delivery critical for comparative testing. The rotating specimen holder accommodates 42 LED components simultaneously, with continuous rotation guaranteeing uniform exposure eliminating positional bias. Real-time monitoring through Ethernet/Wi-Fi connectivity enables remote supervision.

Comprehensive Testing Capabilities

LIB weathering chambers integrate multiple environmental stressors in programmable sequences. Alternate 8-hour UV exposure at 0.55 W/㎡@340nm and 70°C BPT with 4-hour spray cycles and condensation periods. This flexibility enables customized protocols matching specific geographic deployment conditions - tropical high-humidity, desert high-UV, or temperate moderate exposure. The closed-loop water circulation system with multi-stage filtration supports economical operation.

LIB Weathering Tester Feature	Specification	LED Testing Advantage
Xenon Lamp System	4500W water-cooled, 1600hr lifespan	Stable full-spectrum simulation
Sample Capacity	42 specimens with rotation	High-throughput component testing
Irradiance Range	35-150 W/㎡, 340nm/420nm	Adjustable intensity for various climates
Temperature Control	Ambient-100°C chamber, BPT 35-85°C	Replicates global deployment conditions
Humidity Capability	50-98% RH with ±5% control	Comprehensive moisture exposure

Conclusion

Accelerated weathering testing represents an essential validation step for outdoor LED products facing harsh environmental exposure throughout multi-decade service lives. By subjecting critical optical and protective components to controlled UV radiation, temperature cycling, and moisture stress, manufacturers identify design vulnerabilities before market release. LIB Industry's advanced weathering testing systems deliver the spectral accuracy, environmental control precision, and testing flexibility required for comprehensive LED reliability validation. Implementing rigorous weathering protocols ensures outdoor LED luminaires maintain optical performance, structural integrity, and aesthetic appearance across diverse global climates.

FAQ

How does accelerated weathering testing correlate with actual outdoor LED performance?

Correlation studies comparing accelerated weathering tester results with outdoor exposure sites establish equivalency factors. Typical xenon arc testing at elevated irradiance delivers 4:1 to 8:1 acceleration, meaning 1,000 chamber hours approximates 1-2 years outdoors. Geographic-specific correlation accounts for latitude, altitude, and climate affecting actual UV dose and temperature exposure.

What LED components require accelerated weathering evaluation?

All optically-critical and environmentally-exposed components need testing: polycarbonate lenses, acrylic diffusers, silicone gaskets, powder-coated housings, printed graphics, and UV-cured adhesives. Even internal components near optical cavities warrant evaluation as secondary light paths can transmit UV into enclosed spaces. Comprehensive testing prevents unexpected field failures.

Can accelerated weathering testing predict exact LED product lifespan?

Weathering testing provides comparative degradation rates rather than absolute lifespan predictions. Combined with thermal testing (LM-80) and electrical stress data, manufacturers develop probabilistic lifetime models. Testing identifies which component fails first - chip degradation versus optical transmission loss - enabling targeted improvements. Regular testing revision incorporating field return analysis refines predictive accuracy.

Partner with a Leading Accelerated Weathering Tester Manufacturer

LIB Industry delivers comprehensive environmental testing solutions as a trusted accelerated weathering tester manufacturer and supplier. Our turn-key services encompass design, production, installation, commissioning, and technical training customized to your LED product testing requirements. Contact our engineering team at ellen@lib-industry.com to discuss weathering test chamber configurations optimized for outdoor LED component validation.

Jun 5,2026

Why Plastic Manufacturers Need Xenon Weathering Tests?

Plastic manufacturers face mounting pressure to deliver products that withstand years of outdoor exposure without compromising appearance or structural integrity. Xenon weathering tests conducted in a xenon test chamber provide the critical answer to this challenge by simulating decades of real-world conditions in just weeks or months. Through controlled exposure to UV radiation, temperature fluctuations, and moisture cycles, these tests reveal how plastic formulations respond to environmental stress before products reach the market. This accelerated aging process helps manufacturers identify weaknesses, optimize material selection, refine stabilizer packages, and confidently predict product lifespan - ultimately protecting brand reputation and reducing costly field failures.

Xenon Arc Accelerated Weathering Chamber

Understanding UV Degradation in Plastic Materials

The Photochemical Process Behind Plastic Deterioration

When plastic materials encounter ultraviolet radiation, photons with sufficient energy break molecular bonds within the polymer chains. This photochemical reaction initiates a cascade of degradation processes that fundamentally alter the material's properties. The carbon-hydrogen bonds in most plastics absorb UV wavelengths between 290-400nm, triggering free radical formation. These reactive molecules propagate chain scission reactions, creating shorter polymer segments that compromise mechanical strength and surface characteristics.

Visible Signs of UV-Induced Damage

Surface chalking represents one of the earliest indicators of photodegradation, appearing as a powdery residue when UV exposure breaks down polymer chains near the surface. Color shifts occur as chromophores within pigments or the base polymer undergo chemical changes, typically manifesting as yellowing, fading, or complete discoloration. Gloss reduction follows as surface roughness increases from differential degradation rates across the material matrix.

Long-Term Structural Consequences

Beyond aesthetic deterioration, UV exposure severely impacts mechanical performance. Tensile strength declines as polymer chain length decreases, making materials brittle and prone to cracking under stress. Impact resistance drops dramatically when degraded surface layers propagate fractures through the bulk material. Dimensional stability suffers as cross-linking or chain scission alters the polymer network, leading to warping or shrinkage that compromises assembly tolerances.

How Xenon Exposure Simulates Outdoor Environments?

Xenon Arc Accelerated Weathering Chamber

Spectral Matching with Natural Sunlight

A xenon test chamber employs water-cooled xenon arc lamps that generate a continuous spectrum remarkably similar to solar radiation reaching Earth's surface. Unlike fluorescent UV lamps that produce discrete spectral lines, xenon sources deliver broad-spectrum output from 290nm through the visible range into infrared wavelengths. Advanced optical filter systems customize this output to match specific exposure conditions - whether simulating direct sunlight through window glass or outdoor weathering with full UV spectrum.

Controlled Environmental Parameters

Temperature management within xenon test chambers goes beyond simple heating. Black panel temperature sensors measure the actual surface temperature of dark-colored specimens, which often exceeds ambient air temperature by 20-30°C under intense irradiation. This metric better represents real-world conditions where black automotive dashboards or dark building panels experience extreme thermal stress. Humidity control adds another dimension, cycling between dry periods and high-moisture conditions that accelerate hydrolytic degradation mechanisms.

Accelerated Time Compression

The fundamental advantage of xenon weathering lies in concentrating months or years of outdoor exposure into manageable test durations. By operating at irradiance levels of 0.35 to 1.5 W/m² at 340nm - significantly higher than typical outdoor conditions - test cycles compress aging timelines while maintaining proportional degradation mechanisms. A properly designed test protocol achieves reliable correlation factors, where 1000 hours of chamber exposure equates to specific outdoor exposure periods depending on geographic location and application.

Common Plastic Failures Detected During Weathering Tests

Color Stability Failures

Color shift measurements using spectrophotometry reveal how pigment systems respond to sustained UV bombardment. Organic colorants often show significant fading within 500-1000 hours of xenon exposure, while inorganic pigments generally demonstrate superior lightfastness. Manufacturers testing automotive exterior trim discover whether their chosen colorant package maintains acceptable ΔE values below 2-3 units, the threshold where human eyes perceive noticeable color differences.

Mechanical Property Degradation

Tensile testing at intervals throughout xenon exposure quantifies strength retention. High-density polyethylene formulations without adequate UV stabilizers may lose 40-60% of original tensile strength after 2000 hours exposure. Elongation at break typically declines even more dramatically, dropping from 500% to below 50% as chain scission creates brittle surface layers. Impact testing reveals embrittlement that renders products susceptible to catastrophic failure during handling or use.

Surface Integrity Breakdown

Microscopic examination after weathering cycles exposes surface cracking patterns invisible to naked eyes. Micro-cracks initiated at stress concentration points propagate through degraded polymer matrices, eventually creating visible crazing networks. Gloss measurements track surface roughening quantitatively - initial gloss values of 85-90 units declining to 30-40 units signal significant surface deterioration. Adhesion testing evaluates whether coatings or printing remain bonded to substrates after UV exposure compromises surface chemistry.

Table 1: Common Degradation Modes Detected in Xenon Weathering Tests

Degradation Type	Initial Detection Time	Measurement Method	Acceptance Criteria
Color Fading	200-500 hours	Spectrophotometry (ΔE)	ΔE < 3.0
Gloss Reduction	300-800 hours	60° Gloss Meter	>50% retention
Tensile Strength Loss	500-1500 hours	ASTM D638	>70% retention
Surface Cracking	800-2000 hours	Visual/Microscopy	No visible cracks
Embrittlement	1000-2500 hours	Impact Testing	>60% retention

Industry Standards for Plastic Weathering Evaluation

ISO 4892 Series Requirements

The ISO 4892 standard series provides comprehensive guidance for xenon arc weathering tests conducted in a xenon test chamber across multiple parts. ISO 4892-2 specifically addresses xenon lamp exposure methods, defining filter types, irradiance levels, temperature parameters, and moisture cycling protocols. Manufacturers targeting European markets rely on these specifications to ensure testing aligns with regulatory expectations and customer requirements.

ASTM G155 Protocol Details

ASTM G155 offers detailed procedures for xenon arc exposure testing adapted to North American industry practices. This standard outlines specific test cycles including continuous light exposure, light with water spray, and light-dark cycling with controlled humidity transitions. The protocol specifies calibration procedures using reference materials and radiometer verification to ensure consistent irradiance delivery throughout test duration.

Material-Specific Test Methods

Beyond general weathering standards, material-specific protocols address unique requirements. ASTM D4459 covers outdoor weathering of polyolefins, while ASTM D6662 focuses on polyolefin-based plastic lumber. These specialized methods define appropriate exposure doses, relevant property measurements, and performance benchmarks tailored to specific polymer families and applications. Automotive specifications like SAE J2527 establish weathering requirements for exterior plastic components with pass/fail criteria tied to warranty expectations.

Table 2: Key International Standards for Plastic Weathering Testing

Standard	Region	Application Focus	Key Parameters
ISO 4892-2	International	General xenon exposure	Filter types, irradiance, temperature
ASTM G155	North America	Xenon arc weathering	Test cycles, calibration procedures
SAE J2527	Automotive	Exterior components	Color stability, gloss retention
ASTM D4459	North America	Polyolefin weathering	UV stabilizer evaluation
ISO 11341	International	Paints and varnishes	Coating performance on plastics

Improving Product Lifespan Through Accelerated Aging

Stabilizer Package Optimization

Xenon weathering tests enable systematic evaluation of UV stabilizer effectiveness before committing to full-scale production. Hindered amine light stabilizers (HALS) function through radical scavenging mechanisms, while UV absorbers like benzotriazoles convert harmful radiation into harmless heat. Testing multiple concentrations and combinations reveals optimal loading levels that balance performance against cost constraints. Manufacturers discover whether 0.2% or 0.5% stabilizer addition provides adequate protection for their specific application's exposure severity.

Material Selection Validation

Comparative weathering studies guide material selection decisions among competing polymer grades or suppliers. Testing demonstrates whether a premium-grade polycarbonate justifies higher material costs through superior UV resistance compared to standard grades. Manufacturers evaluate engineering plastics like ASA (acrylonitrile styrene acrylate) against ABS to confirm whether enhanced outdoor durability warrants material substitution for exterior applications.

Quality Control Benchmarking

Establishing baseline weathering performance for approved formulations using a xenon test chamber creates quality control benchmarks for ongoing production monitoring. Periodic testing of production batches against historical data ensures formulation consistency and detects raw material variations before they cause field failures. When a batch shows premature degradation at 800 hours compared to the typical 1200-hour threshold, investigation can identify whether stabilizer concentration drifted below specifications or if a pigment supplier changed formulations.

Selecting the Right Xenon Test Parameters for Plastics

Irradiance Level Determination

Choosing appropriate irradiance settings depends on balancing acceleration factors against maintaining realistic degradation mechanisms. Standard testing at 0.55 W/m² at 340nm provides moderate acceleration suitable for general material screening. Higher irradiance levels up to 1.5 W/m² dramatically reduce test duration but risk introducing artificial degradation modes not encountered outdoors. Conservative approaches start at lower irradiance for initial correlation studies, then increase intensity once correlation with outdoor exposure is validated.

Temperature and Humidity Cycling

Black panel temperature settings should reflect actual end-use conditions. Automotive interior components may experience 90°C surface temperatures in closed vehicles during summer, justifying aggressive 85°C test temperatures. Outdoor building products in temperate climates rarely exceed 70°C, suggesting lower test temperatures better represent service conditions. Humidity cycling between 50-98% RH simulates dew formation and rain events that accelerate degradation through hydrolytic mechanisms and contaminant concentration cycles.

Spray Cycle Configuration

Water spray introduces mechanical stress from thermal shock while simulating moisture exposure. Front-face spray directly impacts specimens with room-temperature water while lamps remain energized, creating rapid cooling followed by reheating. This thermal cycling stresses adhesive bonds and tests coating flexibility. Spray duration and frequency depend on application - outdoor furniture testing might include 18-minute spray cycles every 120 minutes, while automotive testing follows OEM-specific protocols matching their correlation data.

Table 3: Recommended Xenon Test Parameters for Common Plastic Applications

Application	Irradiance (W/m²)	Black Panel Temp (°C)	Relative Humidity	Spray Cycle
Automotive Exterior	0.55 @ 340nm	70-85	50-70% RH	18 min/2 hr
Building Products	0.35-0.55 @ 340nm	60-75	60-90% RH	18 min/2 hr
Consumer Electronics	0.55 @ 340nm	55-70	50-65% RH	Optional
Outdoor Furniture	0.55-0.80 @ 340nm	65-80	50-80% RH	18 min/102 min
Agricultural Film	0.80-1.20 @ 340nm	60-75	60-90% RH	Not required

LIB Industry Enables Reliable Plastic UV Aging Performance Testing

Xenon Arc Chamber Weatherometer

xenon lamp and filters

Precision Environmental Control Technology

LIB Industry's xenon test chamber delivers the controlled conditions essential for reproducible weathering studies. The 4500W water-cooled xenon arc lamp provides stable spectral output across the critical 300-400nm bandwidth measurement range, with irradiance adjustable from 35-150 W/m². Built-in Solar Eye technology continuously monitors light intensity and automatically compensates for lamp aging, maintaining consistent irradiance levels throughout multi-thousand-hour test programs. This closed-loop control eliminates the variations that compromise result validity when testing plastic formulations.

Comprehensive Testing Capacity

The rotating sample holder accommodates 42 specimens simultaneously, each measuring 95×200mm, providing statistical validity through multiple replicates per test condition. Continuous rotation ensures uniform exposure as each sample passes through identical positions relative to the light source and spray nozzles. Black panel temperature control maintains 35-85°C ±2°C accuracy, while humidity ranges from 50-98% RH with ±5% deviation. Programmable spray cycles from 1-9999 hours 59 minutes enable precise moisture exposure matching specific test protocols.

Global Standards Compliance

LIB Industry's chambers meet international testing requirements including ISO 4892, ASTM G154, and ASTM G155 specifications. The programmable color LCD touch screen controller simplifies protocol setup for complex multi-stage test sequences. Automatic water supply with integrated purification systems ensures consistent water quality for spray cycles. Multiple safety protections including over-temperature, over-current, water shortage, earth leakage, and phase sequence safeguards protect samples and operators. CE certification and third-party validation by SGS and TUV confirm compliance with international quality standards.

Customization and Support Infrastructure

Understanding that different industries face unique testing challenges, LIB Industry offers custom solutions tailored to specific plastic weathering applications. The engineering team collaborates with manufacturers to configure chamber parameters, sample holders, and control sequences matching proprietary test protocols. A 3-year warranty backed by lifetime service commitment provides peace of mind, while 24/7 global support ensures technical assistance across time zones. The closed-loop water circulation system with multi-stage filtration reduces operational costs while maintaining environmental responsibility.

Conclusion

Xenon weathering testing has become indispensable for plastic manufacturers committed to delivering durable products that maintain appearance and performance throughout their service life. By simulating years of outdoor exposure in controlled laboratory conditions, these tests reveal material vulnerabilities, validate stabilizer systems, and guide formulation optimization before costly production begins. Understanding UV degradation mechanisms, selecting appropriate test parameters aligned with industry standards, and partnering with reliable testing equipment providers creates the foundation for successful product development programs that minimize field failures and maximize customer satisfaction.

FAQ

How long should plastic manufacturers run xenon weathering tests to predict outdoor lifespan?

Test duration depends on acceleration factors and correlation studies, but typical automotive plastics undergo 2000-3000 hours of exposure. Manufacturers should establish correlation between chamber hours and actual outdoor years through parallel testing. Geographic location, orientation, and application significantly influence required exposure time for meaningful predictions.

What's the difference between xenon arc and fluorescent UV weathering chambers for plastic testing?

Xenon arc lamps provide full-spectrum output closely matching natural sunlight, including visible and infrared wavelengths that affect temperature-dependent degradation. Fluorescent UV lamps offer only UV wavelengths with discrete spectral peaks, making them suitable for UV-dominant degradation screening but less representative of actual outdoor conditions for comprehensive material evaluation.

Can xenon weathering tests predict how plastic products perform in different climates?

Yes, through parameter adjustment including irradiance intensity, temperature settings, and moisture cycling. Florida subtropical exposure requires different test cycles than Arizona desert conditions. Manufacturers develop multiple protocols representing various geographic markets, validating correlation through outdoor exposure sites in target regions before relying solely on accelerated testing.

Contact LIB Industry for Your Xenon Test Chamber Needs

As a leading xenon test chamber manufacturer and supplier, LIB Industry delivers turn-key environmental testing solutions worldwide. Contact our team at ellen@lib-industry.com to discuss your plastic weathering testing requirements and discover how our chambers can support your quality assurance goals.

Jun 5,2026

Why Marine Hardware Needs Salt Fog Validation?

Marine hardware operates in one of Earth's most unforgiving environments - a relentless combination of salt spray, humidity, and temperature fluctuations that systematically dismantles unprotected materials. A single corroded bolt or degraded fitting can compromise entire systems, leading to catastrophic failures, safety hazards, and astronomical replacement costs. Salt fog validation in a controlled salt spray chamber isn't just a regulatory checkbox; it's a predictive engineering tool that compresses a decade of marine exposure into months of testing. This process reveals latent weaknesses in materials, coatings, and designs before they ever touch seawater, ensuring that every component - from deck cleats to offshore rigging - can withstand the ocean's persistent, corrosive embrace.

An Australian coatings manufacturer recently integrated a salt spray corrosion test system into its marine coating validation program. After installation, testing began immediately on offshore and coastal coating panels.The system delivered stable salt fog distribution and consistent test conditions, allowing engineers to evaluate corrosion resistance, blistering, and edge protection with confidence. Its reliable performance enabled the team to quickly start long-term exposure tests and formulation comparisons, improving validation efficiency and ensuring repeatable results.

blog-1-1

Corrosion Challenges in Marine Environment Applications

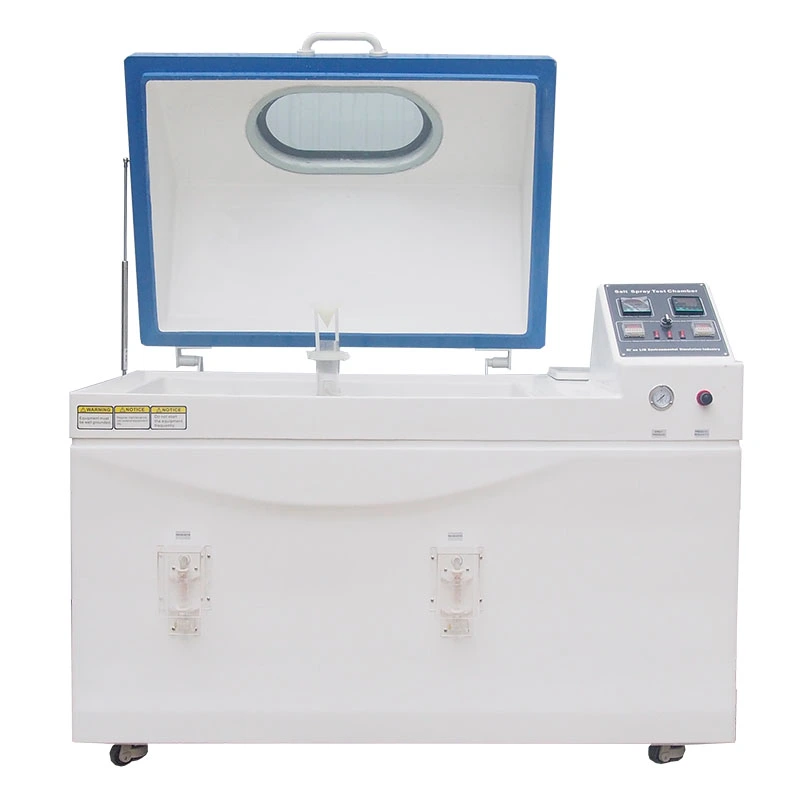

openning state

The Electrochemical Onslaught of Seawater

Seawater constitutes an exceptionally aggressive electrolyte due to its high chloride content (approximately 19,000 ppm). When a metal surface is exposed, microscopic anodic and cathodic sites form, initiating galvanic corrosion. Chloride ions penetrate protective oxide layers on stainless steel, causing pitting corrosion that propagates rapidly beneath the surface. This electrochemical process accelerates dramatically with temperature increases common in tropical marine environments, making static laboratory tests insufficient without dynamic thermal cycling.

Beyond Simple Rust: Multifaceted Degradation Modes

Marine hardware faces more than just uniform rust. Crevice corrosion attacks hidden joints and under-heads of bolts where oxygen depletion creates aggressive microenvironments. Galvanic corrosion occurs when dissimilar metals (e.g., stainless steel bolts in aluminum frames) contact each other in seawater, with the more anodic metal sacrificing itself rapidly. Stress corrosion cracking combines tensile stress with a corrosive environment to cause sudden, brittle failure in high-strength alloys like 316 stainless. Fatigue corrosion under cyclic loads from waves and wind further complicates material selection.

Hidden Costs of Corrosion-Induced Failure

The financial impact extends far beyond part replacement. Corrosion-related failures on commercial vessels trigger costly dry-docking, lost revenue from downtime, and potential environmental fines from oil spills or cargo contamination. For recreational boating, a failed stern light bracket or stanchion can create safety hazards leading to liability claims. In offshore energy, a single corroded connector on a subsea control module can necessitate a multi-million dollar intervention. These systemic risks make accelerated validation not just advisable, but essential for risk management.

Table 1: Primary Corrosion Mechanisms in Marine Applications

Corrosion Type	Primary Driver	Vulnerable Materials	Typical Failure Mode
Uniform Corrosion	General seawater exposure	Carbon steel, unprotected aluminum	Thinning, section loss
Pitting Corrosion	Chloride ions	300-series stainless steels	Localized deep penetration
Crevice Corrosion	Stagnant micro-environments	Bolted joints, under gaskets	Hidden severe attack
Galvanic Corrosion	Dissimilar metal couples	Any mixed-metal assembly	Rapid anodic material loss
Stress Corrosion Cracking	Tensile stress + chloride	High-strength austenitic steels	Sudden brittle fracture

How Salt Fog Testing Simulates Coastal Exposure Conditions?

0 SC

Accelerated Electrochemical Replication

A salt spray chamber creates a controlled, saturated atmosphere (95-98% RH) with a fine mist of sodium chloride solution (typically 5% NaCl). The continuous or periodic fog deposition rate of 1-2 ml per 80 cm² per hour ensures consistent electrolyte film formation on all specimen surfaces. This environment dramatically accelerates the electrochemical corrosion processes that would take years in a marine setting, allowing engineers to observe failure modes in 500-2000 hours instead of waiting for real-world exposure.

Critical Parameters for Realistic Simulation

The chamber's temperature stability (±0.5°C fluctuation, ±2.0°C deviation) is crucial because corrosion rates double with every 10°C rise. Testing at 35°C simulates tropical conditions, while 25°C represents temperate climates. The fog's particle size distribution - controlled by the atomizer tower and nozzle design - determines whether droplets deposit as a film (simulating sea spray) or as discrete droplets (simulating wave splash). LIB's adjustable spray tower allows fine-tuning to match specific geographic exposure conditions, from the misty Pacific Northwest to the arid, salty air of the Red Sea.

Cyclic Testing for Realistic Wet/Dry Transitions

Continuous salt fog is the ASTM B117 standard, but many marine components experience wet-dry cycles as tides change and waves splash and recede. Periodic spray cycles (e.g., 10 minutes on, 50 minutes off) simulate these transitions, allowing corrosion products to form during wet periods and then concentrate during drying - a condition that often accelerates attack. This cyclic approach better predicts the performance of coatings that rely on film formation and self-healing mechanisms.

Table 2: Salt Spray Test Parameters for Different Marine Applications

Application	Test Standard	Temperature (°C)	Spray Type	Duration (Typical)	Primary Assessment
Fasteners & Hardware	ASTM B117	35	Continuous	500-1000 hrs	Base metal corrosion, coating adhesion
Marine Coatings	ISO 9227 (NSS)	35	Continuous	1000-2000 hrs	Blistering, rust-through, edge corrosion
Electrical Connectors	ASTM B117 + Humidity	35	Periodic	750-1500 hrs	Contact resistance, insulation degradation
Anodized Aluminum	ASTM B117	35	Continuous	500-1000 hrs	Pitting at coating defects
Welded Assemblies	ISO 9227 (Cyclic)	35/25 cycling	Periodic	1000+ hrs	Weld zone attack, crevice at joints

Evaluating Protective Coatings for Marine Hardware

Coating Failure Modes Under Salt Fog

Salt fog testing exposes coating weaknesses that might not appear in simple humidity tests. Blistering occurs when water vapor pressure builds at the coating-substrate interface due to poor adhesion or soluble contaminants. Delamination starts at edges or scratches where electrolyte penetrates. Cathodic disbondment happens when a coating's dielectric breakdown allows current to flow, generating alkali at the metal surface that lifts the coating. These modes progress at different rates depending on coating chemistry - epoxies may blister early but resist disbondment, while polyurethanes might chalk but maintain adhesion.

Measuring Corrosion Progression Quantitatively

Beyond visual inspection (rating per ASTM D1654), modern salt spray testing uses quantitative metrics. Weight loss measurements after cleaning corrosion products determine corrosion rate in mils per year (mpy). Cross-sectional microscopy reveals coating thickness loss and pit depth. Electrochemical impedance spectroscopy (EIS) can be performed periodically during testing to monitor coating degradation in real-time. The salt deposition rate (1-2 ml/80cm²·h) must be verified with a fallout collector to ensure test validity - a key feature in LIB's design.

Accelerated Validation for New Coating Systems

Developing a new marine coating involves testing multiple formulations. A salt spray chamber allows side-by-side comparison of primers, intermediates, and topcoats. Test coupons with intentional scribes (through to bare metal) simulate coating damage. The time to first red rust appearance at the scribe is a critical benchmark. For topcoats, gloss retention and color shift (ΔE) measurements before and after testing quantify aesthetic durability - a major selling point for yacht hardware and premium boat fittings.

Material Selection for Improved Corrosion Resistance

Stainless Steels: Not All Are Created Equal

The 300-series austenitic stainless steels (304, 316) are common but have limits. 316's molybdenum content improves pitting resistance in seawater, but its critical pitting temperature (CPT) can be exceeded in warm tropical waters. Duplex stainless steels (2205) offer superior resistance but at higher cost. Salt fog testing quickly identifies whether a specified grade meets the required threshold - a 316 part that shows pitting after 500 hours at 35°C may need upgrading to a super duplex or requiring cathodic protection.

Aluminum Alloys and Anodizing Strategies

Marine-grade aluminum alloys (5000-series like 5086, 6000-series like 6061-T6) rely on passive oxide films. Salt fog testing evaluates both the base alloy's inherent resistance and the quality of anodizing or conversion coatings. Hardcoat anodizing (Type III) provides thicker, more wear-resistant protection but can be brittle. Testing reveals if the anodic coating cracks under thermal cycling or if sealant degradation leads to pitting at pores. For critical applications, testing compares different sealing methods (hot water, nickel acetate, sol-gel).

Non-Metallic Alternatives: Composites and Plastics

Fiber-reinforced polymers (FRP) and thermoplastics like acetal (POM) or polypropylene are increasingly used in marine hardware to eliminate corrosion entirely. However, they face different challenges: galvanic corrosion of embedded metal fasteners, hydrolysis in hot, humid environments, and UV degradation on deck. Salt fog testing at elevated temperatures (40-50°C) accelerates hydrolytic attack on plastics, while the constant humidity tests for water absorption that can swell dimensions and affect tolerances in precision components.

Industry Standards for Marine Corrosion Testing

blog-1-1

Foundational Standards: ASTM B117 and ISO 9227

ASTM B117 is the original and most widely recognized salt spray (fog) testing standard. It specifies a 5% NaCl solution at 35°C with continuous fog, but notably does not define test duration or acceptance criteria - those come from product-specific standards. ISO 9227 offers three variations: Neutral Salt Spray (NSS, identical to ASTM B117), Acetic Acid Salt Spray (AASS, more aggressive for electroplated coatings), and Copper-Accelerated Acetic Acid Salt Spray (CASS, highly aggressive for decorative coatings). Understanding which variant applies is critical for meaningful results.

Industry-Specific Protocols

The automotive industry uses SAE J2334 for cyclic corrosion testing that includes humidity, dry, and salt spray phases, better simulating road salt environments. The aerospace sector references ASTM B117 but with specific pre-treatments and evaluation criteria for aircraft alloys. Marine hardware often follows National Marine Manufacturers Association (NMMA) guidelines or ASTM F1941 for fasteners. Compliance requires not just running the test, but documenting specimen preparation, orientation, and evaluation methods per the referenced standard.

Calibration and Laboratory Accreditation

To ensure results are defensible in warranty disputes or liability cases, testing must be performed in an accredited laboratory (ISO/IEC 17025). This requires regular calibration of the salt spray chamber's temperature, humidity, and salt deposition rate using traceable instruments. LIB's inclusion of a calibration certificate addresses this need. The chamber's design - with its fog collector and measuring cylinder - facilitates the required verification of deposition rate (1-2 ml/80cm²·h) during routine operation.

Table 3: Key Standards Governing Marine Hardware Corrosion Testing

Standard	Issuing Body	Test Environment	Primary Application	Key Parameter
ASTM B117	ASTM International	5% NaCl, 35°C, continuous fog	Baseline corrosion resistance	Deposition: 1-2 ml/80cm²·h
ISO 9227 (NSS)	ISO	5% NaCl, 35°C, continuous fog	Coatings, fasteners (global)	Identical to ASTM B117
ISO 9227 (AASS)	ISO	5% NaCl + acetic acid, pH 3.1-3.3	Electroplated coatings	More aggressive than NSS
ASTM B368	ASTM International	Copper-accelerated acetic acid salt spray (CASS)	Decorative chromium/nickel plating	Highly aggressive
SAE J2334	SAE International	Cyclic: humidity, dry, salt spray	Automotive body components	Simulates road salt cycles
NEMA TR-1	NEMA	Various salt solutions, temperatures	Electrical enclosures	Industry-specific variants

Extending Marine Equipment Lifespan Through Validation Tests

Design Iteration Before Production

Salt fog testing during the prototyping phase identifies design flaws that cause trapped moisture or crevices. A cleat design with a hidden cavity might hold salt solution, leading to severe localized corrosion. Testing reveals this, prompting a design change to add drainage holes or seal seams. Similarly, testing different fastener materials in an assembly shows if galvanic coupling will cause rapid failure, allowing specification changes before costly tooling is committed.

Warranty and Life Prediction

Data from accelerated salt fog tests feeds into life prediction models. If a coating system shows first rust at 1000 hours in a chamber, engineers can correlate this to a certain number of years in a specific marine environment (e.g., 5 years in a Florida boatyard). This quantitative backing justifies warranty periods and informs maintenance schedules. For components where failure is catastrophic (e.g., steering linkage), the test data supports conservative replacement intervals.

Supplier Qualification and Quality Control

Salt fog validation becomes a receiving inspection criterion for critical hardware. A batch of stainless steel shackles from a new supplier can be tested alongside the approved vendor's product. If the new batch shows pitting at 300 hours versus 800 hours for the control, it fails acceptance. This ongoing monitoring ensures production consistency, especially when sourcing from regions with varying metallurgical quality controls.

Selecting the Right Test Cycles for Marine Applications

Matching Test Aggressiveness to Service Severity

Not all marine environments are equal. A component for a freshwater lake boat faces far less challenge than one for a deep-sea fishing vessel in the tropics. The test cycle must match this severity. For mild service (inland waterways), a 500-hour NSS test might suffice. For severe service (commercial offshore, tropical), 1000-2000 hours or even cyclic tests are required. Using an overly aggressive test (like CASS) for a mild application can reject viable materials, while an insufficiently aggressive test for severe service creates a false sense of security.

Beyond the Salt Fog: Combined Stresses

Real marine exposure combines salt with UV, temperature cycling, and mechanical wear. For above-deck hardware, a salt fog test alone is insufficient. It should be combined with UV weathering (xenon arc) to evaluate coating degradation from sunlight. For submerged or tidal zone components, testing might incorporate immersion cycles or wet/dry cycling to simulate tidal exposure. LIB's salt spray chambers can be integrated into multi-stress testing protocols, though pure salt fog remains the baseline for submerged and splash-zone parts.

Specimen Preparation and Orientation Matter

How you mount specimens drastically affects results. Horizontal orientation promotes solution pooling and faster corrosion. Vertical orientation with 15-30° tilt mimics natural runoff and is standard for many tests. The number and placement of specimens affect airflow and fog distribution - overloading the chamber creates shadowing and invalid results. LIB's chambers with adjustable spray towers and multiple shelf configurations (6 round bars, 5 V-grooves) allow proper specimen arrangement per standard requirements.

LIB Industry Delivers Reliable Salt Fog Corrosion Testing Solutions

blog-1-1

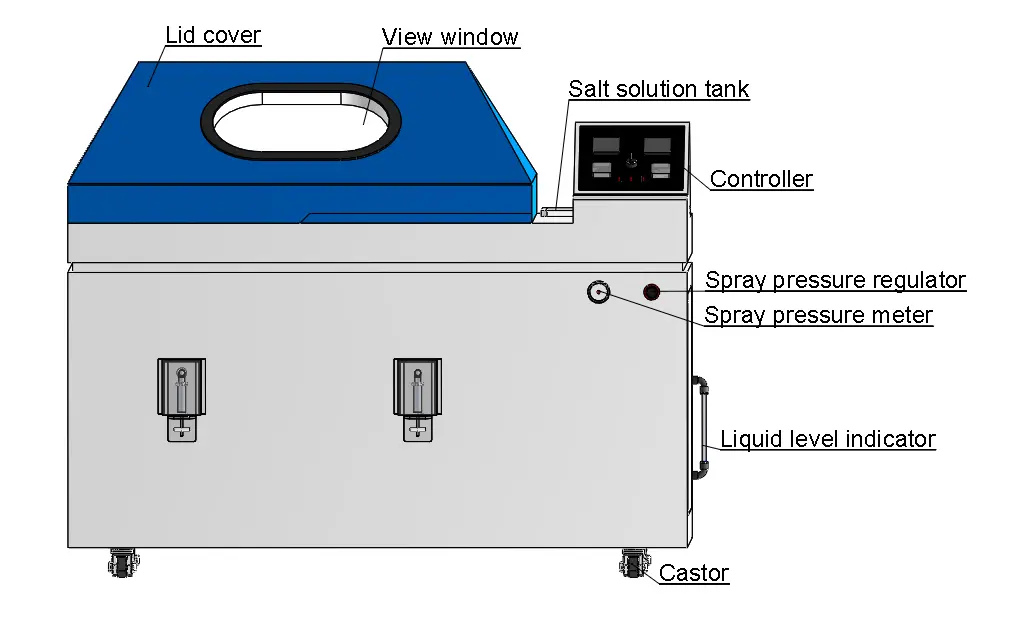

Durable, Leak-Resistant Workspace

blog-1-1

Flexible Sample Rack System

blog-1-1

Water-Sealed Lid Design

blog-1-1

Uniform Salt Solution Agitation

blog-1-1

Intelligent Controller

blog-1-1

Included Industrial-Grade Salt

Engineering for Precision and Uptime

LIB's salt spray chambers are built around consistent, repeatable test conditions. The saturated air barrel preheats and humidifies compressed air before it reaches the atomizer, ensuring fog droplets are the correct size and salinity. The external portable salt solution tank (sizes from 73L to 115L+) allows easy refilling without disturbing the test. The pneumatically operated 'easy open' canopy with timed purge cycle safely vents corrosive fog before access, protecting operators and preventing condensation on newly opened specimens.

Compliance and Documentation Built-In

Every chamber comes with a calibration certificate and meets ASTM B117, ISO 9227, and JIS Z 2371 standards. The PID controller with multi-language support (English, French, Spanish, German, Russian) ensures proper setup by global teams. The central viewing window with interior lighting allows non-intrusive observation. The dry seal gasket on the canopy prevents fog leakage onto lab floors - a critical feature for facilities with sensitive equipment nearby. These details reflect an understanding of real-world laboratory constraints.

Global Support and Customization for Niche Applications

LIB's service centers in Malaysia, Canada, the UK, and the US provide localized technical support. Their customization capability addresses unique needs: oversized specimens for wind turbine components, special fixturing for complex assemblies, or modified control programs for proprietary cyclic protocols. The fall-out measuring kit and consumables spares kit included with purchase ensure customers can maintain chamber performance and validate deposition rates themselves. This turn-key approach - from consultation through training - de-risks the investment for manufacturers whose product reputation depends on flawless corrosion performance.

Conclusion

Salt fog validation in a purpose-built chamber is the cornerstone of confidence for any marine hardware manufacturer. It transforms subjective notions of "marine-grade" into quantifiable, repeatable data on corrosion resistance. By simulating years of ocean exposure in months, this testing guides material selection, validates coating systems, and identifies design flaws before products face real saltwater. For companies committed to safety, reliability, and brand integrity in marine environments, investing in rigorous salt spray testing isn't an expense - it's the foundation of product excellence and customer trust.

FAQ

How long should marine hardware be tested in a salt spray chamber?

There is no single duration. It depends on the material, coating, and service severity. Basic hardware might require 500 hours for screening, while premium marine coatings often specify 1000-2000 hours. Always refer to the relevant product standard (e.g., NMMA, ASTM) for your specific application. Validation requires establishing correlation to real-world exposure for your target market.

Can a salt spray chamber test large assemblies like boat ladders or railings?

Yes, LIB offers models up to 1600L internal volume (S-020: 1000x2000x800mm). For very large structures, you may need to test representative sections or use a custom oversized chamber. The key is ensuring all critical surfaces receive uniform fog exposure, which requires proper specimen orientation and spacing within the chamber's fog distribution envelope.

What's the difference between continuous and periodic salt spray tests?

Continuous spray (ASTM B117) maintains a constant fog, simulating constant immersion or heavy spray environments. Periodic spray introduces dry intervals, simulating wet-dry tidal cycles or splash zones. Periodic cycles are often more aggressive for coatings because corrosion products concentrate during drying, and repeated wetting stresses the coating-substrate bond. Choose based on your product's actual service condition.

Contact LIB Industry for Your Marine Corrosion Testing Needs

As a global manufacturer and supplier of salt spray chambers, LIB Industry provides turn-key corrosion testing solutions compliant with ASTM B117, ISO 9227, and JIS Z 2371. Our chambers feature precise fog deposition control, robust construction, and comprehensive global support. Contact our engineering team at ellen@lib-industry.com to discuss your specific marine hardware testing requirements and receive a customized configuration.

Jun 4,2026

Weathering Tests for PVC Window Frame Durability

PVC window frame durability testing relies on accelerated weathering testers to compress decades of outdoor exposure into controlled laboratory timeframes, ensuring long-term performance before installation. These sophisticated testing chambers replicate the cumulative effects of UV radiation, temperature extremes, moisture cycling, and thermal shock that cause discoloration, embrittlement, and mechanical failure in polyvinyl chloride profiles. By subjecting samples to intensified xenon arc lamp exposure at controlled black panel temperatures (35-85°C) and humidity conditions (30-98% RH), manufacturers validate formulation stability, predict service life expectancy, and optimize stabilizer packages. This proactive validation prevents premature field failures, reduces warranty costs, and ensures compliance with international building material standards like ASTM G155 and ISO 4892.

Environmental Factors Affecting PVC Window Frame Performance

Xenon_Light_Fastness_Test_Chamber_for_Car_Interiors_SAE_J2412_Testing_and_Material_Durability_Evaluation4.jpg

Solar Ultraviolet Radiation Degradation

UV radiation represents the primary degradation mechanism threatening PVC window frame longevity, particularly wavelengths between 280-400 nm that possess sufficient energy to break polymer backbone bonds. Unprotected PVC undergoes photodegradation through dehydrochlorination reactions, releasing hydrochloric acid that autocatalyzes further degradation. This cascade effect manifests as yellowing, surface chalking, and progressive loss of impact resistance. Modern PVC window profiles incorporate titanium dioxide pigments and organotin heat stabilizers that absorb destructive UV wavelengths.

Temperature Fluctuation and Thermal Stress

Window frames endure extreme temperature variations from sub-freezing winter conditions to surface temperatures exceeding 70°C during summer solar exposure. Dark-colored profiles absorb more radiant heat, experiencing greater thermal expansion cycles that stress welded corner joints and gasket seals. Repeated expansion-contraction cycling fatigues the polymer matrix, creating microcracks that propagate into structural failures. Temperature cycling also affects dimensional stability, potentially causing warping that compromises weather sealing and operational functionality.

Moisture Exposure and Hygrothermal Effects

While PVC exhibits inherently low water absorption compared to wood alternatives, moisture still influences long-term durability through surface interactions and hygrothermal stress mechanisms. Water condensation on cooler surfaces during diurnal temperature cycles creates localized humidity conditions promoting fungal growth and surface contamination. Rain exposure combined with UV radiation creates synergistic degradation, as water accelerates photochemical reactions and leaches degradation products from weathered surfaces.

Simulating UV Exposure and Temperature Cycling Conditions

Xenon Arc Spectral Distribution Technology

Xenon arc lamps provide superior spectral accuracy compared to alternative UV sources, delivering full-spectrum radiation from 280-800 nm that authentically replicates natural sunlight. The 4500W water-cooled xenon arc lamp generates sufficient irradiance intensity (35-150 W/㎡) to accelerate degradation reactions while maintaining spectral fidelity through precision optical filter systems. Window glass filters simulate transmission through architectural glazing, replicating the actual UV exposure PVC frames receive when installed.

Black Panel Temperature Control Systems

Surface temperature measurement proves critical for PVC weathering simulation, as degradation rates follow Arrhenius kinetics with exponential temperature dependence. Black panel temperature (BPT) sensors replicate the actual surface temperature of dark-colored window profiles absorbing solar radiation. Accelerated weathering testers maintain BPT ranges from 35-85°C with ±2°C precision, enabling controlled testing at elevated temperatures that accelerate chemical reactions without exceeding thermal decomposition thresholds.

Programmable Cycling for Realistic Stress Patterns

Natural outdoor exposure involves complex patterns of light/dark cycles, temperature variations, and intermittent moisture from rain and dew. Modern weathering chambers feature programmable cycling capabilities creating test sequences alternating between dry UV exposure, high-temperature stress, humidity conditioning, and water spray phases. A typical window frame protocol might include 102 minutes of UV irradiance followed by 18 minutes of water spray, simulating afternoon thunderstorms following intense solar heating.

Table 1: Natural vs. Accelerated Exposure Comparison

Exposure Parameter	Natural Outdoor (Annual)	Accelerated Tester
UV Dose (340nm)	150-250 MJ/m²	500-1000 MJ/m² (1000-2000 hours)
Peak Surface Temp	-20°C to 70°C	35-85°C (controlled)
Moisture Cycles	Variable	Programmable (1-9999 hours)
Test Equivalent	5-10 years field	6-12 months laboratory

Evaluating Color Stability and Surface Cracking Resistance

Colorimetric Analysis of Discoloration Progression

Color stability represents a critical aesthetic and functional concern for PVC window frames, as discoloration indicates ongoing photochemical degradation compromising mechanical properties. Spectrophotometric measurement using CIELAB color space quantifies color changes expressed as ΔE values tracking total color difference from unexposed controls. Measurements at regular intervals throughout accelerated exposure (typically every 250-500 hours) reveal degradation kinetics and identify stabilizer depletion points. Industry specifications commonly require ΔE < 3-5 after equivalent 10-year outdoor exposure.

Surface Crack Initiation and Propagation

Embrittlement from UV-induced polymer chain scission eventually manifests as visible surface cracking that compromises both aesthetics and weather resistance. Crack formation typically initiates at stress concentration points like welded corners, mechanical fastener locations, or areas experiencing maximum solar exposure. Microscopic examination at 10-50X magnification detects early-stage crazing before macroscopic crack development, enabling predictive service life assessment.

Gloss Retention and Chalking Resistance

Surface gloss reduction and chalking indicate progressive degradation of the PVC surface layer through polymer chain breakdown and titanium dioxide particle exposure. Glossmeter measurements at 60° incidence angle track gloss retention percentages throughout weathering exposure, with specifications typically requiring >50% gloss retention after accelerated aging. Tape adhesion tests quantify chalking severity by measuring pigment powder adherence to pressure-sensitive tape pressed against weathered surfaces.

Accelerated Aging Standards for Building Material Testing

ASTM G155 Xenon Arc Exposure Protocols

ASTM G155 establishes standardized operating procedures for xenon arc exposure testing of non-metallic materials including PVC building products using an accelerated weathering tester. This standard defines specific test conditions including Practice A (daylight behind glass at 0.35 W/m²/nm @ 340nm, 63°C BPT) and Practice B (daylight with extended UV at 0.51 W/m²/nm @ 340nm, 70°C BPT) commonly applied to window frame testing.

ISO 4892 International Weathering Test Methods

ISO 4892-2 provides globally harmonized xenon arc lamp weathering test methodology recognized across European, Asian, and international markets. This standard addresses filter selection (daylight, window glass, extended UV), irradiance measurement (at 300-400nm bandwidth with specific monitoring at 340nm or 420nm), and exposure cycling parameters. The rotating sample rack accommodating 42 specimens simultaneously enables efficient comparative testing.

European Window Profile Standards

European harmonized standards including EN 12608 address PVC-U profiles specifically designed for window and door applications. Testing protocols typically specify minimum exposure durations (1000-2000 hours xenon arc exposure) and performance criteria (maximum allowable ΔE values, minimum gloss retention) that PVC window profiles must satisfy for CE marking compliance enabling European market access.

Table 2: International Standards for PVC Weathering Testing

Standard	Geographic Scope	Key Requirements	Test Duration
ASTM G155	North America	0.51 W/m²/nm @ 340nm	1000-2000 hours
ISO 4892-2	International	Irradiance control, cycling	1000-3000 hours
EN 12608	European Union	ΔE < 5, mechanical properties	2000 hours minimum

Comparing Outdoor Exposure and Laboratory Weathering Results

Correlation Studies and Acceleration Factors

Establishing reliable correlation between accelerated laboratory testing and actual outdoor weathering validates test protocol relevance and enables service life predictions. Correlation studies expose identical PVC samples simultaneously to outdoor weathering racks (typically in Florida, Arizona, or other high-solar-intensity locations) and laboratory accelerated weathering testers. Well-designed protocols achieve 5:1 to 10:1 acceleration factors, compressing 5-10 years outdoor exposure into 6-12 months laboratory testing.

Geographic Variability and Representative Testing

Outdoor weathering conditions vary dramatically by geographic location. Miami, Florida experiences approximately 1800 kWh/m² annual UV radiation with high humidity and warm temperatures year-round, while Phoenix, Arizona receives similar UV intensity but minimal moisture and extreme temperature cycling. Accelerated weathering testers accommodate this geographic variability through programmable exposure cycles replicating specific climate patterns.

Limitations of Accelerated Testing

Despite sophisticated environmental control, accelerated weathering cannot perfectly replicate every aspect of decades-long outdoor exposure. Intensified irradiance levels may activate degradation mechanisms absent in natural weathering, while compressed timeframes eliminate long-term effects like slow stabilizer migration. Comprehensive validation programs combine accelerated laboratory testing with limited-duration outdoor exposure providing confidence that laboratory predictions align with real-world performance.

Improving PVC Formulations Through Weathering Analysis

Stabilizer Package Optimization

PVC window frame formulations incorporate complex stabilizer systems including heat stabilizers (organotin, calcium-zinc), UV absorbers (benzotriazoles, benzophenones), and antioxidants preventing oxidative degradation. Accelerated weathering testing enables systematic evaluation of stabilizer effectiveness, dosage optimization, and synergistic combinations. Time-series sampling throughout extended weathering exposure reveals stabilizer depletion kinetics, distinguishing formulations providing sustained protection from those offering only short-term resistance.

Pigment Selection and Loading Optimization

Titanium dioxide pigment serves dual functions in PVC window profiles—providing white coloration and UV protection through light scattering and absorption. Pigment loading levels (typically 4-8 phr) significantly impact weathering resistance. Weathering tests compare various pigment grades (rutile vs. anatase crystal structure), surface treatments, and loading levels to optimize the performance-cost balance.

Impact Modifier and Processing Aid Evaluation

Impact modifiers maintain PVC toughness across temperature extremes while processing aids facilitate extrusion and surface finish quality. Accelerated weathering followed by mechanical property testing (Charpy impact, tensile strength, modulus) quantifies how UV exposure affects impact modifier performance. Formulations maintaining >75% impact strength retention after accelerated aging demonstrate superior long-term durability.

LIB Industry Accelerated Weathering Solutions for Long-Term PVC Stability

Xenon Arc Chamber Weatherometer

xenon lamp and filters

Comprehensive Spectral Control for Authentic Simulation

LIB Industry's accelerated weathering tester features a 4500W water-cooled xenon arc lamp with 1600-hour operational lifespan, delivering stable spectral output across the critical 280-800 nm wavelength range. Multiple interchangeable optical filter configurations including daylight, window glass, and UV-extended systems enable precise simulation of various exposure scenarios. Irradiance range spanning 35-150 W/㎡ with bandwidth measurement at 300-400nm ensures compliance with ASTM G155 and ISO 4892 international testing standards.

Precision Environmental Control for Complex Cycling

LIB weathering chambers maintain chamber temperatures from ambient to 100°C (±2°C accuracy) while black panel temperature control spans 35-85°C (±2°C precision). Humidity control across 50-98% RH range with ±5% RH deviation simulates diverse climate conditions. Programmable water spray cycles (1-9999 hours adjustable) replicate rain exposure patterns, while dry/wet alternating modes create realistic hygrothermal stress combinations.

High-Capacity Uniform Exposure System

The rotating specimen holder system accommodates 42 PVC profile samples simultaneously, maximizing testing throughput essential for formulation development programs. Continuous rotation around the central xenon lamp ensures uniform light exposure and water spray distribution across all sample positions. The robust SUS304 stainless steel interior construction resists corrosion from continuous moisture exposure.

Intelligent Data Management and Remote Monitoring

Built-in PID control systems provide real-time monitoring of critical parameters including irradiance intensity, black panel temperature, chamber temperature, and relative humidity. Ethernet and Wi-Fi connectivity enables remote chamber monitoring via smartphone applications or web browsers, allowing researchers to verify proper operation without laboratory visits.

Conclusion

Accelerated weathering testing provides PVC window frame manufacturers with essential data validating long-term durability before market introduction, compressing decades of outdoor exposure into controlled laboratory timeframes. Through precise xenon arc spectral simulation, programmable temperature-humidity cycling, and standardized testing protocols, these chambers identify formulation weaknesses, optimize stabilizer systems, and predict service life across diverse climatic regions.

FAQ

How do accelerated weathering test results translate to expected outdoor service life for PVC window frames?

Correlation studies comparing accelerated laboratory exposure with outdoor weathering establish acceleration factors typically ranging from 5:1 to 10:1. A PVC formulation showing acceptable color stability (ΔE < 5) after 2000 hours xenon arc exposure typically correlates to 10-20 years outdoor performance in temperate climates, though tropical high-UV environments may reduce this prediction.

What weathering test duration is recommended for qualifying new PVC window frame formulations?

Comprehensive qualification protocols typically specify 2000-3000 hours xenon arc exposure with periodic evaluation intervals every 250-500 hours. This duration provides sufficient cumulative UV dose to identify stabilizer depletion points and predict long-term degradation trends. Shorter screening tests (500-1000 hours) enable rapid formulation comparison during development phases.

Can accelerated weathering testers simulate regional climate differences for global window frame markets?

Advanced programmable weathering chambers replicate diverse climate patterns through adjustable temperature, humidity, and spray cycling parameters. Mediterranean climates feature moderate UV with seasonal temperature variation, while tropical regions require high temperature/humidity cycling with frequent rain simulation. Custom test protocols incorporating region-specific parameters enable validation for targeted geographic markets.

Partner with LIB Industry for Advanced Weathering Testing Solutions

LIB Industry serves as a leading accelerated weathering tester manufacturer and supplier, delivering precision environmental simulation equipment to building material manufacturers worldwide. Our comprehensive solutions encompass design, installation, validation support, and operator training tailored to PVC profile testing requirements. Contact our team at ellen@lib-industry.com to discuss your testing needs.

Jun 4,2026

IEC 60529 IPX9K Equipment for Automotive Component Testing

Automotive manufacturers face a relentless challenge: ensuring every component - from headlights to engine control units - withstands the brutal, high-pressure assault of automated car washes, engine bay steam cleaning, and off-road water fording. The IEC 60529 IPX9K rating is the definitive validation for this extreme exposure. Specialized IEC 60529 IPX9K equipment replicates these conditions with precise, repeatable high-pressure, high-temperature water jets. This testing is not optional for modern vehicle development; it's the critical filter that separates components that will fail in the field from those that will earn customer trust through years of reliable service in the wettest, dirtiest conditions.

Understanding IPX9K Requirements in Automotive Standards

banner

Decoding the IP Code: What "9K" Truly Means

The IP (Ingress Protection) code's second digit indicates liquid protection. IPX9K represents the highest water protection level, specifically designed for "high-pressure, high-temperature water jets." The "K" suffix denotes this is a separate, more severe test than the standard IPX9 test. For automotive, this translates to withstanding water jets at 8,000-10,000 kPa (80-100 bar) pressure and 80±5°C temperature from a distance of 100-150mm, with the test object rotating. This simulates the most intense industrial washing processes and extreme environmental exposure.

Why IPX9K is Non-Negotiable for Modern Vehicles?

The shift toward higher vehicle electrification and sophisticated electronics has intensified the stakes. A compromised seal on an LED headlight can lead to internal condensation, lens damage, and premature failure. Water ingress into a sensor housing can cause erratic readings or complete failure. For autonomous driving systems reliant on camera and radar cleanliness, internal fogging is catastrophic. IPX9K validation ensures these critical enclosures maintain integrity under the most demanding wash-down scenarios, protecting both safety systems and costly electronics.

The Regulatory and Specification Landscape

Automotive OEMs mandate IPX9K testing through internal specifications that often exceed the base IEC 60529 standard. These may include specific spray patterns, durations per nozzle position, and acceptance criteria like "no water ingress" or "ingress limited to non-critical areas." Suppliers must demonstrate compliance not just to the standard, but to the specific OEM test protocol. This makes the precision and programmability of the testing equipment - like LIB's four-nozzle, 30-second-per-position system - a cornerstone of qualification.

Table 1: Key IPX9K Test Parameters vs. Common Automotive Applications

Parameter	IEC 60529 IPX9K Spec	Typical Automotive Application Focus
Water Pressure	8,000 - 10,000 kPa	Engine bay component cleaning, heavy-duty truck wash systems
Water Temperature	80±5°C (min. 15°C rise)	Simulates hot engine bay steam cleaning, hot road spray
Nozzle Angles	0°, 30°, 60°, 90° from vertical	Tests all potential spray angles encountered in car washes and fording
Spray Distance	100-150mm	Replicates close-proximity high-pressure spray nozzles
Turntable Speed	5±1 rpm	Ensures uniform exposure of all surfaces on complex geometries
Test Duration	Minimum 30 sec per nozzle position	Adequate time for water to penetrate potential seal weaknesses

High-Pressure High-Temperature Water Jet Test Conditions

The Physics of the Assault: Pressure, Temperature, and Impact

The core of the IPX9K test is the synergistic effect of extreme pressure and heat. At 10,000 kPa, the water jet possesses significant kinetic energy, capable of forcing its way past imperfect seals or through microscopic cracks. The 88°C temperature (as adjustable in LIB's system) softens many sealing polymers (like EPDM or silicone), reducing their elasticity and closing force, while simultaneously lowering water's surface tension, enhancing its ability to wet and penetrate surfaces. This combination is far more aggressive than cold-water pressure washing.

Precision Control of the Four-Nozzle System

A compliant test uses four nozzles positioned at the cardinal angles (0°, 30°, 60°, 90°). The test specimen rotates at 5±1 rpm on a turntable. Each nozzle sprays for 30 seconds in sequence. This choreography ensures every square millimeter of the specimen's surface experiences the full jet impact from multiple directions. LIB's IEC 60529 IPX9K equipment precisely controls this sequence via its programmable touchscreen controller, with real-time monitoring of pressure and temperature to guarantee no deviation invalidates the test. The adjustable spray distance (10-15cm) must be strictly maintained, as force dissipates rapidly with distance.

The Critical Role of the Turntable and Fixturing

The rotating platform is not merely a convenience; it's a test requirement. A stationary part would only be tested on its facing surfaces. Rotation exposes sidewalls, recesses, and the backside of protrusions to the jet stream. The turntable must be robust (LIB's handles up to 50kg standard, 200kg optional) and maintain exact speed under load. Fixturing must hold the part securely without shielding any area and must not itself degrade or shed particles that could be mistaken for test specimen failure. The 600mm diameter platform in the R9K-1200 model accommodates large automotive modules like headlamp assemblies or ECU housings.

Table 2: IPX9K Test Sequence and Parameter Verification

Test Phase	Action	Parameter to Verify	Acceptance Criteria
Setup	Mount specimen centered on turntable	Alignment, fixturing security	No part movement, no shielding
Pre-test	Measure water temperature at nozzle	≥80°C	80-88°C (adjustable setpoint)
Pre-test	Measure water pressure at nozzle	8,000-10,000 kPa	Within range, stable
Test Cycle 1	Nozzle 1 (0°) sprays for 30s	Spray pattern, pressure, temp	Consistent jet, no fluctuation
Rotation	Turntable rotates during spray	Speed	5±1 rpm
Test Cycle 4	Nozzle 4 (90°) sprays for 30s	Repeat all parameters	Identical to Cycle 1
Post-test	Inspect specimen immediately	Visual for water ingress	No water droplets inside enclosure
Post-test	Internal inspection after drying	Moisture indicators, corrosion	No residue, no corrosion

Key Automotive Components Requiring IPX9K Validation

Lighting Systems: Headlights, Taillights, and Fog Lights

Modern sealed-beam and multi-LED headlight assemblies are complex, with intricate housings, lenses, and multiple seals. The high-pressure jet can exploit the smallest defect in a gasket or a pin-hole in a housing weld. IPX9K testing verifies that no water enters the lamp cavity, which would cause immediate fogging, long-term corrosion of reflective surfaces, and LED driver failure. The test also validates the durability of polycarbonate or glass lenses against surface etching from prolonged jet impact.

Sensors and Cameras: The Eyes of the Vehicle

Advanced Driver Assistance Systems (ADAS) rely on cameras, radar, and lidar sensors. Their housings must be perfectly sealed. A single drop of water on a camera lens can blind the system. Water ingress into a radar housing can detune the antenna. IPX9K testing subjects these critical sensors to the most severe wash-down scenario, ensuring the sealing system (often a combination of gaskets and adhesive bonds) can withstand the pressure and temperature without allowing vapor or liquid ingress that would cause fogging or short circuits.

Electrical and Electronic Control Units (ECUs)

Under-hood and in-cabin ECUs, battery management systems, and charging controllers face a harsh environment. While not directly hit by car wash jets, they encounter high-pressure steam cleaning during service and intense spray in off-road or flood conditions. Their connectors and housing seams must prevent water entry. The IPX9K test's high temperature also simulates the thermal cycling these components experience, testing seal compression set and housing material warpage under combined thermal and mechanical stress.

Exterior Trim and Functional Ornaments

Chrome-plated badges, grille inserts, and decorative trim often have hidden cavities and are made from multiple materials (plastic, metal, adhesive). Water trapped in these cavities can cause galvanic corrosion between dissimilar metals or degrade adhesives, leading to delamination. IPX9K testing with its forceful jets and heat ensures these components remain visually pristine and structurally sound over the vehicle's life, protecting brand aesthetics.

Evaluating Seal Integrity and Housing Durability Performance

The Water Ingress Detection Protocol

The test's outcome is binary: pass or fail based on water ingress. However, the evaluation method is nuanced. Immediately after testing, the specimen is opened and inspected for free water. More critically, it is dried and then examined for moisture indicators (like cobalt chloride paper placed inside before the test) or signs of water trails leading to sensitive areas. For electronics, a functional test follows to check for operational impairment. LIB's IEC 60529 IPX9K equipment design, with its large viewing window and interior lighting, allows for real-time observation of spray patterns and initial responses.

Quantifying Seal Performance Under Stress

Beyond the pass/fail, test data informs engineering. By testing multiple seal designs (e.g., different durometer EPDM, silicone with or without fabric reinforcement, or lip geometry variations), engineers quantify performance. A seal that shows no ingress at 8,000 kPa but fails at 8,500 kPa defines its operational limit. Testing at different water temperatures reveals the seal's compression set resistance. This data feeds directly into design specifications and supplier quality agreements.

Housing Material and Construction Integrity

The high-pressure jet is a mechanical stressor. It can reveal weaknesses in housing welds, thin-walled sections, or poor mold transitions. Cracks or crazing may appear after repeated cycles. The test also evaluates the durability of coatings and platings - peeling or blistering under the jet indicates poor adhesion. For plastic housings, the test assesses material toughness and resistance to impact wear from the water droplets themselves. The 88°C water temperature additionally tests for thermal softening or distortion of the housing material.

Table 3: Failure Mode Analysis in IPX9K Testing

Failure Mode	Likely Root Cause	Affected Component Type	Detection Method
Water in cavity	Seal extrusion, inadequate compression	Gasketed joints, connector seals	Internal moisture indicator, visual inspection
Seal tearing/ cracking	Material not rated for temperature/pressure, sharp edge	Dynamic seals, boot seals	Post-test seal inspection
Housing crack	Stress concentration, material defect, thermal shock	Plastic housings, welded seams	Visual inspection, dye penetrant
Coating blister/peel	Poor adhesion, trapped moisture under coating	Painted or plated surfaces	Visual inspection, tape test
Connector pin corrosion	Ingress into connector, capillary action	Electrical connectors	Electrical continuity test, pin inspection
Lens etching/fogging	Surface damage from jet impact, seal failure	Polycarbonate/glass lenses	Visual inspection, light transmission test

Common Failure Modes in Automotive Waterproof Testing

Seal Extrusion and Compression Set

Under high pressure, a soft seal can be forced (extruded) into the gap it's meant to seal, permanently deforming and losing its sealing force. After the pressure is removed, a seal with poor compression set resistance does not return to its original shape, leaving a gap. Both lead to immediate or delayed ingress. Testing with different seal materials and groove designs identifies the optimal combination. The high temperature (88°C) accelerates this failure mechanism, making the test a severe screening tool.

Inadequate Seal Groove Design

The seal's groove (the channel it sits in) is as important as the seal itself. If the groove is too shallow, the seal is under-compressed. If too deep, it's over-compressed and strained. Sharp corners in the groove can cut the seal. The IPX9K jet's force magnifies any design flaw. Testing prototypes with different groove dimensions and radii quickly identifies the most robust design before tooling is finalized.

Material incompatibility and Galvanic Corrosion

A seal material may be compatible with the housing polymer but degrade when in contact with a metal fastener or a different plastic. The hot, pressurized water can accelerate this incompatibility, causing the seal to swell, shrink, or become sticky. Furthermore, if water does ingress and pools around dissimilar metals (e.g., steel screw in aluminum housing), galvanic corrosion can rapidly destroy the fastener or housing, a secondary failure the test can reveal.

Housing Warpage and Dimensional Instability

Injection-molded plastic housings can warp during cooling or under thermal cycling. The IEC 60529 IPX9K equipment used for IPX9K testing imposes a hot water jet that creates rapid, localized thermal shock. This can cause a marginally warped housing to shift enough to open a seal gap. Testing multiple production batches of housings from different mold cavities or after different molding parameters (cooling time, pack pressure) identifies processes that yield dimensionally stable parts.

Improving Vehicle Reliability Through IPX9K Certification

Reducing Warranty Costs and Field Failures

Water-related electrical failures are a top cause of warranty claims. A single failed sensor or ECU can trigger multiple dashboard warnings, leading to a dealership visit, diagnosis, and part replacement. The cost per incident, including logistics and labor, can exceed the part's value. IPX9K testing at the component level catches sealing defects before assembly, preventing these cascading warranty costs. The data provides objective evidence for supplier negotiations and design holds.

Enabling Aggressive Design and Marketing Claims

Achieving IPX9K certification is a powerful marketing tool. It allows automakers to market "pressure washer safe" exterior components, "engine bay certified" electronics, or "off-road ready" sensor suites. This technical validation translates directly into consumer confidence and can justify premium pricing. For suppliers, being an "IPX9K certified" vendor is often a prerequisite for bidding on certain programs, opening doors to high-volume contracts.

Informing Design for Serviceability

The test also informs how components should be serviced. If a seal is designed to be replaceable, the IPX9K test can verify that the replacement procedure (involving disassembly, cleaning, and reassembly) does not compromise the new seal's integrity. It can also identify if a component's design makes it prone to water trapping during service, suggesting a need for drainage holes or different assembly sequences.

LIB Industry IPX9K Solutions for Automotive High-Pressure Validation

IPX9K Test Machine

SUS 304 workroom

Engineering Built for Automotive-Grade Rigor

LIB's IEC 60529 IPX9K equipment is engineered around the specific demands of automotive validation. The 1000L (1m³) interior volume accommodates large assemblies like complete headlight units or under-hood modules. The 1000x1000x1000mm chamber dimensions provide ample space for proper specimen mounting and rotation without splash interference. The four-nozzle system with adjustable angles (0°, 30°, 60°, 90°) and individual 30-second spray timing fully complies with IEC 60529's requirement for comprehensive angular coverage.

Uncompromising Control and Data Integrity

The programmable color LCD touchscreen controller is the brain. It allows engineers to create and store complex test profiles, automatically executing the precise nozzle sequence and turntable synchronization. Ethernet connectivity enables integration with laboratory data management systems for automated result logging and audit trails - essential for ISO/IEC 17025-accredited labs. Real-time monitoring of water pressure (8000-10000 kPa) and temperature (Ambient ~88°C) ensures the test never drifts out of specification, which would invalidate a multi-thousand-hour certification campaign.

Safety and Sustainability in Design

Testing at 10,000 kPa and 88°C is inherently hazardous. LIB integrates multiple safeguards: an electromagnetic door lock that prevents opening during pressurization, over-temperature and water shortage protection, and earth leakage protection. The double-layer insulating glass observation window with wiper allows safe monitoring. The closed-loop water circulation system with purification not only saves water but also maintains consistent water quality, preventing nozzle clogging from mineral deposits that would alter spray patterns - a critical factor for repeatable results.

Global Support and Customization for Unique Challenges

Automotive testing often involves unique fixtures for complex geometries or proprietary test cycles. LIB's customization expertise means they can modify the turntable, add special specimen clamps, or adjust the control software for a specific OEM's test protocol. With service centers globally and a 3-year warranty backed by a lifetime service commitment and a promise of replacement if repair isn't possible, they de-risk the investment. This turn-key approach - from consultation through installation and training - makes them a partner in achieving and maintaining IPX9K certification.

Conclusion

IEC 60529 IPX9K equipment provides the definitive, laboratory-controlled method to validate automotive components against the most severe high-pressure, high-temperature water exposure. This testing transforms guesswork into quantifiable data on seal and housing integrity, directly preventing field failures, reducing warranty costs, and enabling bold marketing claims. For automotive engineers and quality managers, investing in a precise, reliable IPX9K test system like LIB's is an investment in product integrity, brand reputation, and ultimately, customer safety and satisfaction in the face of the world's harshest cleaning and environmental conditions.

FAQ

How long does a standard IPX9K test cycle take for an automotive headlight?

The core test sequence for one full rotation (all four nozzles) is 2 minutes (4 nozzles x 30 seconds). However, standards often require multiple rotations or extended exposure. A typical validation test might run for 5-10 minutes total, but the full test protocol including setup, pre-checks, and post-inspection can take 30-60 minutes per specimen.

Can the LIB IPX9K chamber test a complete car door assembly?

The R9K-1200 model has a 1000mm cubic interior and a 600mm diameter turntable. A complete door assembly would likely be too large. Testing requires representative sub-assemblies (e.g., door module, window regulator housing, lock mechanism) or a custom oversized chamber. LIB offers customization for such applications.

What is the main difference between IPX9K and IPX6/IPX7 testing?

IPX6 tests resistance to powerful water jets (100 kPa, 3 minutes) from any direction, simulating heavy seas or strong rain. IPX7 tests immersion (1m depth, 30 minutes). IPX9K is far more severe, combining much higher pressure (80-100 bar vs. 1 bar for IPX6) with high temperature (80°C+), specifically for high-pressure wash-down scenarios. Passing IPX9K inherently satisfies IPX6 and IPX7.

Contact LIB Industry for Automotive IPX9K Testing Solutions

As a global manufacturer and supplier of IEC 60529 IPX9K equipment, LIB Industry delivers turn-key high-pressure water jet testing systems for automotive validation. Our chambers feature 8000-10000 kPa pressure, 88°C temperature, and four-nozzle programmable control. Contact our engineering team at ellen@lib-industry.com to discuss your specific automotive component testing requirements and receive a customized configuration.

BLOG List

Thermal Cycling Equipment in Solar Panel Durability Testing

Why Solar Panels Require Thermal Cycling Testing?

​Decades of Outdoor Exposure and Temperature Extremes

Cumulative Fatigue Mechanisms in PV Modules

Economic Stakes of Premature Panel Degradation

Temperature Stress in Photovoltaic Modules and Materials

CTE Mismatch Across Multi-Layer Module Stacks

Thermomechanical Strain at Cell Interconnects

Encapsulant and Backsheet Degradation Under Cyclic Stress

Testing Standards for Solar Panel Thermal Cycling Performance

IEC 61215 Thermal Cycling Requirements

Extended Cycling Protocols Beyond Minimum Qualification

Combining Thermal Cycling with Humidity and Mechanical Load Tests

Simulation of Day-Night Temperature Fluctuations in Solar Installations

Programmable Ramp Rates for Realistic Profiles

Dwell Periods and Thermal Equilibrium Considerations

Climate-Specific Test Profile Design

Evaluating Glass, Encapsulation Materials, and Electrical Connections

Solder Ribbon Fatigue and Cell Interconnect Integrity

EVA Yellowing and Delamination Detection

Junction Box and Connector Reliability Under Cycling

Improving Long-Term Solar Panel Reliability Through Environmental Testing

Correlating Accelerated Test Data with Field Performance

Design Iteration Based on Failure Mode Analysis

Building Warranty Confidence Through Rigorous Qualification

Reliable Performance Under Extreme Temperature Swings - LIB Industry

Wide Temperature Range and Controllable Ramp Rates

Scalable Chamber Volumes for Full-Size Module Testing

Safety, Connectivity, and Custom Configurations

Conclusion

FAQ

What temperature range does IEC 61215 require for solar panel thermal cycling?

Why are extended thermal cycling protocols (TC400, TC600) gaining popularity?

Can LIB Industry thermal cycling chambers accommodate full-size PV modules?

What is the UV weather resistance test chamber?

What is a UV Weathering Test Chamber?

What Are the Benefits of Using UV Weathering Test Chambers

What Are the Applications of UV Weathering Test Chambers

Conclusion

References

Test Procedure of JIS Z 2371 Salt Spray Test Chamber

What is the JIS Z 2371 Salt Spray Test Standard?

Origin and Regulatory Framework

Three Test Methods Defined

Application Industries and Materials

Key Parameters in the JIS Z 2371 Salt Spray Test Procedure

Temperature and Humidity Requirements

Salt Solution Composition and pH Control

Settlement Rate Verification

How to Set Up a Salt Spray Test Chamber According to JIS Z 2371?

Pre-Test Chamber Preparation

Sample Positioning and Holder Configuration

Solution Preparation and System Priming

JIS Z 2371 Salt Spray Test Chamber Test Process

Initialization and Parameter Programming

Monitoring and Data Collection

Sample Evaluation and Post-Test Procedures

Troubleshooting Common Issues

LIB JIS Z 2371 Salt Spray Test Chamber

Multi-Model Range for Diverse Applications

Advanced Engineering Features

Customization and Global Support

FAQ

How often should I replace the salt solution in my JIS Z 2371 salt spray test chamber during extended testing?

Can one chamber perform all three JIS Z 2371 test methods (NSS, AASS, CASS)?

What causes uneven corrosion patterns on samples, and how can I prevent this issue?

Partner with LIB Industry for Precision Corrosion Testing Solutions

ASTM G155 Compliance: A Guide to Xenon Arc Testing

What ASTM G155 Means for Weathering Test Accuracy?

Standardization Eliminates Inter-Laboratory Variability

Spectral Distribution Matching Natural Sunlight

Reproducibility Through Controlled Variables

Key Components of an ASTM G155 Xenon Test Chamber

Water-Cooled Xenon Arc Lamp System

Optical Filter Configuration

Irradiance Monitoring and Control Technology

Selecting Exposure Cycles for Different Materials

Practice A: General Outdoor Weathering

Practice B: Enhanced UV Exposure

Decades of Outdoor Exposure and Temperature Extremes

LIB Industry Supports Full ASTM G155 Compliant Testing Solutions

Conclusion

Conclusion
