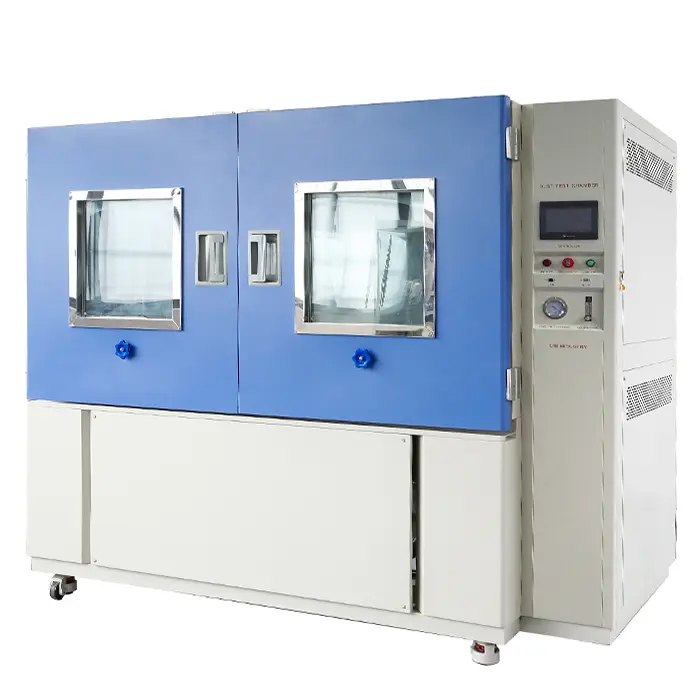

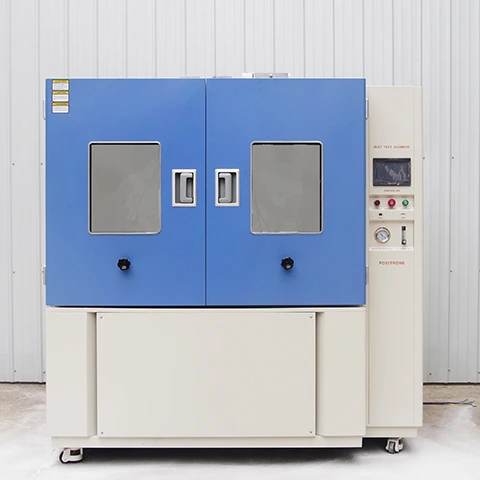

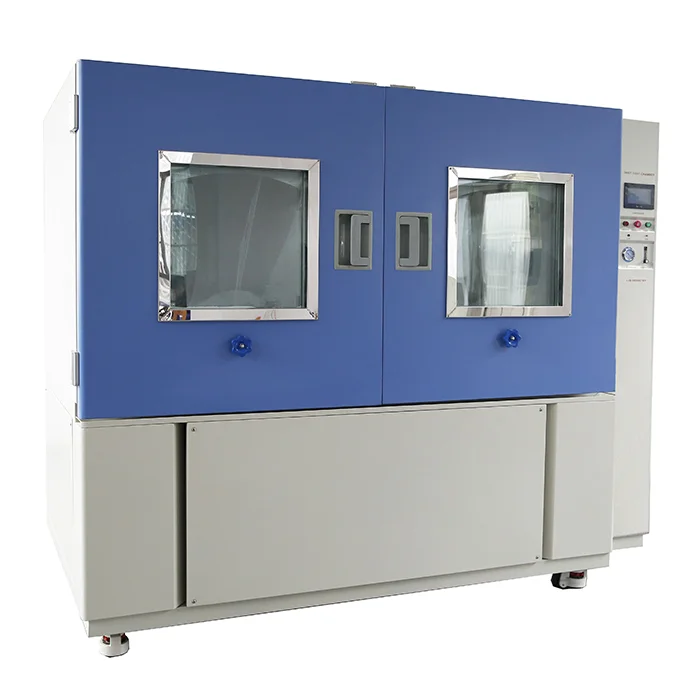

Dust Test Chamber
components, lamps, automotive assemblies and military.
Temperature Range:Ambient ~ +50℃
Humidity Range:< 30% RH
Nominal Width of a Gap Between wires:75um
Fight Time:0 ~ 99H59M
Blowing Time:0 ~ 99H59M
Specimen Power Outlet:Dust-proof socket 16A
Dust Test Chamber Manufacturer & Supplier
LIB industry is professional Dust Test Chamber manufacturers and suppliers in China, to buy or wholesale from our factory. For quotation, contact us now.
The LIB Dust Test Chambers provides a controlled dust environment to test product durability and dust resistance. Built for repeatability, our chambers simulate real-world conditions with programmable dust concentration and temperature control.
LIB's chamber can be used to perform ingress protection tests in accordance with the test standards IEC60529 60529 (IP5X / IP6X) and ISO 20653 (IP5KX / IP6KX). With additional equipment, further standards can be fulfilled, such as MIL STD 810 and other standards.
Technical Parameter
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Vacuum System | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Door Lock | Electromagnetic lock | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection；Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Product Details
|
|
|

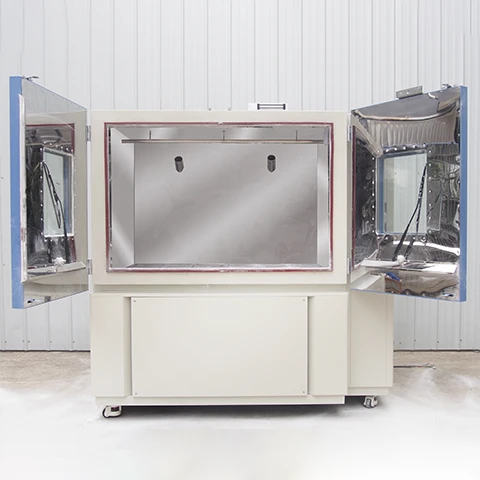

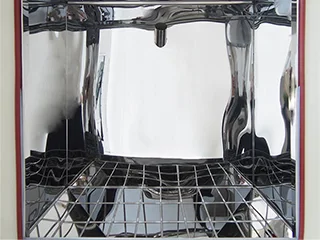

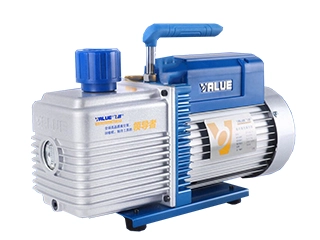

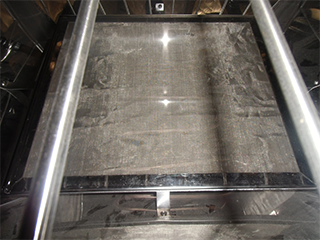

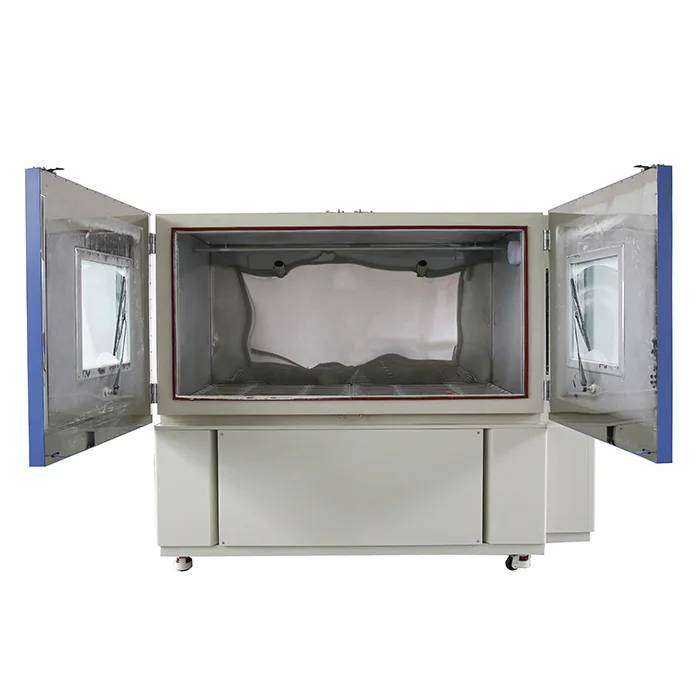

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof Standard configuration: sample rack | Vacuum Pump There is a vacuum interface in the workroom, which can be directly connected to the sample. | Mesh Sieve The mesh sieve is used to filter the dust that has formed quickly or has a large diameter. The diameter of the mesh is 75 microns |
|
|
Dust Test Chambers
LIB dust test chamber is available in sizes from 1 cubic meter to 4 cubic meters as standard, and provide custom models.
●Programmable Temperature: to 80°C, accuracy of ±0.5°C
●Real-time Monitoring: HMI touchscreen controller
●Test Space Visibility: Clear observation windows
●Lighting System: Integrated LED lighting with timed on/off
●Built-in power supply to supply power to the test piece
Customization
LIB engineering can fully customize dust test chamber for unique applications:
1.Custom chamber dimensions and capacities
2.Integrate your control system
3. Specific test standard compliance
4. Data logging and analysis integration
5. Custom sample holders
6. Alarm outputs and instrumentation
7. Camera systems and lighting
As leading specialists, LIB can build the ideal dust test solution for your technical specifications and requirements.
LIB Support and Services
We provide complete guidance and support:
● On-site installation and commissioning
● Staff training
● Technical support
● Software updates
● Spare parts
● Clibration and maintenance
● 3-year long warranty
