Dust Simulation Chamber

Dust Simulation Chamber

LIB Industry’s Dust Simulation Chamber (DI Series) lets you check how much dust gets into your product before it goes to a certification lab. It runs IP5X and IP6X tests to IEC 60529 and IP5KX / IP6KX tests to ISO 20653, with a vertical circulating dust flow in four sizes from 800 L to 2,000 L.
Standards: IEC 60529 (IP5X / IP6X), ISO 20653 (IP5KX / IP6KX), MIL-STD with additional equipment
Dust Flow: Vertical circulation, heated to keep talcum powder dry
Volume: 800 L ~ 2,000 L, custom sizes available
Wire / Gap Size: 50 μm wire diameter, 75 μm nominal gap between wires
Temperature / Humidity: Ambient ~ +50 ℃ / < 30% RH
Test Time: Fight time and blowing time 0 ~ 99H59M each
Product Description

Dust Simulation Chamber Manufacturer & Supplier

A Dust Simulation Chamber simulates dusty environmental conditions to evaluate whether products can prevent dust from entering their enclosures. It is commonly used for IP5X and IP6X dust ingress testing under IEC 60529.

LIB Industry Dust Simulation Chamber uses a controlled dust circulation system to distribute test dust inside the workroom. Adjustable dusting and blowing periods, together with a vacuum system, support different dust exposure test procedures.

Available in multiple capacities, the chamber is suitable for testing electrical enclosures, automotive components, outdoor equipment, and industrial products. The appropriate model depends on specimen dimensions, test requirements, and the applicable IP protection level.

Built for Pre-Certification Testing

Dry Powder That Keeps Flowing: Vertical Circulation and Sloped Bottom
Airflow carries dust smoothly into the workroom, and the sloped bottom stops buildup, so the dust cloud stays even from run to run.

Standard Mesh: 50 μm Wire, 75 μm Gap
The mesh dimensions follow IP dust test requirements, so your result is comparable with a certification lab’s.

Vacuum Interface for Sealed Products
The workroom vacuum interface connects directly to the sample. Pressure gauge, air filter, pressure regulator and connecting tube are included.

Powered Samples Welcome: 16 A Dust-Proof Outlet
Run the product while it is exposed to dust to see failures a power-off test would miss.

Watch Without Opening: Interior Lighting, Electromagnetic Door Lock
Check the test through the window while the door stays locked.

Easy to Operate: Color Touch Screen, Ethernet, USB
Connect to a PC running your local lab software and download data by USB.

Dust Simulation Chamber Technical Parameters

Model

DI-800

DI-1000

DI-1500

DI-2000

Internal Dimension (mm)

800*1000*1000

1000*1000*1000

1000*1500*1000

1000*2000*1000

Overall Dimension (mm)

1040*1450*1960

1330*1450*1960

1330*1950*1990

1330*2450*1990

Useful Volume (L)

800

1000

1500

2000

Temperature Range

Ambient ~ +50℃

Humidity Range

< 30% RH

Normal Wire Diameter

50um

Nominal Width of a Gap Between wires

75um

Fight Time

0 ~ 99H59M

Blowing Time

0 ~ 99H59M

Specimen Power Outlet

Dust-proof socket 16A

Vacuum System

Equipped with a pressure gauge, air filter, pressure regulator, connecting tube

Controller

Programmable color LCD touch screen controller, Ethernet connection

Door Lock

Electromagnetic lock

Safety Device

Over-temperature Protection; Over-current Protection;

Earth Leakage Protection;Phase Sequence Protection

Exterior Material

A3 Steel Plate with protective coating

Interior Material

SUS304 stainless steel

Observation Window

Interior lighting, double-layer thermo stability silicone rubber sealing

Standard Configuration

Sample shelf, dust wiper, talcum powder(5kgs)

Dust Simulation Chamber Details

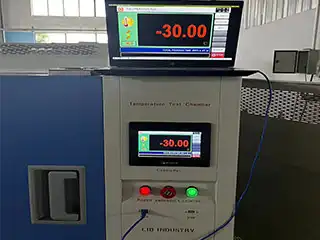

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data

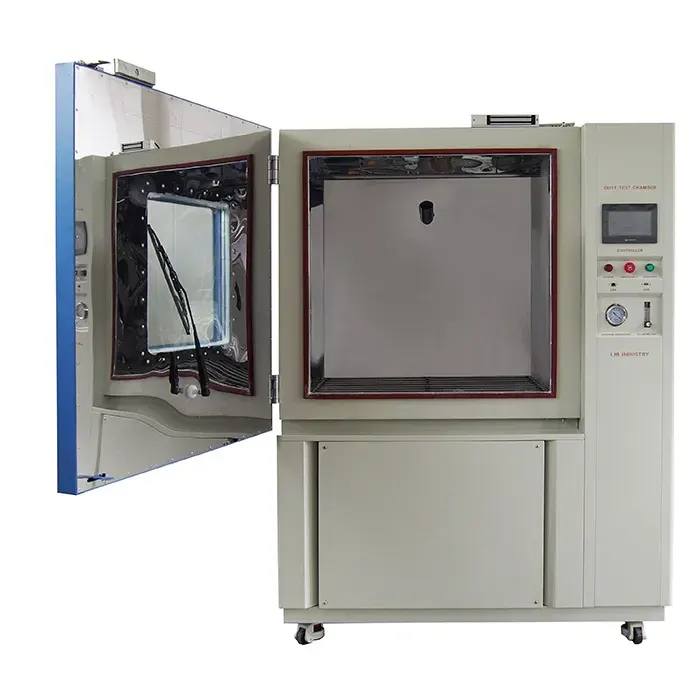

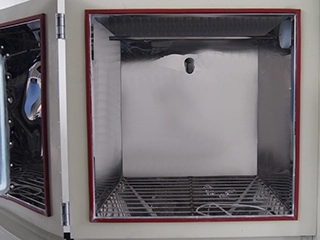

Workroom

The internal material is 304 stainless steel, mirror surface, rust-proof

Standard configuration: sample rack

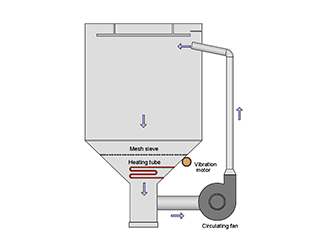

Dust Circulation System

Test chamber with vertical circulating airflow

vertical dust circulation system. Airflow can smoothly blow dust into the working room



Customized Dust Testing Solutions

LIB Industry provides customized Dust Simulation Chamber configurations according to laboratory layouts, specimen dimensions, and testing requirements.

Available customization options include:

  • Custom Chamber Dimensions: Adapt internal dimensions to accommodate larger or specially shaped specimens.

  • Special Sample Holders: Reinforced or customized racks for different specimen sizes and weights.

  • Testing Programs: Customized controller programs according to specified test procedures.

  • IP Testing Laboratory Solutions: Equipment selection and laboratory planning for dust and other environmental protection tests.

For customized projects, the required test standards, specimen dimensions, weight, and test configuration should be provided for technical evaluation.

FAQ

Q1. Can LIB Industry build a whole IP lab?
Yes. LIB Industry supplies chambers, custom software, special holders and layout advice for a complete IP test lab.

Q2. What comes with the chamber?
5 kg of talcum powder, a sample shelf and a dust wiper, plus installation, operator training and ISO 17025 calibration and 24/7 English remote support. Every unit runs 72 hours at the factory, with a 36-month warranty, then lifetime technical support.

Q3. How long until it ships?
Standard models ship within 7~15 days by sea, air or door-to-door.

Send LIB Industry your target IP rating, product size and quantity. LIB Industry engineers will recommend the right model and send a detailed quotation.
