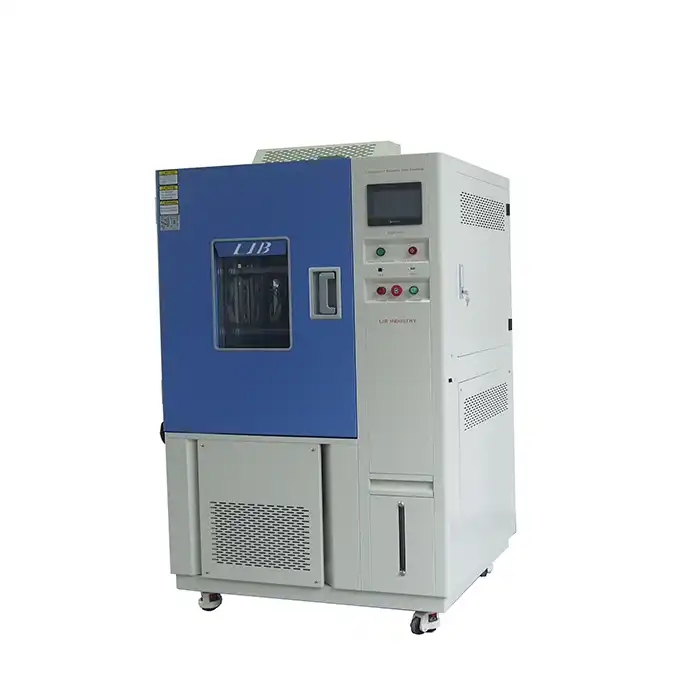

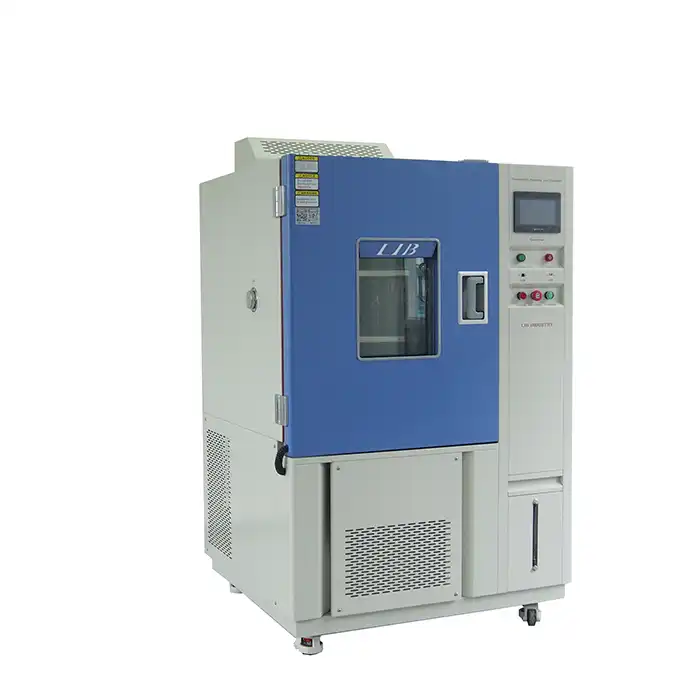

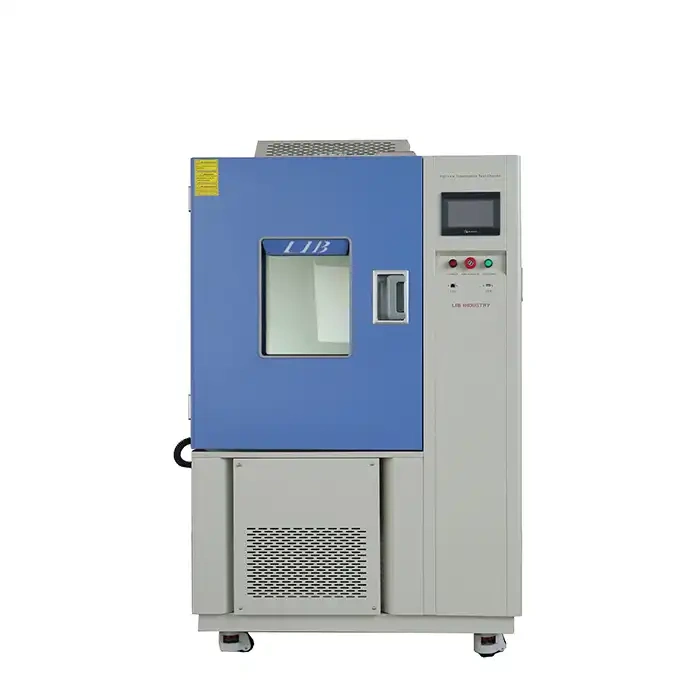

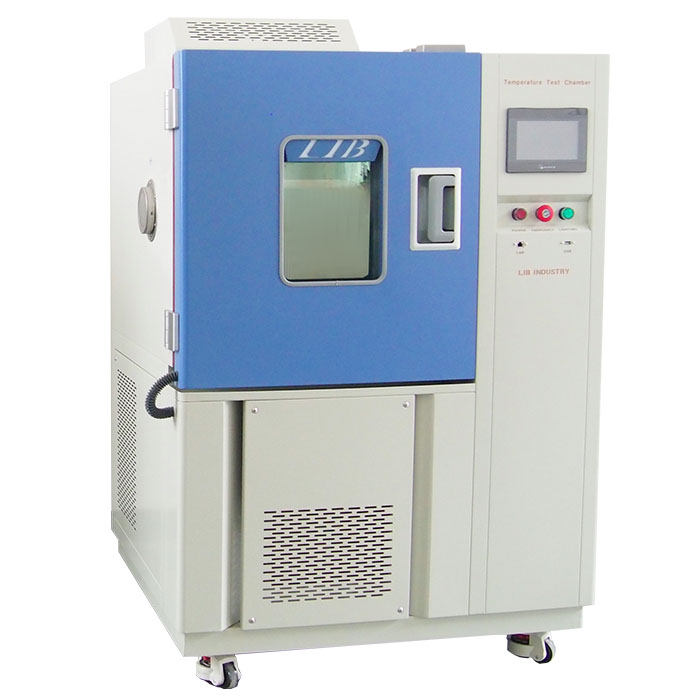

thermal cycling test chamber

LIB Industry thermal cycling test chamber is designed for testing specimens under rapid temperature change
Model:TR5-500
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Cooling Rate:10 ℃ / min （average）
Heating Rate:10 ℃ / min （average)
The temperature ramp rate is controllable at 5℃ / 10℃ / 15℃ per minute.
Volume:100L, 225L, 500L, 800, 1000L, 2000L, 3000L

Product Description

LIB Industry thermal cycling test chamber Manufacturer & Supplier

A thermal cycling test chamber is a specialized natural unwavering quality testing device outlined to subject materials and items to substituting tall and low-temperature extremes at controlled rates. Not at all like standard broilers, this gear mimics energetic warm weakness to uncover idle surrenders caused by warm jumble. Your testing needs require exact temperature moves to distinguish potential disappointments some time recently they happen in real-world applications. The thermal cycling chamber addresses basic industry challenges where Coefficient of Thermal Expansion (CTE) mismatches between diverse materials can lead to micro-cracking, patch joint breaks, and seal failures.

LIB Industry thermal cycling test chamber is used to simulate extreme temperature conditions for testing the performance and reliability of various products. It is commonly used in industries such as aerospace, automotive, electronics, and pharmaceutical.

The chamber equipped with a temperature control system that can rapidly and accurately change the temperature within a specified range. The temperature change rate can reach to 5 ℃ / min (10 ℃ / min).

Key Features of Our Thermal Cycling Chambers

Advanced Temperature Control System

Our chambers include industry-leading temperature consistency and soundness. The exactness control framework guarantees precise temperature moves all through your testing cycles. Each unit consolidates open ceramic-core nichrome radiators that keep up temperature exactness inside ±0.5°C.

Superior Refrigeration Technology

The cascade refrigeration framework utilizes premium components from eminent brands like Bitzer and Tecumseh. Our electronic extension valve (EEV) innovation gives exact stream control, decreasing vitality utilization by over 20% compared to conventional thermostatic extension valves. This plan altogether diminishes compressor mechanical weakness amid visit temperature changes.

Anti-Condensation Protection

The coordinates anti-condensation control framework guarantees example surfaces stay dry all through testing cycles. This secures important test tests from electrochemical movement dangers and potential short-circuiting amid fast temperature transitions.

Technical Specifications

Model	TR5-100	TR5-225	TR5-500	TR5-800	TR5-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5 ℃ / min
Heating Rate	5 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Air Circulation	Centrifugal wind fan
Safety Device	Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves

Product Details

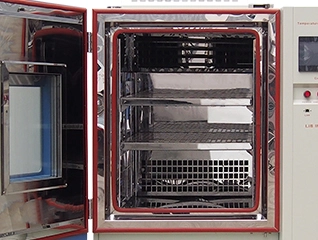

thermal test chamber.jpg

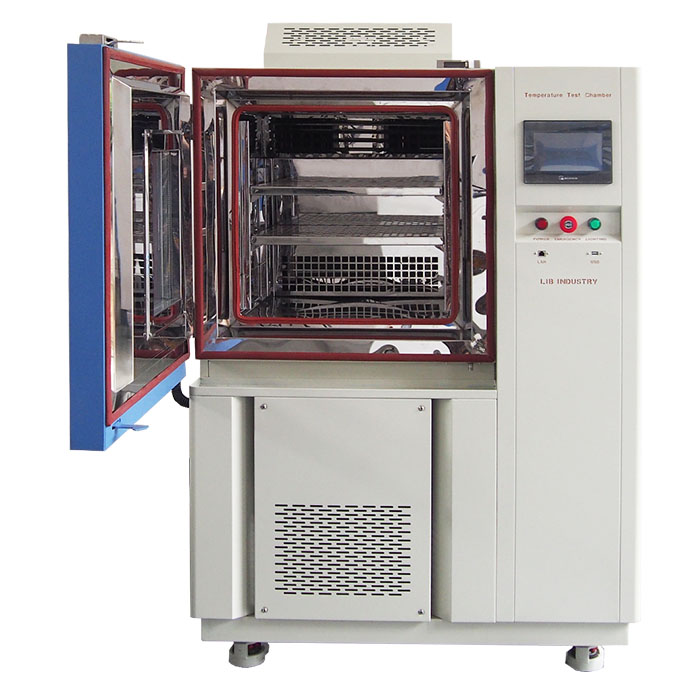

SUS304 Workroom

Engineered for extreme temperature shifts, the chamber’s interior maintains uniform airflow for consistent results. Durable construction supports repeated testing under harsh conditions.

Cable hole

A standard test hole with plugs

50mm/100mm/200mm

Soft silicone plug seal; Metal enclosure closed

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data

Key Features

The thermal cycling test chamber is equipped with the following key functions:

1. Temperature Cycling: Mimics rapid temperature changes for assessing product performance under extreme conditions.

2. Humidity Control: Humdity system as option

3. Data Logging: Captures and records test data for comprehensive analysis and reporting.

4. Safety Features: Overheat protection, door alarms, and emergency shutdown options ensure user safety and equipment protection.

5. Remote Monitoring: Allows users to monitor tests remotely for added convenience.

Why Choose LIB Industry?

Professional Quality Assurance

We take after strict ISO 9001 Quality Management System standards. All items carry CE certification and experience third-party testing by SGS and TUV specialists. This guarantees universal compliance, steady execution, and remarkable unwavering quality for your testing requirements.

Comprehensive After-Sales Support

Every thermal cycling test chamber comes with a 3-year guarantee and lifetime benefit commitment. Our 24/7 worldwide back group gives quick help. If repairs aren't conceivable inside the guarantee period, we'll give a brand-new substitution unit at no charge.

Custom Design Capabilities

Our building group exceeds expectations in non-standard plan and custom R&D arrangements. We make custom-made chambers that meet your particular testing conventions and industry prerequisites. Whether you require altered chamber measurements or specialized control highlights, we convey ideal solutions.

Global Service Network

With benefit centers in Malaysia, Canada, the United Kingdom, and the United States, we give localized back over major markets. Our arrange of 29 worldwide operators guarantees incite specialized help and save parts accessibility wherever your operations are found.
