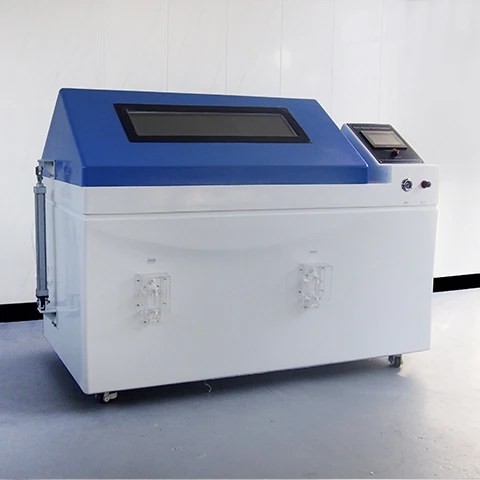

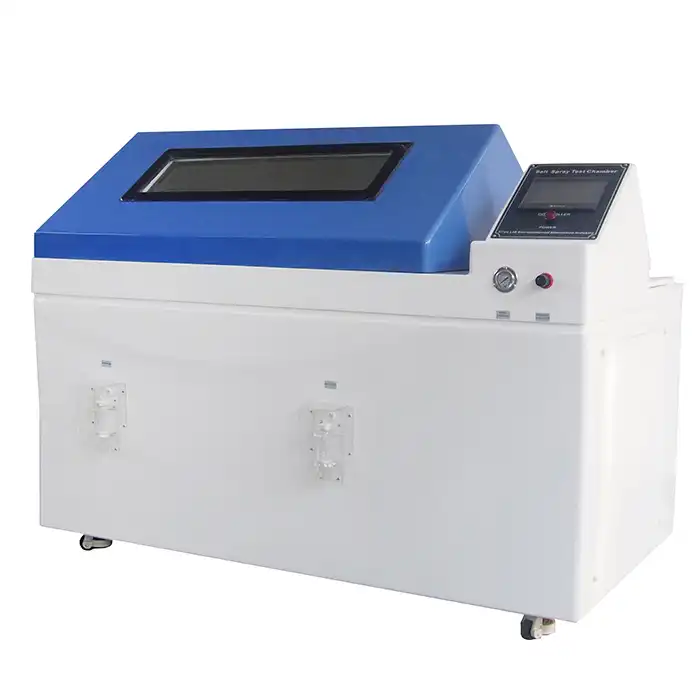

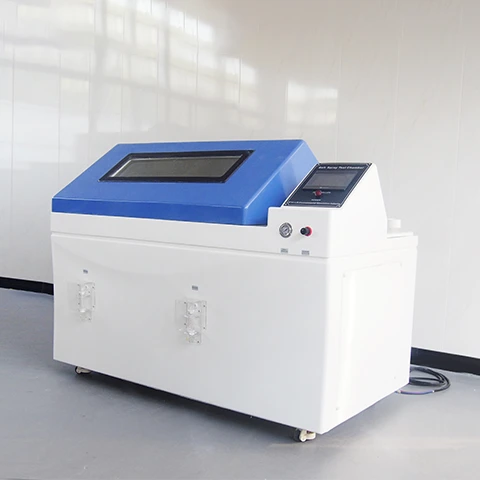

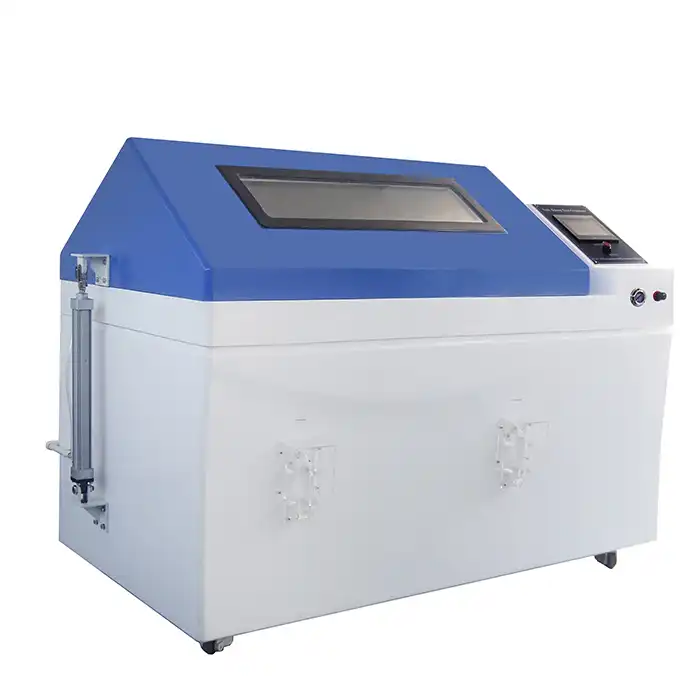

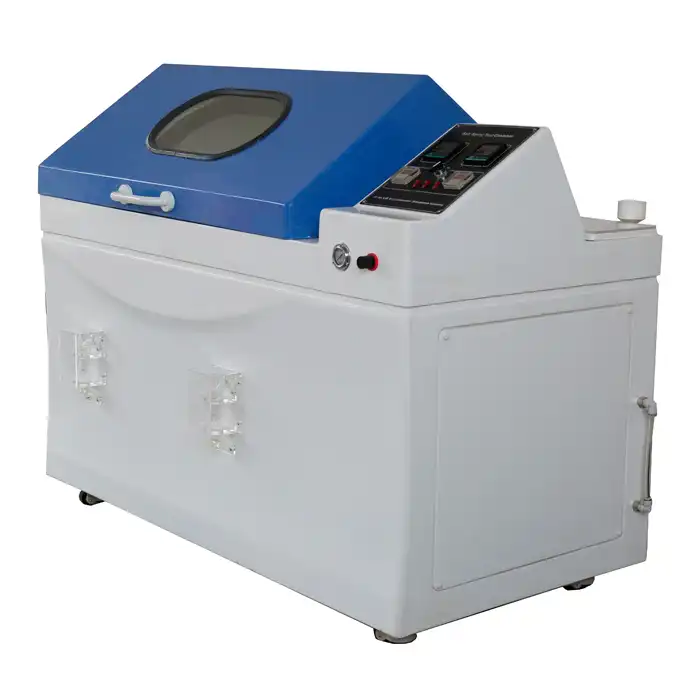

Salt Spray Test Chamber
Temperature Range:Ambient: ～ +60 ℃
Humidity Range:95% ~ 98% RH
Materials:Glass fiber reinforced plastics
Standard:ASTMB117, ISO9227
Volume:110L, 250L, 7500L,1000L, 1500L
Ranging size from 110L to 3000L different models for you test
- Product Description
Salt Spray Test Chamber Manufacturer & Supplier
The Salt Spray Test Chamber, produced by LIB Industry, provides the perfect solution for evaluating material durability and coating performance. This advanced testing equipment creates controlled salt fog environments to simulate years of natural corrosion in just hours or days. Whether you're testing automotive parts, electronic components, or protective coatings, our product ensures your products meet international quality standards while reducing testing time and costs significantly.
Why Choose LIB Industry Salt Spray Testing Equipment?
Anti-Clogging Nozzle Technology
We get it your greatest concern: spout blockage destroying 72-hour tests. Our quartz glass spouts highlight smooth inner surfaces that anticipate crystallization and clogging. The oil-free discuss compression framework guarantees clean discuss conveyance, keeping up steady shower designs all through expanded testing periods.
Precision Salt Haze Control
Our gear conveys exact salt haze settlement rates of 1-2 mL per 80 cm² per hour, assembly ASTM B117 prerequisites. The logical collector format permits real-time checking through outside measuring barrels without opening the chamber. This double temperature control framework anticipates untimely condensation, guaranteeing uniform 1-2 μm droplets.
Superior Erosion Resistance
Built with GRP (Glass Fiber Strengthened Plastic) development, our Salt Spray Chambers offer 30% way better temperature resistance than standard PVC materials. The one-piece molding handle dispenses with welding creases, anticipating spillage and auxiliary disappointment. This plan essentially expands hardware life expectancy in unforgiving destructive environments.
Advanced Control Systems
Our brilliantly control framework stores up to 120 test programs with 100 steps each. The PT100 Course A temperature sensors give 0.001°C determination for exact natural control. Programmed water refill, spout cleaning, and security interlocks diminish human mistake whereas keeping up steady test conditions.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|

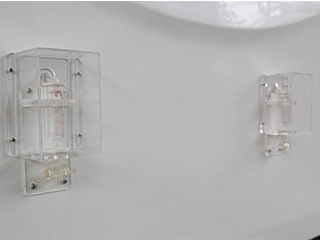

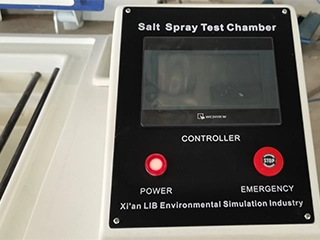

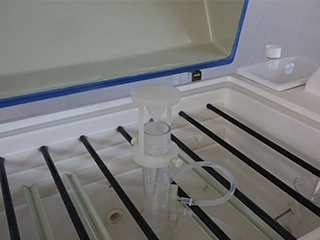

Controller PID control system Network connection computer English/French/Spanish/German/Russia | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions | Salt Spray Device Spray tower is adjustable in height and spray volume to meet different test standards Salt spray nozzles are easy to clean |
|
|
Key Features That Set Us Apart
Multi-Standard Compatibility
Our equipment supports three main test methods:
· Neutral Salt Spray (NSS): 5% NaCl solution at pH 6.5-7.2
· Acetic Acid Salt Spray (AASS): pH adjusted to 3.1-3.3 with acetic acid
· Copper Accelerated Salt Spray (CASS): Enhanced with copper chloride for accelerated testing
Smart Sample Positioning

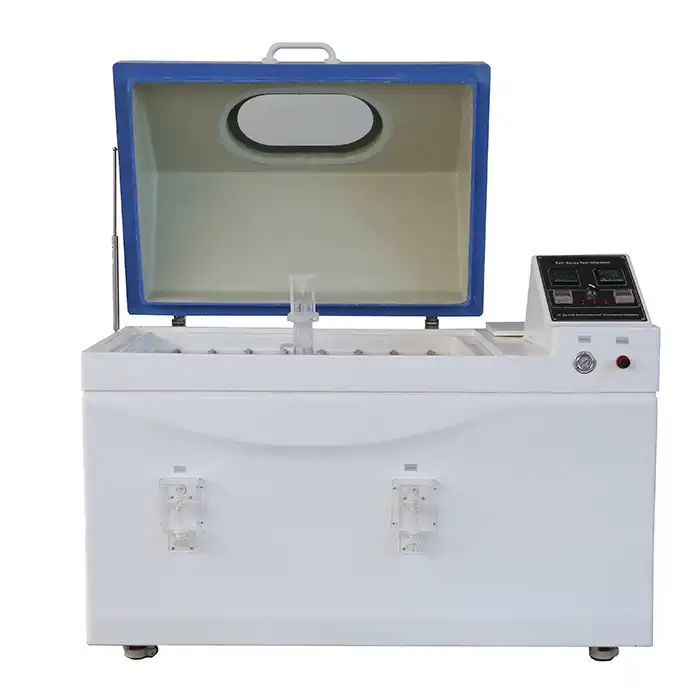

The movable V-groove and rod-type test holders suit different example shapes and sizes. The tilted straightforward cover plan avoids condensation from trickling onto tests, guaranteeing exact test results.
Flexible Chamber Sizes and Customization
From compact 110L units to large 1600L chambers, we offer sizes that fit your testing volume needs. Our walk-in Salt Spray Test Chamber models accommodate large components and assemblies that don't fit standard bench top units. Need something specific? Our custom design capabilities ensure you get exactly what your application requires, whether that's special sample fixtures, modified dimensions, or unique control systems.
Professional Quality Assurance
Following ISO 9001 Quality Administration Framework, all items are CE certified and tried by third-party specialists like SGS and TUV. This guarantees universal compliance, steady execution, and solid comes about for your testing needs.
Comprehensive After-Sales Support
Every unit comes with a 3-year guarantee and lifetime benefit. We give 24/7 worldwide back, and if repair isn't conceivable inside the guarantee period, we offer brand-new substitution equipment.
Why Choose LIB Industry
1. 16 A long time of Ability: Since 2009, we've conveyed solid testing arrangements to over 72 nations worldwide.
2. Global Bolster Organize: With benefit centers in Malaysia, Canada, the UK, and the US, you get nearby back wherever you operate.
3. Trusted by Industry Pioneers: Apple, IBM, Amazon, Intel, BYD, and Mercedes-Benz depend on our hardware for their quality control needs.
4. Complete Peace of Intellect: Each chamber incorporates a 3-year guarantee with lifetime benefit back. If we can't repair it amid guarantee, we'll supplant it with a brand-new unit.
5. ISO 9001 Certified: Our quality administration framework guarantees steady fabricating measures and solid performance.
When you choose our salt spray chamber, you're investing in precise, reliable corrosion testing that helps ensure your products meet market demands.
