Salt Spray Chamber
Temperature Range:Ambient: ～ +60 ℃
Humidity Range:95% ~ 98% RH
Temperature Fluctuation:± 0.5 ℃
Temperature Deviation: ± 2.0 ℃
Salt Fog Deposition:1～2ml / 80cm2 · h
Spray Type: Continuous / Periodic
- Product Description

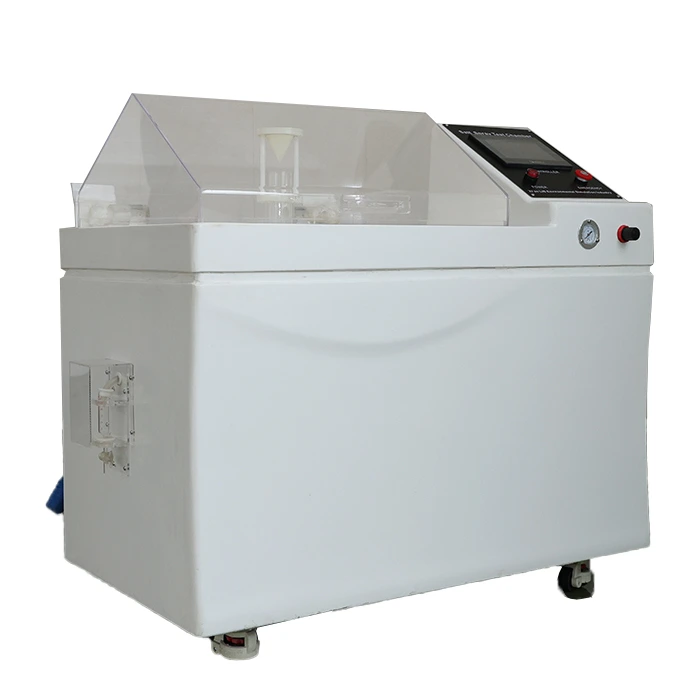

Introduction to LIB Salt Spray Chamber
The LIB industry's Salt Spray Chamber is a corrossion testing equipment designed to simulate and assess the corrosion resistance of materials and coatings in various industries. Equipped with a user-friendly interface, programmable controls, and a transparent viewing window, these chambers offer convenience and visibility during testing processes.
Compliant with international standards such as ASTM B117, ISO 9227, and JIS Z 2371, our chambers guarantee adherence to established testing protocols, providing confidence in the accuracy and reliability of the results.
Product Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|

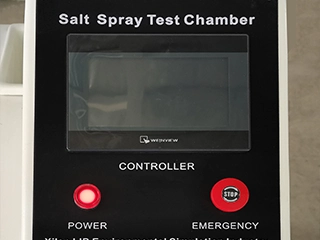

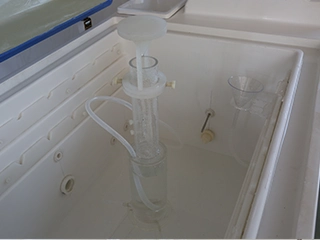

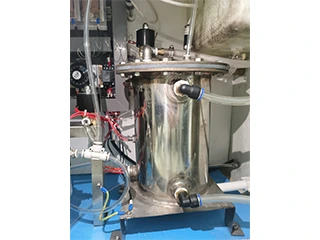

Controller PID control system Language can be selected, English/French/Spanish/German/Russian | Salt Spray Device Spray tower is adjustable in height and spray volume to meet different test standards | Saturated Barrel The air is preheated in the saturated barrel. Protection against dry burning. If the water level is low, the spray will stop. |
|
|
Salt Spray Chamber Features
Low Loading Threshold: Designed for ergonomic loading and unloading.
‘Easy Open’ Canopy: Pneumatically operated with a safety interlock for secure operation.
Dry Seal Gasket: Prevents moisture from wetting the operator’s clothing.
Timed Canopy Lock: Automatically purges the cabinet interior with fresh air after testing and before the salt spray chamber is opened.
Easily Accessible Salt Spray Atomizers: Constructed from transparent, durable acrylic for easy maintenance.
External Portable Salt Solution Tank: Facilitates easy cleaning. Capacities: 115L for 300/400L chambers, 73L for 450L chambers, and 90L for 1000L and larger chambers.
Central Viewing Window: Provides clear visual access to the chamber interior and test materials.
Base Castors and Integrated Forklift Runners: Enhance mobility and ease of transportation.
Customizable Canopy Color: Choose from a variety of colors to suit your preferences.
Calibration Certificate: Included for accuracy and reliability.
Consumables Spares Kit: Ensures you have essential replacement parts on hand.
Fallout Measuring Kit: For precise measurement and analysis.
LIB Industry:
LIB is a leading salt spray chamber manufacturer and supplier, delivering chambers with comprehensive test reports and certifications. We offer:
Customization: Various standards and customization options available.
Fast Delivery: Prompt shipping to meet urgent testing requirements.
Secure Packaging: Ensuring chambers reach customers intact and secure.
Support and Testing: Comprehensive support for installation, operation, and testing.
