- Product Description
Mixed Flowing Gas Chamber is used to test electrical and electronic products, electroplating products and a variety of gold and silver products of electroplating protective layer, is used to assess the material and its protective layer of corrosive gas resistance ability, as well as similar protective layer process quality comparison.
Products Description
|
|

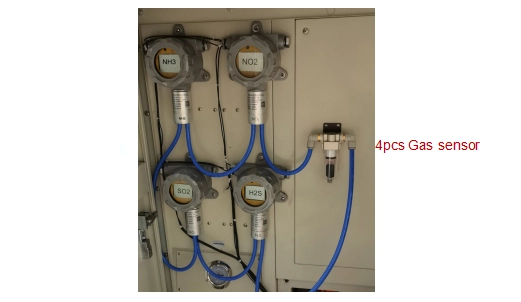

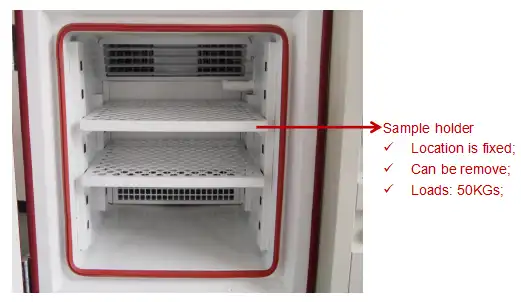

Workroom The material of other machines' workroom is stainless steel, but for corrosion machine, we use #sus 316 stainless steel, effectively enhance the corrosion resistance and extend the life of the machine. | Gas Sensor Gas sensors are highly accurate and easy to replace. Also, we have made special treatment for it, which is not easy to be corroded under high humidity. |
COOLING SYSTEM
The standard refrigerants are environmentally friendly refrigerants R404A and R23 from french brand DuPont.
Products Parameter
Temperature Range | +15℃ ～ +80℃ (adjustable) |
Temperature Fluctuation | ± 0.5 ℃ |
Temperature Deviation | ± 2.0 ℃ |
Humidity Range | 30% ~ 98% RH (adjustable) |
Humidity Deviation | ±2% RH |
Temp-Humid point | +(35±2) ℃, (75±3) %RH +(40±2) ℃, (80±3) %RH |
Air Change Rate | 3~5 times / hour |
So2 concentration | 1 ~ 35 ppm with adjustable |
H2S concentration | 10 ~ 30 ppm with adjustable |
No2 concentration | 10 ~ 100 ppm with adjustable |
NH3 concentration | 1000 ~2000 ppm with adjustable |
Error in maintaining the concentration | 10% |
Service
- INSPECTION
Before delivery, LIB Industry engineer will commission it, and issue“ Inspection Report”
WARRANTY & AFTER-SALES SERVICES
3 Years Warranty, Lifelong Follow-up Services
Our company will repair the product, if the product, the material of the parts, the design, and manufacturing of the products raised hardware problems caused by product itself rather than human error within three years warranty period since the date of dispatching by the customer.
Our company repairs the products, but will collect the basic costs of the spare parts after the warranty period, but labor costs is free always.
Xi'an LIB Simulation Industry, a focus on environmental test chamber enterprise. If you are interested in this Mixed Flowing Gas Chamber, please feel free to contact us, we will reply you in the shortest time!
