Constant Humidity Chamber
Model: TH-800
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-86℃～+150 ℃;
Refrigerant: Environmental refrigerant;
Temperature and Humidity condition
Touch-screen programmble controller,Ethernet access
The constant humidity chamber is an reliable environmental test system that offers exceptional precision in humidity control for a wide range of industrial testing applications. This progressed steady temperature and mugginess chamber makes absolutely controlled conditions for amplified testing periods. Whether you're conducting pharmaceutical solidness ponders or hardware unwavering quality testing, this consistent temperature and mugginess test chamber dispenses with natural factors that may compromise your comes about. Built with professional-grade components and cleverly control frameworks, our steady temperature and stickiness machine guarantees your testing meets the most elevated worldwide standards.
Key Features & Benefits
LIB industry constant humidity natural test chamber combines cutting-edge innovation with user-friendly operation. The progressed PID control framework keeps up extraordinary soundness with negligible changes. You get exact temperature control and stickiness control that remains reliable all through your testing cycles.
Temperature Performance:
· Wide temperature range capability
· Temperature fluctuation: ±0.5°C
· Excellent uniformity across the chamber
· Fast recovery times after door openings
Humidity Control Excellence:
· Humidity deviation: ±2.0% RH
· Advanced water management system
· Automatic water replenishment
· Humidity range from 10% RH to 98% RH
· Dry-run protection mechanisms
Smart Control System:
·Touchscreen controller for setpoint and data monitoring
· Multi-language support
· USB and Ethernet connectivity
· Real-time data logging and export
· Programmable humidity test profiles
Technical Specifications of Constant Humidity Chamber
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Deatils
|
|
|

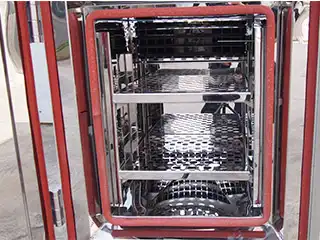

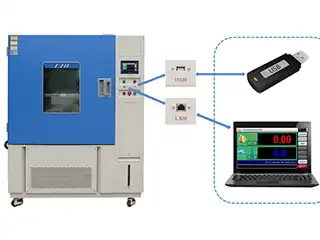

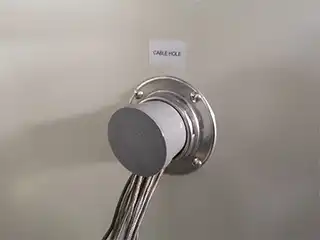

| PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Workroom The internal material is 304 stainless steel Rust-proof to high and low temperature and moisture corrosion; | Cable hole The standard inner hole diameter is 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed |
|
|
Advanced Water Management System
Your constant humidity chamber highlights an cleverly water framework that kills day by day upkeep hassles. The programmed water supply interfaces straightforwardly to your facility's water line. Built-in filtration guarantees unadulterated water circulation. You'll never stress approximately dry-run harm much obliged to different security sensors.
The water reusing framework moderates assets whereas keeping up ideal execution. Moo water alerts grant you development caution. The framework consequently close down securely if water levels ended up critical.
Why Choose LIB Environmental Solutions
Professional Quality Assurance
We take after strict ISO 9001 Quality Management Systems. All items carry CE certification and third-party testing from SGS and TUV. You get hardware that meets worldwide benchmarks with steady, dependable performance.
Comprehensive After-Sales Support
Every hardware comes with a 3-year guarantee and lifetime benefit. Our 24/7 worldwide back group helps at whatever point you require offer assistance. If repair isn't conceivable amid guarantee, we give brand-new substitution equipment.
Custom Engineering Capabilities
Our solid skill in non-standard plan makes custom fitted arrangements for your particular needs. We work closely with you to convey ideal comes about for your one of a kind application requirements.
Global Trust & Reliability
Since 2009, we've served over 60 nations over Europe, Asia, North America, and Africa. Our client list incorporates Apple, IBM, Amazon, Intel, SGS, TUV, CERN, BYD, Great Wall Motors, and Mercedes-Benz.
With 29 worldwide specialists and benefit centers in Malaysia, Canada, the Joined together Kingdom, and the Joined together States, we give localized back wherever you work. Our extension plans incorporate extra benefit centers in South America, Central Asia, and Russia by 2030.
Get Started Today
Ready to enhance your testing capabilities? Our constant humidity chamber provides the environmental control your research demands. Contact us today: ellen@lib-industry.com .
