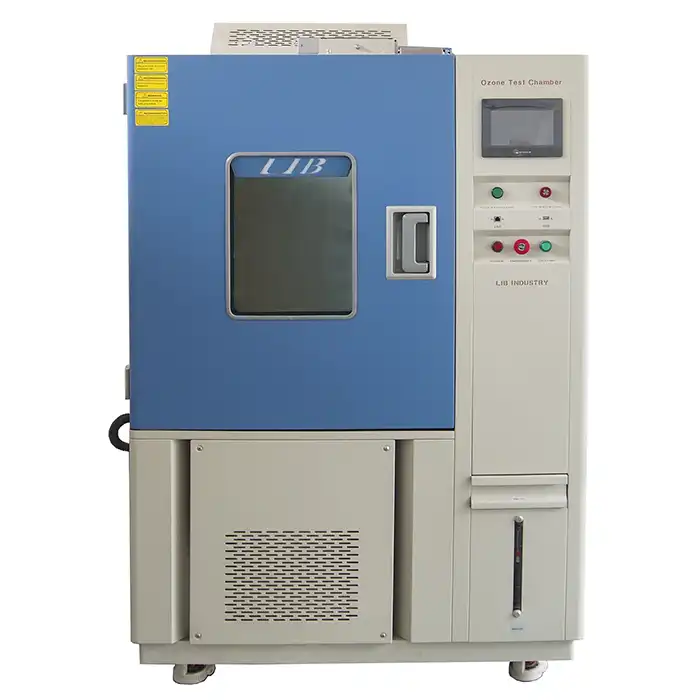

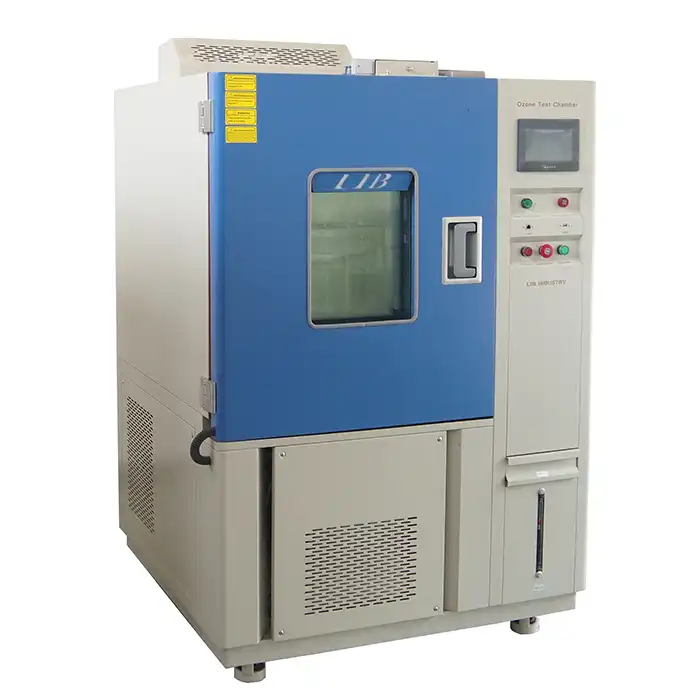

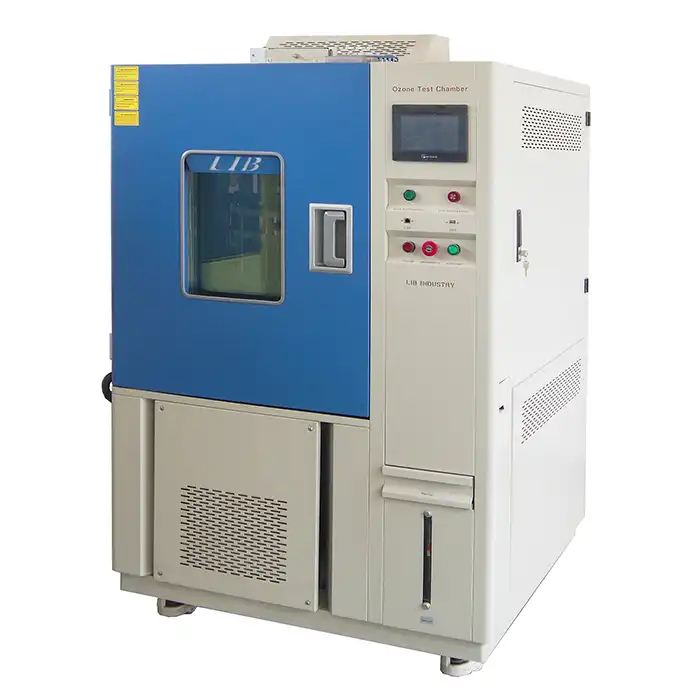

Name: ozone test machine
SKU: N/A

Product Description

LIB Industry's ozone test machine is used to evaluate how electrical and electronic products, electroplated components, and gold/silver-plated protective layers withstand corrosive ozone exposure. It is widely used to compare the process quality of similar protective coatings and to qualify materials before mass production.

Key Features

Workroom Interior chamber built in SUS304 stainless steel, specially treated to resist ozone-related corrosion and extend service life — even under continuous, long-duration testing cycles.

Gas Sensor High-accuracy ozone gas sensor, easy to replace, and specially treated so it resists corrosion even under high-humidity conditions.

Safety Devices

Double silicone door seal for reliable gas-tightness
Every unit undergoes repeated airtightness testing before leaving the factory
Electromagnetic door lock generates strong holding force; unlocking is only possible from the controller, preventing accidental opening during a test
Emergency stop button, earth leakage protection, and phase sequence protection

Products Description

ozone chamber's workroom

WORKROOM

The material of other ozone test machine workroom is stainless steel, but for corrosion machine, we use 304 stainless steel, effectively enhance the corrosion resistance and extend the life of the machine.

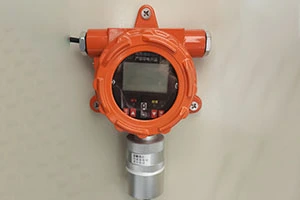

ozone sensor

GAS SENSOR

Gas sensors are highly accurate and easy to replace. Also, we have made special treatment for it, which is not easy to be corroded under high humidity.

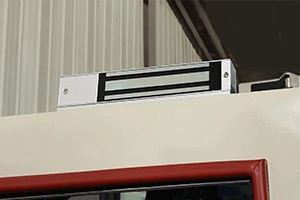

Electromagnetic lock

SAFETY DEVICES TO PREVENT GAS LEAKAGE

The door frame is fitted with a double silicone seal made of hard silicone with better corrosion resistance.

Each machine is subjected to strict airtightness testing for many times before leaving the factory.

Door lock is an electromagnetic lock, which will generate a strong suction force and tightly attract the iron plate to lock the door.

Unlocking is operated on the controller for safety and prevent malfunction.

Products Parameter

Model	OC-250	OC-500	OC-800	OC-010
Internal Dimension (mm)	600600700	700800900	80010001000	100010001000
Overall Dimension (mm)	96011501860	120013402020	130015402120	150015402140
Interior Volume (L)	250	500	800	1000
Temperature Range	0℃ ～ +100 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Humidity Range	30% ~ 98% RH
Humidity Deviation	± 2.5% RH
Cooling Rate	Ambient ~ 0℃ within 20 min
Ozone Concentration	1～1000PPHM
Sample Holder Rotate Speed	0~10 r/min
Airflow Rate	0 ~ 60L/min
Clamps Tensile Stretch	5%～35%
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Water supply system	Automatic water supply, Water purification system
Humidifier	External isolation, stainless steel surface evaporation humidifier
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Gas Sensor	Ozone gas sensor
Ozone Generator	Silent discharge type ozone generator
Air Circulation	Centrifugal wind fan
Sample Holder	Static + dynamic combined sample holder
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing

gas flow chamber

ozone test machine

Ozone Generator: Silent discharge type, gas can be automatically generated

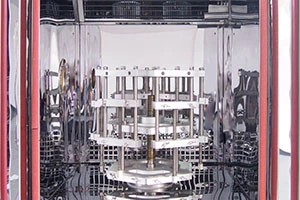

Sample Holder: Static + dynamic combined sample holder for stretching samples

Why Choose LIB Industry?

Quality You Can Verify Every chamber is built under ISO 9001 quality management standards, carries CE certification, and is tested by independent third parties. Before shipment, each unit goes through repeated airtightness and functional testing to make sure it performs exactly as specified.

After-Sales Support Every ozone test machine comes with a 3-year warranty and lifetime technical support. If a unit can't be repaired within the warranty period, we replace it with a new one. Our team supports installation guidance, operator training, and remote troubleshooting so your lab is never left waiting.

Custom Configurations Need a non-standard chamber size, a specific ozone concentration range, or extra sample holders? Our engineering team can configure the machine to your test protocol.

Applications

Electronics & Electroplating: Evaluate ozone resistance of plated connectors, contacts, and electronic housings before mass production.
Quality Control: Compare the durability of different protective coating processes side by side.
Incoming Material Inspection: Screen supplier components for consistent ozone resistance performance

Frequently Asked Questions

Q: How is the ozone concentration generated and controlled? A: A silent discharge ozone generator produces ozone automatically, and the concentration is continuously monitored and regulated by the built-in gas sensor and controller.

Q: What happens if there's a water shortage during a test? A: The chamber is equipped with water shortage protection, along with over-temperature, over-current, and earth leakage protection, so the unit shuts down safely rather than risking damage or an unsafe test.

Q: Can I run multiple test programs unattended? A: Yes. The programmable touch screen controller supports multi-segment programs, so you can queue a full test sequence and let the chamber run it automatically.

Get Started

Xi'an LIB Simulation Industry focuses exclusively on environmental test chamber manufacturing. If you're interested in this ozone test machine, contact us at ellen@lib-industry.com and we'll respond as soon as possible.
