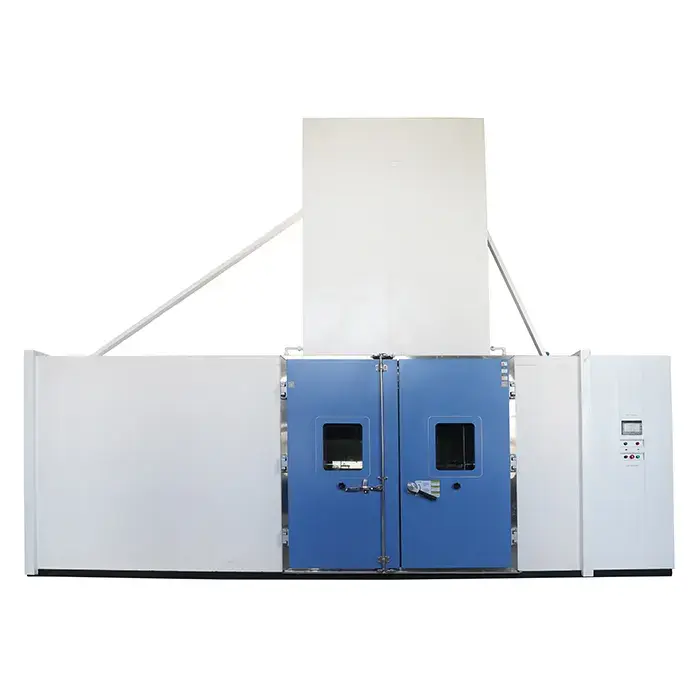

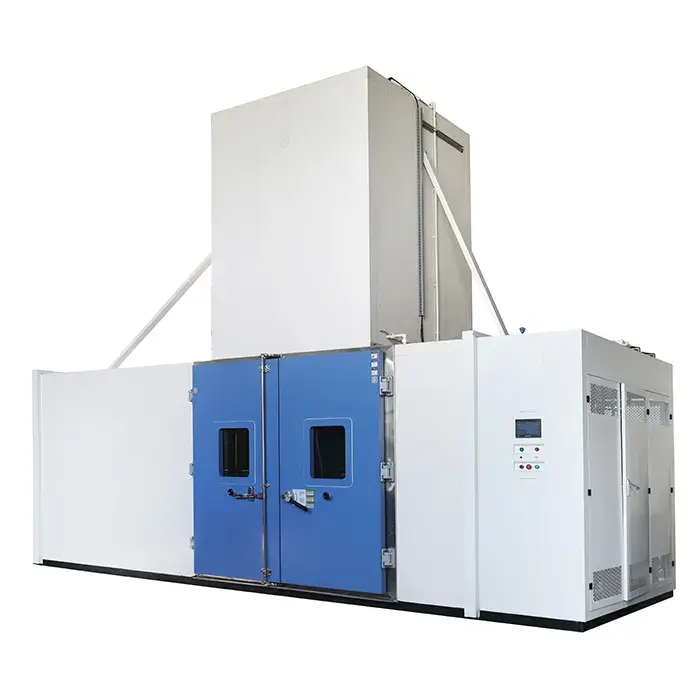

MIL STD 810 G Rain Test Chamber
Name:MIL STD 810 G Rain Test Chamber
Final rain droplet velocity: 9m/s on test item
Rainfall rate: ≥ 1.7 mm/min
Droplet size: 0.5mm ~ 4.5mm
Test specimen heating range: Water temperature +10°C (max +55°C)
Test time: 0 ~ 999min. adjustable
Nozzle pressure: 276kpa
Rainfall rate: 20.8L/min
Droplet size: 0.5mm ~ 4.5mm
- Product Description
MIL STD 810 G Rain Test Chamber Introduction
The LIB Industry MIL STD 810 G Rain Test Chamber provides realistic rain simulation testing to evaluate product protection against wind-driven rain. Fully automated operation and data logging ensure efficient testing to industry standards. LIB Industry MIL-STD 810 rain test chamber is used for evaluating the resistance of a system to water and rain in accordance with MIL-STD-810h.
Technical Parameters
Model | RIM-1000 |
Internal Dimension | 1000*1000*1000 mm D*W*H |
Overall Dimension | 2600*5400*4100 D*W*H |
Interior Volume | 1000L |
The load Turntable | 50kg |
The diameter of Turntable | 800mm |
Rain and Blowing Rain | |
Final rain droplet velocity | 9m/s on test item |
Rainfall rate | ≥ 1.7 mm/min |
Droplet size | 0.5mm ~ 4.5mm |
Test specimen heating range | Water temperature +10°C (max +55°C) |
Test time | 0 ~ 999min. adjustable |
Exaggerated | |
Nozzle pressure | 276kpa |
Rainfall rate | 20.8L/min |
Nozzle amount | One nozzle for each 0.56m2 of surface area and position each about 48cm from in the test surface |
Droplet size | 0.5mm ~ 4.5mm |
Test time | 0 ~ 999min. adjustable |
Drip | |
Drip area dimensions | 1600*1000mm , height can be adjustable |
Drip holes | 20 to 25.4mm |
Distance between hole | 25mm |
Volume of water | ≥280L/m2/h |
Test specimen heating range | Water temperature +10°C (max +55°C) |
Door Lock | Electromagnetic lock |
Exterior Material | A3 Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Standard | MIL-STD- 810H |
Product Details
|
|
|

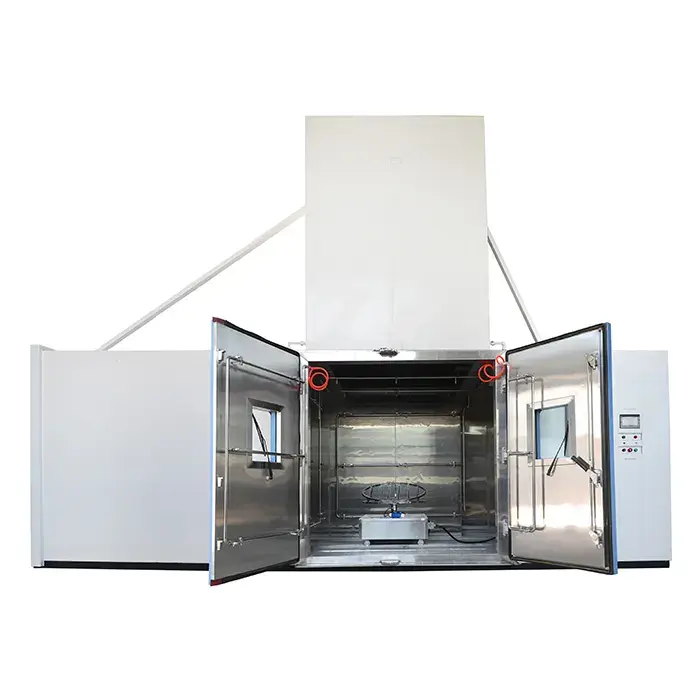

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Build-in lighting The built-in dustproof LED lighting inside the workroom. The light can be turned on and off at the control panel button | Drip Tray The drip tray is made of stainless steel Drip holes are evenly distributed |
|
|
Key Features
1. Advanced Multi-Procedure Capability
Our chamber underpins all three basic methods sketched out in the standard:
· Procedure I (Rain and Blowing Rain): Highlights high-powered blower framework producing wind speeds up to 18m/s
· Procedure II (Overstated Rain): Mimics overwhelming precipitation and storm conditions
· Procedure III (Dribble): Exact water bead testing for fixed walled in area validation
2. Precision Control Systems
· Rainfall Rate Observing: Coordinates stream meters and rain gages give closed-loop feedback
· Water Temperature Control: Keeps up particular temperature differential between water and test specimens
· 360° Test Introduction: Movable trickle container and comprehensive spout cluster guarantee uniform water distribution
· Rotating Stage: 1-7 rpm turntable with tall stack capacity for total surface exposure
3. Professional Grade Components
· Specialized Shower Spouts: Planned to correct MIL-STD determinations for appropriate bead measure and distribution
· Water Circulation Framework: Progressed filtration and distribution keeps up water quality whereas preserving resources
· Multi-Layer Fixing: Avoids research facility flooding with strong entryway seals and quick seepage system
· Safety Integration: Water-electrical partition, electromagnetic entryway locks, and overpressure protection
Operating Principle
The MIL STD 810 G Rain Test Chamber operates on the following principles:
1. The test product is secured in the chamber test space.
2. Test parameters are entered on the HMI, including rainfall rate, wind speed, water temperature, and duration.
3. Upon test initiation, rain simulation, wind generation, and heating activate based on the programmed cycle.
4. Sensors monitor test conditions throughout the duration.
5. At completion, the product is checked for water penetration based on MIL-STD- 810H standards.
6. The control system records data for detailed test reports.
7. The chamber drains and dries between tests.
Global Partnership Network
Since 2009, LIB has built trusted relationships with world-renowned companies including Apple, IBM, Amazon, Intel, SGS, TUV, and Mercedes-Benz. Our 29 global agents and service centers in Malaysia, Canada, the United Kingdom, and United States provide localized support ensuring rapid response times and expert technical assistance.
Quality Documentation & Calibration
Every chamber includes CNAS/ILAC traceable calibration certificates ensuring measurement accuracy and regulatory compliance. Complete documentation packages support your quality system requirements and audit processes.
