Cold Temperature Testing Standards for Industrial Electronics

Industrial electronics powering critical systems across aerospace, automotive, telecommunications, and defense sectors must maintain flawless operation regardless of environmental extremes. Cold temperature testing standards establish rigorous protocols ensuring electronic components, assemblies, and complete systems perform reliably when exposed to subzero conditions. These internationally recognized benchmarks - including IEC 60068-2-1, MIL-STD-810H, and GB/T 2423.1 - mandate precise verification procedures using calibrated low-temperature test equipment. A properly configured cold temperature chamber replicates harsh climatic conditions, enabling manufacturers to validate design specifications, identify failure mechanisms, and achieve regulatory compliance before deployment in mission-critical applications.

Why Must Industrial Electronics Undergo Cold Temperature Testing?

Preventing Catastrophic Field Failures

Electronic systems deployed in cold regions face operational challenges that rarely manifest during room-temperature evaluations. Component tolerances shift dramatically as temperatures plummet, causing timing errors in digital circuits, increased resistance in interconnects, and brittleness in solder joints. Without comprehensive cold testing, manufacturers risk deploying equipment that fails during critical operations - aviation instruments malfunctioning mid-flight, telecommunications infrastructure collapsing during winter storms, or medical devices becoming inoperative in emergency transport.

Meeting Contractual and Regulatory Obligations

Defense contractors, automotive suppliers, and aerospace manufacturers routinely face stringent contractual requirements specifying cold temperature performance thresholds. Regulatory bodies mandate compliance with established testing protocols before granting certifications for market entry. Non-compliance results in contract penalties, delayed product launches, and potential liability exposure. Verified testing documentation from accredited chambers demonstrates due diligence and satisfies quality management system requirements under ISO 9001 and AS9100 frameworks.

Optimizing Design Before Mass Production

Early-stage cold temperature evaluation reveals design weaknesses when modifications remain cost-effective. Engineers discover inadequate thermal management, unsuitable component selections, or problematic PCB layouts during prototype testing rather than after manufacturing thousands of units. This proactive approach reduces warranty claims, minimizes costly recalls, and accelerates time-to-market by eliminating iterative redesign cycles that plague products developed without rigorous environmental qualification.

Low-Temperature Reliability Standards for Electronic Equipment

IEC 60068-2-1: International Benchmark for Cold Testing

The International Electrotechnical Commission's IEC 60068-2-1 standard defines test procedures for exposing specimens to controlled cold conditions. This globally recognized protocol specifies cold temperature chamber stabilization requirements, temperature monitoring locations, test durations, and performance criteria. Equipment must demonstrate full functionality throughout exposure periods, with post-test inspections verifying no physical damage occurred. The standard accommodates various severity levels, from -5°C for commercial electronics to -65°C for military-grade systems.

MIL-STD-810H Method 502: Military Environmental Engineering

Military applications demand extreme reliability across operational temperature ranges specified in MIL-STD-810H Method 502. This comprehensive approach addresses storage temperatures, operational extremes, and thermal shock scenarios. Testing sequences include cold start verification, continuous operation monitoring, and transition evaluations simulating rapid climate changes. The standard emphasizes realistic exposure profiles rather than arbitrary worst-case combinations, ensuring test relevance to actual deployment conditions.

GB/T 2423 Series: Chinese National Standards

China's national testing standards GB/T 2423.1 and GB/T 2423.2 align closely with IEC methodologies while incorporating specific requirements for products marketed within Chinese territories. Manufacturers targeting Asian markets must demonstrate compliance with these standards, which specify chamber uniformity tolerances, temperature measurement accuracy, and documentation requirements. Accredited testing facilities maintain traceability to national metrology institutes, ensuring international recognition of test results.

Functional Performance Testing Under Subzero Conditions

Operational Continuity Verification

True reliability assessment requires electronics to operate continuously throughout cold exposure rather than merely surviving dormant storage. Functional testing protocols monitor real-time performance parameters - signal integrity, power consumption, processing speed, and communication reliability - while chamber temperatures stabilize at specified setpoints. Advanced cold temperature chambers feature access ports enabling external power delivery and data acquisition without compromising thermal stability, allowing comprehensive characterization under realistic operating conditions.

Start-Up Capability Assessment

Many electronic failures occur during cold-start sequences when components must transition from frozen dormancy to active operation. Capacitors exhibit reduced capacitance, semiconductors display altered threshold voltages, and oscillators struggle to achieve frequency lock at extreme temperatures. Test protocols include repeated power cycling after extended cold soaks, verifying systems reliably initialize and reach operational status within acceptable timeframes. This assessment proves particularly critical for automotive electronics, aerospace instrumentation, and emergency response equipment.

Performance Degradation Quantification

Rather than simple pass/fail determinations, comprehensive testing quantifies performance degradation across temperature ranges. Engineers measure signal-to-noise ratios, timing accuracy, output power levels, and processing throughput at multiple temperature points, creating detailed characterization curves. This data informs derating calculations, establishes operational limits, and guides application engineering recommendations. Manufacturers leverage these insights to optimize designs, balancing performance requirements against cost constraints.

How Do Cold Temperatures Impact Electronic Circuit Stability?

Semiconductor Behavior Alterations

Silicon-based semiconductors exhibit profound temperature dependence in fundamental electrical properties. Carrier mobility increases at lower temperatures, reducing on-resistance in MOSFETs while simultaneously decreasing leakage currents. However, threshold voltages shift, potentially causing logic circuits to malfunction as noise margins narrow. Bipolar transistors experience gain variations, affecting amplifier stability and oscillator frequencies. These complex interactions demand thorough characterization across operational temperature ranges.

Passive Component Tolerance Shifts

Capacitors demonstrate significant capacitance variation with temperature, particularly ceramic formulations utilizing high-permittivity dielectrics. Class II ceramics may lose 80% of nominal capacitance at -55°C, catastrophically altering filter responses and timing networks. Resistors exhibit predictable but application-critical temperature coefficients, shifting bias networks and reference voltages. Inductors face core material changes affecting permeability and saturation characteristics. Circuit designers must account for these variations during simulation and validation.

Interconnect and Packaging Stresses

Thermal contraction mismatch between dissimilar materials creates mechanical stresses in solder joints, wire bonds, and laminate structures. Repeated thermal cycling propagates fatigue cracks, eventually causing intermittent connections or complete failures. Coefficient of thermal expansion mismatches between silicon dies, substrate materials, and encapsulants generate cumulative damage during temperature excursions. Cold temperature chamber testing with controlled ramp rates reveals these failure mechanisms before field deployment.

Environmental Qualification Testing for Industrial Control Systems​​​​​​​

Programmable Logic Controller Validation

Industrial automation relies heavily on programmable logic controllers operating in unheated facilities, outdoor enclosures, and extreme climate zones. Qualification testing subjects complete PLC systems - processors, I/O modules, power supplies, and communication interfaces - to extended cold exposures while executing representative control programs. Test engineers monitor scan times, communication latency, analog accuracy, and safety function response throughout temperature profiles. Failures during these evaluations trigger design modifications before production release.

Sensor and Transducer Calibration Stability

Measurement accuracy forms the foundation of industrial control systems, making sensor performance under temperature extremes critically important. Pressure transducers, flow meters, temperature sensors, and position encoders undergo calibration verification at multiple temperature points within their specified operating ranges. Cold temperature chambers with exceptional uniformity (±0.5°C) and stability enable precise characterization of zero-point drift, span errors, and linearity degradation. This data supports compensation algorithm development and accuracy specification refinement.

Communication Network Reliability

Modern industrial systems depend on fieldbus protocols, industrial Ethernet, and wireless networks maintaining connectivity despite environmental challenges. Cold testing evaluates physical layer performance - cable impedance changes, connector integrity, optical transceiver operation - alongside protocol stack behavior. Extended cold soaks reveal subtle timing issues, buffer overflows, and synchronization problems that emerge only after hours of operation at temperature extremes. Network reliability testing ensures critical industrial processes maintain uninterrupted communication regardless of ambient conditions.

Compliance Requirements for Industrial Electronics Cold Testing

Documentation and Traceability Standards

Regulatory compliance extends beyond simply conducting tests to maintaining comprehensive documentation proving procedure adherence and result validity. Test reports must include chamber calibration certificates traceable to national standards, detailed test procedures, complete temperature mapping data, functional test results, and photographic evidence of specimen condition. Quality management systems require this documentation remain accessible for product lifecycle duration, supporting field failure investigations and liability defense.

Third-Party Certification Processes

Many markets and applications require independent verification from accredited testing laboratories rather than manufacturer self-certification. Notified bodies and testing organizations following ISO/IEC 17025 standards provide impartial assessment of product compliance with applicable cold temperature requirements. This third-party validation carries greater credibility with regulatory authorities, procurement officials, and insurance underwriters. Manufacturers benefit from selecting chamber suppliers whose equipment meets testing laboratory requirements for uniformity, accuracy, and capability.

Industry-Specific Qualification Demands

Automotive electronics face unique qualification requirements defined by automotive OEMs and standards like AEC-Q100 for integrated circuits. Aerospace applications must satisfy DO-160 environmental testing categories appropriate for aircraft installation zones. Medical devices require compliance with IEC 60601-1 environmental classifications. Each industry sector imposes specific cold temperature testing protocols tailored to application-specific reliability expectations and failure consequence severity.

LIB Industry: Meet IEC/GB Standards with Precise Low Temperatures

Advanced Temperature Control Technology

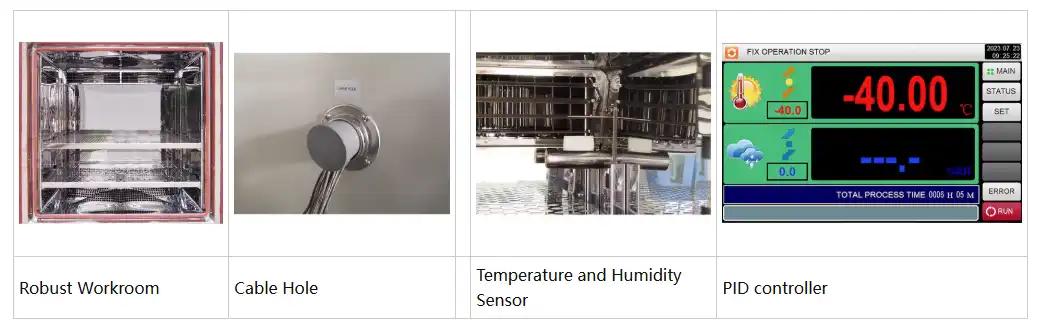

LIB Industry's cold temperature chambers incorporate precision temperature control systems maintaining setpoint accuracy within ±0.5°C while achieving spatial uniformity of ±2.0°C throughout the test volume. This exceptional performance satisfies the most stringent international standards for environmental testing. French TECUMSEH compressor technology delivers reliable cooling to temperatures reaching -70°C, while programmable controllers enable complex thermal profiles mimicking real-world exposure scenarios. The centrifugal air circulation system ensures consistent conditions around test specimens regardless of chamber loading.

Comprehensive Chamber Configurations

Understanding diverse testing requirements, LIB offers chambers spanning 100L to 1000L internal volumes with multiple temperature range options. The T-series lineup accommodates everything from small component evaluation to complete system qualification. Standard configurations include 50mm cable access ports enabling powered testing, adjustable shelving for flexible specimen arrangement, and double-layer observation windows for visual monitoring without thermal disturbance. Custom configurations address unique testing challenges, incorporating specialized feedthroughs, vibration integration, or altitude simulation capabilities.

Quality Assurance and Calibration Support

Every chamber undergoes rigorous performance verification before delivery, with LIB's quality management system ensuring compliance from raw material procurement through final commissioning. Calibration reports document temperature mapping across the entire test volume, demonstrating conformance to stated specifications. Post-installation support includes operational training, preventive maintenance guidance, and recalibration services maintaining long-term measurement accuracy. This comprehensive approach ensures testing equipment remains compliant with evolving regulatory requirements throughout its operational lifetime.

Integrated Data Acquisition Capabilities

Modern testing demands extend beyond simple temperature exposure to comprehensive data collection throughout test sequences. LIB chambers feature Ethernet-enabled controllers facilitating remote monitoring and automated data logging. Network integration enables temperature profiles, alarm conditions, and chamber status to flow directly into laboratory information management systems. This connectivity streamlines compliance documentation generation while reducing transcription errors inherent in manual record-keeping processes.

Energy Efficiency and Operational Economics

Extended qualification testing consumes substantial energy, making chamber efficiency a significant operational cost factor. LIB's polyurethane foam insulation combined with specialized insulation cotton minimizes heat transfer, reducing compressor runtime and energy consumption. High-efficiency refrigeration components and optimized defrost cycles further enhance operational economics. Facilities conducting continuous testing benefit from reduced utility expenses while maintaining environmental sustainability commitments.

Safety Features and Operator Protection

Comprehensive safety systems protect both operators and test specimens from adverse events during unattended operation. Over-temperature protection prevents runaway conditions, while refrigerant high-pressure cutoffs guard against compressor damage. Earth leakage protection ensures electrical safety, and multiple alarm conditions trigger visible and audible notifications. Emergency stop functions enable immediate intervention should unexpected situations develop during critical testing phases.

Conclusion

Cold temperature testing standards provide essential frameworks ensuring industrial electronics maintain reliable operation across challenging environmental conditions. Compliance with internationally recognized protocols - IEC 60068-2-1, MIL-STD-810H, and GB/T standards - demands precision test equipment capable of creating accurately controlled low-temperature environments. LIB Industry's comprehensive chamber solutions deliver the temperature stability, spatial uniformity, and documentation capabilities necessary for rigorous qualification testing. By investing in proper cold temperature evaluation during development, manufacturers prevent field failures, satisfy regulatory requirements, and deliver products meeting customer expectations for reliability.

FAQ

What temperature range should I specify for testing industrial electronics intended for outdoor installation?

Most outdoor industrial electronics require testing across -40°C to +85°C operational ranges, though specific applications may demand more extreme specifications. Consult applicable industry standards and end-user requirements to establish appropriate test temperatures for your application.

How long must electronics remain at cold temperatures during qualification testing?

Standard protocols typically require 2-4 hours of stabilization after reaching target temperature, followed by operational testing periods ranging from 2-96 hours depending on application criticality and standard requirements. Military specifications often mandate extended exposures exceeding 24 hours.

Can cold temperature chambers simulate rapid temperature changes between extreme conditions?

Quality chambers achieve cooling rates of 3°C/min and heating rates of 1°C/min, enabling thermal shock testing protocols. Rapid transition testing reveals mechanical stress failures and validates design robustness against real-world temperature cycling experienced during operation and transportation.

Contact LIB Industry for Your Cold Temperature Testing Solutions

As a leading cold temperature chamber manufacturer and supplier, LIB Industry provides turn-key environmental testing solutions tailored to your specific qualification requirements. Our engineering team supports chamber selection, installation, and ongoing calibration services ensuring compliance throughout your product lifecycle. Contact our specialists at ellen@lib-industry.com to discuss how our precision chambers can streamline your cold temperature testing programs.
