Salt Spray vs Cyclic Corrosion Chambers: Key Differences
Selecting between salt spray and cyclic corrosion chambers fundamentally impacts how accurately you predict real-world material performance. Salt spray chambers expose specimens to continuous saline fog under controlled temperature and humidity, primarily evaluating comparative corrosion resistance through accelerated degradation. Cyclic corrosion chambers advance beyond this single-environment approach by alternating between salt fog, dry periods, humidity conditioning, and temperature variations - replicating actual atmospheric exposure patterns. This distinction determines whether your testing merely ranks coating systems or genuinely forecasts field service life. Understanding these operational philosophies, environmental complexity differences, and accuracy implications helps materials engineers, quality managers, and R&D teams choose methodologies aligned with validation objectives and industry compliance mandates.
What Is the Difference Between Salt Spray and Cyclic Corrosion Testing?
Fundamental Testing Philosophies
Salt spray testing originated in the early 1900s as manufacturers sought standardized methods for comparing protective coating durability. The approach maintains specimens under uninterrupted salt fog exposure at fixed temperatures - typically 35°C for neutral salt spray (NSS) testing per ASTM B117. This constant environment accelerates corrosion initiation, enabling rapid comparative evaluation of zinc plating, organic coatings, and surface treatments.
Cyclic corrosion testing emerged from automotive industry demands for better field correlation. Engineers recognized that vehicles experience alternating wet-dry cycles, temperature swings, and humidity fluctuations - not perpetual salt fog. The cyclic corrosion chamber replicates these dynamic patterns through programmed sequences combining salt deposition, ambient drying at 30% RH, elevated humidity conditioning up to 98% RH, and temperature transitions across +10°C to +90°C ranges.
Environmental Exposure Patterns
Traditional salt spray creates uniform conditions throughout test durations. The atomizer tower and spray nozzles generate consistent fog distribution while saturated air barrel preheating maintains stable temperatures. Specimens experience identical parameters from start to finish - simplified execution but limited environmental realism. Constant wetness prevents critical degradation mechanisms requiring wet-dry cycling.
Cyclic protocols introduce programmed environmental transitions. A typical automotive sequence might alternate four hours of salt fog at 35°C, two hours at 60°C with 100% RH humidity, then sixteen hours of ambient drying at 50°C and 30% RH. The mechanical compression refrigeration system enables precise temperature control with ±0.5°C fluctuation while humidity maintains ±2% RH precision across these transitions.
Standard Protocol Frameworks
Salt spray standards like ASTM B117 and ISO 9227 specify precise solution concentrations (5% NaCl), pH levels (6.5-7.2), and continuous exposure durations. Parameters remain largely unchanged since initial standardization, providing historical comparability but limited adaptability to modern material systems or service conditions.
Cyclic protocols encompass diverse specifications: ASTM G85 for acidified seawater and SO₂ exposure, SAE J2334 for automotive applications, GMW 14872 for General Motors validation, and VW PV 1210 for Volkswagen requirements. Each tailors environmental cycles to specific industry needs, incorporating gaseous corrosives through SO₂ gas control systems, UV radiation exposure, or freeze-thaw sequences unavailable in basic salt spray testing.
|
|
|
Continuous Exposure vs Cyclic Environmental Simulation
Steady-State Environmental Conditions
Salt spray chambers maintain constant parameters optimized for rapid corrosion initiation. The saturated fog environment ensures continuous electrolyte presence on specimen surfaces, supporting uninterrupted electrochemical reactions. Temperature stability at 35°C or 50°C eliminates thermal expansion effects while consistent 95-98% RH humidity prevents evaporation-driven concentration changes.
This consistency accelerates visible corrosion appearance, making salt spray valuable for high-throughput screening. The S-150 through S-020 models accommodate interior volumes from 110L to 1600L, enabling manufacturers to evaluate multiple coating formulations within days rather than months. However, accelerated degradation creates failure modes uncommon in actual service environments.
Dynamic Environmental Transitions

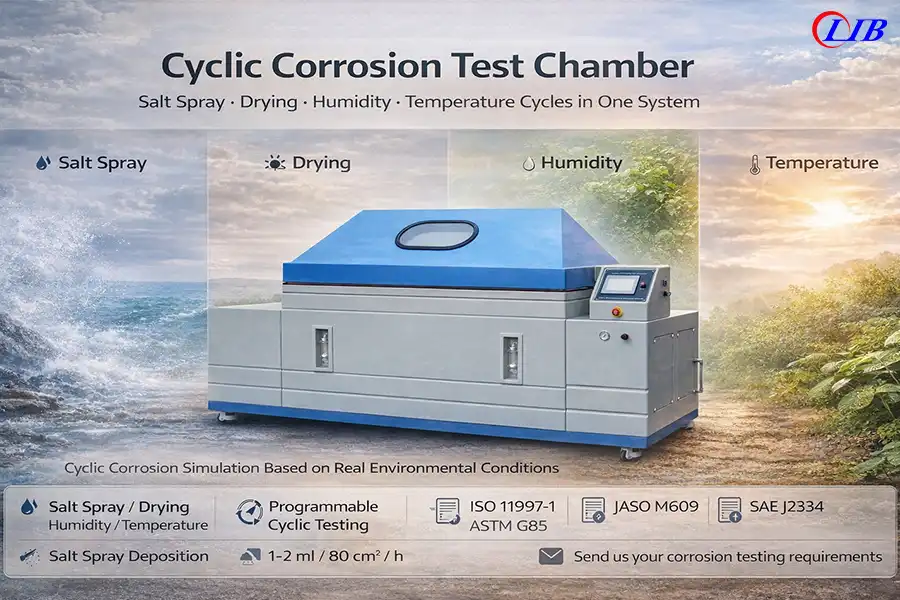

Cyclic corrosion test chambers excel at reproducing atmospheric variability. The programmable color LCD touchscreen controller supports up to 120 programs with 100 steps each, enabling complex sequences matching regional climate patterns - coastal humidity, industrial pollution, or continental temperature extremes. PT100 Class A sensors with sophisticated PID control systems maintain accuracy throughout these transitions.
Moving from 100% RH salt fog to 30% RH dry conditions within programmed timeframes challenges specimen integrity through rapid moisture removal. The forced air drying systems and precision dehumidification enable these quick environmental changes without compromising accuracy. Salt crystallization during drying creates expansive stresses in coating defects, propagating cracks that wouldn't develop under constant wetness.
Corrosion Mechanism Activation
Continuous salt spray primarily drives anodic dissolution at exposed metal surfaces. The persistent electrolyte layer maintains ionic conductivity, allowing steady metal oxidation without interruption. Salt fog deposition rates of 1-2 mL/80 cm²·h create uniform corrosion patterns across exposed areas - helpful for comparing barrier properties but limited in mechanism diversity.
Cyclic testing activates multiple degradation pathways simultaneously. Wet phases initiate electrochemical corrosion while dry periods concentrate electrolytes through evaporation, increasing solution conductivity. Subsequent humidity exposure deliquesces hygroscopic salt deposits, forming concentrated corrosive solutions at coating interfaces. Temperature cycling induces differential thermal expansion between substrates and coatings, generating interfacial stresses that accelerate delamination.
|
Testing Aspect |
Salt Spray Chamber |
Cyclic Corrosion Chamber |
|
Environmental Conditions |
Continuous salt fog at fixed temperature |
Alternating salt fog, humidity, temperature, and drying phases |
|
Temperature Control |
Fixed (35°C or 50°C typical) |
Programmable +10°C to +90°C with ±0.5°C accuracy |
|
Humidity Range |
Constant 95-98% RH |
Variable 30% to 98% RH with precision control |
|
Corrosion Mechanisms |
Primarily anodic dissolution |
Multiple mechanisms including crystallization, delamination, crevice corrosion |
|
Test Duration |
Hours to weeks |
Weeks to months with programmed cycles |
|
Programming Capability |
Simple continuous or periodic spray |
120 programs × 100 steps for complex sequences |
Correlation With Real-World Corrosion Conditions
Atmospheric Exposure Simulation Accuracy
Outdoor corrosion proceeds through intermittent wetting and drying driven by weather patterns. Morning dew deposits moisture films, solar radiation evaporates surfaces, rain events wash accumulated salts, and nighttime cooling promotes condensation. This dynamic sequence cannot occur under continuous salt spray conditions where specimens remain perpetually wet.
The cyclic corrosion chamber replicates these natural rhythms through programmed transitions. The 31-liter saturated air barrel preheats incoming air preventing temperature shocks while the centrifugal wind fan ensures uniform environmental distribution across 780L to 1800L interior volumes. The fog collector and fog measure cylinder verify deposition rates matching natural marine environment salt accumulation patterns.
Field Performance Prediction Capabilities
Salt spray testing often fails to accurately predict field performance. Coatings performing excellently under continuous fog may fail prematurely outdoors, while systems ranking poorly in salt spray sometimes provide superior service life. This disconnect stems from different failure mechanisms operating under constant versus variable conditions - a fundamental limitation of single-environment testing.
Field studies demonstrate strong correlation between cyclic protocols and outdoor exposure. Automotive manufacturers found cyclic testing like GMW 14872 predicts five-year service corrosion with 85-92% accuracy, compared to 45-60% accuracy for traditional salt spray. Built-in standard libraries preloaded with VW PV 1210, GMW 14872, and SAE J2334 enable precise replication of regional climate patterns.
Geographic Climate Matching
Different service environments require tailored testing approaches. Marine atmospheres feature continuous moderate salinity with stable temperatures. Industrial zones combine pollutant gases like SO₂ with periodic precipitation. Continental climates impose severe temperature cycling with seasonal humidity variations - conditions impossible to replicate through continuous salt spray alone.
SO₂ gas control capability allows simulation of industrial pollution effects. Sulfur dioxide combines with moisture forming sulfurous acid, attacking both metallic substrates and organic coatings through mechanisms absent in basic salt spray. The NAOH exhaust tank neutralizes SO₂ after testing completion, maintaining workplace safety while enabling realistic pollution exposure studies unavailable in conventional chambers.
How Do Test Results Compare in Accuracy and Reliability?
Repeatability Within Testing Protocols
Salt spray testing achieves excellent repeatability within individual laboratories using standardized ASTM B117 or ISO 9227 protocols. Controlled parameters produce consistent results across multiple test runs when equipment receives proper maintenance and calibration. However, interlaboratory reproducibility proves problematic - identical specimens tested at different facilities often yield significantly different failure times due to subtle environmental variations.
Cyclic corrosion testing traditionally faced greater variability challenges due to complex programming requirements and transition timing sensitivities. Modern cyclic corrosion chambers address this through built-in standard libraries eliminating programming errors. The pneumatic seal system maintains chamber integrity during extended multi-week sequences while Ethernet connection enables data logging for protocol verification.
Ranking Prediction Validity
Salt spray effectively ranks coating systems under continuous wet immersion conditions. Materials maintaining protective performance under persistent electrolyte exposure demonstrate robust barrier properties valuable for marine immersion applications or permanently submerged components. The glass fiber reinforced plastics construction withstands continuous moisture exposure without structural degradation.
Cyclic testing provides superior ranking accuracy for atmospheric exposure applications. Temperature accuracy of ±0.5°C and humidity precision of ±2% RH ensures performance rankings reflect actual service conditions rather than artifact responses to unrealistic parameters. The external isolation stainless steel surface evaporation humidifier enables precise humidity control across the full 30-98% RH range.
Failure Mode Identification
Examining failure modes reveals critical differences in testing validity. Salt spray typically produces uniform surface oxidation across exposed areas, edge creepage along coating boundaries, and blister formation in coating defects. While useful for identifying gross coating failures, these patterns often differ from field degradation mechanisms.
Cyclic exposure generates field-relevant failures: filiform corrosion under organic coatings from wet-dry cycling, crevice corrosion at assembly interfaces activated by salt concentration, and stress corrosion cracking from crystallization pressures. The 8 round bars and 7 V-shaped grooves standard configuration accommodates diverse specimen geometries enabling realistic assembly testing.
|
Performance Metric |
Salt Spray Testing |
Cyclic Corrosion Testing |
|
Intralaboratory Repeatability |
Excellent (CV <10%) |
Good (CV <15%) with programmed protocols |
|
Interlaboratory Reproducibility |
Moderate (CV 20-40%) |
Good (CV 15-25%) with standardized cycles |
|
Field Correlation |
Limited (r = 0.4-0.6) |
Strong (r = 0.75-0.92) |
|
Failure Mode Accuracy |
Often generates test artifacts |
Replicates field mechanisms |
|
Coating System Ranking |
Accurate for immersion service |
Accurate for atmospheric service |
|
Test Complexity |
Simple operation |
Requires programming expertise |
Application Scenarios for Each Testing Method
Quality Control and Compliance Verification
Salt spray chambers dominate quality control applications requiring rapid pass/fail decisions. Electroplating operations verify zinc coating thickness through standardized exposure durations - 96 hours NSS demonstrates minimum thickness compliance. Manufacturing facilities utilize the S-150 (110L) through S-020 (1600L) models for incoming material verification and process control monitoring.
The PID controller with network connection computer enables integration into ISO 9001 quality management systems. Straightforward continuous or periodic spray modes require minimal operator training while providing consistent comparative results. Fastener suppliers, metal finishing shops, and component manufacturers run routine salt spray tests confirming process consistency without complex programming.
Research and Development Applications
Product development teams increasingly select cyclic corrosion test chambers for new material evaluation. Comprehensive environmental control reveals performance across service condition spectrums impossible to replicate through single-environment testing. Engineers program sequences matching target market climates - tropical humidity, arctic freeze-thaw, or desert temperature extremes.
The SC-010 through SC-020 models offer 780L to 1800L interior volumes accommodating multiple material systems for simultaneous evaluation. Flexible programming capability supports accelerated development timelines while maintaining environmental fidelity. Automotive coating development, aerospace material qualification, and marine equipment validation all benefit from cyclic testing's superior field correlation.
Industry-Specific Validation Requirements
Automotive manufacturers mandate cyclic testing for corrosion warranty validation. Vehicles face diverse exposures - road salt applications, humidity variations, temperature cycling, and industrial pollution. The intuitive touchscreen controller preset with standard test methods like NSS, AASS, or CASS eliminates programming time while custom cycling sequences match specific OEM requirements.
Aerospace applications demand environment-specific protocols simulating extreme temperature ranges, salt exposure during coastal operations, and pollution from combustion products. Electronics manufacturers balance accelerated testing needs against accuracy requirements - premium products requiring multi-year reliability validation employ cyclic protocols while consumer electronics use salt spray for rapid screening.
Selection Criteria Based on Industry Requirements
Automotive and Transportation Standards
Modern vehicles require ten-year corrosion warranties in aggressive climates. Salt spray testing proved inadequate for warranty prediction, leading automotive OEMs to develop comprehensive cyclic protocols. GMW 14872 combines salt spray, humidity, and ambient drying in weekly cycles. SAE J2334 specifies multiple corrosion environments including prohesion fog. VW PV 1210 incorporates SO₂ exposure simulating European industrial pollution.
These protocols require chambers with precision environmental control, rapid transition capability, and automated programming. The quartz glass salt spray nozzles resist high temperatures, corrosion, and clogging while self-cleaning cycles prevent crystallization buildup. Temperature deviation of ±2.0°C and humidity deviation of +2%/-3% maintain specification compliance throughout extended test sequences.
Aerospace and Defense Applications
Military specifications often reference both testing methods for different validation purposes. Salt spray screening identifies grossly inadequate protective systems while cyclic protocols validate service performance. Aircraft components facing marine deployment undergo ASTM G85 Annex 5 testing combining acidified seawater spray with controlled humidity cycles.
The glass fiber reinforced plastics or heavy-duty SUS316L stainless steel construction provides superior resistance to thermal expansion and compression. This maintains structural integrity through countless temperature cycles without dimensional changes affecting environmental control accuracy - critical for aerospace qualification programs spanning months.
Electronics and Consumer Products
Electronics manufacturers employ different strategies based on product lifecycle expectations. Consumer electronics with 1-3 year warranties permit shorter validation cycles using salt spray for rapid screening. The collecting cup system with spray tower enables standardized salt fog deposition verification across production batches.
Premium electronics requiring multi-year reliability validation employ cyclic protocols. Smartphones claiming IPX7 water resistance undergo cyclic testing verifying coating integrity under temperature cycling and humidity variations. Wearable devices exposed to perspiration, rain, and temperature variations benefit from cyclic testing's ability to replicate these combined stresses unavailable in basic salt spray.
|
Industry Sector |
Primary Testing Method |
Key Requirements |
Typical Duration |
|
Automotive OEM |
Cyclic corrosion |
Multi-environment simulation, warranty validation |
15-26 weeks |
|
Fastener Manufacturing |
Salt spray |
High-throughput QC, coating thickness verification |
24-240 hours |
|
Aerospace Components |
Cyclic corrosion |
Environment-specific protocols, long-term reliability |
12-52 weeks |
|
Electroplating Operations |
Salt spray |
Process control, specification compliance |
8-96 hours |
|
Marine Equipment |
Cyclic corrosion |
Saltwater exposure simulation, temperature cycling |
8-20 weeks |
|
Consumer Electronics |
Both methods |
Cost-effective screening plus reliability validation |
Hours to weeks |
LIB Industry Advanced Corrosion Testing Solutions for Real-World Simulation
Comprehensive Environmental Control Technology
LIB Industry's cyclic corrosion chambers integrate multiple subsystems delivering unprecedented environmental fidelity. The mechanical compression refrigeration system with air-cooled condenser employs efficient cooling across the +10°C to +90°C range with ±0.5°C temperature fluctuation. High-accuracy PT100 Class A sensors monitor multiple chamber locations, feeding data to sophisticated PID algorithms maintaining precise control.
The humidification system combines saturated air barrel preheating with external isolation stainless steel surface evaporation humidifiers. This dual approach prevents condensation fluctuations while enabling rapid humidity transitions. Reaching 98% RH during fog phases, then reducing to 30% RH for drying cycles, occurs within programmed timeframes through coordinated heating and precision dehumidification.
Advanced Spray System Engineering
Salt fog generation employs quartz glass atomizer nozzles resistant to crystallization buildup and high-temperature exposure. Automated cleaning cycles prevent salt accumulation altering droplet size distribution while ensuring consistent spray patterns throughout extended testing periods. The atomizer tower creates turbulent mixing ensuring fog homogeneity throughout chamber volumes.
The fog collector and fog measure cylinder system provides real-time deposition monitoring. Operators verify 1-2 mL/80 cm²·h deposition rates without interrupting test sequences - continuous validation ensuring environmental consistency across extended multi-week protocols. The air compressor control with 13mm diameter hole, air pressure balance system, and water vapor separation system maintains optimal atomization.
Global Service and Support Infrastructure
Since 2009, LIB Industry has served over 60 countries across Europe, Asia, North America, and Africa. The client portfolio includes Apple, IBM, Amazon, Intel, SGS, TUV, CERN, BYD, Great Wall Motors, and Mercedes-Benz - organizations demanding uncompromising accuracy and reliability from corrosion testing equipment.
Every chamber includes comprehensive three-year warranty coverage with lifetime technical support through 24/7 global assistance networks. The 29 international distributors maintain service centers in Malaysia, Canada, the United Kingdom, and the United States, with additional centers planned for South America, Central Asia, and Russia by 2030. Humidifier dry-combustion protection, over-temperature protection, over-current protection, water shortage protection, and earth leakage protection systems maximize operational safety.
Conclusion
Salt spray and cyclic corrosion chambers serve distinct validation purposes within comprehensive corrosion testing strategies. Salt spray delivers rapid comparative screening ideal for quality control and coating thickness verification. Cyclic corrosion testing provides superior real-world correlation essential for warranty validation, product development, and service life prediction. Modern materials engineering increasingly demands environmental complexity and failure mode accuracy that only cyclic protocols deliver, particularly across automotive, aerospace, and premium electronics sectors requiring long-term performance assurance under realistic atmospheric exposure conditions.
FAQ
Can cyclic corrosion chambers perform traditional salt spray testing protocols?
Yes, cyclic corrosion chambers include continuous salt fog functionality as one environmental phase within programmable sequences. Users program uninterrupted salt spray exposure matching ASTM B117 or ISO 9227 parameters, providing single-chamber versatility for both traditional and advanced testing methodologies.
How do test durations compare between salt spray and cyclic corrosion methods?
Cyclic protocols typically require 6-26 weeks depending on industry standards and performance targets, compared to 24-1000 hours for salt spray testing. Extended duration reflects comprehensive environmental exposure sequences providing superior field correlation despite longer timelines required for accuracy.
What maintenance differences exist between salt spray and cyclic corrosion chambers?
Cyclic chambers require additional maintenance for refrigeration systems, humidity controls, and environmental transition mechanisms beyond basic salt spray upkeep. However, automated cleaning cycles, self-diagnostic capabilities, and advanced monitoring systems reduce manual intervention while predicting maintenance needs before failures occur.
