Evaluating Heat & Cold Resistance with Small Climatic Chambers

Understanding how materials and products perform under temperature extremes remains critical across manufacturing sectors. A small climatic chamber provides precise control over environmental conditions, enabling engineers to simulate real-world thermal stresses within controlled laboratory settings. These compact testing solutions deliver comprehensive thermal evaluation capabilities while maintaining space efficiency and operational convenience. By subjecting samples to programmable temperature cycles ranging from -70℃ to +150℃, manufacturers can identify weaknesses, validate design specifications, and ensure product reliability before market release, ultimately reducing warranty claims and enhancing customer satisfaction.

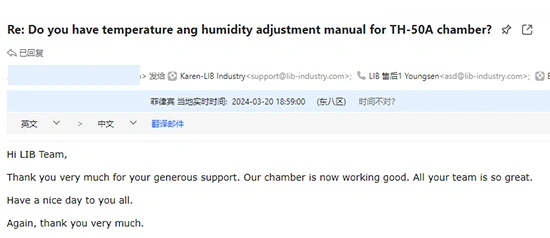

A manufacturer in the Philippines recently shared that their TH-50A temperature and humidity chamber has been performing flawlessly in daily testing. They have been using it to simulate rigorous thermal cycles on electronic components, and the system has reliably maintained precise temperature and humidity conditions throughout extended test runs. Feedback from the team highlighted not only the chamber’s stability and accuracy but also the helpful guidance provided by the LIB support staff, ensuring smooth operation from the start.

​​​​​​​

Importance of Thermal Shock and Cycling Tests for Product Durability

Understanding Thermal Cycling Mechanisms

Thermal cycling exposes materials to repeated temperature fluctuations that replicate years of environmental exposure within condensed timeframes. Products experience expansion during heating phases and contraction during cooling periods, generating mechanical stresses at material interfaces. These cyclic stresses reveal latent manufacturing defects, material incompatibilities, and design vulnerabilities that standard testing might overlook.

Predicting Field Failure Patterns

Accelerated thermal cycling establishes failure thresholds before products reach consumers. Electronics assemblies experiencing solder joint fatigue, plastic housings developing micro-cracks, and adhesive bonds weakening under stress all manifest during controlled testing. This predictive capability transforms quality assurance from reactive troubleshooting to proactive design refinement, reducing post-launch complications significantly.

Industry-Specific Testing Requirements

Different sectors demand tailored thermal shock protocols. Automotive components must endure temperature swings from -40℃ engine starts to +120℃ under-hood conditions. Medical devices require validation across storage, transport, and operational temperature ranges. Consumer electronics face expectations of functionality from Arctic cold to desert heat, necessitating comprehensive environmental validation.

Designing Test Profiles for Extreme Temperature Conditions

Establishing Baseline Testing Parameters

Effective test design begins with analyzing actual service conditions. Temperature range selection should exceed anticipated environmental extremes by 10-15% to provide safety margins. Dwell times at temperature extremes must allow complete thermal stabilization throughout sample mass. Transition rates between temperatures should mirror real-world scenarios unless investigating accelerated stress effects.

Programming Multi-Stage Test Sequences

Modern programmable controllers of small environmental test chamber enable complex test profiles mimicking diurnal cycles, seasonal variations, or transportation scenarios. A typical automotive validation might include: ambient soak at 25℃ for stabilization, rapid cooling to -40℃ with 30-minute dwell, transition to +85℃ within 5 minutes, extended high-temperature exposure for 2 hours, then return to ambient conditions. Repeating this sequence for 100+ cycles reveals cumulative damage patterns.

Incorporating Safety Margins and Stress Factors

Beyond replicating expected conditions, testing should explore operational boundaries. Applying 1.5x to 2x expected temperature ranges identifies design limits and failure modes. This approach uncovers whether products fail gradually with predictable degradation or catastrophically without warning, informing warranty policies and maintenance recommendations.

Material Responses to Rapid Heating and Cooling

Coefficient of Thermal Expansion Mismatches

Dissimilar materials bonded together expand at different rates when heated. A metal component with CTE of 15 ppm/°C paired with plastic exhibiting 70 ppm/°C creates interfacial stresses during temperature changes. These stresses accumulate with each cycle, eventually causing delamination, cracking, or complete separation. Compact chambers with precise temperature control enable quantification of these effects.

Phase Transitions and Structural Changes

Materials undergo crystallographic transformations at specific temperatures. Polymers transition from glassy to rubbery states, altering mechanical properties dramatically. Metals may experience grain growth or precipitation of secondary phases affecting strength and ductility. Identifying these transition temperatures ensures products maintain functionality throughout their operational envelope.

Thermal Fatigue Accumulation

Repeated thermal cycling generates fatigue damage similar to mechanical loading. Microscopic cracks initiate at stress concentration points, propagating with each cycle until catastrophic failure occurs. Unlike mechanical fatigue visible through deformation, thermal fatigue often remains hidden until sudden failure, making controlled testing essential for reliability prediction.

Combined Temperature and Humidity Stress Testing

Synergistic Environmental Effects

Temperature and humidity acting together create failure mechanisms absent when either factor operates independently. Elevated temperatures accelerate moisture diffusion into materials while humidity provides the medium for electrochemical corrosion. This combination particularly challenges electronic assemblies where condensation on powered circuits causes short circuits and component degradation.

Condensation and Moisture Intrusion

Rapid temperature transitions through dew point create condensation within product enclosures. Water droplets form on cold surfaces during cooling cycles, then evaporate when temperatures rise. This cycling wets internal components repeatedly, testing seal integrity and coating effectiveness. Small environmental chambers with humidity control ranging from 20% to 98% RH replicate these demanding conditions.

Hygrothermal Aging Mechanisms

Polymer materials absorb moisture, causing dimensional changes and property degradation. Combined elevated temperature and humidity accelerates this aging process, plasticizing materials and reducing glass transition temperatures. Composite materials experience fiber-matrix debonding as moisture weakens interfacial adhesion. Testing protocols incorporating both stresses reveal these long-term degradation pathways.

Interpreting Test Results for Thermal Resistance Performance

Establishing Performance Metrics

Quantifiable metrics transform subjective observations into actionable data. Electrical resistance changes indicate degradation in conductive pathways. Dimensional measurements reveal thermal expansion coefficients and permanent deformation. Mechanical testing before and after thermal cycling quantifies property retention. Visual inspection documents surface changes, cracking, and discoloration providing qualitative failure indicators.

Statistical Analysis of Failure Modes

Testing multiple samples generates statistical distributions of failure times and mechanisms. Weibull analysis determines characteristic life and failure rate evolution. Comparing pre-test and post-test performance metrics through paired statistical tests identifies significant degradation. This rigorous approach separates random variations from systematic failures requiring design modifications.

Correlation with Field Performance Data

Laboratory results gain validation through correlation with field return data. Accelerated testing should produce failure modes matching actual warranty claims. Acceleration factors derived from Arrhenius relationships or Coffin-Manson models enable lifetime prediction from abbreviated testing. Discrepancies between predicted and observed field performance necessitate test protocol refinement.

Using Climatic Data to Enhance Product Robustness

Mission Profile Development

Realistic testing profiles derive from actual usage data collection. Data loggers deployed with products record temperature exposure throughout distribution, storage, and operation. Analyzing this data reveals frequency distributions of temperature events, maximum/minimum extremes, and typical dwell times. Translating field data into laboratory test sequences ensures testing relevance.

Regional Climate Considerations

Products destined for global markets must withstand diverse climates. Nordic regions impose cold-start requirements and freeze-thaw cycling. Tropical zones demand high-temperature humidity endurance. Desert markets require performance in extreme heat with minimal moisture. Chambers capable of -70℃ to +150℃ range accommodate all regional requirements within a single testing platform.

Seasonal Variation Simulation

Products stored outdoors or in uncontrolled environments experience seasonal temperature swings. Simulating annual cycles within compressed timeframes identifies seasonal failure patterns. Summer-to-winter transitions might cycle between +35℃ and -15℃ with corresponding humidity changes, stressing products through 52 annual cycles within weeks of accelerated testing.

Accurate Thermal Resistance Analysis with LIB Industry Small Climatic Chambers​​​​​​​

Precision Control Technology

The TH-50 and TH-80 small climatic chambers feature advanced PID control algorithms maintaining ±0.5℃ temperature stability. PT100 Class A sensors with 0.001℃ resolution ensure measurement accuracy throughout the testing envelope. Centrifugal air circulation systems eliminate thermal gradients, providing uniform conditions across all sample positions. This precision enables detection of subtle performance changes that cruder systems might miss.

Compact Versatility for Laboratory Integration

With internal volumes of 50L and 80L, these chambers integrate seamlessly into existing laboratory infrastructure. Desktop placement requires only standard 220V/110V single-phase power without specialized electrical installations. Operating noise below 55 decibels permits placement adjacent to workstations without disturbing personnel. The viewing window with interior lighting enables continuous observation without interrupting test cycles.

Comprehensive Safety and Monitoring

Multiple protection systems ensure operator safety and equipment longevity. Over-temperature shutdown prevents runaway heating conditions. Refrigerant high-pressure protection safeguards the cooling system. Earth leakage protection and water shortage sensors prevent electrical hazards and dry-firing damage. Ethernet connectivity enables remote monitoring and data logging, creating permanent test records for quality documentation.

Customization and Support Infrastructure

LIB Industry's engineering team customizes chambers for specialized testing requirements. Modified internal fixtures accommodate oversized samples, additional feedthroughs enable powered testing of active devices, and tailored temperature/humidity profiles match specific validation protocols. The 3-year warranty with lifetime service support, backed by 24/7 global assistance through 29 international agents, ensures minimal downtime and maximum testing productivity.

Conclusion

Thermal resistance evaluation through controlled climatic testing transforms product development from reactive problem-solving to proactive design validation. Small climatic chambers provide the precise environmental control necessary for accelerated testing protocols that predict long-term reliability. By systematically applying thermal and hygrothermal stresses, manufacturers identify vulnerabilities, optimize material selections, and validate design improvements before production commitment. This approach reduces warranty costs, enhances brand reputation, and ensures customer satisfaction across diverse operating environments.

FAQ

What temperature range should I specify for my small climatic chamber?

Select temperature ranges exceeding your anticipated service conditions by 10-15%. Products operating between 0℃ and 60℃ should be tested from -20℃ to 85℃ minimum. Automotive and aerospace applications typically require -40℃ to +150℃ capability to validate performance under extreme transportation and storage scenarios.

How many thermal cycles are required for reliable product validation?

Cycle count depends on expected product lifetime and usage patterns. Consumer electronics typically undergo 100-300 cycles simulating 5-10 years of service. Automotive components may require 500-1000 cycles representing 15-year vehicle lifespans. Accelerated testing protocols compress time through elevated temperatures and shortened dwell periods based on Arrhenius acceleration factors.

Can small climatic chambers test powered electronic devices?

Absolutely. Standard cable ports (typically Φ50mm) allow electrical connections while maintaining chamber seal integrity. Powered operation testing identifies temperature-dependent performance variations, thermal runaway conditions, and functional failures under environmental stress. Custom feedthrough configurations accommodate specific monitoring and control requirements for complex assemblies.
