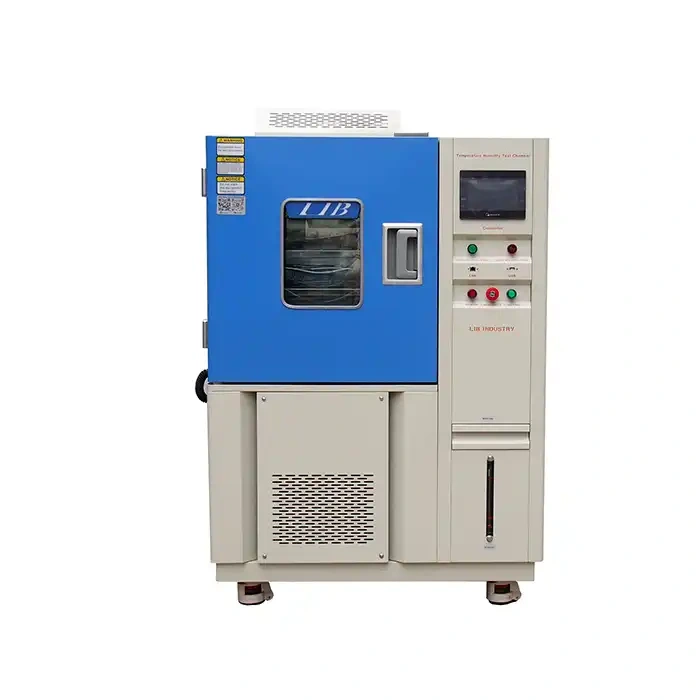

Temperature Humidity Chamber
Model: TH-500
Lowest Temperature: -20℃/-40℃/-60℃/-86℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Temperature and Humidity condition
Touch-screen programmble controller,Ethernet access
- Product Description
Temperature Humidity Chamber Manufacturer & Supplier
Tests conducted in temperature humidity chambers include accelerated aging tests, moisture resistance tests, thermal cycling tests, and humidity stability tests. These tests help manufacturers and researchers ensure that their products can withstand and perform well under different environmental conditions.
LIB industry TH Series Temperature Humidity Test Chambers are available in a variety of sizes to suit your needs. More than 98 different models allow you to choose the size and performance best suited for your test applications, choose either a temperature only model or a temperature and humidity configuration.
Advanced Control Technology
Our chambers include cutting-edge Electronic Extension Valve innovation that consequently alters refrigerant stream. This shrewdly framework disposes of the wasteful "high-power warming vs. cooling" approach utilized by routine units. You'll involvement 30% lower vitality utilization whereas keeping up uncommon steadiness, indeed at challenging moo stickiness levels of 10% RH.
The PID touchscreen controller oversees up to 120 programs with 100 steps each. You can screen real-time information remotely by means of Ethernet or WiFi, and trade test reports in CSV or Exceed expectations arrange with fair one click.
Superior Construction Quality
Interior Plan: SUS304 stainless steel development stands up to erosion and keeps up basic keenness in high-humidity environments.
Exterior System: 4mm A3 steel outline with powder coating treatment guarantees industrial-grade strength for long-term reliability.
Precision Components: High-accuracy PT100 Lesson A sensors give ±0.001°C determination, ensuring steady and solid test comes about each time.
Advanced Features
Our Cascade Refrigeration Framework empowers ceaseless operation at extraordinary moo temperatures down to -70°C. The dual-layer silicone fixing and warmed anti-fog glass windows avoid temperature spillage and condensation issues.
Temperature consistency mapping guarantees reliable conditions all through the chamber, in any case of test arrangement area.
Technical Specifications:
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

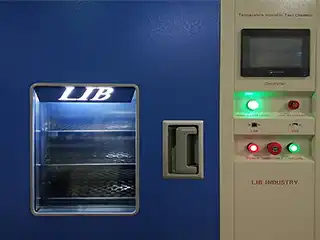

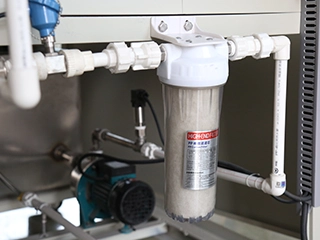

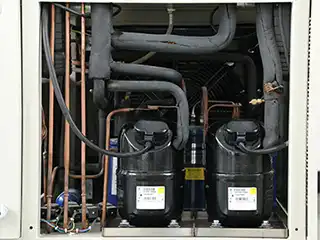

Water Re-circulation Water purifier: mainly purification from water source to water tank. Water filter to purify water | Viewing Window Double layer insulating glass 8cm thick, made of tempered glass. built-in LED light for the work room lighting | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant |
|
|
Why Choose LIB Industry?
Proficient Quality: ISO 9001 certified with CE compliance and third-party testing by SGS and TUV authorities.
Service Confirmation: 3-year guarantee with lifetime benefit bolster. 24/7 worldwide help with substitution ensure if repairs aren't conceivable amid guarantee period.
Customization Mastery: Solid non-standard plan capabilities convey custom fitted arrangements for your particular application requirements.
Contact Us
Our Temperature Humidity Chamber solutions provide the precision and reliability your projects demand. Contact our team at ellen@lib-industry.com to discuss your specific requirements.
