ASTM G154 vs G155: Which UV Testing Standard Should You Follow?

When selecting UV testing standards for your materials, the choice between ASTM G154 and G155 significantly impacts your testing accuracy and results. G154 delivers speed and simplicity for UV-driven degradation, while G155 offers unmatched realism for total sunlight exposure. ASTM G154 utilizes fluorescent UV lamps focusing specifically on UV wavelengths, making it ideal for rapid screening and cost-effective testing with a UV test machine. Conversely, ASTM G155 employs xenon arc lamps that replicate the full spectrum of natural sunlight, providing superior correlation to real-world outdoor exposure conditions. The decision ultimately depends on your material type, testing objectives, budget constraints, and required correlation to actual environmental conditions. Understanding these fundamental differences ensures you select the most appropriate testing methodology.

What Is the Purpose of ASTM G154 and ASTM G155 Standards?

Fundamental Testing Objectives

Both ASTM G154 and G155 standards serve critical roles in accelerated weathering testing, designed to evaluate material durability under environmental stress conditions. The use of this apparatus is intended to induce property changes consistent with the end use conditions, including the effects of the UV portion of sunlight, moisture, and heat. These standards enable manufacturers to predict long-term material performance through controlled laboratory testing rather than waiting years for natural exposure results.

Regulatory Compliance Requirements

ASTM G154 is the standard practice for exposing nonmetallic materials to fluorescent UV light, while G155 addresses xenon arc testing protocols. Both standards establish consistent testing procedures that ensure reproducible results across different laboratories worldwide. They provide frameworks for quality control, product development, and regulatory compliance across industries ranging from automotive to construction materials.

Material Performance Evaluation

The primary purpose extends beyond simple pass-fail testing to comprehensive material characterization. These standards help identify potential failure modes, optimize formulations, and validate product claims regarding weathering resistance. They enable manufacturers to make informed decisions about material selection, protective coatings, and design modifications before market introduction.

Key Differences Between Fluorescent UV and Xenon Arc Testing

Light Source Technology Comparison

The most obvious difference between the two is that ASTM G154 testing uses fluorescent light sources to simulate UVA and UVB while ASTM G155 testing uses xenon arc UV light sources to simulate exposure to natural sunlight. Fluorescent UV lamps concentrate energy in the UV spectrum (290-400nm), providing intense UV exposure that accelerates degradation mechanisms. Xenon arc lamps produce a broader spectrum that more closely matches natural sunlight, including visible light and near-infrared radiation.

Spectral Distribution Analysis

Acceleration Factors and Testing Speed

Fluorescent UV testing typically achieves higher acceleration factors due to concentrated UV energy, often completing tests in weeks rather than months. Xenon arc testing provides more realistic exposure conditions but may require longer test durations. The choice depends on whether maximum acceleration or spectral accuracy takes priority for your specific application.

How to Select the Right Standard Based on Material Type?

Polymer and Plastic Materials

Different polymers respond distinctly to various wavelengths, making standard selection crucial for accurate results. UV-sensitive polymers like polystyrene and PVC benefit from ASTM G154 testing due to their primary degradation occurring in UV ranges. However, materials sensitive to visible light or heat require ASTM G155's full-spectrum approach for comprehensive evaluation.

Coatings and Paint Systems

This test usually applies to materials that show different responses upon exposure to an outdoor environment, including coatings, plastics, and other non-metallic materials. Architectural coatings often utilize G155 testing with a UV test machine because color stability and gloss retention depend on full-spectrum exposure. Industrial coatings focused on UV protection may prefer G154's concentrated UV approach for specific degradation mechanisms.

Textile and Fabric Evaluation

Textile testing requires careful consideration of dye chemistry and fiber composition. Natural fibers typically benefit from G155 testing due to their sensitivity to visible light and heat. Synthetic textiles with UV stabilizers may achieve adequate screening through G154 protocols while maintaining cost-effectiveness for routine quality control applications.

Environmental Parameters in G154 and G155 Testing Procedures

Temperature Control Systems

Both standards incorporate precise temperature control but with different approaches and ranges. A typical cycle for automotive exterior applications would be 8 hours UV exposure at 70°C followed by 4 hours of condensation at 50°C. ASTM G154 typically operates between ambient and 90°C, while G155 may reach higher temperatures due to xenon lamp heat generation requiring active cooling systems.

Moisture Exposure Mechanisms

Cycle Programming Flexibility

Most cycles alternate between 4-hour or 8-hour periods of light and 4-hour periods of condensation, though there are some small changes in cycle 5 (20 h light) and cycle 7 (15 min spray). G155 offers more sophisticated programming options with precise humidity control and varied exposure cycles, while G154 provides simpler, more standardized cycling options suitable for routine testing applications.

Compliance and Reporting Requirements for ASTM UV Tests

Documentation Standards

Both standards require comprehensive documentation including lamp types, irradiance levels, temperature profiles, and exposure durations. Standards that reference ASTM G154 will define the type of lamps to use, the light intensity (irradiance), and other experimental parameters required for testing, such as humidity and temperature. Proper record-keeping ensures traceability and reproducibility essential for regulatory compliance.

Equipment Calibration Protocols

Regular calibration using certified reference materials maintains testing accuracy and standard compliance. UV radiometers in a UV test machine require periodic verification against traceable standards, while temperature and humidity sensors need routine calibration certificates. Equipment maintenance records become crucial for audit purposes and quality system requirements.

Test Report Elements

Comprehensive test reports must include material identification, test conditions, exposure duration, evaluation criteria, and results interpretation. Visual assessments require standardized rating scales, while instrumental measurements need appropriate statistical analysis. Clear reporting enables stakeholders to make informed decisions based on test outcomes.

Industry Examples of G154 vs G155 Standard Applications

Automotive Industry Applications

The automotive sector extensively utilizes both standards depending on component location and performance requirements. Exterior components like bumpers and trim typically undergo G155 testing to evaluate color stability and gloss retention under full-spectrum exposure. Interior components may utilize G154 testing focused on UV-induced degradation of dashboard materials and upholstery fabrics.

Construction and Architecture

Building materials face diverse environmental challenges requiring different testing approaches. Window frame materials benefit from G155 testing to evaluate thermal cycling effects combined with UV exposure. Roofing membranes often utilize G154 protocols focusing on UV resistance as the primary degradation mechanism affecting service life.

Electronics and Technology

Electronic enclosures and components require careful material selection based on exposure conditions. Outdoor electronic housings typically undergo G155 testing to evaluate complete environmental resistance including thermal effects. Indoor applications may rely on G154 screening for UV-sensitive components like cable jackets and connector materials.

LIB UV Test Machine Supports ASTM G154 and G155 Standards

Equipment Specifications and Capabilities

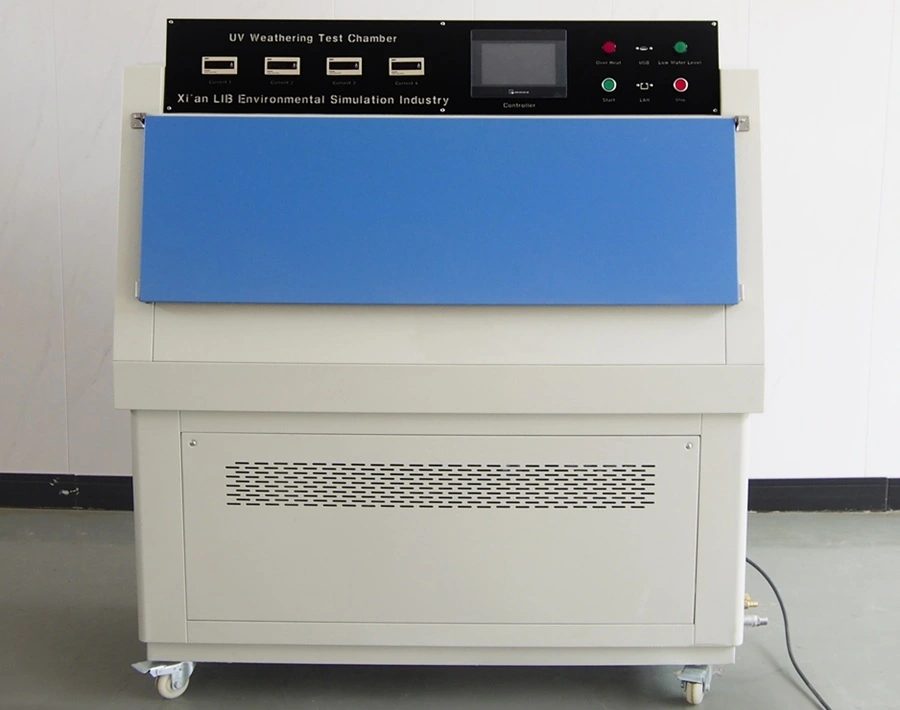

The LIB industry UV test machine features versatile design supporting both testing standards through interchangeable light sources and programmable control systems. With fluorescent UV lamps (8 × 40W) providing wavelengths from 290-400nm and irradiance control from 0.3-20 W/m², the system accommodates diverse testing requirements. Temperature range spans ambient to 90°C ±2°C, ensuring precise environmental control for standard compliance.

Advanced Features for Professional Testing

Technical Support and Implementation

LIB industry provides comprehensive support including equipment commissioning, operator training, and ongoing technical assistance. The turnkey solution encompasses research, design, production, delivery, installation, and training services tailored to customer requirements.

Conclusion

Selecting between ASTM G154 and G155 standards requires careful consideration of material characteristics, testing objectives, and correlation requirements with real-world performance. G154 offers cost-effective, accelerated screening focused on UV degradation mechanisms, while G155 provides comprehensive full-spectrum testing with superior outdoor correlation. Understanding these fundamental differences enables informed decisions that optimize testing efficiency while ensuring reliable material performance evaluation for your specific applications.

FAQs

Which standard provides faster test results for material screening?

ASTM G154 typically delivers faster results due to concentrated UV energy that accelerates degradation mechanisms more rapidly than xenon arc exposure, making it ideal for preliminary material evaluation.

Can the same equipment perform both ASTM G154 and G155 testing?

Different equipment is required since G154 uses fluorescent UV lamps while G155 employs xenon arc lamps, each requiring specific optical and control systems for standard compliance.

How do I determine which standard better correlates with my outdoor application?

Consider your material's primary degradation mechanisms and environmental exposure conditions; UV-driven degradation favors G154, while full-spectrum sensitivity requires G155 for accurate correlation.

Ready to enhance your UV testing capabilities? Contact LIB industry today to discuss how our advanced UV test machines can support your ASTM G154 and G155 testing requirements. Our expert team provides complete solutions from equipment selection to implementation support. Reach out to ellen@lib-industry.com for personalized consultation and technical specifications.
