How Does a Vehicle Rain Test Chamber Simulate Real Conditions?
How Does a Vehicle Rain Test Chamber Simulate Real Conditions?
A vehicle rain test chamber simulates real conditions through sophisticated engineering that replicates natural rainfall patterns, intensities, and environmental factors. These specialized testing environments utilize precise nozzle arrays, controlled water pressure systems, and variable angle configurations to mirror actual weather phenomena. By incorporating oscillating spray tubes, adjustable flow rates, and programmable control systems, these chambers create authentic precipitation scenarios that automotive components encounter in real-world applications. The simulation accuracy depends on carefully calibrated parameters including droplet size distribution, impact velocity, and directional spray patterns that match regional rainfall characteristics across different climatic zones.
Reproducing Global Rainfall Intensities and Droplet Sizes
Modern automotive testing requires authentic simulation of diverse precipitation patterns found worldwide. Vehicle rain test chambers achieve this complexity through sophisticated engineering approaches that mirror natural meteorological phenomena.
Understanding Natural Rainfall Characteristics
Natural precipitation exhibits remarkable diversity across geographical regions and seasonal variations. Tropical downpours produce large droplets with high kinetic energy, while mountain drizzle creates fine mist with minimal impact force. Professional testing chambers must accurately reproduce these variations to ensure comprehensive vehicle evaluation.
Research indicates that natural raindrops range from 0.5mm to 6mm in diameter, with terminal velocities varying between 2-9 meters per second depending on atmospheric conditions. Vehicle rain test chambers utilize specialized nozzle designs with φ0.4mm spraying holes to generate droplets within these natural parameters, ensuring authentic impact characteristics on tested surfaces.
Calibrating Intensity Levels for Regional Accuracy
Different climatic zones require specific intensity calibration to match local precipitation patterns. Testing protocols incorporate multiple intensity levels, from light drizzle at 1-2mm/hour to severe thunderstorms exceeding 50mm/hour.
Rain Intensity Level | Natural Equivalent | Test Chamber Setting | Application Purpose |
Light Drizzle | 1-2 mm/hour | Low pressure, fine spray | Daily commute conditions |
Moderate Rain | 5-10 mm/hour | Medium pressure, standard droplets | Regular weather exposure |
Heavy Downpour | 20-50 mm/hour | High pressure, large droplets | Extreme weather testing |
Advanced chambers incorporate programmable control systems that automatically adjust spray parameters throughout testing cycles, simulating the natural progression from light precipitation to heavy storms that vehicles experience during actual operation.
Achieving Authentic Droplet Distribution Patterns
Uniform droplet distribution represents a critical challenge in rainfall simulation technology. Natural precipitation creates non-uniform patterns with varying concentrations and impact angles across surfaces.
Professional vehicle rain test chambers address this complexity through multiple oscillating tubes positioned at different radii and heights. The oscillating mechanism, typically operating within a ±180° range, ensures comprehensive coverage while preventing artificial uniformity that could mask potential weaknesses in vehicle designs.
How Are Nozzle Arrays Designed to Mimic Natural Rain?
Nozzle array engineering represents the cornerstone of authentic rainfall simulation, requiring precise positioning and flow characteristics to replicate natural precipitation patterns effectively.
Strategic Positioning for Comprehensive Coverage
Optimal nozzle placement demands careful consideration of spray overlap, coverage uniformity, and impact angle variation. Professional installations utilize mathematical modeling to determine ideal spacing configurations that eliminate dead zones while preventing excessive spray concentration in any single area.
The 50mm hole spacing specification ensures adequate coverage density without creating artificial hot spots that could skew testing results. This spacing allows individual spray cones to merge seamlessly, creating the continuous precipitation field characteristic of natural rainfall events.
Flow Dynamics and Pressure Management
Nozzle performance depends heavily on precise pressure control and flow rate management. Professional chambers incorporate sophisticated water supply systems featuring booster pumps, pressure regulators, and flow meters to maintain consistent spray characteristics throughout extended testing periods.
Water pressure control systems enable precise adjustment of spray characteristics, allowing technicians to simulate everything from gentle misting to aggressive storm conditions. This flexibility ensures comprehensive evaluation of vehicle components under diverse precipitation scenarios.
Material Selection for Longevity and Precision
Nozzle construction materials directly impact spray quality and equipment longevity. Stainless steel SUS304 construction provides corrosion resistance while maintaining precise orifice dimensions over thousands of testing cycles.
Professional nozzle arrays undergo regular calibration procedures to verify spray pattern consistency and flow rate accuracy. This maintenance ensures reliable simulation parameters throughout the chamber's operational lifetime.
Simulating Wind-Driven Rain with Controlled Airflow Systems
Wind-driven precipitation represents one of the most challenging automotive exposure conditions, requiring sophisticated airflow management systems integrated with spray generation equipment.
Understanding Wind-Rain Interaction Mechanics
Natural wind-driven rain creates complex trajectory patterns that significantly impact vehicle exposure characteristics. Horizontal wind forces alter droplet paths, creating oblique impact angles that test different surface areas compared to vertical precipitation.
Research demonstrates that wind speeds above 15 mph fundamentally change droplet impact patterns, creating scenarios where rain penetrates areas typically protected during calm conditions. Vehicle rain test chambers must accurately reproduce these complex interaction patterns to ensure comprehensive evaluation.
Integrated Airflow Generation Systems
Professional testing chambers incorporate dedicated airflow systems featuring variable-speed fans and directional controls. These systems generate controlled wind patterns that interact with spray systems to create authentic wind-driven precipitation scenarios.
Wind Speed Range | Impact Angle Change | Testing Application | Chamber Configuration |
0-5 mph | Minimal deviation | Calm weather testing | Airflow disabled |
10-20 mph | 15-30° angle shift | Moderate wind conditions | Medium fan speed |
25+ mph | 45° angle shift | Storm simulation | High airflow setting |
Advanced installations feature programmable wind patterns that simulate gusty conditions, variable direction changes, and sustained wind scenarios common in different geographical regions.
Turbulence Generation for Realistic Conditions
Natural wind patterns exhibit turbulence characteristics that create unpredictable spray directions and intensity variations. Professional vehicle rain test chambers incorporate turbulence generators that introduce realistic flow variations, preventing artificial uniformity that could compromise testing authenticity.
These systems utilize baffles, flow restrictors, and variable geometry components to create the chaotic airflow patterns characteristic of natural storm conditions.
Creating Variable Angles of Attack for Real-World Exposure
Angle variation represents a fundamental requirement for comprehensive vehicle testing, as natural precipitation approaches surfaces from multiple directions depending on wind conditions and vehicle orientation.
Multi-Directional Spray Capabilities
Professional vehicle rain test chambers incorporate oscillating spray systems capable of delivering precipitation from multiple angles simultaneously. The oscillating tube mechanism, with its ±180° adjustment range, enables comprehensive surface exposure that mirrors real-world driving conditions.
This angular variation ensures testing of horizontal surfaces, vertical panels, and complex geometries found in modern vehicle designs. Door seals, window interfaces, and body panel joints all receive appropriate exposure to validate their water-resistance capabilities.
Rotational Platform Integration
Advanced testing systems incorporate rotational platforms that slowly rotate test vehicles during spray exposure. This rotation, typically operating at 1 revolution per minute, ensures uniform exposure across all vehicle surfaces while preventing artificial bias toward specific orientations.
The combination of oscillating spray systems and rotational platforms creates comprehensive exposure scenarios that exceed the complexity of stationary testing methods.
Programmable Angle Sequences
Modern control systems enable programmable angle sequences that simulate specific driving scenarios. Highway driving patterns, urban stop-and-go conditions, and parking situations all create different exposure characteristics that professional testing chambers can replicate through precise angle control.
These programmable sequences allow manufacturers to validate vehicle performance under specific use conditions rather than relying solely on generalized testing protocols.
Why Is Water Purity a Critical Factor in Accurate Simulation?
Water quality significantly impacts testing accuracy and equipment longevity, making purification systems essential components of professional vehicle rain test chambers.
Contamination Effects on Spray Characteristics
Natural rainwater contains minimal dissolved minerals and contaminants, creating pure precipitation that interacts predictably with vehicle surfaces. Tap water contains chlorine, minerals, and other additives that alter surface tension, spray patterns, and drying characteristics.
Professional testing chambers incorporate water purification systems that remove these contaminants, ensuring spray characteristics match natural precipitation properties. This purification prevents artificial residue buildup that could interfere with accurate leak detection and surface evaluation.
Corrosion Prevention in Testing Equipment
Impure water accelerates corrosion in spray system components, leading to premature nozzle wear, pressure system degradation, and contamination of testing results. Professional installations utilize comprehensive filtration and treatment systems to protect expensive equipment investments.
Water Quality Parameter | Natural Rain Standard | Chamber Requirement | Purification Method |
Total Dissolved Solids | <10 ppm | <5 ppm | Reverse osmosis |
Chlorine Content | 0 ppm | 0 ppm | Carbon filtration |
pH Level | 5.5-6.5 | 6.0-7.0 | Chemical adjustment |
Stainless steel construction throughout the water system provides additional corrosion resistance, but proper water treatment remains essential for optimal system performance and longevity.
Reproducible Testing Conditions
Consistent water quality ensures reproducible testing conditions across multiple test cycles and different geographic locations. Standardized purification protocols enable accurate comparison of results between different testing facilities and time periods.
This consistency proves particularly important for quality control applications where slight variations in test conditions could mask or exaggerate performance differences between vehicle models or component designs.
Calibrating Pressure and Flow Rates for Consistent Conditions
Precise pressure and flow control represents the foundation of accurate rainfall simulation, requiring sophisticated measurement and control systems integrated throughout the chamber design.
Pressure Monitoring and Control Systems
Professional vehicle rain test chambers incorporate multiple pressure monitoring points throughout the spray system to ensure consistent performance across all nozzles. Digital pressure sensors provide real-time feedback to control systems that automatically adjust pump operation to maintain target parameters.
Flow meter integration enables precise measurement of water delivery rates, ensuring accurate simulation of specific precipitation intensities. These measurements provide documented evidence of test conditions for quality assurance and regulatory compliance purposes.
Automated Calibration Procedures
Modern testing systems feature automated calibration routines that verify system performance without manual intervention. These procedures systematically check each nozzle array, pressure zone, and flow measurement point to identify potential deviations from specification.
Automated systems significantly reduce calibration time while improving accuracy compared to manual procedures. Documentation systems automatically record calibration results for traceability and maintenance scheduling purposes.
Temperature Compensation Mechanisms
Water temperature affects viscosity, surface tension, and spray characteristics, requiring compensation mechanisms to maintain consistent performance across varying ambient conditions. Professional chambers incorporate temperature monitoring and control systems that adjust operating parameters based on measured conditions.
This temperature compensation ensures consistent spray performance regardless of seasonal variations or facility heating/cooling conditions that could otherwise introduce testing variability.

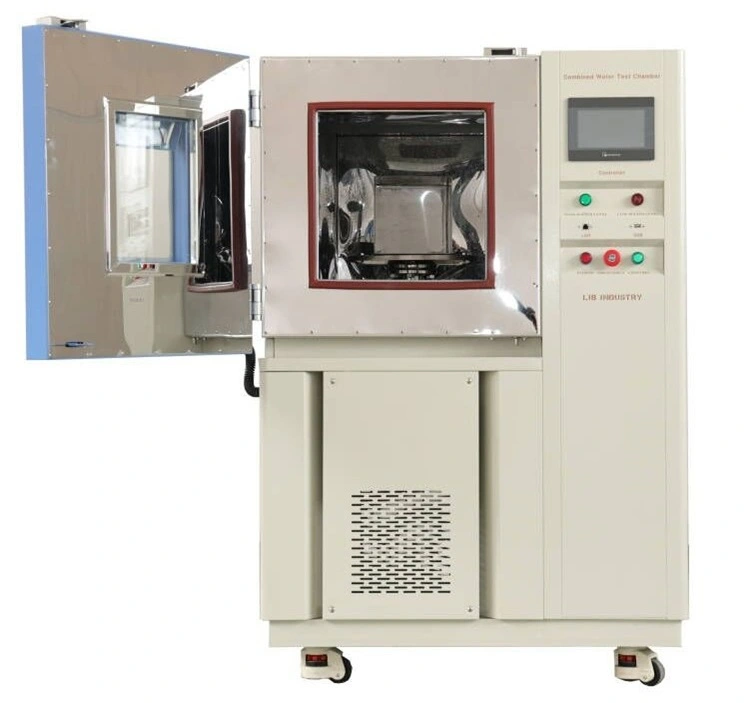

LIB Vehicle Rain Test Chamber: Precision Simulation for Real-World Reliability
LIB Industry's vehicle rain test chamber represents advanced engineering solutions designed to meet the demanding requirements of modern automotive testing applications.
Advanced Control System Integration
The LIB vehicle rain test chamber features programmable color LCD touch screen controllers with Ethernet connectivity, enabling sophisticated test program development and remote monitoring capabilities. This control system integration allows precise manipulation of spray patterns, pressure settings, and timing sequences to simulate specific weather scenarios.
USB data logging capabilities provide comprehensive documentation of test conditions and results, supporting quality assurance requirements and regulatory compliance documentation. The system automatically records pressure variations, flow rates, and environmental parameters throughout testing cycles.
Comprehensive Safety Protection Systems
Professional testing equipment requires multiple safety systems to protect both equipment and personnel during operation. LIB chambers incorporate over-temperature protection, over-current protection, water shortage protection, earth leakage protection, and phase sequence protection systems.
These integrated safety systems ensure reliable operation while preventing equipment damage that could compromise testing schedules or create safety hazards during chamber operation.
Customizable Configuration Options
LIB vehicle rain test chambers offer multiple configuration options to accommodate diverse testing requirements and facility constraints. Available models include:
- R-800C: 810L capacity with 400mm oscillating radius
- R-1200C: 2400L capacity with 600mm oscillating radius
- Custom configurations: Available for specialized applications
Model | Internal Dimensions | Useful Volume | Drip Tray Size | Applications |
R-800C | 900×950×950 mm | 810L | 600×600 mm | Component testing |
R-1200C | 1300×1350×1370 mm | 2400L | 1000×1000 mm | Full vehicle testing |
The modular design approach enables customization for specific vehicle types, component geometries, or testing protocol requirements while maintaining standardized performance characteristics.
Conclusion
Vehicle rain test chambers simulate real conditions through sophisticated integration of controlled spray systems, precise pressure management, and programmable environmental parameters. These specialized testing environments reproduce natural precipitation characteristics including droplet size distribution, impact velocities, and directional variation patterns. Professional chambers incorporate water purification systems, automated calibration procedures, and comprehensive safety protection to ensure accurate and reliable testing results. The combination of oscillating spray systems, rotational platforms, and programmable control systems creates authentic exposure scenarios that validate vehicle water-resistance capabilities under diverse climatic conditions.
FAQs
What international standards do vehicle rain test chambers comply with?
Professional vehicle rain test chambers comply with ISO 20653 and IEC 60529 standards, ensuring consistent testing protocols for IPX1 through IPX4 protection degree evaluation across different manufacturers and testing facilities.
How long does a typical vehicle rain test cycle require?
Standard rain test cycles range from 10 minutes to several hours depending on the protection degree being evaluated and specific testing protocol requirements, with automated systems enabling unattended operation.
Can vehicle rain test chambers simulate different geographical rainfall patterns?
Yes, advanced chambers feature programmable control systems that adjust spray intensity, droplet size, and impact angles to replicate specific regional precipitation characteristics from light drizzle to severe storm conditions.
