How to Assess the Performance of a Vibration Test Chamber?

You depend on your vibration test chamber to deliver precise, repeatable results. Regular performance assessment ensures your equipment maintains high reliability and accuracy. In fact, routine testing and increased operator experience have been shown to boost diagnostic accuracy in vibration testing devices, as summarized below:

Advanced chambers like LIB help you achieve reliable, consistent testing outcomes by supporting precise control and robust data management.

Performance Metrics

When you assess a Vibration Test Chamber, you need to focus on several core performance metrics. Each parameter plays a vital role in ensuring your tests are accurate, repeatable, and meaningful.

Frequency and Amplitude

Frequency and amplitude form the foundation of vibration testing. Frequency refers to how many times the vibration occurs per second, measured in hertz (Hz). Amplitude describes the maximum movement from the rest position, usually measured in millimeters or micrometers. You must verify that your chamber can generate and maintain the required frequency and amplitude ranges for your specific test standards. The LIB Vibration Test Chamber offers precise control over both parameters, allowing you to simulate real-world vibration profiles with confidence.

Acceleration and Displacement

Acceleration measures how quickly the velocity of the vibrating object changes, typically in meters per second squared (m/s²). Displacement tracks the total distance the object moves during vibration. Both metrics are essential for understanding how your product responds to different vibration stresses.

- Acceleration and displacement sensors each have strengths and limitations:

- Displacement signals can make it difficult to evaluate higher frequency amplitudes.

- Acceleration signals may not capture lower frequency amplitudes effectively.

- Accelerometers often pick up vibrations from the entire device, not just the test sample.

Studies show that comparing acceleration and displacement readings can result in significant errors, especially when using different sensor types or mounting methods. For example, relative errors in RMS values can reach over 50% in some frequency bands.

Advanced chambers, like those from LIB, use improved sensor mounting and multiple sensors to provide more comprehensive vibration data, but you should still interpret results carefully.

You should always select the right sensor and mounting method for your application to ensure reliable data.

Uniformity and Control

Uniformity ensures that the vibration is distributed evenly across the test platform. If the vibration is not uniform, some parts of your sample may experience more stress than others, leading to inaccurate results. Control accuracy refers to the chamber’s ability to maintain the set vibration parameters throughout the test duration.

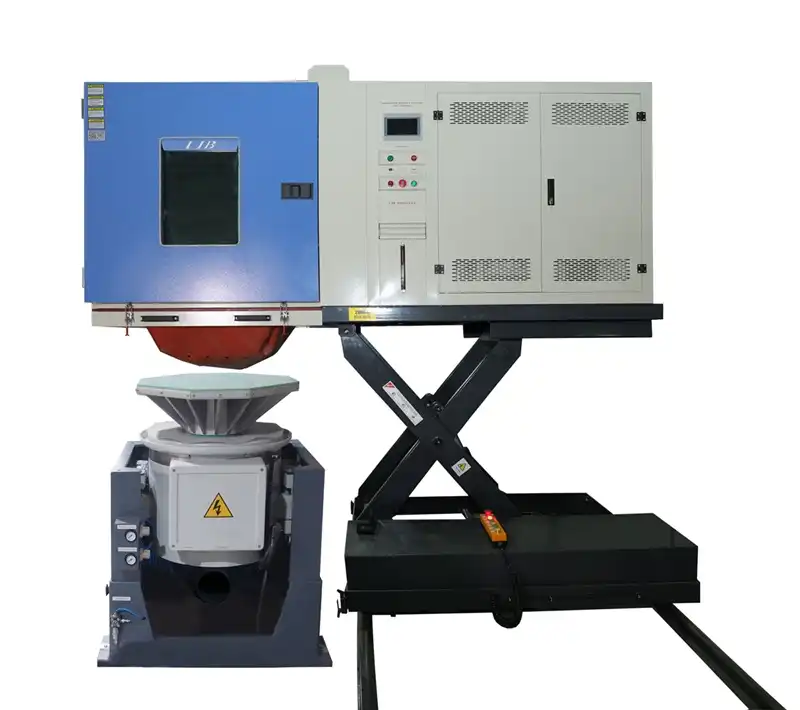

The LIB vibration test chamber uses advanced control systems to deliver consistent vibration, temperature, and humidity conditions. You can rely on its precise feedback mechanisms to keep your test environment stable, even during rapid changes or complex test cycles.

Reliability

Reliability measures how well your Vibration Test Chamber performs over time and under repeated use. You want a chamber that can handle long-term testing without performance drift or mechanical failure. Empirical data from long-term operation tests show that high-quality chambers can simulate extended mechanical loads and maintain their integrity. For example, sensors subjected to hundreds of hours of vibration and ON/OFF cycles remained functional and mechanically intact, even under harsh conditions. This kind of durability supports your confidence in the results, especially when you need to simulate years of real-world use in a short period.

The LIB Vibration Test Chamber stands out for its robust construction and proven reliability in demanding environments. You can trust it to deliver consistent results, whether you are testing aerospace components, electronics, or materials.

Measuring Effectiveness

Preparation and Calibration

You should always start with careful preparation and calibration before assessing your vibration testing equipment. This step ensures that your results are accurate and repeatable. Follow this step-by-step process to set up your chamber for reliable measurements:

- Mount certified accelerometers securely inside the chamber.

- Connect signal analyzers to the sensors to capture vibration data.

- Apply test signals across a range of frequencies and amplitudes to simulate real-world conditions.

- Collect and analyze sensor output to check for accuracy and response.

- Perform both static and dynamic calibration, including cross-axis sensitivity and frequency response testing.

- Adjust the chamber or sensors based on your findings.

- Validate calibration by comparing outputs with reference sensors.

- Document every step of the calibration and testing procedure.

- Use high-quality equipment and follow manufacturer guidelines.

- Maintain environmental controls for temperature, humidity, and vibration during calibration.

- Schedule regular calibration checks, ideally every 6-12 months.

- Clean, inspect, and replace sensors as needed.

- Troubleshoot issues by identifying errors and correcting them through recalibration or sensor replacement.

- Prevent future problems by following best practices and verifying calibration regularly.

A well-calibrated system forms the backbone of any effective vibration test chamber assessment.

Instrumentation

Selecting the right instrumentation is crucial for capturing accurate vibration data. You should use techniques like Effective Independence (EI) and Optimal Experimental Design (OED) to optimize sensor placement. These methods help you maximize data quality and distinguish between different vibration modes.

- Define measurement points on a detailed 3D model of your test sample.

- Rove uni-axial accelerometers across these points to capture precise data.

- Use a fixed modal shaker with optimized signals, such as Burst Random signals, for controlled excitation.

- Apply Fast Fourier Transform (FFT) to convert time-domain signals into the frequency domain.

- Average multiple measurement runs to reduce noise and improve reliability.

- Use interpolation to estimate responses at unmeasured points, enhancing spatial resolution.

This approach reduces the number of sensors needed, lowers costs, and shortens testing time. It also improves the correlation between your test results and computer models, making your assessments more reliable.

Test Procedures

Standardized test procedures help you quantify performance improvements and ensure consistency. You can refer to protocols such as ISTA and ASTM standards, which define specific test types and performance metrics.

You should follow these procedures to challenge your products under realistic conditions. For example, modal damping values, frequency response functions, and root-mean-square velocity are all measured to assess structural health and vibration intensity. Regular calibration of transducers ensures that displacement, velocity, and acceleration readings remain accurate.

Data Analysis

Data analysis transforms raw vibration signals into actionable insights. You can use time-frequency analysis to examine signals in both time and frequency domains. This method helps you identify non-linear behavior and potential failure points. Modal analysis allows you to excite components mechanically and record their natural frequencies and mode shapes.

Common statistics reported in vibration testing include:

- Peak acceleration: Maximum acceleration experienced during testing.

- Harmonic content: Frequency components related to harmonics.

- Power Spectral Density (PSD): Distribution of vibration energy across frequency bins.

- Transmissibility: Relationship between input and response signals.

- Transfer Function: Ratio of PSD values, including phase relationships.

- Coherence: Correlation between input and response signals, ranging from 0 (no relation) to 1 (perfect relation).

You should generate comprehensive test reports that include these statistics. Effective data management is essential. The LIB vibration test chamber supports RS232 and USB data communication, making it easy to store, retrieve, and analyze your test results. This feature streamlines your workflow and ensures that you can track performance over time.

Vibration Test Chamber Factors

Environmental Conditions

You must pay close attention to environmental conditions when you assess a vibration test chamber. Temperature and humidity play a major role in test accuracy. Research shows that even small changes in these parameters can affect your results. If you do not control temperature and humidity, you may see inconsistent or unreliable data. The orientation of your unit under test also matters. Some products react differently depending on how you place them inside the chamber.

LIB Vibration Test Chambers give you precise control over temperature and humidity. You can set temperatures from -50°C to +150°C and humidity from 30% to 98% RH. The chamber keeps fluctuations to a minimum, so your tests stay consistent. This level of control helps you simulate real-world conditions and get dependable results.

Equipment and Maintenance

The age and condition of your equipment can impact performance. Over time, mechanical parts may wear out or sensors may lose accuracy. Regular maintenance keeps your chamber running smoothly. You should inspect moving parts, check sensor calibration, and clean the chamber interior often. Replace worn components before they cause problems.

LIB chambers feature a durable SUS304 stainless steel interior and a robust steel exterior. The construction resists corrosion and damage, even after years of use. The air circulation system uses a powerful blower and muffler to maintain stable conditions. With proper care, your LIB chamber will deliver reliable results for many years.

Maintenance Checklist:

- Inspect sensors and wiring

- Clean chamber surfaces

- Lubricate moving parts

- Check calibration schedules

Test Load

The type and weight of your test load also influence chamber performance. Heavy or oddly shaped samples can affect vibration uniformity. You should always check that your sample does not exceed the chamber’s maximum load capacity. LIB Vibration Test Chambers support up to 500 kilograms, giving you flexibility for different products.

Arrange your samples evenly on the test platform. Use the provided shelves and cable holes for secure placement. By balancing your test load, you help ensure accurate and repeatable results every time.

Troubleshooting Issues

Common Problems

You may encounter several performance issues when operating a vibration test chamber. These problems can affect the accuracy and reliability of your test results. Here are some of the most frequently documented challenges:

- Noise floor issues: Background electronic noise, such as ground loops or electromagnetic interference, can mask important resonances during tests.

- Accelerometer sensitivity problems: Incorrect sensitivity settings, lack of power, or using the wrong accelerometer can lead to inaccurate or failed measurements.

- Cable problems: Unsecured cables may whip and introduce noise, while poor connections can cause data gaps.

- Accelerometer mounting issues: Improper orientation or insecure mounting, like using wax instead of a stud, often results in invalid data.

- Amplifier-related errors: Incorrect gain settings, either too high or too low, can damage equipment or cause test errors.

Diagnostics

You can use a systematic approach to diagnose problems in your vibration test chamber. Start by reviewing your test data for unexpected spikes, missing signals, or inconsistent readings. Check all sensor connections and verify that each accelerometer is powered and properly mounted. Use a signal analyzer to monitor background noise and identify any interference.

Site design plays a key role in diagnostics. Position your control room close to the chamber but shielded from vibration and electrical noise. This setup allows you to monitor tests in real time and respond quickly to anomalies.

Solutions

You can resolve most issues with targeted corrective actions:

- Secure all cables and use proper connectors to reduce noise.

- Double-check accelerometer orientation and use stud mounts for stability.

- Set amplifier gain within recommended ranges to protect equipment.

- Calibrate sensors regularly and replace any that show drift or damage.

- Optimize your site layout to minimize interference and improve monitoring.

By following these steps, you ensure your vibration test chamber delivers accurate, reliable results every time.

LIB Advantage

Key Features

You get advanced technology and robust construction with LIB Vibration Test Chambers. The chambers combine temperature, humidity, and vibration testing in one system. You can set temperatures from -50°C to +150°C and control humidity between 30% and 98% RH. The chamber supports rapid temperature changes, which helps you simulate real-world stress quickly. The stainless steel interior resists corrosion and damage. The large test space and high load capacity let you test many types of products. You can rely on precise control systems to keep your test conditions stable. The chamber also offers easy data management with RS232 and USB interfaces.

Application Examples

You can use LIB chambers in many industries. In aerospace, you test components for vibration and temperature extremes. The chamber helps you find weak points before products go into service. In electronics, you check circuit boards and devices for durability under combined stress. The chamber reveals how products respond to rapid temperature shifts and vibration. For materials testing, you study how plastics, metals, and composites hold up under harsh conditions. The chamber gives you reliable data for research and quality control.

Support and Service

You receive strong support from LIB Environmental. The company provides clear manuals and fast technical help. You can contact the team for setup advice or troubleshooting. LIB offers regular maintenance tips to keep your chamber running well. The competitive pricing makes advanced testing more accessible. You also benefit from easy data storage and transfer, which helps you manage your test results efficiently.

If you want reliable results and long-term value, LIB Vibration Test Chambers deliver both performance and peace of mind.

You ensure accurate results by following a clear process: assess core metrics, calibrate equipment, and document every test. Regular evaluation keeps your Vibration Test Chamber reliable and ready for industry demands. As the market grows - projected to reach $2.5 billion by 2033 - automation and real-time monitoring become standard.

Choose advanced solutions like LIB to meet evolving standards and deliver reliable, comprehensive testing.

FAQ

How often should you calibrate a vibration test chamber?

You should calibrate your vibration test chamber every 6 to 12 months. Regular calibration ensures accurate results and reliable performance. Always follow the manufacturer’s recommendations for best practices.

What types of products can you test in a LIB Vibration Test Chamber?

You can test aerospace parts, electronic devices, automotive components, and materials like plastics or metals. The chamber supports a wide range of industries and applications.

How do you ensure accurate vibration measurements?

You should use certified sensors, secure all cables, and follow proper mounting techniques. Always check calibration before each test. Consistent procedures help you achieve precise results.

Can you run combined temperature, humidity, and vibration tests?

Yes, LIB Vibration Test Chambers allow you to run combined tests. You can simulate real-world conditions by controlling temperature, humidity, and vibration together.
