Mining Equipment Testing in a Dust Simulation Chamber

Mining operations expose equipment to some of the harshest particulate environments on Earth, where fine silica dust, coal particles, and mineral fragments infiltrate every unsealed component. Equipment failures caused by dust ingress result in costly downtime, safety hazards, and premature replacement cycles that devastate operational budgets. Testing mining equipment in a dust simulation chamber before field deployment identifies vulnerabilities, validates protective design features, and ensures compliance with IP protection standards. This proactive approach transforms equipment reliability from a gamble into a predictable engineering outcome, protecting both your investment and the workers who depend on functional machinery in hazardous underground and surface mining environments.

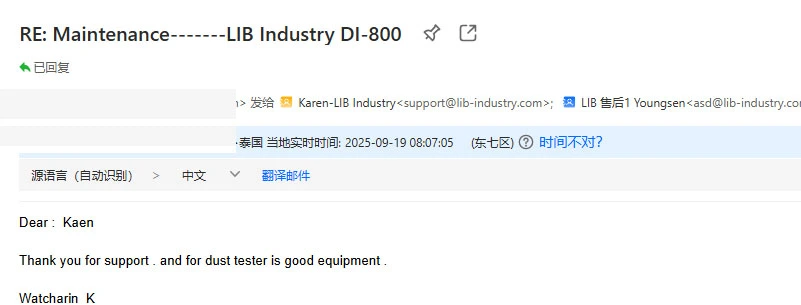

A testing laboratory in Thailand utilized a sand and dust test chamber to assess the durability of its outdoor solar monitoring systems under extreme environmental conditions. By recreating intense desert-like environments—including blowing sand, dust exposure, and elevated temperatures—the laboratory conducted comprehensive reliability testing on the equipment.During the entire testing process, the systems maintained stable performance without operational failure. The chamber allowed engineers to evaluate critical aspects such as enclosure sealing integrity, connector durability, and long-term environmental resistance. The successful results greatly increased confidence in the systems’ ability to operate reliably in harsh, remote, and arid outdoor applications.

Why Is Dust Testing Critical for Mining Equipment Reliability?

Catastrophic Failure Prevention

Mining equipment operates continuously in environments where airborne particulate concentrations reach levels unimaginable in conventional industrial settings. A single grain of silica penetrating a hydraulic control valve can trigger cascading system failures, leaving multi-million-dollar excavators immobilized hundreds of meters underground. Dust simulation chamber testing exposes prototypes to accelerated particle ingress scenarios, revealing seal weaknesses, inadequate enclosure designs, and filtration system vulnerabilities before production.

Economic Impact of Unplanned Downtime

Open-pit mining operations lose approximately $250,000 per hour when primary excavation equipment stops functioning. Underground operations face even steeper consequences - rescue protocols, ventilation system reconfiguration, and access route clearance multiply costs exponentially. Dust-related failures account for nearly 40% of unplanned maintenance events in mineral extraction facilities. Laboratory validation using controlled dust exposure eliminates these surprise failures, shifting maintenance from reactive emergency response to predictable scheduled intervals.

Regulatory Compliance Obligations

Mining safety authorities worldwide mandate ingress protection verification for equipment operating in explosive dust atmospheres. Coal mines require IP6X certification demonstrating complete dust-tight integrity for electrical components that could ignite methane accumulations. Metal ore extraction facilities follow similar protocols preventing ignition sources in sulfide dust environments. Testing documentation from accredited dust simulation chambers provides the evidence inspectors demand during certification audits.

Harsh Environmental Conditions in Mining Operations

Particulate Composition Variability

Mining dust characteristics vary dramatically based on extracted materials and geological formations. Coal operations generate carbonaceous particles ranging from 2μm respirable fractions to 200μm coarse fragments with abrasive properties. Iron ore facilities produce hematite dust with exceptional density and sharp crystalline structures that penetrate rubber seals. Talc mining creates ultra-fine particles with unusual flow characteristics requiring specialized testing protocols.

Temperature and Humidity Extremes

Surface mining in tropical regions combines 95% relative humidity with temperatures exceeding 45°C, creating conditions where hygroscopic dust forms corrosive pastes on equipment surfaces. Arctic mineral extraction presents the opposite challenge - temperatures plunging to -40°C where moisture freezes within dust particles. The LIB dust simulation chamber accommodates these variations with temperature control from ambient to +50°C and humidity maintained below 30% RH.

Vibration and Mechanical Stress

Mining equipment endures constant vibration from drilling operations, material crushing, and mobile platform movement across uneven terrain. These mechanical stresses fatigue seal materials and loosen enclosure fasteners, creating ingress pathways that static testing might miss. Advanced testing protocols combine dust exposure with dynamic sequences replicating field conditions. The reinforced stainless steel rack system supports massive components during testing.

Simulating Extreme Dust Exposure in Laboratory Conditions

Accelerated Life Cycle Testing

Laboratory simulation condenses years of field exposure into weeks through elevated dust concentrations and continuous circulation. The vertical dust circulation system in LIB dust simulation chambers maintains uniform particle distribution, ensuring test samples experience consistent exposure across all surfaces. The 75μm mesh filtration system prevents oversized particle clumping while allowing talcum powder to flow freely. Heated circulation chambers eliminate moisture absorption that would alter particle behavior.

Pressure Differential Replication

Underground mining equipment experiences varying atmospheric pressures as machinery moves between depths and surface facilities. The integrated vacuum system creates the required 2kPa pressure differential specified in IEC 60529 for IP6X dust-tight verification. This negative pressure draws particles toward any enclosure imperfection, stressing seals and gaskets beyond what static atmospheric testing achieves.

Customized Dust Media Selection

While talcum powder serves as the standardized test medium for IP code compliance, mining equipment manufacturers benefit from testing with actual mineral samples from operational sites. Custom test protocols incorporate coal dust, silica flour, iron ore fines, or composite mineral blends matching specific mine conditions. The sloped bottom chamber with quick-release drainage facilitates rapid changeover between different dust types within 5 minutes.

How Do Chambers Improve Equipment Durability and Safety?

Seal Design Optimization

Protective enclosures for electrical controls, hydraulic systems, and sensor assemblies rely on elastomeric seals maintaining integrity despite compression set, chemical exposure, and thermal cycling. Dust chamber testing reveals seal geometry inadequacies - insufficient compression force, improper groove dimensions, or incompatible material selection becomes evident through post-test inspection. Engineers iterate designs based on observed ingress patterns, progressing toward validated configurations ready for harsh service.

Filtration System Validation

Mining equipment incorporates multiple filtration stages protecting engine air intakes, hydraulic reservoirs, and electronic cooling systems. Laboratory testing quantifies filter efficiency, loading capacity, and restriction characteristics under realistic dust burdens. The multi-stage circulation system maintains consistent particle concentration despite filter capture, providing meaningful performance data throughout extended test durations configurable up to 99H59M.

Material Compatibility Assessment

Mineral dust particles exhibit chemical reactivity ranging from benign to highly aggressive depending on moisture content. Sulfide ores oxidize forming acidic compounds that corrode aluminum housings. Alkaline limestone dust degrades certain polymer formulations. Chamber testing with controlled humidity accelerates these degradation mechanisms, revealing material incompatibilities before field deployment.

Compliance Standards for Mining Equipment Testing

IEC 60529 Ingress Protection Codes

The International Electrotechnical Commission establishes IP rating protocols defining protection levels against solid particle ingress. IP5X classification indicates protection against dust quantities that might interfere with equipment operation, while IP6X certifies complete dust-tight integrity. The programmable color LCD touchscreen controller in LIB dust simulation chambers features one-touch presets implementing precise test parameters, eliminating programming errors that invalidate certification attempts.

ISO 20653 Road Vehicle Protection Standards

Although originally developed for automotive applications, ISO 20653 provides relevant protocols for mobile mining equipment including haul trucks, loaders, and drilling rigs. This standard addresses unique challenges of equipment experiencing vibration, pressure fluctuations, and dynamic sealing during movement. Extended test durations accommodate the rigorous exposure sequences these standards mandate.

MIL-STD Military Specification Requirements

Mining equipment deployed in strategic mineral extraction operations sometimes requires compliance with military environmental testing standards. MIL-STD-810 Method 510.7 addresses sand and dust exposure, specifying particle size distributions and concentration levels. The normal wire diameter of 50μm and nominal gap width of 75μm in LIB chamber construction align with military specification requirements.

National Mining Safety Authority Requirements

Individual nations impose additional testing mandates beyond international standards. The Mine Safety and Health Administration requires specific certification for equipment operating in gassy coal mines. China's State Administration of Work Safety mandates domestic testing facility validation. Custom testing protocols address these jurisdiction-specific requirements, with multi-language support streamlining documentation for international certification submissions.

Custom Chamber Design for Large-Scale Mining Components

Oversized Component Accommodation

Hydraulic excavator control cabins, drilling rig power modules, and conveyor drive assemblies exceed the capacity of standard dust testing equipment. LIB's custom design capabilities deliver chambers accommodating components measuring several meters in each dimension. The DI-2000 model with 1000×2000×1000mm internal dimensions represents the largest standard configuration, though fully customized chambers reach industrial scales for complete system testing.

Heavy Load Structural Engineering

Mining components frequently weigh multiple tons, demanding reinforced support structures beyond typical laboratory equipment specifications. Specialized sample holders incorporate load distribution features and secure mounting interfaces. The SUS304 stainless steel construction provides corrosion resistance while maintaining structural integrity under extreme loads.

Integrated Testing Capabilities

Comprehensive equipment validation requires simultaneous environmental exposure and functional assessment. Custom chambers incorporate utility penetrations for hydraulic lines, electrical power feeds, and control signal cables. Specialized cable ports with dust-proof sealing prevent contamination escape while enabling complex test scenarios. The dust-proof socket rated at 16A enables equipment operation under load during exposure.

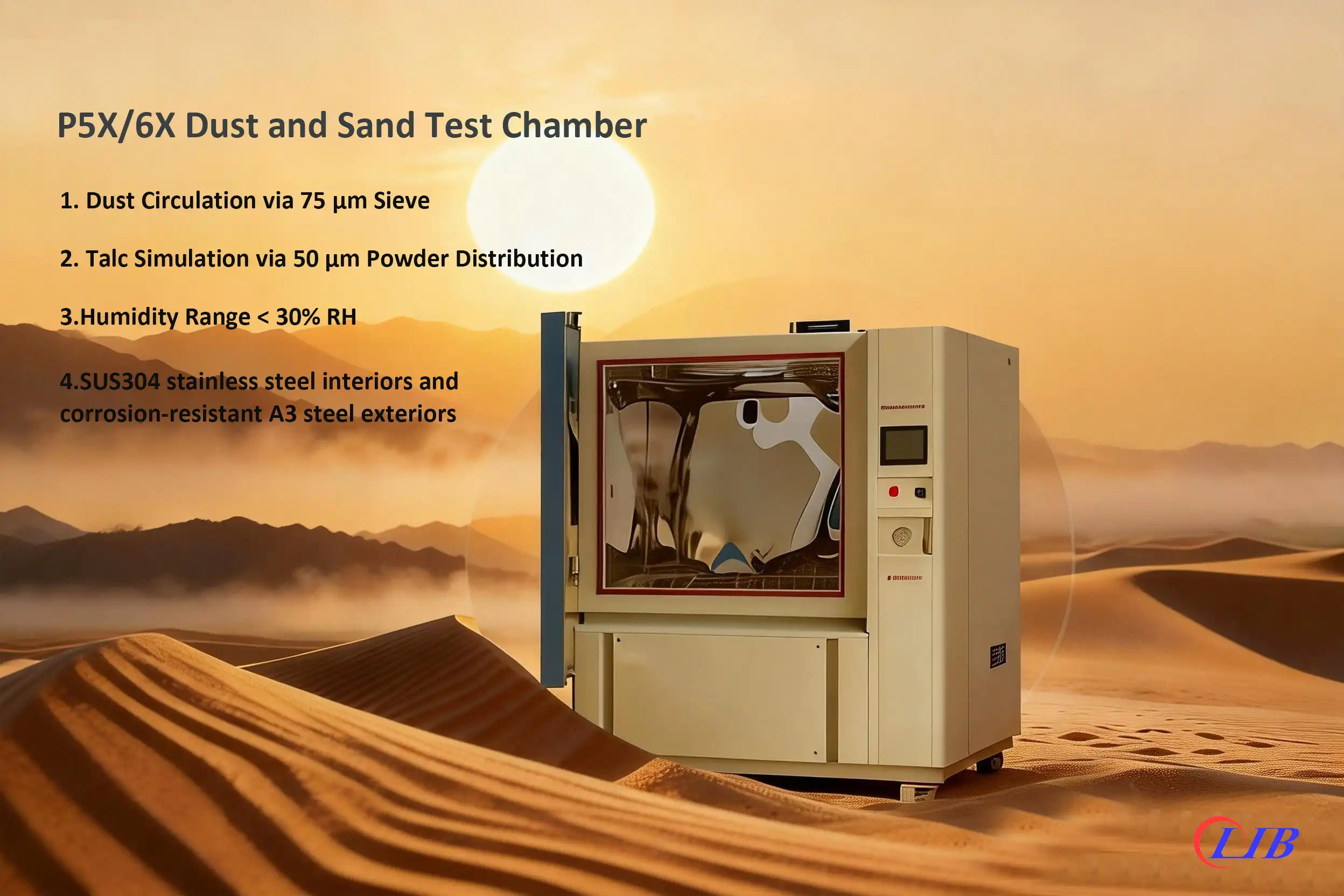

LIB Industry Heavy-Duty Dust Chambers for Mining Equipment Durability Testing​​​​​​​

Test Area	LAN and USB	Controller

Proven Track Record with Global Leaders

LIB Industry's 16-year heritage serving demanding clients including Apple, Intel, and Mercedes-Benz demonstrates the reliability mining equipment manufacturers require. This experience translates into dust simulation chambers engineered for continuous operation under demanding conditions. The A3 steel plate exterior with protective coating withstands industrial environments, while SUS304 stainless steel interiors resist corrosion from reactive mineral dusts.

Maintenance-Free Operational Design

Traditional dust chambers suffer premature failures as abrasive particles infiltrate fan bearings and electrical connections. LIB's wear-resistant fan design with strategic positioning protects critical components from particle bombardment. The electromagnetic door lock prevents accidental chamber opening during active testing while providing decades of reliable service without mechanical wear.

Comprehensive Safety Architecture

Mining equipment testing frequently involves high-voltage electrical systems and pressurized hydraulic circuits. The multi-layer safety systems in LIB chambers protect both operators and test samples. Over-temperature protection prevents thermal damage during extended powered testing. Earth leakage protection detects insulation failures before dangerous potentials develop. Phase sequence protection ensures three-phase powered equipment receives correct supply configuration.

Advanced Control and Documentation

Certification authorities demand detailed test documentation demonstrating protocol compliance. The Ethernet-connected controller automatically logs dust concentration, pressure levels, exposure duration, and environmental conditions throughout test sequences. Real-time monitoring enables remote supervision, crucial for extended duration tests. CSV format data export integrates seamlessly with quality management systems and certification submission packages.

Turnkey Laboratory Solutions

LIB Industry provides comprehensive IP testing laboratory design beyond individual chamber supply. Coordinated solutions incorporate dust chambers, water ingress protection equipment, and thermal cycling chambers creating complete environmental validation facilities. Integration services include facility layout optimization, utility infrastructure specification, and operator training programs.

Conclusion

Mining equipment durability directly determines operational profitability, worker safety, and environmental compliance across the global extraction industry. Dust simulation chamber testing transforms equipment reliability from uncertain field experience into predictable engineering outcomes validated under controlled laboratory conditions. LIB Industry's advanced testing solutions combine international standard compliance, heavy-duty construction, and comprehensive customization capabilities delivering the specialized equipment mining component manufacturers require.

FAQ

What dust concentration levels do mining equipment chambers need to achieve for realistic testing?

Mining environment dust concentrations range from 50-800 mg/m³ depending on operation type and ventilation effectiveness. Chambers should replicate these levels or exceed them for accelerated testing. The vertical circulation system maintains uniform distribution throughout extended exposure periods, ensuring consistent particle density.

Can dust chambers accommodate testing with actual mineral samples from specific mine sites?

Chambers designed with quick-release drainage systems and non-reactive stainless steel construction readily accommodate site-specific mineral testing. Custom protocols address unique particle characteristics including size distribution, moisture sensitivity, and chemical reactivity. Material changeover between different dust types completes within minutes.

How long should mining equipment undergo dust exposure testing to validate field durability?

Test duration depends on intended service intervals and failure consequence severity. Safety-critical components warrant extended 72-96 hour exposures at accelerated concentrations. Programmable controllers supporting 99H59M maximum durations accommodate rigorous protocols while correlation studies establish appropriate acceleration factors.
