dust ingress chamber

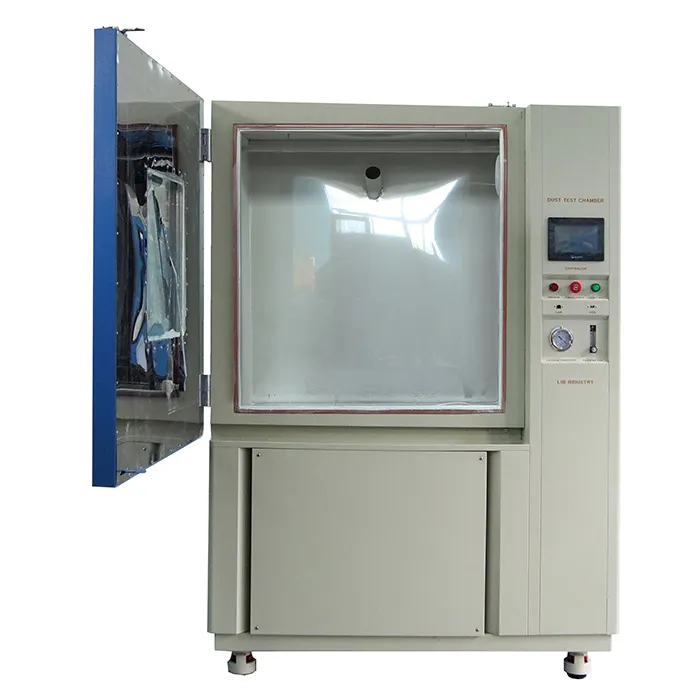

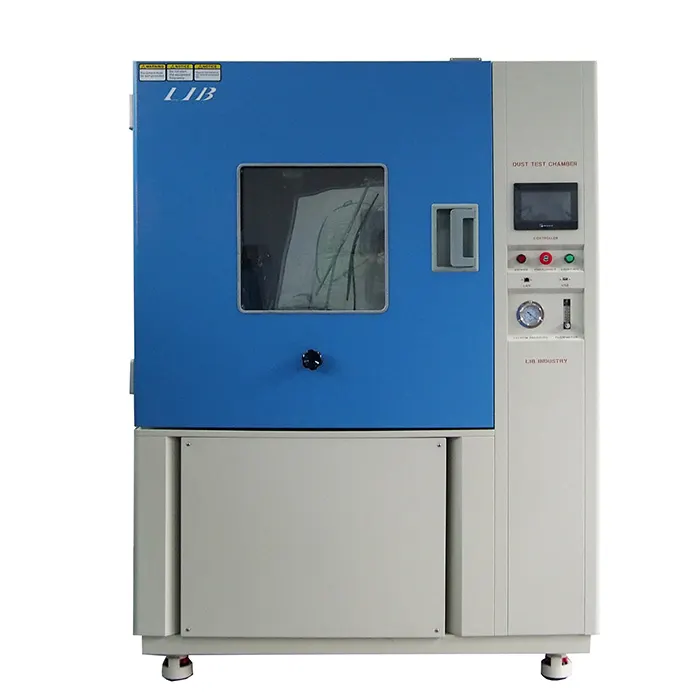

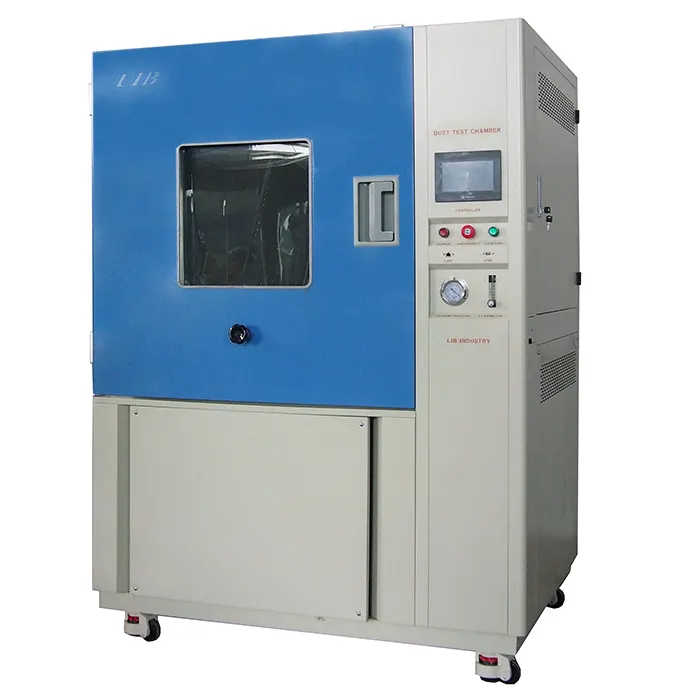

Dust Ingress Chamber: Professional IP5X/IP6X Testing Solution

A dust ingress chamber is specialized environmental testing equipment designed to simulate dusty conditions and verify whether your products meet IP5X (dust-protected) or IP6X (dust-tight) standards according to IEC 60529.

The chamber makes a controlled environment where fine particles—typically 75-micron talcum powder—circulate around your test tests. For IP6X testing, the framework works beneath negative weight to guarantee completely no clean enters fixed enclosures.

Unlike straightforward walled in areas, our chamber keeps up uniform clean concentration all through the test cycle. This consistency things since uneven dispersion can deliver untrue comes about and expensive retesting.

Technical Parameters:

Product Details:

Why Choose LIB's Dust Ingress Chamber

Advanced Anti-Caking System

Dust clumping destroys test accuracy. Our comprehensive moisture and anti-caking design includes:

· Full-coverage electric heating jacket on the storage hopper prevents moisture absorption

· High-frequency electromagnetic and mechanical dual-mode vibration units eliminate powder sedimentation

· Optional air-assisted powder fluidization structure keeps particles uniformly suspended

Transparent IP6X Vacuum System

Many chambers treat vacuum systems as black boxes. We believe you deserve complete visibility:

· Oil-free vacuum pump prevents contamination and reduces maintenance

· Digital flow meter displays real-time evacuation rate on your screen

· Fine pressure regulator enables precise negative pressure adjustment

· Micron-level anti-backflow filter protects pump longevity

· Multi-port vacuum interface allows parallel testing of multiple samples

Superior Dust Concentration Uniformity

Uneven dust distribution is the silent killer of test reliability. Our closed-loop airflow control system includes:

· 3D air circulation pathways eliminate dead zones inside the chamber

· Dynamic concentration maintenance algorithm compensates for particle settling

· Optimized internal flow straightening structures reduce turbulence

Intelligent Dust Recovery System

Testing shouldn't drain your budget through consumable costs. Our automatic recovery system features:

· Built-in cyclone separation structure captures particles efficiently

· Greater than 90% dust recycling rate across test cycles

· Reduced consumable expenses while maintaining particle size consistency

· Quick-release filter design enables tool-free maintenance

Real-Time Monitoring and Auto-Calibration

Human judgment introduces variability. Our precision sensing eliminates guesswork:

· Laser scattering dust concentration sensor provides continuous readings

· Automatic concentration compensation system maintains target levels

· Prevents operator experience-based errors that compromise results

You get repeatable data that certification bodies trust.

Enhanced Safety and Sealing

Your team's safety and test integrity depend on proper sealing:

· Multi-layer silicone seal structure prevents dust leakage during operation

· Door interlock prevents chamber activation unless fully secured

Complete Data Documentation

Certification requires comprehensive records. Our system captures everything:

· Full test cycle data recording (airflow velocity / pressure / concentration / elapsed time)

· USB and Ethernet export for easy documentation

· Remote monitoring and program configuration via PC interface

Standards Compliance Assurance

We design for the certifications you need:

· IEC 60529 IP5X / IP6X compliance verified by SGS and TUV

· MIL-STD-810G/H compatibility for defense and aerospace clients

· ISO 20653 for automotive applications

Your investment delivers the credentials your market demands.

About LIB Environmental Simulation Industry

Since 2009, LIB industry has specialized in environmental test chambers for industrial enterprises, laboratories, and testing institutions worldwide.

Certified to ISO 9001, every system undergoes strict quality control and third-party verification by SGS and TUV. Trusted by leading companies including Apple, IBM, Amazon, Intel, BYD, Great Wall Motors, and Mercedes-Benz, LIB industry delivers reliable testing solutions.

With 29 global agents and service centers in Malaysia, Canada, the United Kingdom, and the United States, customers benefit from responsive local support, a 3-year warranty, and lifetime service.

Beyond manufacturing equipment, LIB industry provides customized testing solutions tailored to specific application requirements.

Get Started Today

Contact us at ellen@lib-industry.com to request detailed specifications, pricing, or schedule a virtual demonstration of our dust ingress chamber in operation.
