TH-225 Temperature Humidity Chamber Selection Tips

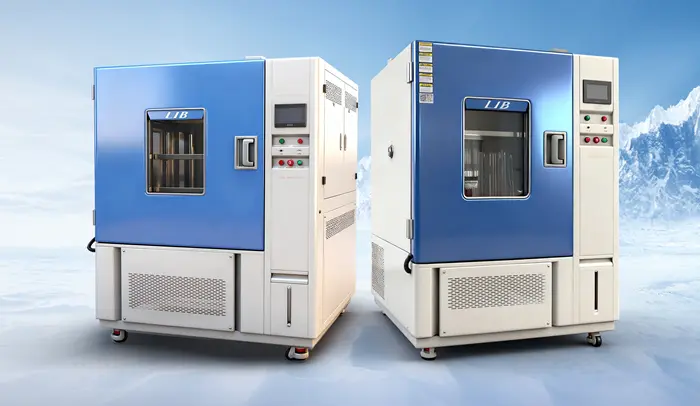

Selecting the right environmental testing equipment requires careful evaluation of multiple technical parameters and operational factors. The TH-225 temperature humidity climate chamber stands as a versatile solution for laboratories and manufacturing facilities requiring precise environmental simulation. When choosing this equipment, decision-makers must assess temperature ranges (-20°C to +150°C standard, extending to -70°C in specialized configurations), humidity capabilities (20% to 98% RH), internal capacity (225L), and control accuracy. Understanding your specific testing requirements - whether for pharmaceutical stability studies, electronic component validation, or material durability assessments - ensures optimal chamber selection that balances performance capabilities with budget constraints while meeting international compliance standards.

What Factors Should Be Considered When Choosing a TH-225 Chamber?

Understanding Your Testing Protocol Requirements

Testing protocols dictate chamber specifications more than any other factor. Pharmaceutical stability studies following ICH guidelines demand precise humidity control within ±2.5% RH deviation, which the TH-225 achieves through its external isolation stainless steel surface evaporation humidifier. Electronic component manufacturers testing to IEC standards require rapid temperature transitions, making the 3°C/min heating rate and 1°C/min cooling rate critical performance indicators. Material research laboratories conducting thermal cycling tests need chambers with minimal temperature fluctuation (±0.5°C) to ensure reproducible results across multiple test runs.

Evaluating Space and Installation Constraints

Physical dimensions influence laboratory workflow efficiency significantly. The TH-225's overall footprint measures 1000mm × 1140mm × 1870mm, requiring adequate floor space plus clearance for ventilation and maintenance access. Doorway dimensions, ceiling height, and electrical infrastructure capacity (considering the 1000W heat load) must accommodate the unit. Laboratories with limited space benefit from the benchtop configuration, while facilities conducting high-volume testing might consider walk-in alternatives from the same product family.

Compliance and Certification Verification

Regulatory compliance affects equipment qualification timelines and validation costs. The TH-225 meets CE marking requirements for European markets, ISO 17025 accreditation standards for testing laboratories, and EMC regulations for electromagnetic compatibility. Facilities operating under FDA 21 CFR Part 11 regulations need chambers with data integrity features, audit trails, and secure access controls. ISO 9001 certification of the manufacturing facility provides additional quality assurance for procurement departments requiring vendor qualification documentation.

Capacity and Temperature Range Requirements for Different Applications

Matching Chamber Volume to Sample Size

Internal volume optimization prevents energy waste while ensuring adequate sample exposure to environmental conditions. The 225L capacity accommodates multiple automotive components simultaneously during accelerated aging tests, reducing testing time through batch processing. Two standard shelves provide vertical organization, though heat load considerations limit total sample mass to maintain temperature uniformity. Pharmaceutical packages require minimum spacing for air circulation - typically 50mm between samples and chamber walls - reducing effective capacity for stability studies involving numerous test articles.

Temperature Range Selection Based on Testing Standards

Different industries mandate specific temperature extremes that dictate TH-225 temperature humidity climate chamber configuration. Option A (-20°C to +150°C) satisfies most consumer electronics testing per JEDEC standards, covering typical storage and operational temperature ranges. Automotive components exposed to extreme climates require Option B (-40°C to +150°C) for cold-start testing and dashboard durability assessments. Aerospace applications simulating high-altitude conditions or Arctic operations necessitate Option C (-70°C to +150°C), utilizing enhanced refrigeration systems with French TECUMSEH compressors for reliable low-temperature performance.

Humidity Requirements Across Testing Disciplines

Humidity control separates basic thermal chambers from full environmental simulation systems. The 20% to 98% RH range addresses corrosion testing (high humidity), moisture ingress evaluation (variable humidity), and desiccation studies (low humidity). Pharmaceutical stability zones - 25°C/60% RH for Zone II climates or 30°C/65% RH for Zone III - fall comfortably within the TH-225's operational envelope. Electronic component moisture sensitivity level (MSL) classification testing requires precise humidity control during floor life simulation, making the ±2.5% RH deviation specification critical for semiconductor manufacturers.

Evaluating Control Accuracy and Stability Performance

Temperature Uniformity and Sensor Technology

Spatial temperature variation within the chamber affects test result validity. The ±2.0°C temperature deviation specification indicates maximum difference between any two points in the working space during steady-state conditions. PT-100 Class A sensors provide 0.001°C resolution, enabling precise detection of temperature drift before it exceeds tolerance limits. Multiple sensor placement throughout the chamber volume - typically nine points in a 225L unit - ensures comprehensive monitoring. Temperature mapping during installation qualification (IQ) verifies actual uniformity meets specification under loaded and unloaded conditions.

Humidity Control System Effectiveness

Achieving stable humidity proves more challenging than temperature control due to water vapor migration and condensation dynamics. The external isolation humidifier design prevents contamination from water treatment chemicals while facilitating maintenance without chamber downtime. Automatic water supply systems eliminate manual refilling interruptions during extended tests, though water quality standards (deionized or distilled water with <10 µS/cm conductivity) remain critical for preventing mineral deposits on evaporator surfaces that degrade humidity accuracy over time.

Controller Capabilities and Programming Flexibility

Modern programmable LCD touch screen controllers replace obsolete dial-based systems, offering multi-segment profile programming for complex thermal cycling. Ethernet connectivity enables remote monitoring through laboratory information management systems (LIMS), facilitating unattended operation during overnight or weekend tests. Setpoint resolution, ramp rate adjustability, and alarm threshold customization determine how precisely TH-225 temperature humidity climate chamber executes sophisticated test profiles like thermal shock sequences or diurnal temperature cycling that mimics real-world environmental exposure.

Energy Efficiency and Power Consumption Considerations

Operational Cost Analysis Over Equipment Lifecycle

Energy consumption extends beyond nameplate ratings to include duty cycle variations and ambient condition impacts. The 1000W heat load represents maximum heating power, but actual consumption fluctuates based on setpoint temperature, chamber loading, and door opening frequency. Refrigeration systems consume substantially more energy at extreme low temperatures - operating at -70°C requires approximately 3-4 times the energy needed for -20°C operation. Multi-year operational cost projections should factor in local electricity rates, expected utilization rates (single-shift versus continuous operation), and maintenance requirements for refrigeration components.

Thermal Insulation and Heat Loss Minimization

Polyurethane foam and insulation cotton construction creates thermal barriers that reduce energy waste while maintaining temperature stability. Double-layer thermo-stable silicone rubber sealing around observation windows prevents heat transfer and condensation formation. Chamber placement away from HVAC vents, direct sunlight, and heat-generating equipment preserves insulation effectiveness. Laboratory ambient temperature affects refrigeration efficiency significantly - chambers operating in climate-controlled spaces (20-25°C) consume less energy than those in non-conditioned areas experiencing seasonal temperature swings.

Refrigeration System Efficiency Factors

French TECUMSEH compressors provide reliable mechanical compression refrigeration with proven longevity in continuous-duty applications. Cascade refrigeration systems in ultra-low temperature configurations (-70°C) use multiple compressors optimized for different temperature ranges, improving overall efficiency compared to single-stage systems. Regular maintenance - including condenser coil cleaning, refrigerant charge verification, and compressor oil level checks - preserves energy efficiency throughout equipment service life. Environmental refrigerant regulations increasingly favor systems using low global warming potential (GWP) refrigerants, though conversion costs must be evaluated against long-term environmental compliance requirements.

*Based on $0.10/kWh electricity rate and 24/7 operation

Compatibility with Data Logging and Monitoring Systems

Integration with Laboratory Management Software

Modern quality systems demand electronic data capture replacing manual chart recorders. Ethernet connectivity enables direct integration with LIMS platforms, automatically transferring temperature and humidity data to centralized databases. This eliminates transcription errors while creating audit trails for regulatory compliance. Real-time data streaming supports statistical process control (SPC) analysis, identifying trends before they result in out-of-specification conditions that invalidate test runs and waste valuable samples.

Data Integrity and Regulatory Compliance Features

Pharmaceutical and medical device manufacturers operating under FDA oversight require 21 CFR Part 11 compliant data systems with electronic signatures, secure access controls, and tamper-evident audit trails. The programmable controller must restrict setpoint modifications to authorized personnel, automatically log all parameter changes with timestamps and user identification, and prevent data deletion or alteration without documented justification. Backup power supplies or uninterruptible power systems (UPS) preserve critical test data during electrical outages, preventing loss of weeks or months of stability study information.

Remote Monitoring and Alarm Notification Systems

Unattended operation during non-business hours requires robust alarm systems that notify responsible personnel of equipment malfunctions or out-of-tolerance conditions. Email or SMS alerts enable rapid response to TH-225 temperature humidity climate chamber failures before sample integrity is compromised. Cloud-based monitoring dashboards accessible via smartphones or tablets provide real-time status visibility for laboratory managers overseeing multiple chambers across different facilities. Alarm escalation protocols ensure backup personnel receive notifications if primary contacts don't acknowledge alerts within specified timeframes.

Comparing TH-225 Models Based on Testing Needs and Budget

Configuration Options and Price-Performance Analysis

Three temperature range options create distinct price points reflecting refrigeration system complexity. Option A (-20°C to +150°C) serves general-purpose testing at the lowest acquisition cost, suitable for quality control laboratories with standard environmental testing requirements. Option B (-40°C to +150°C) adds automotive and cold storage testing capability with moderate price increase. Option C (-70°C to +150°C) commands premium pricing due to cascade refrigeration requirements but remains essential for aerospace and specialty materials research where extreme cold exposure simulation is mandatory.

Standard Features Versus Custom Modifications

Base configuration includes one cable hole with plug (50mm diameter standard), two shelves, and interior lighting through the observation window. Custom modifications - additional ports for external sensor placement, larger diameter access holes for bulky test fixtures, extra shelving for increased sample capacity, or external temperature/humidity recording connections - add cost but enhance functionality. Laboratories conducting repetitive testing protocols benefit from customization investments that streamline sample loading/unloading procedures or accommodate specialized instrumentation integration.

Total Cost of Ownership Beyond Purchase Price

Comprehensive cost analysis includes installation expenses (electrical infrastructure upgrades, dedicated circuits, ventilation modifications), annual calibration services (typically $800-1500 for temperature and humidity certification), preventive maintenance contracts, and eventual component replacement (compressor overhaul after 5-7 years intensive use). Extended warranty coverage mitigates unexpected repair costs during critical project timelines. Training expenses for technical staff operating and maintaining sophisticated environmental chambers, while often overlooked, significantly impact long-term operational success and equipment reliability.

LIB Industry TH-225: Reliable Performance Choice

Manufacturing Excellence and Quality Assurance

ISO 9001 certification demonstrates commitment to consistent manufacturing processes and continuous quality improvement. Comprehensive factory acceptance testing (FAT) verifies each TH-225 temperature humidity climate chamber meets published specifications before shipment, including temperature uniformity mapping, humidity accuracy verification, and control system functionality validation. This pre-delivery quality assurance reduces site acceptance testing (SAT) duration and accelerates equipment qualification timelines, particularly valuable for laboratories operating under strict regulatory oversight where delayed equipment commissioning impacts project schedules.

Comprehensive Support and Service Network

Turn-key solutions encompassing design consultation, installation supervision, operational training, and ongoing technical support distinguish equipment suppliers committed to customer success. LIB Industry provides applications engineering expertise helping customers match chamber specifications to testing requirements, preventing costly over-specification or inadequate capability purchases. Installation services ensure proper electrical connections, water supply integration, and ventilation arrangements that optimize chamber performance. Operator training covering routine maintenance procedures, setpoint programming, and troubleshooting common issues maximizes equipment uptime and extends service life.

Long-Term Reliability and Parts Availability

Component selection emphasizing proven technologies - French TECUMSEH compressors, nichrome heating elements, SUS304 stainless steel construction - ensures parts availability throughout typical 15-20 year equipment lifecycles. Comprehensive safety features including humidifier dry-combustion protection, over-temperature protection, refrigerant high-pressure protection, and earth leakage protection minimize catastrophic failures that could destroy valuable test samples or create laboratory hazards. Protective steel plate exterior coating resists corrosion in humid laboratory environments, maintaining professional appearance while protecting structural integrity.

Conclusion

Selecting the appropriate TH-225 temperature humidity climate chamber requires systematic evaluation of testing requirements, operational parameters, and long-term costs. Temperature range options accommodate diverse applications from general quality control to specialized aerospace testing, while 225L capacity balances sample volume needs with laboratory space constraints. Control accuracy specifications, energy consumption profiles, and data integration capabilities influence both test result quality and operational efficiency. LIB Industry's comprehensive support, ISO-certified manufacturing quality, and proven component reliability make the TH-225 a sound investment for laboratories demanding dependable environmental simulation equipment.

FAQs

How do I determine which temperature range option (A, B, or C) is necessary for my testing applications?

Option A (-20°C to +150°C) handles most consumer product and pharmaceutical testing. Option B (-40°C to +150°C) suits automotive and outdoor equipment requiring cold-start simulation. Option C (-70°C to +150°C) addresses aerospace applications or materials research involving cryogenic exposure conditions.

What maintenance procedures are required to ensure consistent temperature and humidity accuracy over time?

Regular calibration (annually or semi-annually depending on usage intensity), water system cleaning to prevent mineral deposits, condenser coil maintenance for optimal refrigeration efficiency, and door seal inspection ensure continued specification compliance. Preventive maintenance contracts simplify scheduling and parts replacement planning.

Can the TH-225 chamber accommodate custom fixtures or specialized sample mounting requirements?

Standard cable port configuration allows external sensor connections, while custom port sizing and additional access holes can be specified during ordering. Internal shelf arrangements adapt to various sample geometries, though modifications affecting airflow patterns require engineering review to maintain temperature uniformity specifications.
