What Is a Mixed Flowing Gas Chamber? Complete Guide to MFG Testing

A mixed flowing gas chamber represents specialized environmental testing equipment designed to simulate real-world corrosive atmospheric conditions. These chambers expose materials, components, and protective coatings to controlled concentrations of multiple corrosive gases simultaneously - including sulfur dioxide (SO₂), hydrogen sulfide (H₂S), nitrogen dioxide (NO₂), and ammonia (NH₃) - while maintaining precise temperature and humidity parameters. Unlike single-gas tests, MFG testing replicates the synergistic corrosive effects found in industrial, marine, and urban environments, enabling manufacturers to accurately evaluate material durability, coating effectiveness, and product reliability before market deployment.

How Does a Mixed Flowing Gas Chamber Simulate Corrosive Environments?

Recreating Multi-Pollutant Atmospheric Conditions

MFG chambers replicate the complex interactions between various atmospheric pollutants that occur naturally in industrial zones, coastal regions, and urban areas. The simultaneous presence of acidic and alkaline gases creates accelerated corrosion mechanisms that cannot be adequately predicted through single-pollutant exposure. By continuously flowing fresh gas mixtures through the test environment, these chambers maintain stable concentrations while removing reaction byproducts, ensuring consistent and repeatable test conditions throughout extended evaluation periods.

Dynamic Gas Flow Management Systems

The continuous gas flow system distinguishes MFG testing from static exposure methods. Fresh corrosive gases enter the chamber at controlled rates while exhaust systems remove depleted gases and reaction products. This dynamic exchange prevents saturation effects and maintains aggressive corrosive conditions throughout the test duration. The typical air change rate of 3-5 times per hour ensures that test specimens experience constant exposure to fresh corrosive media, accurately simulating outdoor atmospheric corrosion processes.

Synergistic Corrosion Acceleration Mechanisms

When multiple corrosive gases interact simultaneously, they create synergistic effects that accelerate material degradation beyond what individual gases would produce. Sulfur compounds form sulfuric acid deposits, nitrogen oxides create nitric acid condensation, and hydrogen sulfide attacks metal sulfides. These combined chemical reactions, occurring under controlled humidity and temperature, compress years of outdoor exposure into weeks or months of laboratory testing, providing rapid yet realistic performance predictions.

Core Components and Working Principles of MFG Chambers

Advanced Gas Delivery and Mixing Systems

Precision gas delivery systems form the foundation of accurate MFG testing. Individual gas cylinders supply each corrosive component through mass flow controllers that regulate concentrations with exceptional accuracy. Mixing chambers blend gases uniformly before introduction into the test space. High-accuracy gas sensors continuously monitor actual concentrations, with feedback loops automatically adjusting flow rates to maintain target levels within ±10% tolerance, ensuring reproducible test conditions across multiple evaluation cycles.

Specialized Corrosion-Resistant Construction

Mixed flowing gas chambers utilize SUS 316 stainless steel construction throughout the workroom, offering superior resistance to aggressive chemical attack compared to standard stainless steel grades. This material selection significantly extends equipment service life while preventing contamination of test atmospheres from chamber corrosion. Seals, gaskets, and internal components receive special corrosion-resistant treatments, while gas sensors undergo protective modifications to function reliably under sustained high-humidity, high-contamination conditions.

Integrated Climate Control Infrastructure

Precise environmental control systems maintain stable temperature and humidity conditions essential for reproducible corrosion testing. Refrigeration systems using environmentally responsible refrigerants achieve temperature ranges from +15°C to +80°C with fluctuation control within ±0.5°C. Humidification systems deliver 30% to 98% relative humidity with ±2% RH accuracy. The integration of climate control with gas delivery systems enables complex test protocols that replicate diurnal temperature-humidity cycles combined with continuous corrosive gas exposure.

What Standards Govern Mixed Flowing Gas Testing?

International Testing Protocols and Guidelines

Multiple international standards define MFG testing methodologies, ensuring consistency across laboratories and industries. IEC 60068-2-60 establishes procedures for flowing mixed gas corrosion tests on electrical and electronic components. ISO 21207 provides guidelines for corrosion testing in simulated outdoor atmospheres containing sulfur dioxide and other pollutants. These standards specify gas concentrations, exposure durations, temperature-humidity conditions, and acceptance criteria, enabling meaningful comparison of test results across different facilities and timeframes.

Industry-Specific Testing Requirements

Different sectors impose specialized MFG testing requirements based on application environments. Telecommunications equipment undergoes evaluation per GR-63-CORE and GR-3028-CORE standards, which define mixed gas exposure representing equipment room and outdoor environments. Automotive electronics follow manufacturer-specific protocols simulating under-hood corrosive conditions. Aerospace applications reference military standards like MIL-STD-810 for equipment destined for marine and industrial deployment, each specifying unique gas mixtures, concentrations, and exposure durations.

Certification and Compliance Validation

MFG testing provides essential data for quality certifications and regulatory compliance. Manufacturers use test results to validate warranty claims, establish expected service lives, and demonstrate compliance with environmental durability requirements. Third-party certification bodies require MFG testing documentation for product approvals in corrosive-environment applications. Accredited testing laboratories must maintain calibration traceability, follow documented procedures, and provide detailed inspection reports demonstrating test parameter control and result validity.

Common Materials Tested in MFG Chambers

Electronic Components and Circuit Assemblies

Printed circuit boards, connectors, switches, and semiconductor packages undergo MFG evaluation to verify reliability in corrosive atmospheres. Testing reveals vulnerabilities in solder joints, copper traces, contact surfaces, and metallic housings. Manufacturers assess protective conformal coatings, encapsulation materials, and sealing effectiveness. Results guide material selection, coating application processes, and design modifications to achieve specified operational lifespans in industrial, marine, and outdoor telecommunications installations where atmospheric contaminants threaten electronic functionality.

Electroplated and Surface-Treated Products

Decorative and functional electroplating receives comprehensive MFG assessment to qualify protective layer performance. Chrome plating, nickel deposits, zinc coatings, and precious metal finishes undergo exposure to verify corrosion protection capabilities. Testing evaluates coating adhesion, porosity, thickness adequacy, and substrate protection effectiveness. Automotive trim components, hardware fasteners, plumbing fixtures, and jewelry items require MFG validation to ensure aesthetic appearance retention and functional performance throughout expected service periods despite aggressive atmospheric exposure.

Protective Coatings and Finishing Systems

Organic coatings, conversion coatings, and multi-layer finishing systems undergo MFG testing to establish durability ratings. Powder coatings, liquid paints, anodizing treatments, and passivation layers face evaluation under combined gas-humidity-temperature stress. Coating manufacturers optimize formulations based on MFG performance data, adjusting pigment loadings, resin selections, and application parameters. Comparative testing enables objective selection between competing protective systems, supporting specification decisions for infrastructure projects, industrial equipment, and consumer products requiring long-term corrosion resistance.

Advantages of MFG Testing Over Traditional Corrosion Methods

Accelerated Real-World Correlation

Traditional salt spray testing, while widely used, poorly correlates with actual outdoor exposure for many materials. Mixed flowing gas chambers reproduce the chemical complexity of real atmospheres, where multiple pollutants interact synergistically. Studies demonstrate stronger correlation between MFG test results and field performance compared to salt fog exposure. This enhanced predictive accuracy reduces over-engineering costs while preventing premature field failures, optimizing both product cost and reliability based on actual service environment conditions rather than arbitrary salt spray duration requirements.

Flexible Multi-Environment Simulation

MFG chambers accommodate diverse test profiles representing different geographical and industrial exposure scenarios. Rural, urban, industrial, marine, and mixed-environment conditions can be simulated by adjusting gas compositions and concentrations. Single equipment investments support testing for multiple market regions and application sectors. Programmable profiles enable diurnal cycling, seasonal variation simulation, and accelerated aging under worst-case pollution combinations, providing comprehensive material characterization impossible with fixed-condition traditional corrosion cabinets.

Quantifiable Performance Metrics

Continuous monitoring systems provide detailed performance data throughout test progression. Gas concentration tracking, climate parameter logging, and periodic specimen evaluation generate comprehensive datasets supporting statistical analysis and failure prediction modeling. Unlike pass-fail salt spray testing, MFG evaluation yields time-to-failure data, degradation rate measurements, and mechanistic failure mode identification. This quantitative approach supports engineering decisions, enables coating optimization, and provides defensible data for warranty calculations and liability assessments.

Key Parameters to Control in Mixed Flowing Gas Tests

Gas Concentration Management and Monitoring

Maintaining precise gas concentrations represents the most critical parameter in MFG testing. SO₂ levels typically range from 1-35 ppm, H₂S from 10-30 ppm, NO₂ from 10-100 ppm, and NH₃ from 1000-2000 ppm, depending on the simulated environment severity. Concentration maintenance within 10% of target values requires continuous monitoring with calibrated sensors and automatic flow adjustment systems. Concentration verification through independent analytical methods ensures sensor accuracy, while regular calibration against certified reference gases maintains measurement traceability throughout extended test campaigns.

Temperature-Humidity Set Point Optimization

Corrosion rates demonstrate strong sensitivity to both temperature and relative humidity conditions. Standard MFG protocols often specify either 35±2°C at 75±3% RH or 40±2°C at 80±3% RH, representing aggressive corrosion conditions. These combinations promote electrolyte film formation on specimen surfaces without excessive condensation that would dilute corrosive species. Temperature uniformity within ±2°C and humidity deviation within ±2% RH across the test volume ensures all specimens experience equivalent exposure, eliminating positional effects that compromise result validity.

Air Exchange Rate and Flow Uniformity

The chamber air exchange rate, typically 3-5 complete volume changes per hour, balances gas utilization efficiency against maintaining fresh corrosive atmospheres. Insufficient exchange allows reaction product accumulation and gas depletion, while excessive flow rates increase operating costs without improving test quality. Airflow distribution systems ensure uniform gas mixing and even exposure across all specimen positions. Computational fluid dynamics modeling during chamber design optimizes internal baffle configurations and inlet-outlet positioning to eliminate dead zones and concentration gradients.

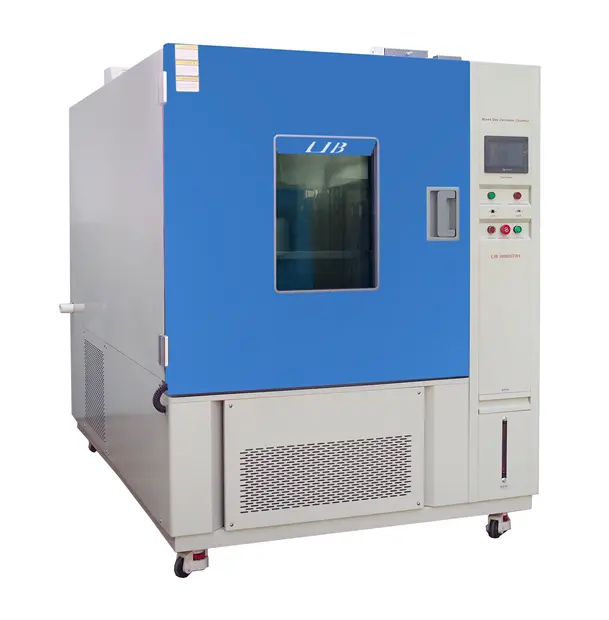

LIB Industry Mixed Flowing Gas Chamber: Precision Corrosion Testing Solutions

Enhanced Durability Through Superior Material Selection

LIB Industry mixed flowing gas chambers incorporate SUS 316 stainless steel workroom construction, delivering exceptional corrosion resistance beyond conventional stainless steel alternatives. This material selection directly extends equipment operational life while maintaining test atmosphere purity through decades of continuous operation. The investment in premium corrosion-resistant materials reduces long-term ownership costs by minimizing maintenance requirements, preventing premature component replacement, and eliminating test contamination from internal chamber corrosion that compromises result accuracy in lesser equipment.

Advanced Sensor Technology and Reliability

High-accuracy gas sensors with specialized anti-corrosion treatments enable long-term measurement reliability under aggressive test conditions. User-replaceable sensor designs minimize maintenance downtime and operating costs. The sensor protection systems employed by LIB prevent premature failure common in high-humidity corrosive atmospheres, ensuring consistent monitoring accuracy throughout extended test campaigns. This measurement reliability directly translates to enhanced test reproducibility and confident decision-making based on trustworthy concentration data.

Environmental Responsibility and Global Support

LIB chambers utilize environmentally responsible refrigerants including R404A and R23, demonstrating commitment to sustainable manufacturing practices while delivering required temperature control performance. Comprehensive commissioning procedures include detailed inspection reporting before equipment delivery, ensuring optimal performance from installation. The three-year warranty coverage combined with lifetime technical support provides confidence in equipment longevity. Global service capabilities ensure responsive support regardless of installation location, minimizing downtime and maintaining testing productivity.

Conclusion

Mixed flowing gas chambers deliver irreplaceable capabilities for realistic corrosion resistance evaluation under controlled laboratory conditions. The simultaneous multi-gas exposure, combined with precise climate control, compresses years of outdoor aging into accelerated yet accurate test cycles. As product reliability expectations increase and operational environments become more demanding, MFG testing provides essential validation data supporting material selection, coating optimization, and design qualification decisions. Investment in quality MFG equipment yields long-term benefits through improved product durability, reduced warranty costs, and enhanced market reputation.

FAQs

How long does a typical mixed flowing gas test last?

Test duration varies by material and standard requirements, typically ranging from 4 days to 60 days. Electronic components often undergo 10-21 day exposures, while protective coatings may require 21-60 days. Duration depends on simulated environment severity and acceptance criteria.

Can MFG chambers simulate specific geographic environments?

Absolutely. Gas concentrations can be adjusted to replicate urban, industrial, marine, or rural atmospheric conditions. Programmable profiles enable simulation of specific locations by matching local pollutant compositions, providing targeted material evaluation for intended deployment regions.

What maintenance do mixed flowing gas chambers require?

Regular maintenance includes gas sensor calibration verification, refrigeration system servicing, humidity system cleaning, and periodic replacement of consumable components. SUS 316 stainless steel construction significantly reduces corrosion-related maintenance compared to standard chambers, extending intervals between major service requirements.
