Dust Test Chambers for IEC 60529 and ISO Standards

Dust test chambers compliant with IEC 60529 and ISO standards provide manufacturers with controlled environments to evaluate product resistance against particulate ingress. These specialized testing systems replicate harsh conditions where fine talcum powder circulates at specified concentrations, allowing accurate assessment of IP5X and IP6X protection ratings. Compliance testing ensures electronic components, automotive assemblies, and industrial equipment withstand real-world dust exposure without performance degradation. Standardized chambers incorporate precise vacuum systems, temperature control, and calibrated mesh sieves to maintain test consistency across global manufacturing operations.

What Are the Dust Test Requirements in IEC 60529?

Understanding IP5X and IP6X Protection Levels

IEC 60529 establishes internationally recognized ingress protection ratings that classify equipment enclosures based on dust resistance capabilities. IP5X designation indicates dust-protected equipment where limited ingress does not interfere with operation, while IP6X represents dust-tight construction preventing any particle penetration. Testing protocols require equipment exposure to circulating talcum powder within enclosed chambers for eight hours under negative pressure conditions.

Talcum Powder Specifications and Particle Distribution

The standard mandates specific talcum powder characteristics: particles must pass through a 75-micron mesh sieve while 90% must pass through a 50-micron mesh. This precise particle size distribution ensures repeatability across different testing facilities. Chamber systems maintain uniform powder concentration through continuous circulation, preventing settlement or agglomeration that could compromise test validity.

Vacuum and Pressure Requirements During Testing

Test specimens undergo evaluation under 20 millibars below atmospheric pressure, created by vacuum systems connected directly to sample enclosures. This negative pressure simulates conditions where equipment operates at elevated temperatures, drawing air and potential contaminants inward. Pressure gauges, regulators, and air filters maintain consistent vacuum levels throughout the eight-hour test duration.

Key ISO Standards Involving Dust Ingress Testing

ISO 20653 for Automotive Applications

ISO 20653 extends IEC 60529 principles specifically for road vehicles and their electrical equipment. This standard introduces additional test categories IP5KX and IP6KX, incorporating more rigorous conditions reflecting automotive operating environments. Higher dust concentrations and extended exposure periods verify component durability under continuous road dust exposure experienced throughout vehicle lifespans.

Military and Defense Testing Under MIL-STD-810

Military equipment faces extreme particulate exposure across desert operations and tactical deployments. MIL-STD-810 Method 510.7 establishes blowing dust and sand testing protocols using varied particle sizes from fine talc to coarse sand. Test chambers accommodate these protocols through adjustable dust feeders and enhanced circulation systems capable of suspending heavier particles.

Environmental Simulation Standards Integration

Multiple standards converge within modern testing programs, requiring dust chambers with adaptable configurations. Beyond baseline dust resistance, manufacturers evaluate combined environmental stresses including temperature cycling, humidity exposure, and vibration. Chambers with programmable controls enable sequential testing protocols without specimen transfer, improving data correlation and reducing handling risks.

Differences Between IEC and ISO Dust Test Procedures

Test Duration and Cycling Parameters

IEC 60529 specifies continuous eight-hour exposure with constant vacuum application and dust circulation. ISO 20653 automotive variants may require extended durations or cycling patterns alternating between exposure and rest periods. These differences reflect distinct failure mechanisms: consumer electronics primarily face occasional dust intrusion versus automotive components experiencing daily exposure cycles.

Particle Size Distribution Variations

While both standards utilize talcum powder as baseline test media, particle size ranges differ slightly. IEC testing employs talc with 75-micron maximum particle diameter, whereas certain ISO automotive protocols incorporate broader size distributions including particles up to 150 microns. Larger particles simulate road debris and coarser environmental contaminants encountered in vehicle operation.

Pass/Fail Criteria and Inspection Methods

IEC 60529 IP5X permits trace dust quantities provided they do not impair operation or safety, evaluated through visual inspection and functional testing post-exposure. IP6X demands absolute dust exclusion verified through internal examination. ISO standards apply similar criteria but may include additional electrical continuity testing, contact resistance measurements, or accelerated aging protocols following dust exposure.

Configuring Dust Test Chambers for Standards Compliance

Chamber Volume and Specimen Accommodation

Standard-compliant chambers range from 800 liters to 2000 liters internal volume, accommodating specimens from small connector assemblies to complete automotive lighting systems. Chamber dimensions must provide adequate clearance around specimens for proper dust circulation without creating dead zones where particles settle. Multiple specimen testing requires sufficient spacing to prevent cross-contamination or circulation interference.

Vacuum System Design and Performance

Compliant vacuum systems incorporate pressure gauges readable to 0.1 millibar accuracy, adjustable regulators maintaining stable negative pressure regardless of specimen leak rates, and filtration preventing talc ingress into pump mechanisms. Connection interfaces must accommodate various specimen geometries through adaptable tubing and sealed fittings. Vacuum capacity should exceed specimen volume by 50% to compensate for minor leakage.

Temperature and Humidity Control Integration

Standards specify ambient to 50°C temperature ranges with humidity below 30% relative humidity to prevent powder clumping. Heating elements integrated within dust proof chamber walls maintain uniform thermal distribution without creating convection currents that disrupt dust circulation patterns. Dehumidification systems remove moisture from recirculated air, preserving talc flowability throughout extended test sequences.

Test Duration, Pressure, and Dust Circulation Control

Programmable Timer Functions and Automation

Modern controllers offer separate programmable timers for dust circulation (blowing time) and vacuum application (fight time), each adjustable from zero to 99 hours 59 minutes. Automated sequences eliminate operator intervention, ensuring protocol adherence and documentation accuracy. Pre-programmed profiles store standard test configurations, reducing setup errors and improving laboratory efficiency.

Maintaining Consistent Dust Concentration

Uniform particle suspension requires carefully engineered airflow patterns within chamber volumes. Circulation fans create turbulent mixing without generating high-velocity streams that impact specimens directly. Talc feeders meter powder introduction at controlled rates, compensating for settling and maintaining target concentrations throughout test durations. Mesh sieves positioned at circulation paths continuously remove agglomerates.

Real-Time Monitoring and Data Logging

Advanced systems incorporate sensors tracking vacuum pressure, chamber temperature, circulation fan speed, and elapsed time. Ethernet connectivity enables remote monitoring through networked computers or mobile devices. Data logging systems record parameters at user-defined intervals, creating audit trails demonstrating standards compliance for certification authorities and quality management reviews.

Common Non-Compliance Issues in Standardized Dust Testing

Powder Agglomeration and Flow Problems

Moisture absorption causes talcum powder clumping, creating irregular particle sizes that invalidate test conditions. Humidity levels exceeding 30% RH or improper storage allow hygroscopic talc to absorb water vapor. Prevention requires sealed powder storage containers, chamber dehumidification, and integrated heating systems maintaining powder temperature above dew point throughout testing cycles.

Inadequate Vacuum Seal Integrity

Leaking specimen interfaces reduce internal pressure below specified levels, altering ingress mechanisms and producing non-representative results. Connection points require proper sealing compounds, correctly sized adapter fittings, and torque specifications preventing over-tightening that deforms gaskets. Pre-test leak checks using pressure decay measurements identify seal failures before committing specimens to full test sequences.

Uneven Dust Distribution Within Chambers

Dead zones and preferential flow paths create concentration gradients where specimens experience varying exposure intensities. Poor chamber design, inadequate circulation capacity, or improper specimen positioning causes non-uniform testing. Solutions include computational fluid dynamics analysis during chamber design, adjustable circulation fan speeds, and standardized specimen mounting procedures documented in laboratory quality systems.

Meet Strict International Standards with LIB Industry Dust Test Chambers

Advanced Engineering for Compliance Testing

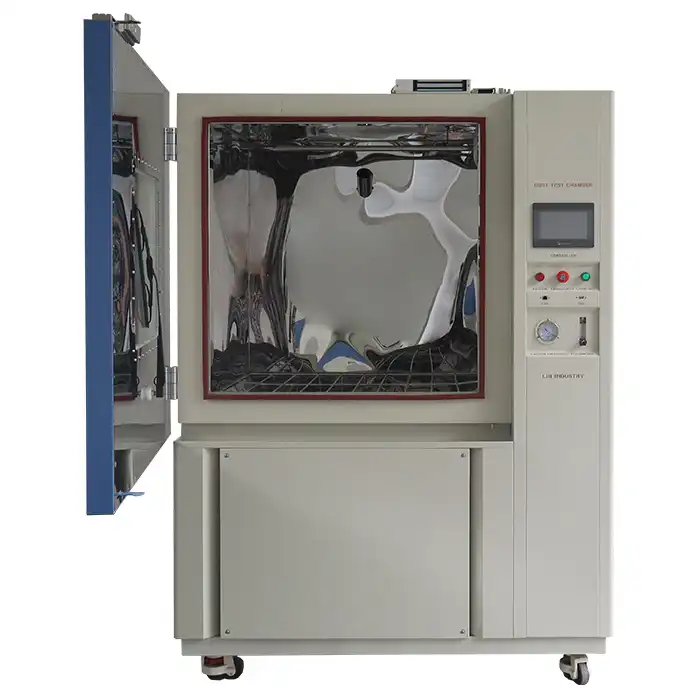

LIB dust test chambers incorporate funnel-shaped chamber bottoms eliminating powder accumulation points that compromise test repeatability. The sloped stainless steel interior facilitates complete talc recovery between tests, reducing waste and ensuring fresh powder for each protocol execution. Mirror-finished 304 stainless steel construction prevents corrosion and surface roughness that could trap particles or contaminate samples.

Integrated Safety and Observation Features

Testing visibility remains critical for monitoring specimen behavior during exposure cycles. Dual-layer observation windows with integrated wiper systems maintain clear sight lines despite circulating talc. Interior LED illumination provides even lighting without introducing heat that affects chamber thermal stability. Electromagnetic door locks prevent accidental opening during pressurized testing, while emergency stop controls positioned at multiple access points ensure operator safety.

Comprehensive Support and Custom Solutions

Every LIB chamber includes three-year warranty coverage with lifetime technical support through global service networks. Certified technicians provide installation, calibration, and operator training ensuring immediate laboratory readiness. Engineering teams develop custom configurations for non-standard testing requirements, incorporating specialized specimen interfaces, enhanced temperature ranges, or multi-chamber automation systems for high-volume production testing operations.

Conclusion

Standardized dust testing under IEC 60529 and ISO protocols demands precision equipment engineered for compliance and repeatability. Modern chambers integrate sophisticated control systems, refined powder management, and comprehensive monitoring capabilities that transform complex standards into reproducible laboratory procedures. Selecting chambers with proven compliance records, robust construction, and manufacturer support infrastructure ensures testing programs meet certification requirements while maintaining operational efficiency across product development lifecycles.

FAQ

What is the difference between IP5X and IP6X dust protection ratings?

IP5X permits limited dust ingress that does not interfere with equipment operation, while IP6X requires complete dust exclusion. IP6X testing demands more rigorous sealing and undergoes identical test procedures but applies stricter pass criteria during post-exposure inspection.

How often should talcum powder be replaced in dust test chambers?

Replace talc after every test cycle or when moisture absorption causes visible clumping. Reusing powder introduces particle size variations and moisture contamination that compromise standardized conditions. Fresh pharmaceutical-grade talc ensures consistent 50-75 micron particle distribution required by testing protocols.

Can one chamber accommodate both IEC 60529 and ISO 20653 testing protocols?

Quality chambers support both standards through programmable controls adjusting test duration, pressure levels, and circulation patterns. Verify chamber specifications include required temperature ranges, vacuum capacity, and mesh sieve compatibility for particle size variations between automotive and general industrial testing standards.
