Achieving IP6X Certification with Dust Test Chambers

IP6X certification represents the pinnacle of dust protection - absolute immunity to fine particle ingress under the most demanding conditions. This rating ensures electronics, automotive components, and industrial equipment function flawlessly in environments saturated with abrasive dust, from desert military operations to cement manufacturing facilities. Achieving IP6X certification requires rigorous testing within specialized dust test chambers that expose products to concentrated talcum powder clouds while applying vacuum pressure. The certification process validates that zero dust particles penetrate enclosures during eight-hour exposure cycles, providing manufacturers with documented proof of dust-tight integrity that meets international standards and customer expectations.

What Does IP6X Certification Mean in Dust Protection Testing?

banner

Decoding the IP Rating System Hierarchy

The Ingress Protection (IP) rating system employs two digits indicating protection levels against solid objects and liquids respectively. The first digit ranges from 0 to 6, with 6 representing complete dust protection. IP6X signifies "dust-tight" status - the highest achievable solid particle protection rating. This classification guarantees absolutely no dust ingress occurs under specified test conditions, distinguishing it from IP5X where limited dust entry remains acceptable.

Dust-Tight Versus Dust-Protected Classifications

IP5X certification permits minimal dust intrusion provided it doesn't interfere with equipment operation or safety. Manufacturers often target IP5X for cost-sensitive applications where absolute dust exclusion isn't critical. IP6X demands zero tolerance - not a single particle may penetrate the enclosure. This stringent requirement necessitates superior sealing technology, precision manufacturing tolerances, and comprehensive validation through dust test chamber protocols.

Applications Demanding IP6X Protection Levels

Industries operating in extreme particulate environments mandate IP6X certification. Mining equipment endures constant exposure to mineral dust and coal particles requiring complete sealing. Pharmaceutical manufacturing cleanrooms depend on dust-tight enclosures preventing contamination of sterile processes. Military electronics deployed in desert theaters must survive sandstorms without performance degradation. Outdoor LED lighting in dusty industrial zones requires IP6X ratings ensuring decades of maintenance-free operation.

How Dust Ingress Testing Simulates Fine Particle Exposure?

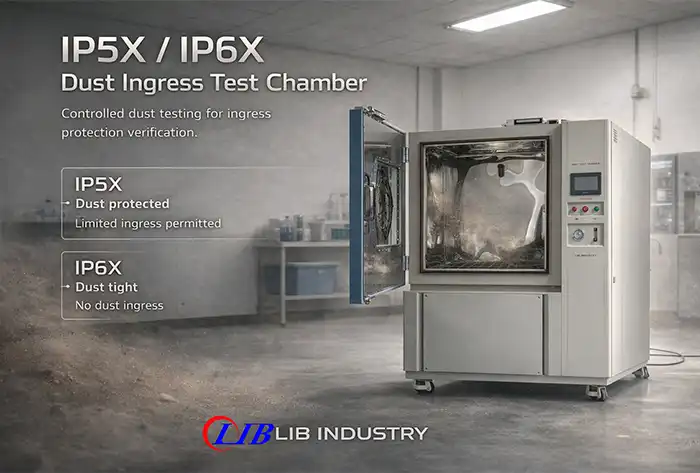

blog-1-1

Talcum Powder as the Standard Test Medium

IEC 60529 specifies talcum powder with 50-micron diameter particles as the standardized test medium for IP6X validation. This fine powder possesses characteristics mimicking natural environmental dust - it flows freely, penetrates microscopic gaps, and reveals sealing weaknesses effectively. The uniform particle size ensures repeatable test conditions across different laboratories and chamber systems, enabling consistent certification results.

Creating Controlled Dust Cloud Concentrations

Achieving uniform dust distribution throughout chamber volume demands sophisticated circulation systems. LIB dust test chambers employ precision fans creating turbulent airflow that suspends talcum powder in consistent clouds. The circulation prevents particle settling and stratification, ensuring specimens experience uniform exposure regardless of position. Programmable fight time (circulation periods) and blowing time (settling intervals) replicate real-world exposure patterns.

Vacuum-Assisted Dust Intrusion Mechanisms

The IP6X protocol applies negative pressure inside test specimens simulating airflow patterns during actual operation. This vacuum condition (typically 20 mbar below atmospheric pressure) creates pressure differentials forcing dust through any sealing imperfections. LIB dust test chambers include integrated vacuum systems with pressure gauges, air filters, regulators, and connecting tubes enabling precise pressure control throughout the eight-hour test duration.

IP Rating	Dust Protection Level	Test Medium	Vacuum Requirement	Pass Criteria
IP5X	Dust protected	Talcum powder (50μm)	20 mbar below atmospheric	Limited ingress permitted
IP6X	Dust tight	Talcum powder (50μm)	20 mbar below atmospheric	Zero ingress
IP5KX (automotive)	Enhanced dust protected	Road dust mixture	20 mbar below atmospheric	Limited ingress permitted
IP6KX (automotive)	Enhanced dust tight	Road dust mixture	20 mbar below atmospheric	Zero ingress

Test Procedures Required for IP6X Compliance Validation

Pre-Test Specimen Preparation and Documentation

Successful IP6X certification begins with meticulous specimen preparation. Manufacturers must document all sealing interfaces, ventilation paths, and potential ingress points. Specimens should represent production-standard units rather than hand-selected prototypes - certification validity depends on testing representative samples. Photography and dimensional verification establish baseline conditions enabling post-test comparison detecting any seal compression or material degradation.

Eight-Hour Exposure Protocol Execution

IEC 60529 mandates continuous eight-hour dust exposure under vacuum conditions. The specimen connects to the chamber's vacuum system maintaining 20 mbar pressure differential throughout testing. LIB chambers provide programmable fight times up to 99 hours 59 minutes, easily accommodating standard eight-hour protocols and extended validation testing. Temperature control (ambient to +50°C) replicates actual operating thermal conditions while humidity maintenance below 30% RH prevents powder clumping.

Post-Test Inspection and Documentation Requirements

Upon test completion, careful specimen disassembly reveals any dust intrusion. Inspectors examine internal surfaces under magnification searching for talcum powder deposits. IP6X certification demands absolute cleanliness - discovering even trace powder quantities constitutes failure. Detailed photography documents internal conditions while written reports describe inspection findings. This documentation becomes part of the permanent certification record supporting customer requirements and regulatory submissions.

Handling Test Failures and Design Iterations

Discovering dust ingress during IP6X testing reveals design vulnerabilities requiring corrective action. Common failure modes include inadequate gasket compression, cable entry seal deficiencies, and parting line imperfections. Engineers analyze failure patterns, modify designs, and retest until achieving zero ingress. LIB's dust test chambers support iterative testing cycles, enabling rapid design validation without external laboratory dependencies.

Key Parameters Controlled in Dust Test Chamber Systems

Precision Temperature Management Systems

Temperature affects both dust behavior and specimen seal performance. Elevated temperatures reduce gasket compression while altering powder flow characteristics. LIB chambers maintain programmable temperatures from ambient to +50°C with ±0.5°C accuracy, matching IEC 60529 recommendations. Advanced models extend to 80°C supporting accelerated aging tests combining thermal stress with dust exposure, revealing long-term seal degradation patterns.

Humidity Control Preventing Powder Agglomeration

Moisture represents the enemy of consistent dust testing - humid conditions cause talcum powder clumping that destroys test validity. Agglomerated particles cannot penetrate fine gaps, producing false passing results. LIB chambers incorporate electric heating systems maintaining humidity below 30% RH throughout extended test cycles. This moisture control ensures powder remains free-flowing, creating authentic intrusion challenges for specimen seals.

Mesh Sieve Filtration for Particle Size Control

Talcum powder can form clumps during storage or from moisture exposure before chamber loading. These oversized particles must be removed ensuring only 50-micron standard particles participate in testing. LIB dust test chambers feature 75-micron mesh sieves filtering the dust before circulation begins. The 50-micron wire diameter creates precise gaps passing properly sized particles while rejecting agglomerates that would compromise test accuracy.

Vacuum System Pressure Regulation Accuracy

Maintaining stable 20 mbar pressure differential demands precision vacuum regulation. Excessive vacuum may damage specimen components while insufficient pressure fails to replicate realistic operating conditions. LIB vacuum systems include adjustable regulators with pressure gauges providing real-time monitoring. The dust-proof 16A specimen power outlet enables testing of electrically powered equipment under vacuum while preventing dust contamination of electrical connections.

Chamber Parameter	LIB Specification	Testing Impact
Temperature range	Ambient to +50°C (standard) / 80°C (advanced)	Replicates operating thermal conditions
Temperature accuracy	±0.5°C	Ensures repeatable seal behavior
Humidity control	<30% RH	Prevents powder clumping
Mesh sieve gap	75 microns	Filters oversized particles
Vacuum system	Integrated with pressure gauge	Maintains 20 mbar differential
Fight time programming	0 to 99H59M	Accommodates extended protocols

Industry Standards Governing IP6X Certification Processes

IEC 60529 International Ingress Protection Standard

IEC 60529 serves as the global reference document defining IP code testing methodologies. Published by the International Electrotechnical Commission, this standard specifies exact test conditions, equipment requirements, and pass/fail criteria for each IP rating level. IP6X testing protocols detailed in Section 13.4 mandate eight-hour duration, talcum powder specifications, vacuum pressure requirements, and inspection procedures. Compliance with IEC 60529 ensures international acceptance of certification results.

ISO 20653 Road Vehicle Ingress Protection

Automotive applications reference ISO 20653, which adapts IEC 60529 for vehicle-specific environments. This standard introduces IP5KX and IP6KX ratings addressing road dust exposure patterns. The "K" designation indicates enhanced testing simulating actual vehicle operating conditions including water spray combined with dust exposure. LIB chambers equipped with additional water spray systems support ISO 20653 testing alongside standard IEC protocols.

EN 60529 European Standard Alignment

European Union markets require compliance with EN 60529, the Europeanized version of IEC 60529. While technically equivalent to the international standard, EN designation signifies formal adoption by European standards bodies. Products bearing CE marks based on IP ratings must demonstrate EN 60529 compliance. LIB chambers meet both IEC and EN specifications ensuring certification validity across global markets.

Industry-Specific Interpretation Guidelines

Different industries interpret IP6X requirements through sector-specific lenses. Pharmaceutical equipment manufacturers follow FDA guidelines emphasizing cleanroom compatibility. Automotive suppliers align with IATF 16949 quality requirements mandating statistical process control of seal manufacturing. Military applications reference MIL-STD-810 Method 510 alongside IP6X ratings. Understanding these nuanced interpretations guides proper test protocol selection and documentation practices.

Improving Product Enclosure Design Based on IP6X Test Results

Gasket Material and Compression Optimization

IP6X failures frequently trace to inadequate gasket performance - materials lacking sufficient compression set resistance, inappropriate hardness specifications, or insufficient sealing surface width. Test results guide material upgrades from generic elastomers to specialty compounds like fluorosilicone offering superior dust sealing. Compression analysis reveals optimal groove geometries ensuring gaskets achieve adequate squeeze without over-compression causing stress relaxation.

Cable Entry and Connector Sealing Enhancement

Cable penetrations represent notorious dust ingress pathways. Standard cable glands may pass IP5X testing but fail IP6X scrutiny. Enhanced sealing approaches include multiple O-ring compression fittings, potted cable entries, and hermetically sealed connectors. Testing various solutions within dust test chambers identifies effective configurations before committing to production tooling investments.

Parting Line and Fastener Interface Refinement

Even precision-machined mating surfaces can leak dust without proper sealing strategies. Test-driven design improvements include adding gasket channels to previously gasketed parting lines, increasing fastener quantity reducing sealing surface deflection, and implementing tongue-and-groove geometries creating labyrinth seals. Iterative chamber testing validates each enhancement step, building dust-tight integrity systematically.

Ventilation and Pressure Equalization Strategies

Many enclosures require ventilation preventing internal pressure buildup from temperature changes. Achieving IP6X with ventilation demands specialized solutions - Gore-Tex membranes allowing air passage while blocking particles, labyrinth vent paths with multiple direction changes, or desiccant breathers absorbing moisture while filtering dust. Chamber testing confirms these advanced approaches deliver dust-tight performance despite ventilation requirements.

LIB Industry Dust Chambers for Reliable IP6X Certification Testing

Name	Dust Proof Tester	IP6X Dust Test Chamber
Workroom dimension (mm)	800800800 DWH
External dimension (mm)	95031501800 DWH
Interior Volume (L)	510
Diameter of Turntable (mm)	600
Turntable loads	20kgs Max
Turntable Rotation Speed	0~7r/min (Adjustable)
Internal Diameter of IPX5 Nozzle	6.3 mm
Internal Diameter of IPX6 Nozzle	12.5 mm
Water Flow Rate IPX5/ IPX6	12.5L/min ±5% / 100L/min ±5%
Controller	Programmable color LCD touch screen controller
Controller	Ethernet connection, PC Link, USB
Build-in Water Tank(mm)	370375950
View Window Size(mm)	475*475


Test Area	LAN and USB	Controller

Comprehensive Model Range for Diverse Applications

LIB Industry manufactures four standard dust test chamber models accommodating varied specimen sizes and testing volumes. The DI-800 (800L volume) serves small electronics and component testing, while the DI-2000 (2000L volume) accommodates complete automotive assemblies and large industrial equipment. Internal dimensions range from 800mm × 1000mm × 1000mm to 1000mm × 2000mm × 1000mm, providing flexibility across industry sectors.

Superior Powder Management Technology

Traditional flat-bottom chambers suffer from powder accumulation in corners creating circulation dead zones and clumping problems. LIB's patented funnel-shaped bottom design employs gravity-assisted powder recovery ensuring complete recirculation. The sloped interior prevents stagnant powder zones while facilitating thorough post-test cleanup. This geometry extends chamber operational life by preventing powder caking that plagues conventional designs.

SUS304 Stainless Steel Mirror-Finish Interiors

Chamber interior surface quality directly impacts dust circulation uniformity and cleaning efficiency. LIB chambers feature SUS304 stainless steel mirror-finish interiors combining corrosion resistance with minimal surface roughness. The smooth surface prevents powder adhesion maintaining consistent test conditions across multiple cycles. Rust-proof construction ensures chamber longevity despite humidity control challenges in some operating environments.

Advanced Observation and Safety Features

Testing progress monitoring without chamber access preserves test integrity while enabling real-time specimen observation. LIB chambers incorporate double-layer thermally stable silicone rubber sealed observation windows maintaining dust containment. Interior LED lighting provides clear specimen visibility while integrated windshield wipers remove powder accumulation from viewing surfaces. Electromagnetic door locks prevent accidental opening during active tests protecting operators from dust exposure.

Programmable Control Systems with Remote Monitoring

Modern quality management demands comprehensive test documentation and remote oversight capabilities. LIB's color LCD touchscreen controllers provide intuitive programming of all test parameters - temperature, fight time, blowing time, and vacuum pressure. Ethernet connectivity enables PC Link remote monitoring allowing engineers to track test progress from office workstations. Data logging systems automatically record environmental parameters throughout test duration supporting certification documentation requirements.

Certification and Compliance Assurance

LIB Industry operates under ISO 9001 Quality Management certification ensuring manufacturing consistency. All dust test chambers receive CE marking demonstrating European safety directive compliance. Third-party validation from SGS and TUV authorities provides independent performance verification. This certification foundation gives customers confidence that LIB chambers deliver accurate, repeatable test results supporting IP6X certification submissions globally.

LIB Model	Internal Dimensions (mm)	Volume (L)	Overall Dimensions (mm)	Typical Applications
DI-800	800 × 1000 × 1000	800	1040 × 1450 × 1960	Electronics, sensors, small assemblies
DI-1000	1000 × 1000 × 1000	1000	1330 × 1450 × 1960	Control panels, medium enclosures
DI-1500	1000 × 1500 × 1000	1500	1330 × 1950 × 1990	Lighting fixtures, large components
DI-2000	1000 × 2000 × 1000	2000	1330 × 2450 × 1990	Automotive assemblies, industrial equipment

Turn-Key Solutions and Technical Support

LIB provides comprehensive turn-key implementation encompassing chamber specification consultation, custom configuration design, manufacturing, installation commissioning, and operator training. Technical experts collaborate during planning phases ensuring chamber capabilities align precisely with testing objectives. The three-year warranty with lifetime service support demonstrates manufacturing quality confidence, while 24/7 global support infrastructure ensures assistance availability across all time zones.

Custom Engineering for Specialized Requirements

Standard chamber configurations serve most IP6X testing needs, yet some applications demand unique solutions. LIB's engineering team designs custom chambers addressing special specimen geometries, integrated environmental combinations (dust plus temperature cycling), or automated specimen handling systems. Custom cable hole diameters beyond standard 50mm, 100mm, and 200mm options accommodate unique instrumentation requirements while maintaining chamber integrity.

Conclusion

IP6X certification demands absolute dust exclusion validated through rigorous chamber testing under controlled conditions. Achieving this pinnacle protection rating requires understanding test protocols, maintaining precise environmental parameters, and iterating designs based on empirical results. Dust test chambers transform certification from an uncertain external dependency into a controllable internal process, accelerating product development while ensuring reliable dust-tight performance across diverse operating environments.

FAQ

How long does the complete IP6X certification testing process typically require?

The standard IEC 60529 IP6X protocol demands eight hours continuous dust exposure under vacuum. Including pre-test preparation (specimen setup, vacuum connection verification), post-test inspection (careful disassembly and examination), and documentation (photography, report generation), complete testing typically spans 12-16 hours. Facilities conducting multiple specimens simultaneously achieve greater throughput efficiency using larger chamber volumes.

Can products requiring ventilation or pressure equalization achieve IP6X certification?

Achieving IP6X with ventilation demands specialized solutions rather than simple open vents. Gore-Tex breathable membranes allow air passage while blocking particulates, labyrinth vent paths create tortuous dust intrusion routes, and desiccant breathers combine moisture control with particle filtration. Dust test chambers validate these advanced approaches confirming they deliver dust-tight performance despite ventilation functionality.

What distinguishes IP6X testing from IP5X beyond the pass/fail criteria?

Both IP5X and IP6X employ identical test procedures - eight hours talcum powder exposure under 20 mbar vacuum using standardized 50-micron particles. The critical distinction lies in acceptance criteria: IP5X permits limited dust ingress provided it doesn't impair operation, while IP6X demands absolute zero intrusion. This stricter requirement necessitates superior sealing technology, tighter manufacturing tolerances, and more rigorous quality control throughout production.

Ready to validate your IP6X dust protection claims with confidence? LIB Industry, a leading manufacturer and supplier of dust test chambers, delivers precision-engineered solutions meeting international IP rating standards. Contact our certification testing specialists at ellen@lib-industry.com to discuss your dust ingress validation requirements.
