Dust Test Chambers in Electronics and PCB Reliability Testing

Dust test chambers serve as critical validation tools for electronics manufacturers who need to verify product resilience against particle intrusion. These specialized environmental chambers simulate dusty conditions that electronic assemblies encounter during manufacturing, transportation, storage, and operational lifecycles. By exposing printed circuit boards, connectors, switches, and complete devices to controlled concentrations of talcum powder or standardized test dust, engineers can identify vulnerabilities in sealing mechanisms, coating effectiveness, and enclosure designs before products reach end users. This proactive approach prevents costly field failures, warranty claims, and brand reputation damage while ensuring compliance with international protection standards like IEC 60529 and ISO 20653.

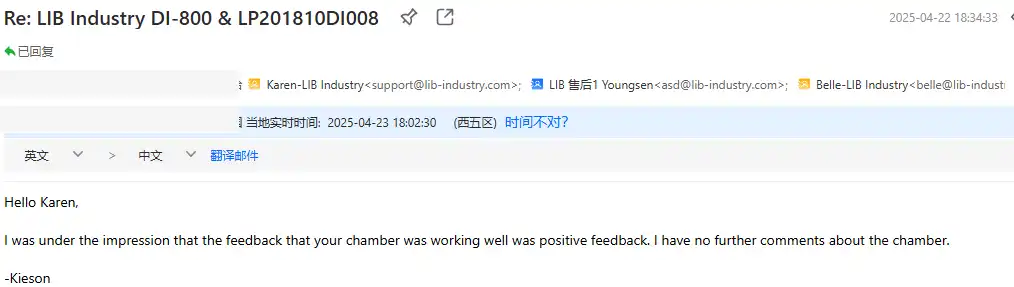

Customers value the chamber’s stable and uniform dust exposure, accurate environmental simulation, and user-friendly operation. Feedback highlights how it streamlines testing workflows, enhances product quality, and supports compliance with international protection standards.

How Does Dust Contamination Affect Electronics and PCBs?

Electrical Short Circuits Through Conductive Particles

Metallic dust particles create unintended current pathways between circuit traces, component leads, and connector pins. When conductive debris bridges adjacent conductors operating at different voltages, short circuits occur instantaneously. This phenomenon proves particularly problematic in high-density PCB layouts where trace spacing measures only micrometers. Manufacturing environments containing aluminum, steel, or copper particles pose substantial risks to sensitive electronic assemblies.

Insulation Degradation and Dielectric Breakdown

Fine dust accumulation on insulating materials gradually reduces their dielectric strength. Hygroscopic particles absorb moisture from ambient air, creating conductive films across insulation barriers. This moisture-laden contamination layer lowers breakdown voltage thresholds and increases leakage currents. Over time, tracking patterns develop across insulator surfaces, leading to catastrophic component failures during voltage transients.

Mechanical Interference in Moving Components

Particle intrusion into electromechanical devices causes friction, wear, and jamming. Dust accumulation between relay contacts increases contact resistance and generates arcing during switching operations. Cooling fans experience bearing wear and blade imbalance when particles penetrate sealed housings. Connector insertion forces rise dramatically as dust compacts within mating interfaces, potentially damaging gold-plated contact surfaces.

Common Dust-Induced Failure Modes in Electronic Assemblies

Connector Contact Contamination

Exposed connector interfaces represent prime entry points for particle contamination. Dust particles lodge between mating contacts, disrupting electrical continuity and signal integrity. High-speed data connectors exhibit increased bit error rates as contamination degrades impedance matching. Power connectors develop hotspots when particles create resistive barriers, leading to thermal runaway conditions. Repeated mating cycles compound contamination effects by driving particles deeper into contact zones.

Component Lead Corrosion Acceleration

Dust particles containing hygroscopic salts or acidic residues accelerate electrochemical corrosion on exposed metal surfaces. When moisture condenses onto contaminated PCB assemblies, galvanic cells form between dissimilar metals. This corrosion mechanism attacks solder joints, component terminations, and bare copper traces. The resulting oxide layers increase contact resistance and create intermittent connections that prove difficult to diagnose.

Thermal Management System Blockage

Heatsink fins, ventilation grilles, and cooling channels accumulate dust deposits that impede airflow and reduce thermal dissipation efficiency. In dust chamber testing, equipment operating temperatures rise as thermal resistance increases, accelerating component aging through elevated junction temperatures. Processors, power amplifiers, and voltage regulators become particularly vulnerable to thermal stress when dust blocks cooling pathways. Extended operation under compromised cooling conditions shortens component lifespans significantly.

Dust Test Requirements for Electronic Reliability Evaluation

IP Code Testing Protocols

IP5X protection verifies that dust ingress does not interfere with equipment operation or compromise safety. Test specimens undergo vacuum conditions while exposed to circulating talcum powder for eight continuous hours. Following exposure, internal examination reveals whether harmful dust quantities penetrated enclosures. IP6X certification requires complete dust-tight performance, with zero particle ingress permitted after identical test duration.

Automotive Environmental Standards

Automotive electronics must withstand harsh environmental conditions including roadway dust, desert sand, and industrial particulates. ISO 20653 specifies testing with Arizona Test Dust containing calibrated particle size distributions. Chamber conditions replicate operational temperature ranges while maintaining precise dust concentrations. Test durations scale according to expected vehicle lifespans and environmental severity classifications.

Military Specification Requirements

Defense applications demand rigorous validation against multiple dust particle types and size ranges. MIL-STD-810 Method 510.7 defines blowing dust and sand tests simulating deployment environments from arctic tundra to tropical deserts. Equipment must maintain operational capability during exposure and demonstrate full functionality afterward. Test severity levels correspond to mission-critical importance and deployment location characteristics.

Evaluating PCB Coatings and Enclosure Protection Using Dust Chambers

Conformal Coating Performance Verification

Protective coatings applied to PCB assemblies require validation under particle exposure conditions. Dust test chambers assess coating adhesion, coverage uniformity, and barrier effectiveness against fine particle intrusion. Acrylic, silicone, urethane, and parylene coatings exhibit different protective characteristics when subjected to abrasive dust particles. Testing reveals coating weaknesses around component bodies, connector interfaces, and board edges where application challenges exist.

Gasket and Seal Compression Testing

Enclosure sealing systems employ elastomeric gaskets, O-rings, and foam seals to prevent particle ingress. Dust chamber testing validates seal compression characteristics, aging resistance, and recovery properties. Temperature cycling during dust exposure reveals whether seal materials maintain compression force across operational temperature ranges. Multi-cycle testing simulates repeated enclosure access for maintenance activities.

Ventilation Filter Efficiency Measurement

Electronics requiring air circulation for thermal management incorporate filtration systems to exclude particles. Dust proof chambers quantify filter loading rates, pressure drop characteristics, and breakthrough tendencies. Testing establishes maintenance intervals by determining when accumulated dust loading compromises filtration efficiency. High-efficiency particulate air (HEPA) filters, activated carbon media, and electrostatic precipitators undergo comparative performance evaluation.

Combined Environmental Stress Testing with Dust Exposure

Temperature-Humidity-Dust Sequences

Real-world operating environments subject electronics to simultaneous environmental stressors. Combined testing protocols expose specimens to temperature variations while maintaining dust concentrations and controlled humidity levels. This multi-stress approach reveals synergistic failure mechanisms that single-factor testing overlooks. Hygroscopic dust particles absorb moisture during high-humidity phases, creating conductive contamination layers that persist during subsequent dry periods.

Vibration and Shock During Dust Exposure

Transportation and mobile applications combine mechanical stress with particle exposure. Vibration testing while circulating dust particles simulates road transportation conditions for automotive electronics. Shock pulses during dust exposure reveal whether impact forces drive particles into sealed interfaces or dislodge protective covers. Testing identifies resonant frequencies that enhance particle penetration into vulnerable areas.

Altitude Simulation with Particle Loading

Low-pressure environments at high altitudes affect dust behavior and particle transport characteristics. Combined altitude-dust testing evaluates equipment destined for aviation, spacecraft, or mountain installations. Reduced atmospheric pressure alters convective cooling patterns and changes dust particle trajectories. Corona discharge thresholds decrease at altitude, making particle-induced arcing more probable.

Using Dust Test Data to Improve Electronic Design Reliability

Failure Mode Analysis and Corrective Actions

Systematic examination of dust test failures reveals design vulnerabilities requiring correction. Engineers document particle penetration pathways, contamination accumulation zones, and failure mechanisms. Root cause analysis distinguishes between design deficiencies, manufacturing process variations, and material selection errors. Corrective actions might include redesigning ventilation paths, specifying alternative gasket materials, or implementing secondary sealing barriers.

Design for Manufacturing Considerations

Dust testing feedback influences manufacturing process development and assembly sequence optimization. Identifying contamination sources within production environments enables targeted cleanliness improvements. Conformal coating application parameters adjust based on coating performance during dust exposure. Component placement strategies evolve to minimize particle trapping locations on PCB assemblies.

Predictive Maintenance Schedule Development

Accelerated dust testing establishes equipment contamination rates under severe operating conditions. Extrapolating test data to typical field environments enables science-based maintenance interval calculations. Filter replacement schedules, enclosure inspection frequencies, and cleaning procedures derive from quantitative contamination accumulation data. Condition monitoring systems incorporate dust sensors that trigger maintenance alerts before performance degradation occurs.

LIB Industry Dust Test Chamber: Precision Testing for Sensitive Electronics

Advanced Powder Management Technology

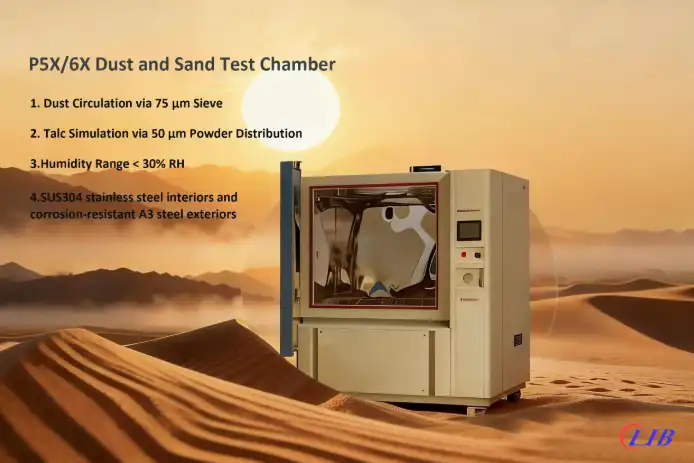

LIB dust test chambers incorporate funnel-shaped bottom designs preventing powder accumulation and clogging issues. The sloped interior ensures smooth talc powder recovery without clumping or blockage between test cycles. Electric heating systems maintain powder dryness throughout extended testing sequences, preventing moisture-induced clumping that compromises test repeatability. This moisture control proves essential for achieving consistent dust cloud characteristics.

Programmable Control and Monitoring Systems

Color LCD touchscreen interfaces provide intuitive operation with programmable temperature control reaching 80°C with ±0.5°C accuracy. PID controllers manage dust circulation systems, vacuum pumps, and heating elements with precision. Ethernet connectivity enables remote monitoring and data logging capabilities supporting quality system requirements. Real-time parameter display allows operators to verify test conditions match specification requirements.

Comprehensive Safety Features and Support

Electromagnetic door locks prevent accidental chamber opening during active testing while observation windows with integrated wipers maintain visibility. LED interior lighting ensures clear specimen monitoring throughout test duration. LIB provides 3-year warranties with lifetime service support backed by 24/7 global technical assistance. ISO 9001 quality management certification and CE compliance demonstrate commitment to international standards.

Test Area	LAN and USB	Controller

Conclusion

Dust test chambers provide essential validation for electronics manufacturers committed to delivering reliable products across demanding applications. By systematically evaluating particle ingress protection, identifying design vulnerabilities, and verifying compliance with international standards, engineers prevent costly field failures while optimizing protective measures. The integration of advanced chamber technologies with comprehensive testing protocols enables data-driven design improvements that enhance product durability and customer satisfaction throughout operational lifecycles.

FAQ

What particle size distribution should be used for electronic component dust testing?

IEC 60529 IP5X/IP6X testing requires talcum powder with particles predominantly smaller than 75 micrometers. ISO 20653 automotive testing specifies Arizona Test Dust containing controlled distributions from 0-200 micrometers. Military specifications define particle ranges matching deployment environment characteristics, typically 0-150 micrometers for electronic equipment.

How long should dust exposure testing last for consumer electronics validation?

Standard IP code testing runs eight continuous hours under specified conditions. Consumer electronics typically undergo this baseline testing plus additional cycles matching expected product lifespans. Products designed for ten-year service lives may require 80-120 hours of accelerated dust exposure representing cumulative environmental stress.

Can dust testing damage sensitive electronic components beyond the enclosure?

Properly designed test protocols expose only external enclosure surfaces to dust particles. Sealed equipment undergoes testing without internal component exposure. Post-test disassembly verifies whether dust penetrated protective barriers. Components remain undamaged provided enclosures maintain specified ingress protection ratings throughout testing.
