Testing Sealed Enclosures Using Dust Test Chambers

Testing sealed enclosures using dust test chambers validates product integrity against particulate intrusion under controlled conditions. These specialized evaluation systems replicate demanding environments where airborne contaminants threaten electronic assemblies, optical instruments, and precision mechanisms. Engineers employ standardized protocols - including IEC 60529 and ISO 20653 - to verify ingress protection ratings, ensuring enclosures maintain operational reliability across automotive, aerospace, and industrial sectors. Systematic dust exposure, combined with differential pressure application, reveals vulnerabilities in gasket design, fastener placement, and sealing geometry before products reach field deployment.

In practical applications, customers rely on this validation to support real product development. A lighting research team in the United States recently integrated the DI-800 dust test chamber into their laboratory to evaluate sealed luminaire designs. After commissioning, the team confirmed that the system was operating smoothly and meeting their testing expectations. The stable airflow distribution, reliable dust circulation, and consistent pressure control enabled them to conduct repeatable ingress protection studies with confidence. For laboratories focused on lighting durability and enclosure sealing performance, field-proven performance like this reinforces the value of investing in a precision dust test solution before products move into mass production.

What Defines a Sealed or Dust-Protected Enclosure?

IP Rating Classification Systems

Ingress Protection ratings communicate enclosure resistance to solid particles and liquids through standardized two-digit codes. The first digit addresses solids protection, ranging from large objects to microscopic dust. IP5X indicates limited dust ingress that doesn't interfere with operation, while IP6X demonstrates complete dust-tightness. These classifications guide manufacturers in selecting appropriate sealing strategies for target applications.

Critical Sealing Components and Materials

Gaskets, O-rings, and compression seals form primary barriers against particle penetration. Material selection balances elasticity, temperature resistance, and compression set properties. Silicone rubber maintains flexibility across temperature extremes, whereas EPDM offers superior weathering resistance. Metal-to-metal seals provide durability in high-vibration environments but demand precision machining tolerances.

Application-Specific Protection Requirements

Medical devices operating in sterile environments require absolute particulate exclusion, while construction equipment tolerates limited intrusion. Automotive sensors balance protection with cost constraints, whereas military electronics demand verification against talc powder under vacuum conditions. Understanding operational contexts determines appropriate testing severity and acceptance criteria.

Dust Ingress Paths and Seal Failure Mechanisms

Compression Seal Degradation

Repeated thermal cycling causes elastomeric seals to lose compression force, creating microscopic channels for particle entry. Gasket creep under sustained pressure gradually increases gap dimensions. Material hardening accelerates when operating temperatures exceed compound specifications, transforming pliable seals into rigid barriers with compromised contact surfaces.

Fastener-Induced Leakage Points

Thread engagement depth directly impacts seal compression uniformity. Insufficient torque produces localized gaps, while over-tightening deforms gaskets beyond recovery limits. Vibration loosens fasteners incrementally, opening pathways that expand during pressure differentials. Thread sealants mitigate risks in threaded joints where traditional gaskets prove impractical.

Interface Geometry Challenges

Mounting surface flatness influences seal effectiveness more than material properties. Warped substrates create voids that exceed gasket compliance ranges. Sharp corners concentrate stress, accelerating localized seal failure. Radiused transitions distribute compression forces evenly, extending service life and maintaining consistent contact pressure distribution.

Test Methods for Evaluating Enclosure Dust Tightness

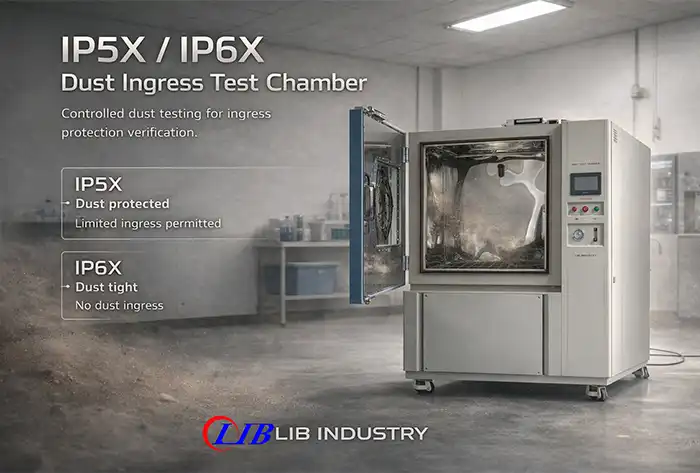

IEC 60529 IP5X and IP6X Protocols

IP5X testing suspends talc powder in circulating air for specified durations, typically eight hours, exposing enclosures to concentrations that challenge partial protection designs. Inspection afterward quantifies deposits that reached protected zones. IP6X demands absolute exclusion verified through identical exposure followed by internal examination confirming zero particulate presence. Both protocols establish baseline protection capabilities.

ISO 20653 Automotive Testing Standards

Automotive applications face road dust, brake pad particulates, and environmental contaminants requiring specialized validation. ISO 20653 extends IEC protocols with vehicle-specific conditions, including higher test temperatures and extended exposure periods. The IP5KX and IP6KX designations address scenarios where standard testing proves insufficient for transportation environments demanding enhanced durability verification.

MIL-STD-810 Military Specifications

Military equipment undergoes blowing dust testing at elevated wind speeds in a dust proof chamber, simulating desert deployment conditions. Suspended Arizona test dust - comprising specific particle size distributions - bombards enclosures while monitoring internal contamination levels. Temperature extremes during exposure replicate operational stress combinations absent from commercial standards, revealing vulnerabilities under compound environmental factors.

Applying Negative Pressure in Dust Ingress Testing

Vacuum-Assisted Dust Penetration

Negative pressure differentials accelerate particle ingress by drawing atmospheric contaminants through seal imperfections. Standard testing applies 2 kPa underpressure within enclosures, creating suction that reveals leakage paths invisible under ambient conditions. This approach simulates altitude changes, thermal cooling cycles, and fan-induced internal depression occurring during normal operation.

Pressure Differential Magnitude Selection

Test severity scales with application requirements. Consumer electronics undergo modest 800 Pa differentials, while aerospace components face 8 kPa extremes. Pressure gauge accuracy becomes critical - variations exceeding ±2% compromise result repeatability. Regulated vacuum systems maintain stable underpressure throughout exposure intervals, preventing test artifacts from fluctuating conditions.

Combining Temperature and Vacuum Cycles

Thermal expansion mismatches between housing materials and seals widen gaps during temperature transitions. Cycling between ambient and elevated temperatures while maintaining vacuum stress tests seal resilience under realistic operational profiles. Heating systems integrated into advanced dust test chambers enable programmable thermal profiles synchronized with pressure variations, replicating field conditions with laboratory precision.

Test Parameter	Consumer Grade	Industrial Grade	Aerospace Grade
Vacuum Pressure	0.8 kPa	2.0 kPa	8.0 kPa
Test Duration	2 hours	8 hours	24 hours
Temperature Range	Ambient	Ambient to 50°C	-40°C to 80°C

Inspection and Assessment After Dust Exposure Tests

Visual Examination Procedures

Post-exposure inspection begins with external cleaning to prevent contamination transfer during disassembly. Opening enclosures in controlled environments prevents airborne particles from skewing results. Technicians photograph internal surfaces before disturbance, documenting particle distribution patterns that indicate primary ingress locations. Magnification reveals deposits invisible to unaided observation.

Quantitative Particle Analysis

Gravimetric measurement determines total mass accumulation inside sealed volumes. Pre-test weighing establishes baseline values; post-test measurements quantify ingress severity. Microscopic particle counting provides size distribution data, distinguishing test dust from ambient contaminants. Advanced techniques employ energy-dispersive X-ray spectroscopy to verify particle chemical composition matches test materials.

Pass/Fail Criteria Interpretation

IP6X demands zero visible dust accumulation, leaving no interpretation ambiguity. IP5X permits limited quantities insufficient to interfere with functionality - criteria requiring engineering judgment. Defining acceptable contamination levels for specific components balances protection requirements against manufacturing costs. Documentation should reference component sensitivity thresholds rather than arbitrary limits.

Design Optimization Based on Dust Test Results

Gasket Redesign Strategies

Test failures revealing localized penetration guide targeted gasket modifications. Increasing compression thickness at leak-prone corners eliminates pathways without over-engineering entire perimeters. Multi-stage seals provide redundancy where single barriers prove inadequate. Material substitution addresses chemical compatibility issues or temperature performance limitations exposed during validation.

Fastener Pattern Optimization

Uniform compression requires appropriate fastener spacing and torque sequences. Finite element analysis predicts stress distribution, identifying undertorqued zones before physical testing. Adding fasteners near seal discontinuities equalizes compression forces. Captured washer designs prevent over-compression while maintaining minimum sealing pressure throughout service intervals.

Ventilation and Pressure Equalization

Applications requiring air exchange demand protective venting that excludes particles while permitting gas flow. Expanded polytetrafluoroethylene membranes block dust while breathing moisture, preventing internal condensation. Labyrinth pathways create tortuous routes that trap particles through inertial impaction. Pressure equalization rates must balance protection with thermal response requirements.

Verify Seal Integrity with High-Performance LIB Industry Dust Test Chambers

Advanced Powder Management Systems

LIB dust test chamber features funnel-shaped chamber bottoms preventing talc accumulation that compromises test repeatability. Sloped interiors facilitate powder recovery between cycles without manual cleaning interruptions. Integrated heating systems maintain powder dryness, eliminating moisture-induced clumping that creates false failures. Circulation systems distribute particles uniformly throughout chamber volumes, ensuring consistent exposure across specimen surfaces.

Programmable Environmental Control

Color LCD touchscreen interfaces simplify test parameter configuration. PID controllers regulate vacuum levels within ±50 Pa tolerances while managing chamber temperatures to ±0.5°C accuracy. Programmable exposure durations accommodate protocols from two-hour screening tests to 24-hour qualification runs. Ethernet connectivity enables remote monitoring and data logging for compliance documentation.

Comprehensive Safety and Observation

Electromagnetic door locks prevent accidental opening during pressurized operations, protecting operators from sudden depressurization. Multiple emergency stops provide immediate shutdown capabilities. Double-layer observation windows with integrated wipers maintain visibility throughout testing despite particle accumulation. Interior LED lighting ensures clear specimen monitoring without interrupting test cycles.

Conclusion

Validating enclosure dust resistance through systematic chamber testing prevents field failures that compromise product reliability and brand reputation. Standardized protocols provide repeatable assessment frameworks, while vacuum-assisted exposure accelerates seal vulnerability detection. Post-test analysis guides targeted design improvements, transforming test data into actionable engineering insights. Organizations prioritizing thorough validation during development phases avoid costly redesigns and warranty claims, establishing competitive advantages through demonstrated environmental resilience.

FAQ

What particle size does talc powder used in dust testing contain?

Standardized talc powder for IP5X and IP6X testing contains particles smaller than 75 micrometers in diameter, filtered through precision mesh screens. This size distribution represents fine dust capable of penetrating seal imperfections that would exclude larger contaminants.

How long should enclosures remain under vacuum during dust exposure?

Standard protocols specify eight hours continuous vacuum exposure for comprehensive evaluation. Automotive applications may require extended durations up to 24 hours. Duration selection depends on seal material recovery time and operational pressure differential severity anticipated in field conditions.

Can dust test chambers accommodate temperature cycling during testing?

Advanced chambers integrate programmable heating systems enabling simultaneous thermal and dust exposure. Temperature capabilities typically range from ambient to 80°C, with some specialized units offering broader ranges. Cycling protocols replicate thermal expansion effects on seal integrity during actual deployment scenarios.
