Xenon arc weathering test accuracy depends on controlling multiple interconnected variables throughout the exposure cycle. Irradiance intensity and spectral distribution must remain consistent, while black panel temperature (BPT) and relative humidity need precise regulation to simulate real-world conditions. Sample positioning, rotation speed, and mounting techniques significantly impact exposure uniformity. Lamp aging characteristics, filter degradation, and calibration frequency directly influence spectral output. Water spray timing, droplet size, and drying phases affect material interaction with moisture. Xenon arc weatherometer temperature stability, airflow patterns, and radiometer accuracy complete the critical parameter set. Understanding how these elements interact enables laboratories to achieve reproducible results that correlate with outdoor weathering performance.

What Parameters Most Strongly Influence Test Repeatability?

Spectral Power Distribution Control

The xenon arc lamp generates a broad-spectrum output that approximates natural sunlight when properly filtered. Maintaining consistent spectral power​ distribution across the 300-400nm ultraviolet range requires attention to filter condition and lamp power stability. Variations in UV irradiance levels exceeding ±5% can produce measurably different degradation rates in polymer samples. The 4500W water-cooled lamp system delivers controlled energy output, but spectral drift occurs as electrodes erode and arc gap dimensions change during operation.

Black Panel Temperature Precision

BPT represents the actual surface temperature experienced by exposed specimens under combined radiant and ambient heating. The 35-85°C range allows simulation of diverse climate zones, but ±2°C tolerance demands sophisticated thermal management. Temperature gradients within the chamber create hot and cold zones that produce non-uniform aging. Specimens positioned near thermal boundaries experience accelerated or decelerated degradation compared to those in stable temperature regions, making rotation essential.

Relative Humidity Stabilization

Moisture content affects photochemical reaction rates and hydrolytic degradation mechanisms in many materials. The 30-98% RH range accommodates both arid and tropical exposure simulations, but achieving ±3% RH stability requires precise water vapor injection and condensation control. Humidity fluctuations alter the rate of water absorption into polymeric materials, changing their susceptibility to UV-induced chain scission. Textiles and coatings show particularly strong humidity-dependent aging responses.

Irradiance Uniformity and Sensor Calibration

Radiometric Measurement Accuracy

UV radiometers measure irradiance within specific wavelength bands to verify exposure intensity. The ±5% tolerance specification represents the combined uncertainty from sensor calibration, spectral response matching, and positional geometry. Radiometers require annual recalibration against reference standards traceable to national metrology institutes. Drift in radiometer sensitivity produces systematic errors that compound over extended test periods, leading to under-exposure or over-exposure relative to specified conditions.

Chamber Geometry and Sample Distance

The rotating sample holder maintains consistent lamp-to-specimen distance as samples orbit the central light source. Distance variations of just 2-3 centimeters can alter irradiance by 10-15% due to inverse square law effects. The 950×950×850mm internal chamber dimensions establish optimal spacing for the 1r/min rotation speed, ensuring each specimen receives equivalent integrated exposure. Overloading the sample rack or improper mounting introduces geometric variations that compromise uniformity.

Filter System Performance

Inner quartz and outer borosilicate filters in a xenon arc weatherometer shape the xenon arc spectrum to match specific standards like JIS C8912 or JIS K 5600-7-7. Quartz transmits short-wavelength UV while blocking infrared, whereas borosilicate absorbs UVC below 295 nm to simulate atmospheric ozone filtration. Filter degradation from solarization and thermal stress gradually shifts transmission characteristics. Replacement intervals based on lamp hours prevent spectral drift that would invalidate test conditions.

Temperature, Humidity, and Water Spray Control

Chamber Air Temperature Management

The -40 to 100°C chamber temperature range with ±2°C control enables testing across extreme climate conditions. Polyurethane foam and insulation cotton minimize heat loss while maintaining spatial uniformity. Temperature stratification creates vertical gradients where upper specimens experience warmer conditions than lower ones. Forced air circulation systems reduce stratification but introduce airflow-dependent cooling that affects surface temperatures differently than radiant heating alone.

​

Water Spray Cycle Programming

The 1-9999H59M adjustable water spray cycle simulates rain, dew, and condensation exposure. Spray duration, droplet size, and water temperature all influence material response. Cold water spray on hot specimens produces thermal shock that accelerates cracking in brittle coatings. Spray coverage uniformity depends on nozzle design and positioning relative to rotating samples. Insufficient drainage creates pooling that produces localized overexposure to moisture, while inadequate wetting fails to activate hydrolytic mechanisms.

Drying Phase Optimization

The interval between water spray cessation and the next wetting cycle allows surface drying and enables specific degradation mechanisms. Some polymers require dry conditions for photo-oxidation to proceed, while others degrade primarily during wet phases when oxygen permeability increases. Drying rate depends on temperature, humidity, and airflow velocity. Incomplete drying leaves surface moisture that alters subsequent UV absorption and scattering, particularly in porous materials like textiles.

Specimen Mounting, Orientation, and Exposure Consistency

Sample Holder Configuration

The adjustable-speed rotating holder ensures each specimen receives equivalent time-averaged exposure as it orbits the lamp. The 1r/min rotation rate completes one circuit every 60 minutes, averaging out any residual irradiance non-uniformities. Samples mounted at different radial positions experience identical rotation but may see slightly different irradiance intensities if lamp output shows directional variations. Proper loading balances the holder to prevent wobble that would create distance fluctuations.

Specimen Preparation and Mounting

Sample thickness, backing material, and edge sealing all affect thermal coupling between the specimen and xenon arc weatherometer environment. Thick samples with low thermal conductivity exhibit higher surface temperatures than thin films with good thermal contact. Backing materials should match the intended end-use configuration to reproduce realistic heat transfer. Edge sealing prevents moisture ingress through cut edges that wouldn't occur in actual products, avoiding artificially accelerated degradation at specimen perimeters.

Exposure Angle and Light Incidence

Most xenon arc weatherometers expose samples at perpendicular incidence to maximize UV flux and accelerate aging. This differs from outdoor exposure where time-averaged incident angles vary with solar position and season. Some materials show strong angle-dependent degradation due to anisotropic structure or surface texture. Textiles with directional weave patterns may age differently depending on fiber orientation relative to the incident beam, requiring careful sample positioning for consistency.

Lamp Aging Effects and Maintenance Practices

Xenon Arc Lamp Degradation

The 4500W water-cooled lamp gradually changes output characteristics as electrodes erode and internal gas pressure shifts. Initial run-in produces stabilization after 50-100 hours, followed by gradual spectral drift and intensity decline over 1500-2000 hours of operation. UV output in the 300-400nm band decreases faster than visible wavelengths, changing the spectrum's aging potential. Manufacturers specify lamp replacement intervals based on irradiance monitoring, but spectral measurements provide more complete characterization.

​

Cooling System Maintenance

Water-cooled lamp systems prevent overheating while removing infrared radiation that would otherwise elevate chamber temperature beyond controllable limits. Cooling water quality affects heat transfer efficiency and prevents mineral deposits on quartz envelopes. Distilled or deionized water minimizes scaling, while proper flow rates ensure adequate cooling without excessive turbulence. Temperature differentials between coolant and lamp envelope should remain within design specifications to prevent thermal stress fractures.

Filter Replacement Protocols

Both quartz and borosilicate filters experience cumulative radiation damage that alters transmission characteristics. Solarization effects cause permanent absorption bands to develop, reducing UV transmission and shifting the spectral peak. Manufacturers provide replacement schedules based on cumulative exposure hours, but transmission measurements identify premature degradation. Replacing filters according to these schedules maintains spectral consistency across multiple test campaigns.

Guarantee Precise Data with LIB Industry's Advanced Xenon Arc Weatherometer​

Integrated Control System Features

The programmable color LCD touch screen controller coordinates all test parameters through a unified interface. Real-time monitoring displays irradiance, BPT, chamber temperature, and humidity simultaneously, allowing operators to verify stable conditions before starting exposures. Data logging captures parameter variations throughout extended test cycles, providing documentation for quality systems and regulatory compliance. The controller's closed-loop algorithms adjust heating, cooling, and humidification outputs to maintain setpoints despite ambient laboratory condition changes.

Quality Assurance Capabilities

The XL-S-750C xenon arc weatherometer incorporates design features that enhance test-to-test reproducibility. SUS304 stainless steel interior surfaces resist corrosion from water spray cycles and humid conditions while maintaining cleanliness that prevents contamination. Double-layer thermo-stability silicone rubber sealing on observation windows allows progress monitoring without opening the chamber and disrupting conditions. Interior lighting enables photography and visual inspection during pauses in the exposure cycle.

Standards Compliance and Validation

Compliance with JIS C8912, JIS K 5600-7-7, and JIS K 7350-2 standards ensures the xenon arc weatherometer produces results accepted for regulatory submissions and material specifications. Each standard defines specific spectral requirements, exposure geometries, and control tolerances. Pre-delivery validation testing verifies that irradiance uniformity, temperature control, and humidity stability meet specification limits. Customers receive calibration certificates and performance documentation that support ISO/IEC 17025 laboratory accreditation.

Conclusion

Xenon arc weathering test accuracy emerges from controlling irradiance intensity, spectral distribution, temperature, humidity, and specimen positioning within tight tolerances. Regular calibration, preventive maintenance, and adherence to standardized protocols ensure reproducible results. Lamp aging, filter degradation, and radiometer drift require systematic monitoring and replacement schedules. Advanced weathering systems like LIB Industry's XL-S-750C integrate precise controls and quality features that minimize sources of variability, enabling confident material selection and product development decisions based on accelerated aging data.

FAQ

How often should xenon arc lamps be replaced to maintain test accuracy?

Xenon lamps typically require replacement after 1500-2000 operating hours when UV output degrades beyond acceptable tolerances. Regular radiometer measurements track intensity decline, while spectral analysis confirms wavelength distribution remains within standards. Preventive replacement before complete failure maintains consistent exposure conditions.

What causes differences between xenon weathering results and outdoor exposure?

Accelerated testing concentrates UV exposure and controls moisture cycles that occur randomly outdoors. Temperature cycling patterns, spectral distribution differences, and absence of pollutants create variations. Correlation studies establish acceleration factors for specific materials, typically ranging from 3:1 to 8:1 compared to outdoor exposure.

Can one xenon weatherometer accommodate multiple test standards simultaneously?

Chamber configuration with appropriate filters and programming allows sequential testing to different standards. However, simultaneous testing requires conditions to satisfy the most stringent requirements of all applicable standards. Irradiance levels, temperature ranges, and humidity specifications often differ between standards, necessitating separate test campaigns for rigorous compliance.

Contact LIB Industry for Expert Environmental Testing Solutions

As a leading environmental test chamber manufacturer and supplier, LIB Industry delivers turn-key xenon arc weatherometer systems with comprehensive installation, commissioning, and training support. Reach our technical team at ellen@lib-industry.com for detailed specifications, custom configurations, and application guidance tailored to your testing requirements.

Accelerated weathering tests provide manufacturers with a controlled method to simulate years of outdoor exposure in just weeks or months, revealing potential material weaknesses before products reach the market. By exposing materials to intense light, heat, and moisture cycles using equipment like xenon arc weatherometers, companies can identify degradation patterns that lead to cracking, fading, discoloration, and structural failure. This proactive approach allows engineers to validate material choices, optimize formulations, and implement design changes early in development, significantly reducing the likelihood of costly field failures, warranty claims, and reputation damage while ensuring products meet durability expectations throughout their intended service life.

What Failure Modes Can Accelerated Weathering Reveal Early?

Accelerated weathering chambers excel at uncovering multiple degradation mechanisms that compromise product integrity over time. Understanding these failure modes enables manufacturers to address vulnerabilities before​ mass production begins.

Photodegradation and Color Stability Issues

UV radiation breaks down polymer chains and chromophores in materials, causing yellowing, chalking, and loss of mechanical properties. Xenon arc weatherometers replicate the full solar spectrum, particularly the critical 300-400nm bandwidth where most photochemical reactions occur. Testing under controlled irradiance levels reveals whether coatings, plastics, or textiles will maintain acceptable appearance and performance after prolonged sun exposure.

Thermal Cycling Stress and Dimensional Changes

Temperature fluctuations between -40°C and 100°C simulate diurnal heating and nighttime cooling that materials experience outdoors. These cycles expose coefficient of thermal expansion mismatches between substrates and coatings, leading to delamination, cracking, or warping. Black panel temperature monitoring ensures test conditions accurately reflect real-world surface heating on dark-colored products.

Moisture-Induced Degradation Pathways

Humidity cycling between 30% and 98% RH combined with water spray functions replicates dew formation, rain exposure, and moisture absorption effects. Hygroscopic materials may swell, plasticizers can leach out, and corrosion may initiate at vulnerable interfaces. Testing moisture sensitivity early prevents blistering, adhesion loss, and biological growth issues that develop during outdoor service.

Linking Weathering-Induced Degradation to Field Performance Risks

Translating laboratory test results into real-world failure predictions requires understanding correlation factors between accelerated conditions and actual service environments.​

Establishing Acceleration Factors for Different Climates

The relationship between xenon arc weatherometers hours and outdoor exposure months varies by geographic location, season, and mounting orientation. Materials tested at 150W/m² irradiance may experience acceleration factors ranging from 3:1 to 8:1 compared to typical outdoor conditions. Calibrated radiometers with ±5% tolerance ensure consistent energy delivery, while programmable controllers allow simulation of specific climate profiles matching target markets.

Identifying Critical Degradation Thresholds

Rather than testing to complete failure, engineers establish performance criteria that define acceptable end-of-life conditions. Color change limits, minimum retained tensile strength percentages, or maximum gloss reduction values serve as pass/fail criteria. By monitoring these parameters throughout exposure cycles, teams determine when materials approach critical thresholds that signal impending field failures.

Validating Laboratory Predictions with Field Exposure

Parallel testing programs that expose identical samples both in weathering chambers and outdoor test sites verify correlation accuracy. Florida, Arizona, and other high-intensity locations provide natural exposure benchmarks. Comparing degradation rates between laboratory and field samples refines predictive models and builds confidence in accelerated test protocols.

How Xenon Arc Testing Supports Predictive Reliability Engineering?

Integration of weathering data into reliability frameworks transforms testing from quality control checkpoints into strategic product development tools.

Generating Survival Probability Models

Statistical analysis of multiple sample failures across different exposure durations produces Weibull distributions or other survival curves. These models predict the percentage of products expected to fail after specific service periods under defined environmental conditions. Design teams use this probabilistic information to establish warranty periods and maintenance schedules.

Optimizing Material Formulations Through DOE Approaches

Design of experiments methodology combined with accelerated weathering enables systematic evaluation of formulation variables. Testing matrix variations in stabilizer packages, pigment types, or polymer blends reveals which combinations maximize durability. This data-driven optimization reduces development cycles compared to trial-and-error approaches.

Supporting Root Cause Analysis of Field Failures

When unexpected failures occur after product launch, xenon arc weatherometers recreate suspected environmental stress combinations. Engineers can test whether observed damage patterns match those produced under specific temperature, humidity, and UV exposure sequences. This diagnostic capability accelerates identification of failure mechanisms and supports corrective action development.

Reducing Warranty Claims Through Early Material Validation

Proactive weathering assessment directly impacts financial performance by preventing expensive post-launch quality issues.

Quantifying Cost Avoidance from Prevented Failures

A single product recall or widespread warranty claim event can cost millions in replacement parts, labor, shipping, and reputation damage. Investing several thousand dollars in comprehensive weathering validation during development prevents these exponential costs. Case studies across automotive and construction industries demonstrate return on investment ratios exceeding 100:1 for properly executed testing programs.

Establishing Evidence-Based Warranty Periods

Rather than selecting warranty durations based on competitive pressures or arbitrary timeframes, manufacturers use weathering data to set defensible coverage periods. If testing demonstrates that 95% of samples retain critical properties after simulated five-year exposure, companies can confidently offer matching warranty terms. This evidence-based approach balances customer protection with financial risk management.

Differentiating Products Through Verified Durability Claims

Marketing teams leverage verified weathering performance as competitive advantages. Substantiated claims about fade resistance, weather durability, or extended service life carry more weight than generic statements. Third-party testing certifications based on standardized protocols like JIS K 5600-7-7 for coatings or JIS K 7350-2 for plastics provide additional credibility.

Weatherometers for Aging Testing
​	1. Advanced Xenon Arc Test Chambers   2. ASTM G155 UV Test Chamber   3. Durable Benchtop High Temperature Chamber   4. Constant Temperature Chamber

Integrating Accelerated Weathering into Product Development Cycles

Strategic placement of weathering evaluation within development workflows maximizes value while minimizing timeline impact.​

Stage-Gate Testing at Critical Decision Points

Rather than treating weathering as a final validation step, leading organizations incorporate evaluation at multiple development stages. Concept phase screening tests eliminate obviously unsuitable materials, prototype testing validates selected approaches, and pre-production verification confirms manufacturing consistency. This phased approach catches issues early when changes are least expensive.

Parallel Testing to Compress Development Timelines

Simultaneous testing of multiple formulation candidates in separate chamber zones accelerates comparative evaluation. Modern xenon arc weatherometers with programmable controllers and adjustable sample holders accommodate diverse specimen types. This parallelization approach reduces sequential testing delays that extend time-to-market.

Creating Institutional Knowledge Through Test Libraries

Organizations that systematically archive weathering results build valuable reference databases. When developing new products, engineers compare candidate materials against historical performance data from similar applications. This institutional memory prevents repetition of past mistakes and identifies proven material systems for new applications.

Using Test Data to Improve Material Selection and Design Decisions

Weathering information influences choices beyond simple material approval or rejection decisions.

Balancing Performance Trade-offs with Quantitative Data

Materials rarely excel across all performance dimensions simultaneously. Weathering data quantifies specific trade-offs, such as choosing between a formulation offering superior UV resistance but slightly lower impact strength versus an alternative with opposite characteristics. Design teams make informed compromises based on actual service environment priorities.

Optimizing Protective Strategies for Marginal Materials

When cost constraints or other requirements necessitate using materials with limited inherent durability, weathering tests evaluate protective measures. Engineers assess whether UV-absorbing topcoats, sacrificial barrier layers, or design features like drainage channels and ventilation adequately extend service life. Comparative testing with and without protection measures quantifies effectiveness.

Informing Maintenance Schedule Development

For products requiring periodic maintenance, weathering data establishes optimal service intervals. Testing reveals degradation progression rates, identifying when protective treatments need renewal before critical failure thresholds. This information supports maintenance manuals, service contracts, and lifecycle cost projections.

Proactively Eliminate Risks with LIB Industry's Reliable Xenon Arc Weatherometer

Implementing comprehensive weathering programs requires dependable testing equipment that delivers consistent, reproducible results over extended operational periods.

Advanced Features Supporting Rigorous Testing Protocols

The XL-S-750C xenon arc weatherometer combines precision environmental control with robust construction for demanding industrial applications. The water-cooled 4500W xenon lamp system with inner quartz and outer borosilicate filters accurately replicates the solar spectrum across critical wavelength ranges. Programmable color LCD touch screen controllers enable complex exposure cycles incorporating light/dark periods, temperature ramps, and moisture spray sequences matching specific climate profiles.

​

Ensuring Test Accuracy Through Calibrated Monitoring

Integrated UV radiometers with ±5% tolerance continuously monitor irradiance levels, triggering automatic lamp intensity adjustments to maintain consistent exposure throughout test durations. Black panel temperature sensors with ±2°C accuracy verify that specimen surfaces experience intended thermal conditions. Humidity control maintains relative humidity levels between 30% and 98% RH, enabling realistic moisture cycling.

​

Versatile Application Across Multiple Industries

The 950×950×850mm internal chamber accommodates diverse sample types mounted on rotating holders that ensure uniform exposure. This flexibility serves textile manufacturers validating fabric fade resistance, coating suppliers testing automotive finishes, polymer producers evaluating plastic degradation, and electronics companies assessing outdoor equipment housings. SUS304 stainless steel interior construction with polyurethane foam insulation ensures long-term chamber integrity despite continuous thermal and moisture cycling.

Conclusion

Accelerated weathering testing transforms product development from reactive problem-solving to proactive risk mitigation. By revealing potential failure modes early, correlating laboratory results with field performance, and providing quantitative data for design decisions, xenon arc weatherometers enable manufacturers to deliver more durable products while reducing warranty exposure. Organizations that systematically integrate weathering evaluation throughout development cycles gain competitive advantages through verified performance claims and reduced post-launch quality issues.

FAQ

How long should accelerated weathering tests run to simulate real-world exposure?

Test duration depends on target service life, geographic location, and acceleration factors specific to your material and application. Generally, 1000-2000 hours of xenon arc exposure simulates 1-2 years of outdoor exposure in moderate climates, though correlation studies with field data refine these estimates.

Can xenon arc weatherometers test multiple materials simultaneously?

Modern weathering chambers accommodate multiple specimen types concurrently using adjustable rotating sample holders. This parallel testing capability allows comparative evaluation of different formulations, colors, or protective treatments under identical conditions, accelerating material selection decisions.

What distinguishes xenon arc lamps from other artificial weathering light sources?

Xenon arc lamps produce spectral output closely matching natural sunlight across UV, visible, and infrared wavelengths. This full-spectrum simulation provides more accurate photodegradation assessment compared to fluorescent UV lamps that emphasize narrow UV bands.

Partner with LIB Industry for Superior Environmental Testing Solutions

As a trusted manufacturer and supplier of xenon arc weatherometers, LIB Industry delivers turn-key environmental testing solutions tailored to your validation requirements. Contact ellen@lib-industry.com to discuss how our CE-approved weathering chambers can strengthen your product reliability programs and reduce field failure risks.

Research and development laboratories demand precision, adaptability, and efficiency in their testing environments. Portable thermal chambers have emerged as indispensable tools that address these critical needs while offering substantial operational benefits. These compact, versatile units deliver controlled temperature and humidity conditions ranging from -70℃ to +150℃, enabling comprehensive environmental testing without the spatial and financial constraints of traditional walk-in chambers. Their ability to accelerate product validation cycles, enhance cross-functional collaboration, and provide flexible testing configurations makes them essential assets for modern R&D facilities pursuing innovation across electronics, materials science, pharmaceuticals, and aerospace sectors.

Why Do R&D Teams Require Flexible Thermal Testing Solutions?

Evolving Product Complexity Demands Adaptive Testing

Contemporary product development involves increasingly sophisticated components that operate across diverse environmental conditions. Semiconductor devices, battery systems, and composite materials must demonstrate reliability under thermal stress scenarios that traditional testing infrastructure cannot efficiently replicate. Portable thermal chambers provide the adaptability to quickly adjust testing protocols as product specifications evolve during development cycles.

Budget Constraints and Resource Optimization

Research facilities face ongoing pressure to maximize output while controlling capital expenditures. Large-scale environmental chambers represent significant investments in both acquisition costs and operational expenses. Compact thermal testing units offer cost-effective alternatives that deliver comparable performance within constrained budgets, allowing organizations to allocate resources toward multiple testing stations rather than singular, expensive installations.

Accelerated Time-to-Market Pressures

Competitive markets demand shorter development timelines without compromising quality validation. The ability to conduct parallel testing across multiple portable units significantly reduces bottlenecks that occur when teams must schedule access to shared, centralized testing facilities. This distributed testing capability directly translates to faster iteration cycles and reduced time-to-market intervals.

Rapid Prototyping and Iterative Testing Capabilities

Immediate Accessibility for Design Verification

Portable thermal chambers positioned directly within development workspaces eliminate the logistical delays associated with transporting prototypes to dedicated testing facilities. Engineers can conduct preliminary thermal assessments within minutes of completing design modifications, receiving immediate feedback that informs subsequent iterations. This proximity between design and testing activities fundamentally accelerates the refinement process.

Quick Temperature Transition Performance

Advanced refrigeration systems in modern portable units achieve cooling rates of 1℃/min and heating rates of 3℃/min, enabling rapid thermal cycling protocols. This performance characteristic supports accelerated life testing methodologies where components undergo hundreds of thermal cycles within compressed timeframes, revealing potential failure modes that might otherwise remain undetected until field deployment.

Programmable Testing Sequences

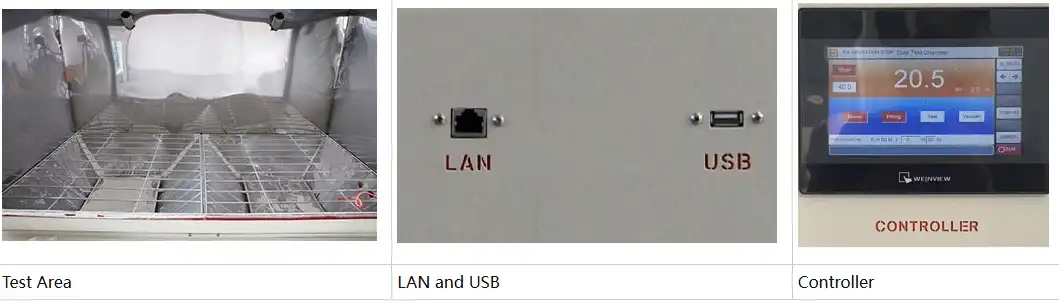

Contemporary controllers featuring color LCD touch screens allow researchers to program complex temperature and humidity profiles that automatically execute multi-stage testing protocols. This automation capability means prototype evaluation can continue unattended during off-hours, effectively extending productive testing time beyond standard work schedules and further compressing development timelines.

Space Efficiency and Modular Test Configurations

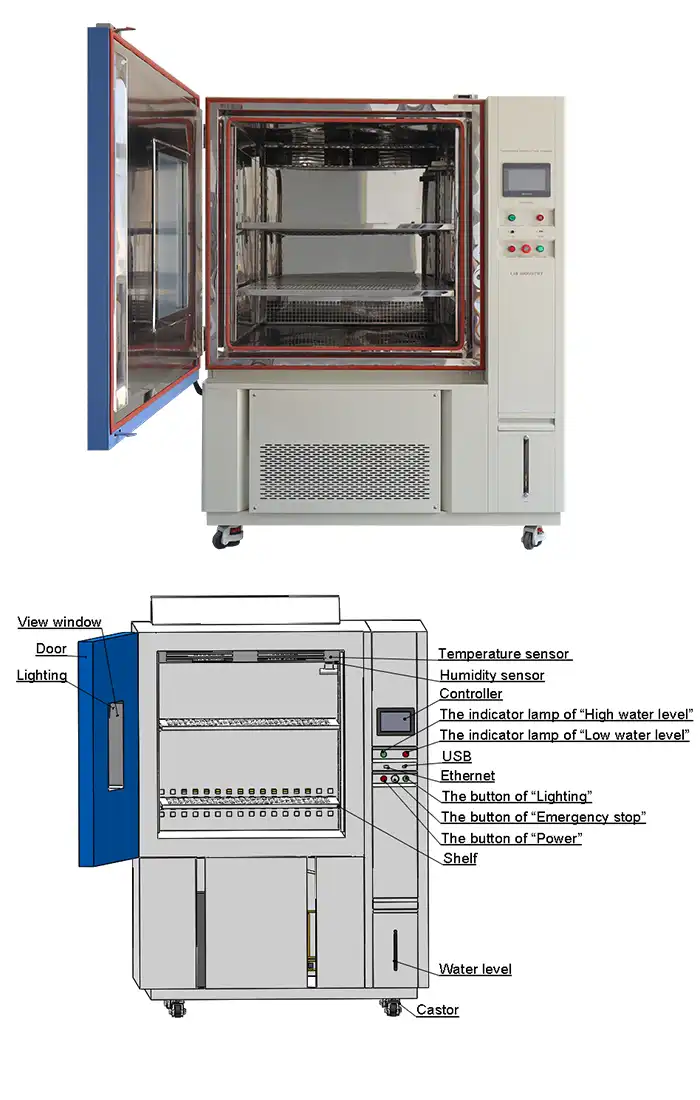

Compact Footprint Optimization

The table above demonstrates how portable thermal chambers deliver substantial testing capacity within minimal floor space, a critical consideration for laboratories operating in urban environments or multi-disciplinary facilities where every square meter carries premium value.

Workbench Integration Advantages

Unlike walk-in chambers that require dedicated floor space and often specialized installation, portable thermal chambers integrate seamlessly into existing laboratory layouts. Researchers can position them adjacent to measurement equipment, assembly stations, or computer workstations, creating cohesive testing ecosystems that enhance workflow efficiency and reduce movement between disparate work zones.

Scalable Testing Infrastructure

Organizations can incrementally expand their testing capabilities by adding portable units as project demands increase, rather than committing to oversized infrastructure based on projected future needs. This modular approach aligns capital investment with actual utilization patterns and provides flexibility to reallocate equipment between departments or projects as priorities shift.

How Portable Thermal Chambers Enable Parallel Testing Workflows?

Multi-Unit Simultaneous Operations

Research teams developing product families or conducting comparative studies across material variants benefit enormously from operating multiple thermal chambers concurrently. Where a single large chamber might accommodate only one comprehensive test protocol at a time, three or four portable units can simultaneously evaluate different configurations, multiplying the effective testing throughput.

Dedicated Test Station Assignments

Specialized research groups focusing on specific failure modes or environmental conditions can maintain permanently configured testing stations tailored to their recurring requirements. Electronics reliability teams might dedicate one unit to thermal shock protocols while materials scientists configure another for extended humidity exposure studies, eliminating the setup time and cross-contamination risks associated with shared equipment.

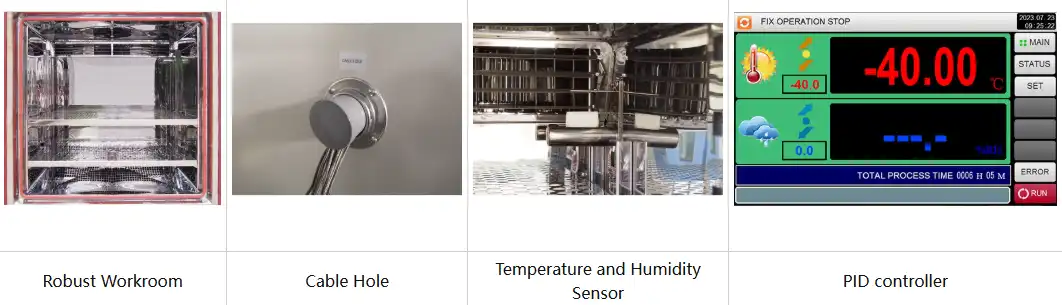

Cable Hole	Controller	Temperature and HUmidity Sensor

Reduced Scheduling Conflicts

Centralized testing facilities often become organizational bottlenecks where multiple teams compete for limited chamber availability. Distributed portable units assigned to individual departments or project teams eliminate these scheduling conflicts, ensuring that critical testing phases proceed according to project timelines rather than equipment availability calendars.

Improved Collaboration Between Design and Test TeamsPhysical Proximity Enhances Communication

When portable thermal chamber resides within design laboratories rather than isolated testing departments, spontaneous collaboration becomes the norm. Engineers observing unexpected test results can immediately consult with designers, examining the physical prototype while reviewing thermal performance data, leading to more accurate root cause identification and solution development.

Real-Time Problem-Solving Opportunities

The ability to quickly retest after implementing design modifications creates tight feedback loops that accelerate problem resolution. Rather than waiting days for retesting appointments in shared facilities, teams can validate corrective actions within hours, maintaining project momentum and preventing the frustration that accompanies prolonged uncertainty about solution effectiveness.

Cross-Functional Knowledge Transfer

Design engineers gain deeper understanding of how their decisions impact thermal performance when they directly operate testing equipment and witness results firsthand. This experiential learning creates more thermally-aware designers who anticipate potential issues during initial concept development, reducing the number of design iterations required to achieve acceptable performance.

Enhancing Data Collection During Early-Stage DevelopmentEthernet Connectivity and Data Integration

Modern portable thermal chambers equipped with network connections integrate seamlessly into laboratory information management systems. Temperature, humidity, and test duration data automatically transfer to centralized databases where researchers can correlate thermal exposure with material property changes, component degradation rates, or performance metric variations, building comprehensive knowledge repositories.

Observation Window Documentation

Double-layer thermally-stable observation windows combined with interior lighting enable visual monitoring and photographic documentation of specimen behavior during testing. Researchers can capture high-resolution images of condensation patterns, material deformation, or component failure sequences without interrupting controlled environmental conditions, preserving the integrity of experimental data.

Cable Port Integration for In-Situ Monitoring

Standard cable holes (Φ50mm/100mm/200mm) with specialized plugs allow researchers to route measurement leads into the chamber while maintaining environmental integrity. This capability supports real-time electrical characterization, thermal imaging, or sensor data acquisition during exposure cycles, dramatically enriching the dataset beyond simple pass-fail determinations.

High-Precision Environmental Control

Maximize R&D Agility with LIB Industry's Compact and Reliable Portable Thermal ChamberEnvironmental Refrigerant Compliance

Sustainability considerations increasingly influence laboratory equipment selection decisions. LIB Industry portable thermal chambers utilize environmentally responsible refrigerants that comply with international regulations while delivering the performance characteristics researchers require. This forward-looking design approach protects organizations from premature equipment obsolescence as environmental standards continue evolving.

Comprehensive Safety Architecture

Multiple protection systems including humidifier dry-combustion protection, over-temperature protection, over-current protection, refrigerant high-pressure protection, water shortage protection, and earth leakage protection ensure safe unattended operation. These redundant safety features provide peace of mind when running extended duration tests overnight or during weekends, maximizing equipment utilization without requiring continuous supervision.

Durable Construction Standards

Interior chambers fabricated from SUS304 stainless steel with mirror-surface finishing resist corrosion from moisture exposure and temperature extremes, ensuring long-term dimensional stability and cleanliness. Exterior steel plates with protective coating combined with polyurethane foam and insulation cotton thermal barriers deliver energy-efficient operation that minimizes operational costs while maintaining precise environmental control.

Turnkey Solution Provider Advantages

LIB Industry's comprehensive approach encompasses research, design, production, commissioning, delivery, installation, and training, ensuring that portable thermal chambers integrate seamlessly into existing laboratory operations. This end-to-end support model reduces implementation risks and accelerates the transition from equipment acquisition to productive testing operations.

Conclusion

Portable thermal chambers represent transformative investments for R&D laboratories seeking to enhance testing agility, reduce development timelines, and optimize resource utilization. Their compact configurations, rapid thermal cycling capabilities, and flexible deployment options address the evolving demands of contemporary product development across diverse industries. Organizations that strategically integrate these versatile testing platforms position themselves to respond more effectively to market opportunities while maintaining the rigorous validation standards that ensure product reliability and customer satisfaction.

FAQs
1. What temperature range capabilities should R&D labs prioritize when selecting portable thermal chambers?

Selection depends on application requirements. Electronics testing typically needs -40℃ to +150℃ ranges, while specialized materials research may require -70℃ capabilities. Consider both current testing protocols and potential future applications when specifying temperature ranges to ensure long-term equipment utility.

2. How do portable thermal chambers compare to walk-in chambers regarding testing capacity and flexibility?

While walk-in chambers offer larger test volumes, portable units provide superior flexibility through parallel testing capabilities, proximity to design workspaces, and modular scalability. Multiple portable chambers often deliver higher aggregate throughput than single large installations while requiring significantly lower capital investment.

3. Can portable thermal chambers integrate with existing laboratory data management systems?

Contemporary units feature Ethernet connectivity and programmable controllers that support network integration. This capability enables automatic data logging, remote monitoring, and seamless incorporation into laboratory information management systems, enhancing documentation compliance and facilitating comprehensive data analysis across multiple testing programs.

Ready to enhance your R&D testing capabilities? LIB Industry, a leading portable thermal chamber manufacturer and supplier, delivers customized environmental testing solutions tailored to your specific requirements. Contact us at ellen@lib-industry.com to discuss how our compact, reliable thermal chambers can accelerate your development workflows.
