Small Climatic Chambers for Electronics Environmental Testing

February 3, 2026

Electronic devices operate in diverse environments - from freezing warehouses to tropical manufacturing floors, from air-conditioned offices to humid coastal facilities. A small climatic chamber provides controlled temperature and humidity conditions to validate whether electronics can withstand these real-world scenarios. These compact testing systems simulate extreme environmental stresses, revealing potential failures before products reach consumers. By exposing components to accelerated aging cycles, manufacturers identify weaknesses in circuit boards, connectors, displays, and semiconductors. This preventive approach reduces warranty claims, enhances brand reputation, and ensures compliance with international quality standards across automotive, aerospace, telecommunications, and consumer electronics sectors.

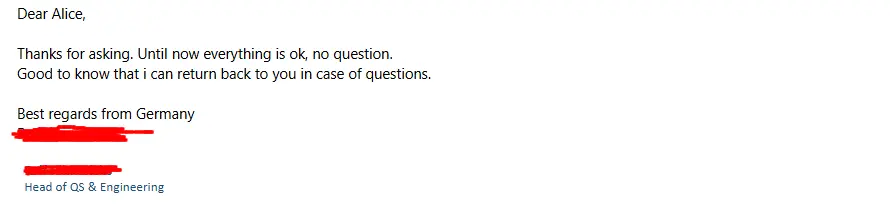

This feedback comes from a customer who uses our compact climatic chambers to test electronic products in real-world environments. Their positive experience reflects the reliability and precision of our testing solutions, giving confidence to manufacturers in automotive, aerospace, telecommunications, and consumer electronics sectors.

blog-1-1​​​​​​​



Why Environmental Testing Is Critical for Electronics Reliability?


Preventing Field Failures Through Controlled Simulation

Electronic products face unpredictable environmental conditions throughout their lifecycle. Temperature fluctuations cause expansion and contraction in solder joints, potentially creating microcracks that lead to intermittent failures. Humidity accelerates corrosion on exposed metal contacts and degrades insulation materials. Without rigorous environmental testing, these vulnerabilities remain hidden until devices fail in customer hands, triggering expensive recalls and damaging manufacturer credibility.

Meeting Regulatory Compliance Requirements

Global markets impose stringent environmental testing standards. IEC 60068 series defines temperature and humidity test methods for electronic equipment. Military specifications like MIL-STD-810 require extreme condition validation. Automotive electronics must pass AEC-Q100 qualification tests. Medical devices need FDA compliance verification. A small climatic chamber enables manufacturers to demonstrate conformity with these regulations, opening access to international markets while avoiding costly compliance violations.

Reducing Product Development Cycles

Traditional reliability testing requires months of real-world exposure to accumulate sufficient environmental stress data. Climatic chambers compress this timeline by applying accelerated stress conditions. A 48-hour thermal cycling test can simulate years of seasonal temperature variations. This acceleration allows engineering teams to iterate designs rapidly, identify material incompatibilities early, and optimize protective coatings before committing to mass production tooling.



Common Failure Modes in Electronic Components Due to Temperature and Humidity


Thermal Stress-Induced Mechanical Failures

Coefficient of thermal expansion (CTE) mismatches between materials cause predictable failure patterns. Silicon chips expand differently than organic substrates, creating shear stress at solder interfaces during temperature cycling. Ball grid array (BGA) packages exhibit crack propagation after repeated thermal excursions between -40°C and +125°C. Flexible printed circuits delaminate when adhesive layers lose bonding strength under thermal fatigue. These mechanical failures manifest as open circuits, intermittent connections, or complete component detachment.

Moisture-Related Degradation Mechanisms

Humidity penetration compromises electronics through multiple pathways. Water molecules diffuse through conformal coatings and encapsulants, reaching sensitive circuit traces. Electrochemical migration occurs when moisture creates conductive paths between adjacent conductors under electrical bias, causing short circuits. Corrosion attacks exposed copper traces, connector pins, and bond wires. Popcorn cracking affects moisture-absorbed plastic packages during reflow soldering, creating internal delamination that degrades thermal performance and mechanical strength.

Combined Temperature-Humidity Synergistic Effects

The most severe degradation occurs when temperature and humidity stresses combine. Condensation forms when warm, humid air contacts cold electronic assemblies, depositing water droplets directly onto circuitry. This condition accelerates corrosion rates exponentially compared to dry environments. Hygroscopic materials like polyimide films absorb moisture at elevated temperatures, then undergo dimensional changes during cooling cycles. Thermal shock combined with high humidity creates the harshest test conditions, rapidly exposing design weaknesses.



Key Parameters in Climatic Chamber Testing for Electronics


Parameter

Typical Range

Critical Impact

Temperature Range

-40°C to +150°C

Validates operation across consumer, industrial, military specifications

Humidity Control

20% to 98% RH

Simulates coastal, tropical, and controlled storage environments

Ramp Rate

1-5°C/min

Controls thermal shock severity and stress accumulation speed

Temperature Uniformity

±0.5°C

Ensures consistent exposure across multiple test samples

Recovery Time

<30 minutes

Maximizes testing throughput and reduces cycle duration

benchtop temperature and humidity chamberblog-15-15benchtop temperature and humidity chamberblog-15-15

Temperature Setpoint Accuracy and Stability

Precision temperature control determines test validity and repeatability. Modern mini thermal chambers employ PT100 Class A sensors with 0.001°C resolution, maintaining setpoint accuracy within ±0.3°C. This precision matters critically when validating semiconductor junction temperatures or testing near material transition points. PID control algorithms prevent overshoot during heating and undershoot during cooling, maintaining stable conditions throughout extended test cycles.

Humidity Generation and Measurement Systems

Accurate humidity control requires sophisticated water vapor management. Ultrasonic humidification systems generate fine mist particles that evaporate quickly, achieving rapid humidity ramps. Capacitive humidity sensors with ±2.5% RH accuracy monitor chamber conditions continuously. Automatic dehumidification prevents condensation during temperature transitions. The balance between humidification capacity and chamber volume determines how quickly conditions stabilize after setpoint changes.

Airflow Distribution and Sample Positioning

Uniform environmental exposure across all test samples depends on strategic air circulation design. Centrifugal fans create laminar airflow patterns that minimize temperature gradients. Adjustable shelving allows optimal sample spacing to prevent airflow blocking. Corner-to-corner temperature deviation should remain below ±2°C even with full chamber loading. Proper sample positioning ensures representative testing results and prevents localized hot spots or cold zones.



Test Cycles for Accelerated Electronics Aging


Thermal Cycling Protocols

benchtop temperature and humidity chamber

Thermal cycling subjects electronics to repeated temperature extremes, simulating years of seasonal variations. A typical automotive qualification cycle alternates between -40°C and +85°C with 30-minute dwell times at each extreme. Consumer electronics testing might cycle between -20°C and +60°C for 500 cycles. The transition rate between temperatures controls stress accumulation - slower ramps allow thermal equilibration, while rapid transitions (thermal shock) intensify mechanical stress on materials.

Temperature-Humidity Bias Testing

This combined stress test applies electrical bias to components while exposing them to elevated temperature and humidity. Conditions like 85°C/85% RH for 1000 hours reveal electrochemical migration susceptibility and moisture-related degradation. Power cycling during environmental stress accelerates failure mechanisms by adding electrical stress to thermal-mechanical fatigue. This approach efficiently identifies voltage-dependent failure modes that pure environmental testing might miss.

Operational Life Testing Under Environmental Stress

Real-world reliability requires validating electronics while functioning under environmental stress. Small climatic chambers accommodate powered test fixtures that monitor electrical parameters continuously during environmental exposure. This operational testing reveals temperature-dependent drift in analog circuits, humidity effects on high-impedance measurements, and thermal runaway conditions in power electronics. Automated data logging captures performance degradation trends that inform reliability predictions.



Data Analysis and Performance Evaluation Post-Testing


Measurement Category

Pre-Test Baseline

Post-Test Verification

Acceptance Criteria

Electrical Parameters

Voltage, current, resistance

Functional operation at specifications

<5% deviation from baseline

Physical Inspection

Visual appearance documentation

Solder joint integrity, discoloration

No cracks, corrosion, or delamination

Mechanical Properties

Connector insertion force, seal integrity

Component attachment strength

Maintains 80% of original force

Statistical Failure Analysis Methods

Weibull distribution analysis quantifies reliability from environmental test data. By plotting failure times against cumulative failure probability, engineers calculate characteristic life and shape parameters. These metrics predict field failure rates and establish warranty reserve requirements. Accelerated testing requires Arrhenius equation modeling to extrapolate high-temperature results to operating conditions. The activation energy for each failure mechanism determines the appropriate acceleration factor for lifetime predictions.

Comparative Performance Benchmarking

Environmental testing generates comparative data across design variations, material suppliers, and manufacturing processes when conducted in a small climatic chamber. A systematic approach tests multiple samples from each configuration under identical conditions, enabling statistical significance determination. Analysis of variance (ANOVA) identifies which design parameters most significantly impact environmental robustness. This data-driven approach guides material selection, coating thickness optimization, and assembly process refinement.

Documentation and Traceability Requirements

Comprehensive test documentation satisfies regulatory audits and customer qualification requirements. Chamber calibration certificates verify instrument accuracy. Time-stamped temperature and humidity logs demonstrate actual exposure conditions. Photographic evidence of pre-test and post-test sample condition supports failure analysis. Chain-of-custody records track samples from initial selection through final disposition, ensuring result validity and enabling failure investigation.



Improving Electronic Product Quality Through Environmental Testing


Design Validation and Optimization

Environmental testing during prototype stages reveals design vulnerabilities before production investment. Thermal imaging during temperature cycling identifies inadequate heat dissipation paths. Humidity testing exposes insufficient conformal coating coverage. These insights drive design iterations - adding thermal vias, improving sealing gaskets, or selecting moisture-resistant materials. Investing in early-stage validation prevents expensive production changes and field failures.

Supplier Quality Assurance Programs

Component qualification testing verifies that supplier materials meet environmental specifications. Incoming inspection programs subject random samples to abbreviated environmental stress screening. Comparative testing between approved suppliers identifies performance differences that justify procurement decisions. Long-term supplier monitoring detects process drift through periodic requalification testing, maintaining consistent component quality across production lifetimes.

Manufacturing Process Validation

Environmental testing validates production processes themselves. Reflow profile optimization requires testing solder joint integrity after thermal cycling. Conformal coating application quality verification needs humidity exposure validation. Automated optical inspection (AOI) accuracy can be verified by intentionally creating environmental stress failures and checking detection rates. Process capability studies use environmental test results as critical-to-quality outputs.



High-Precision Electronics Testing with LIB Industry Small Climatic Chambers


Compact Footprint with Laboratory-Grade Performance

The TH-50 and TH-80 models deliver professional environmental testing capabilities within space-constrained facilities. These chambers occupy minimal benchtop space while providing 50L to 80L testing volume - sufficient for circuit boards, assembled devices, and component characterization. The 820mm × 1160mm × 950mm footprint fits standard laboratory layouts without requiring dedicated floor space. Despite compact dimensions, these systems achieve -70°C to +150°C temperature range with ±0.5°C stability.

Advanced Control Systems for Reproducible Results

Programmable touchscreen controllers enable complex test profile creation without external programming in a small environmental chamber. Multi-segment cycling programs store up to 100 steps with independent temperature, humidity, and duration settings. Ethernet connectivity allows remote monitoring and data export for compliance documentation. Real-time graphing displays chamber conditions alongside sample temperature measurements from auxiliary inputs, providing comprehensive test visualization.

Comprehensive Safety Architecture

Multiple protective systems ensure operator safety and prevent equipment damage. Over-temperature protection immediately halts heating if control sensors fail. Refrigerant high-pressure switches prevent compressor damage. Water shortage detection stops humidification before dry-combustion occurs. Earth leakage protection guards against electrical hazards. These redundant safety mechanisms enable unattended overnight testing with confidence.

Global Support Infrastructure

LIB Industry maintains service centers across North America, Europe, and Asia-Pacific regions, providing localized technical support and spare parts availability. Three-year comprehensive warranties cover parts and labor, with lifetime service support extending beyond warranty periods. Application engineering assistance helps customers develop appropriate test protocols for specific electronics categories, ensuring testing relevance and regulatory compliance.

benchtop temperature and humidity chamberblog-15-15



Conclusion


Environmental testing with small climatic chambers transforms electronics reliability from reactive warranty management to proactive quality assurance. By systematically exposing components to temperature and humidity stresses, manufacturers identify vulnerabilities during development rather than discovering failures in customer applications. The controlled acceleration of aging mechanisms compresses months of real-world exposure into days of laboratory testing, enabling rapid design iterations and material optimization. Comprehensive documentation from environmental testing satisfies regulatory requirements while providing quantitative reliability data that informs warranty policies and market positioning.



FAQ


What temperature range should I specify for consumer electronics testing?

Consumer electronics typically require -20°C to +60°C range for normal applications. Extended temperature variants need -40°C to +85°C capability. Industrial and automotive applications demand -40°C to +125°C ranges to validate performance across operational extremes and storage conditions.

How does chamber volume affect testing capacity and results?

Larger chambers accommodate more samples or bigger assemblies but require longer stabilization times after door openings. The TH-50's 50L volume balances sample capacity with rapid temperature recovery. Proper sample spacing (minimum 50mm between samples and walls) ensures uniform exposure regardless of chamber size.

Can small climatic chambers test powered electronics during environmental exposure?

Absolutely. The standard 50mm cable port accommodates power leads and measurement connections. The 1000W heat load capacity handles operational power dissipation from multiple powered devices. External data acquisition systems monitor electrical parameters throughout environmental cycling without interrupting test conditions.



Contact LIB Industry, Your Trusted Small Climatic Chamber Manufacturer and Supplier


Enhance your electronics testing capabilities with precision-engineered environmental chambers. Our factory delivers customized solutions backed by global service support. Reach our technical team at ellen@lib-industry.com for application-specific recommendations and quotations.

References

1. International Electrotechnical Commission. (2019). Environmental Testing - Part 2-78: Tests - Test Cab: Damp Heat, Steady State. IEC 60068-2-78 Standard.

2. Military Standard. (2019). Environmental Engineering Considerations and Laboratory Tests. MIL-STD-810H, Department of Defense Test Method Standard.

3. Automotive Electronics Council. (2020). Failure Mechanism Based Stress Test Qualification for Integrated Circuits. AEC-Q100 Qualification Standard, Rev H.
