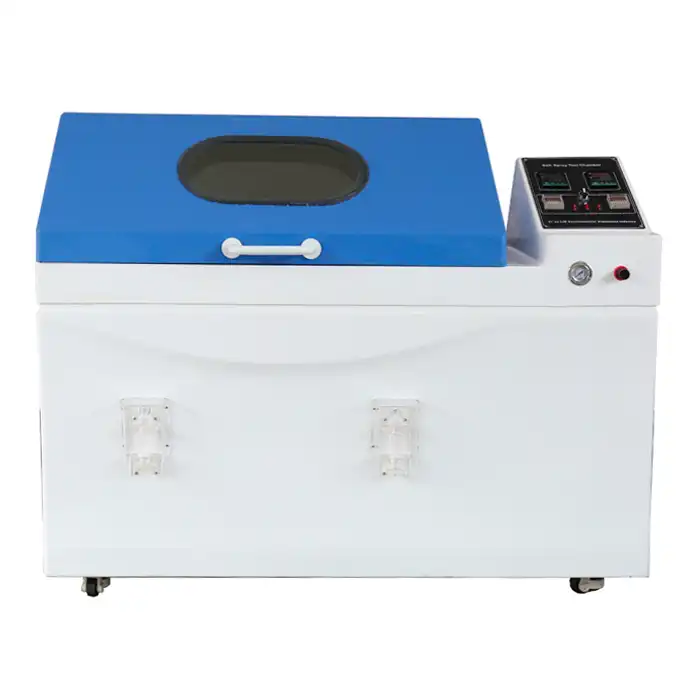

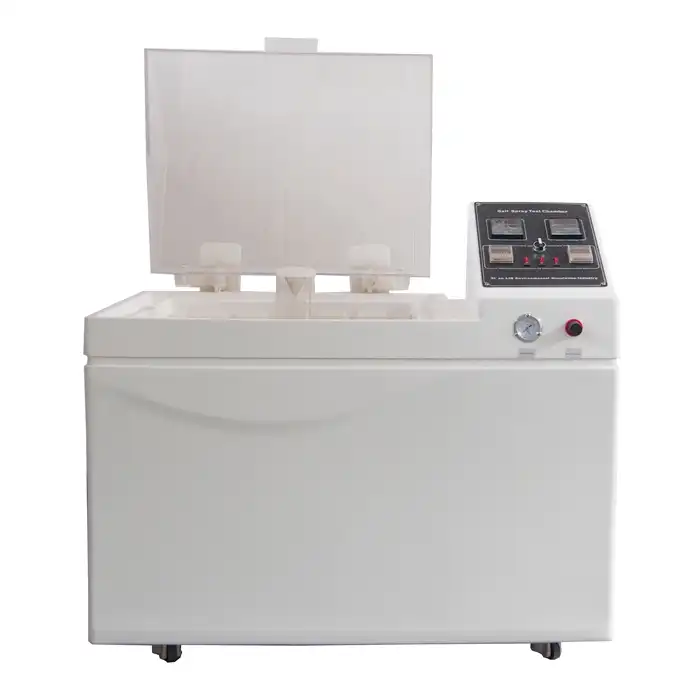

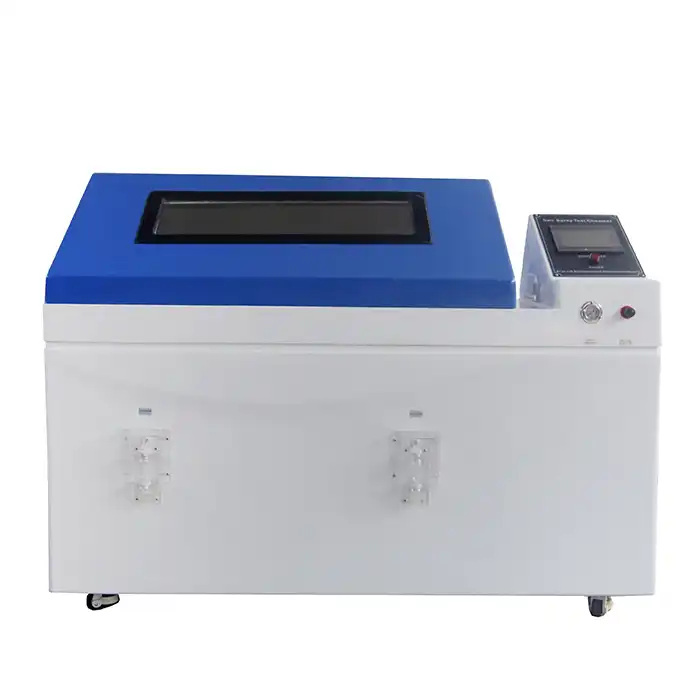

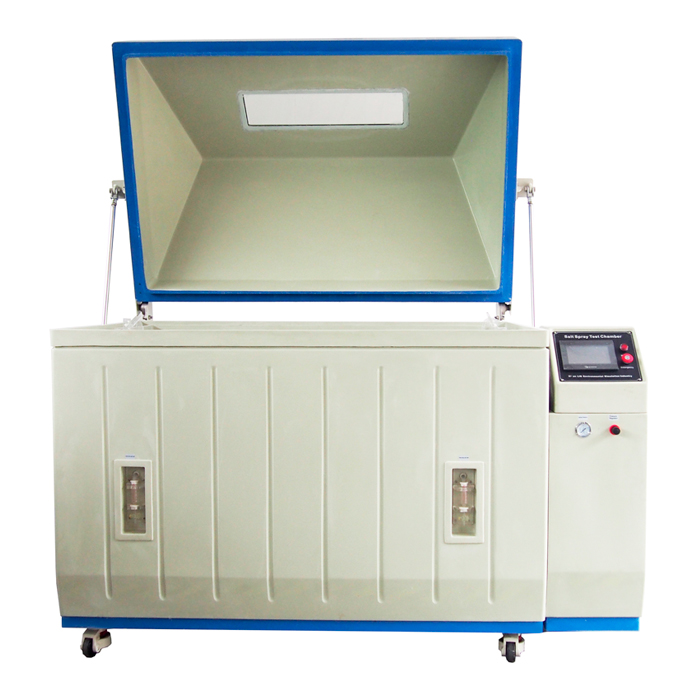

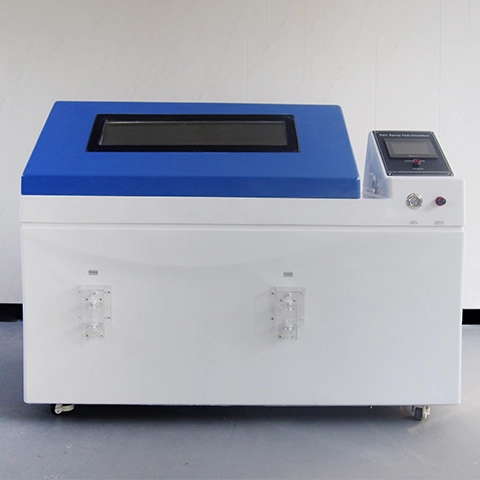

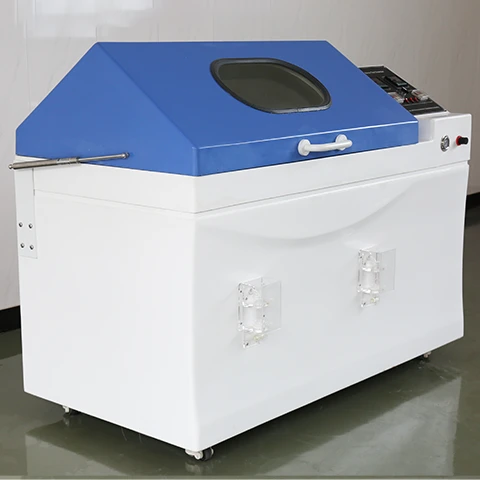

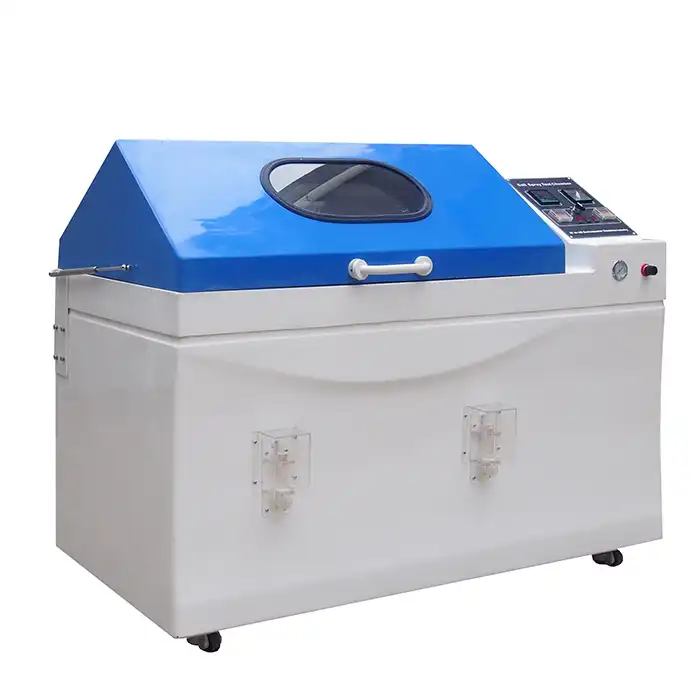

Salt Spray Test Equipment
Temperature Range:Ambient: ～ +60 ℃
Humidity Range:95% ~ 98% RH
Temperature Deviation:± 2.0 ℃
Salt Fog Deposition:1～2ml / 80cm2 · h
Spray Type: Continuous / Periodic
Materials: Glass fiber reinforced plastics
Salt Spray Test Equipment Manufacturer & Supplier
The LIB industry's salt spray test equipment is used to evaluate the corrosion resistance of materials and coatings. It simulates the harsh conditions of salt water environments to assess the durability and performance of coating products.

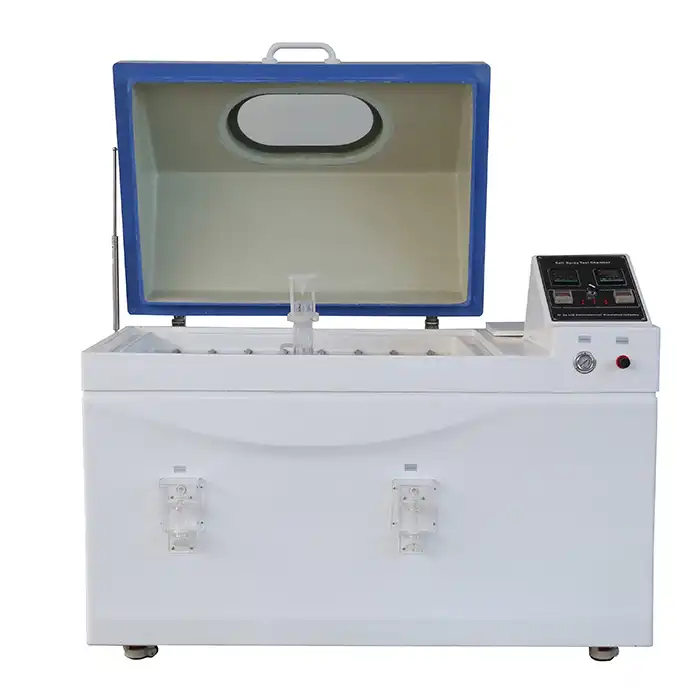

The equipment includes V-shaple sample holders and round bars to place the test specimens inside the chamber. These racks ensure proper exposure of the samples to the salt spray mist.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|

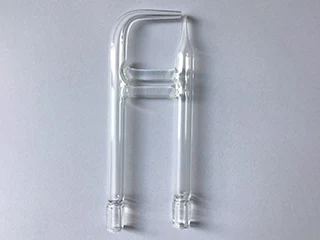

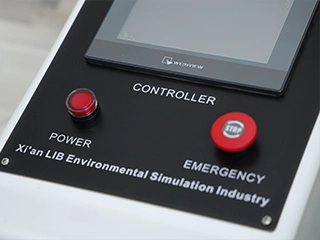

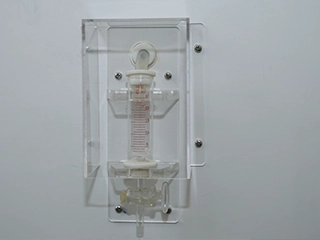

| Controller PID control system Language can be selected, English/French/Spanish/German/Russian | Salt Spray Device Salt spray nozzles are easy to clean and resistant to high temperatures, corrosion, and clogging | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions |
|
|
Advanced Technology for Precise Testing
1. Uniform Spray Distribution System
Our accuracy quartz glass spouts anticipate clogging and crystallization. The splash tower plan guarantees indeed salt mist dissemination over the whole chamber. You'll get steady comes about notwithstanding of test positioning.
2. Professional Grade Components
We integrate premium components for reliable operation:
· OMRON relays for precise control
· Schneider contactors for durability
· Danfoss electromagnetic valves
· RKC temperature controllers
These brand-name parts guarantee simple upkeep and long-term accessibility of save components.
3. Intelligent Control Features
The advanced PLC control system offers:
· Automatic salt water filtration
· One-touch fog removal after testing
· Real-time pressure and temperature monitoring
· Programmable test cycles
Why Choose Our Salt Spray Test Equipment?
1. Professional Quality Assurance
Following ISO 9001 Quality Management System, our equipment undergoes rigorous testing by SGS and TUV. Every Salt Spray Test Equipment receives CE certification, guaranteeing compliance with international standards and stable performance you can trust.
2. Comprehensive After-Sales Support
We give a 3-year guarantee with lifetime benefit bolster. Our 24/7 worldwide help guarantees negligible downtime. If repair isn't conceivable amid guarantee, we'll supplant your hardware completely—giving you add up to peace of mind.
3. Customization Capabilities
Our designing group specializes in non-standard plans and custom arrangements. Whether you require particular chamber measurements, different test zones, or SO₂ gas erosion capabilities, we'll tailor gear to your correct requirements.
