salt spray testing machine
Temperature Range:+10 ℃ ～ +90 ℃
Humidity Range:30% ~ 98% RH
Temperature Deviation:± 2.0 ℃
Humidity Deviation:+2%, -3%
Salt Fog Deposition:1～2ml / 80cm2 · h
Cooling system Mechanical compression refrigeration system
- Product Description

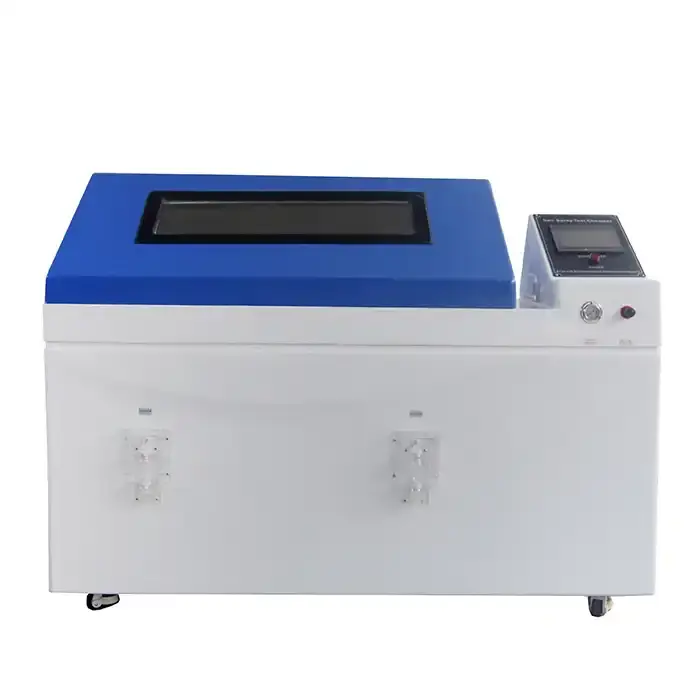

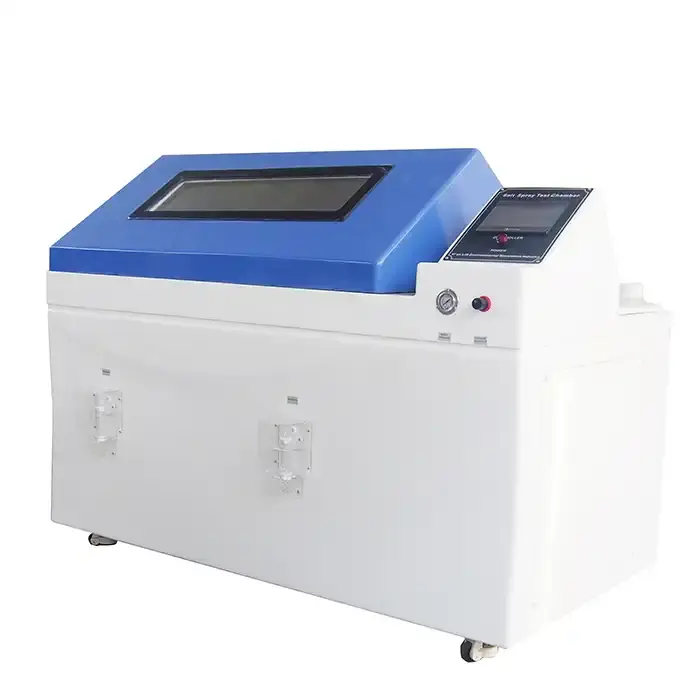

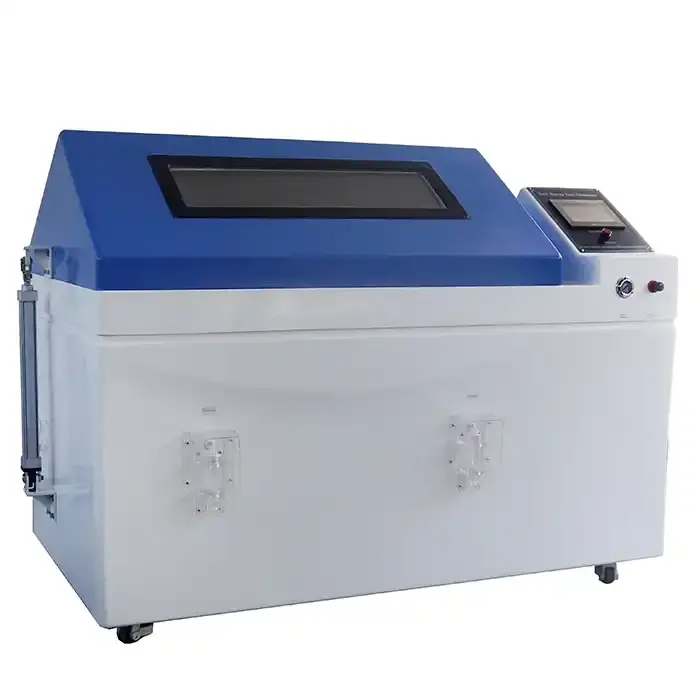

LIB Industry salt spray testing machine Manufacturer & Supplier
LIB Industry salt spray testing machine, is the testing equipment used to simulate and evaluate the corrosion resistance of materials and coatings. It creates a controlled environment where a saline solution (saltwater) is atomized and sprayed onto the test samples to accelerate the corrosion process. The test samples, which can be metals, coatings and paint are placed inside the cabinet and exposed to the salt fog for a predetermined period of time. The salt spray testing machine is designed to evaluate the rust-resistant properties of parts that have undergone surface treatments such as electroplating, coating, and anodizing. By using a mist of salt water to accelerate corrosion, this tester can quickly assess the rust-proof capabilities of specimens. It is widely used in industries such as hardware, screws, and electroplating, as well as in research organizations.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|
| Controller Network connection computer. Language can be selected, English/French/Spanish/German/Russian | Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions |
|  |
Salt Spray Testing Machine Features
1. Spray Uniformity Technology
Your testing exactness depends on reliable salt fog dispersion. Our double weight direction framework controls both discuss admissions and shower weight, guaranteeing uniform scope over all test positions. The exactness quartz glass spouts anticipate crystallization and clogging whereas keeping up fine, equitably conveyed splash particles.
2. Long-Term Structural Durability
The chamber withstands cruel destructive situations through strengthened fiberglass development. Our consistent welding handle avoids salt water spillage into electrical frameworks. The water seal plan successfully squares salt mist elude, ensuring your other research facility equipment.
3. User-Friendly Operation
You'll appreciate the mechanized salt water arrangement and filtration framework that decreases defilement dangers. The clear beat cover highlights pneumatic bolster arms and one-touch defogging to anticipate salt splash introduction amid operation. The natural touchscreen controller bolsters multi-stage programming with real-time information logging.
4. Advanced Control & Monitoring
The high-precision temperature control keeps up 35±2°C with nonstop operation vacillations ≤±0.5°C. You can screen pH levels precisely inside indicated ranges utilizing built-in PT100 A-grade sensors. The framework gives real-time information recording and USB trade capabilities for comprehensive test documentation.
Multiple chamber volumes oblige both small-batch R&D testing and large-scale generation approval. The adaptable test rack framework bolsters different example sizes whereas avoiding shadowing impacts amid testing.
Why Choose Our Salt Spray Testing Equipment
1. Professional Quality Assurance
You advantage from our strict ISO 9001 quality administration framework. All items carry CE certification and experience third-party testing by SGS and TUV. This guarantees universal standard compliance, steady execution, and tall unwavering quality for your testing requirements.
2. Comprehensive After-Sales Support
Every salt fog test machine includes a 3-year warranty with lifetime service coverage. We provide 24/7 global support, and if repairs aren't possible within warranty, you receive a brand-new replacement unit—giving you complete peace of mind.
3. Advanced Customization Capabilities
Our solid skill in non-standard plan and custom R&D implies you get custom fitted arrangements. We adjust hardware determinations to meet your particular application needs and convey ideal comes about for your industry requirements.
