controlled environment chamber
Name: humidity test chamber
Model: TH-100
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Refrigerant: Environmental refrigerant;
- Product Description
High-Precision Controlled Environment Chamber for Professional Testing
LIB Industry controlled environment chamber allows testing of products under controlled temperature and humidity conditions. They consist of an insulated enclosure with a humidity generator and temperature control system. Our progressed controlled environment chamber give the correct natural conditions you require, whether you're conducting pharmaceutical steadiness testing, hardware unwavering quality appraisal, or materials inquire about. With temperature exactness inside ±0.5°C and mugginess exactness of ±2.5%RH, you can believe our gear to keep up the strict parameters your ventures demand.
75+ Different models for choose. This controlled environment chambers come in two types including reach-in chambers and walk-in chambers. Extended choice of options fitted to your testing. You can select your chamber from the door, refrigeration system, controller, language and so much more. Provide temperature, climate, vibration, corrosion, altitude, pressure combined test.
Technical Specifications of Controlled Environment Chamber
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Controlled Environment Chamber Details
|
|
|

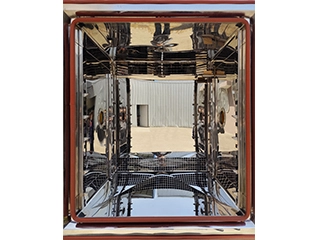

Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | Mirror Stainless Steel SUS304 Workroom Corrosion-resistant stainless steel walls, integrated sensors for accurate monitoring. Adjustable shelves and tempered observation windows allow flexible sample placement and easy inspection. | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Global Premium Components You Can Trust
We believe in transparency about what goes into your investment. Every climate chamber we manufacture includes premium components sourced globally:
· Compressor: French Tecumseh for reliable cooling performance
· Controller: Japanese Shinko or German Siemens for precise automation
· Sensors: Finnish Vaisala for accurate environmental monitoring
· Refrigeration System: Cascade or single-stage options based on your temperature requirements
This component selection ensures you'll find replacement parts worldwide and enjoy consistent performance throughout your chamber's lifetime.
Data Compliance & Digital Management
Modern laboratories require more than just environmental control—they need comprehensive data management. Our chambers include:
· Audit Trail Compliance: Meets FDA 21 CFR Part 11 requirements for pharmaceutical applications
· Multi-Interface Connectivity: USB and Ethernet ports for seamless data transfer
· Multilingual Support: Control systems available in 10+ languages
· Report Generation: Automatic PDF and Excel export capabilities with tamper-proof data logging
Your research integrity depends on traceable, reliable data. Our systems deliver exactly that.
Flexible Configuration Options
Every application is unique. That's why we offer extensive customization options:
· Internal viewing cameras for remote monitoring
· Reinforced shelving for heavy samples
· Multiple cable ports in various diameters
· Explosion-proof designs for battery testing
· Custom chamber dimensions to fit your space
· Specialized lighting systems for photostability testing
Why Choose LIB Environmental Chambers?
Professional Quality Assurance
Following strict ISO 9001 Quality Management System protocols, every chamber undergoes comprehensive testing by third-party authorities including SGS and TUV. Your equipment arrives CE certified and ready for immediate use.
Comprehensive After-Sales Support
We stand behind our products with a 3-year warranty and lifetime service commitment. Our 24/7 global support team provides video troubleshooting within 24 hours. If repair isn't possible during the warranty period, we'll provide a brand-new replacement unit.
Proven Track Record
Since 2009, we've served over 60 countries and established partnerships with industry leaders including Apple, IBM, Amazon, Intel, Mercedes-Benz, and BYD. Our global network includes 29 agents and service centers in Malaysia, Canada, the UK, and the US.
Get Started Today
Ready to experience the precision and reliability that comes with a professional controlled environment chamber? Contact us: ellen@lib-industry.com.
