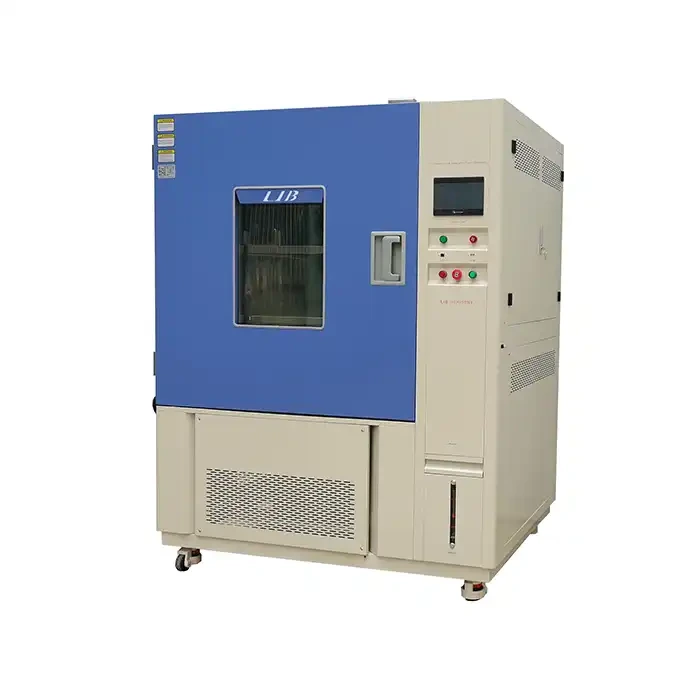

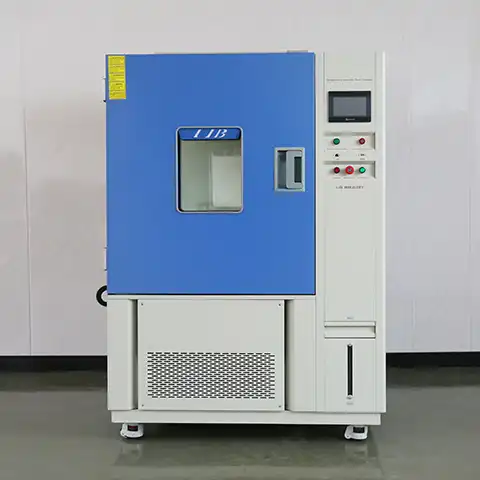

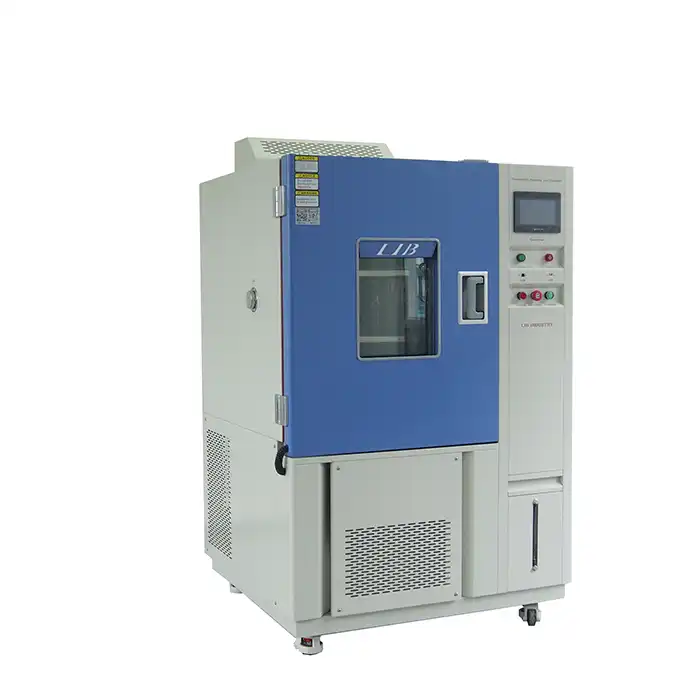

Humidity Chamber
Name: Humditiy Chamber
Model: TH-500
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-20℃～+150 ℃;
Humidity Range:20% ~ 98% RH;
Cooling Type: Air cooled
Xi'an LIB INDUSTRY's progressed humidity chamber combines cutting-edge innovation with demonstrated designing to meet your most requesting natural testing necessities. Whether you're conducting soundness testing for pharmaceuticals, unwavering quality appraisals for hardware, or dampness resistance assessments for car components, our mugginess control chamber gives the accuracy and unwavering quality you require to guarantee item quality and compliance with universal standards. LIB's chambers undergo rigorous testing, adhering to stringent quality standards, including CE, RoHS, ISO17025, and CSA accreditation.
What is a Humidity Chamber?
A humidity chamber is a precision-engineered natural test gear outlined to recreate controlled temperature and stickiness conditions. This specialized testing device empowers producers and analysts to assess how materials, items, and components perform beneath particular climatic conditions.
Our mugginess cabinet makes quickened maturing situations to uncover moisture-induced disappointment modes such as erosion, oxidation, and electrical issues. By reenacting real-world natural stresses, you can anticipate item lifecycle behavior and guarantee quality some time recently mass production.
Technical Specifications of Humidity Chamber
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details of Humidity Chamber
|
|
|

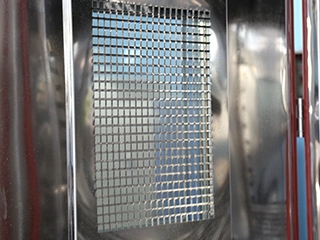

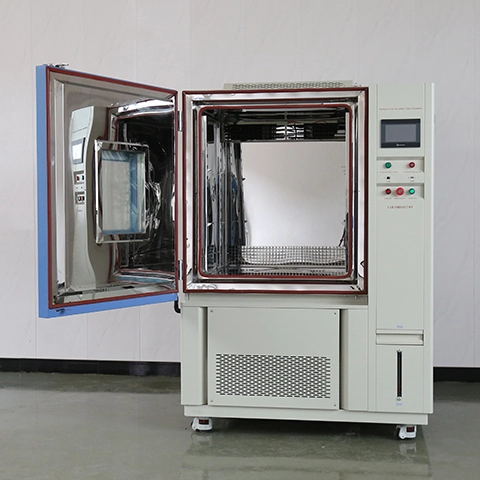

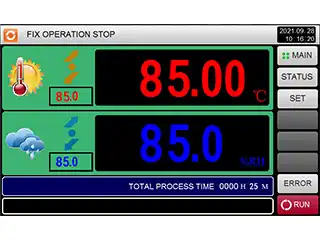

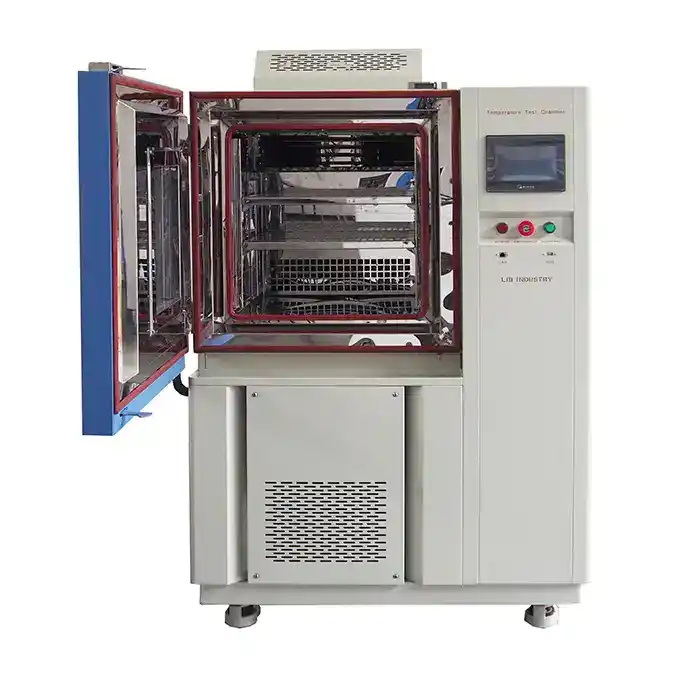

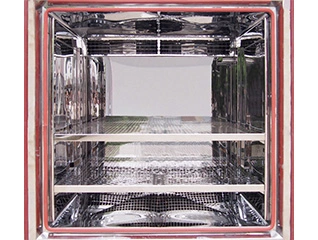

SUS 304 Mirror-Finish Workspace Corrosion resistance and easy cleaning. Its energy-efficient insulation reduces heat loss, built-in drainage manages condensation, and modular shelving for different sample sizes and test setups. | PLC Controller PID programmable color touch screen controller network connection computer. Can create120 programs 100 segment. | Water Re-circulation Water purifier: mainly purification from water source to water tank. Automatic water supply |
|
|

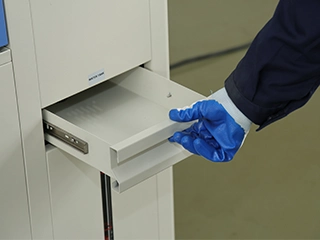

Smart Water Management System
Our imaginative water circulation framework addresses the most common upkeep challenges. The built-in water decontamination framework acknowledges standard tap water, whereas programmed water level observing avoids dry-running harm. The large-capacity water tank diminishes visit refilling needs.
Data Integrity & Compliance
Meeting strict administrative necessities is pivotal for your trade. Our frameworks comply with FDA 21 CFR Portion 11 and ICH Q1A(R2) measures. The built-in information logging framework produces tamper-proof PDF and Exceed expectations reports, guaranteeing review path compliance for pharmaceutical and therapeutic gadget testing.
Advantages:
1. Precision Control: The Humidity Chamber ensures accurate and stable humidity levels, critical for various testing scenarios.
2. Durable Build: Crafted with high-grade materials, guaranteeing longevity and reliability.
3. Advanced Technology: Equipped with a sophisticated control system for optimal performance.
4. Safety Assurances: Built-in safety features prevent damage to samples and the chamber itself.
5. Customization Options: Tailored chamber sizes cater to specific industry needs.
Versatile Applications
Electronics Industry
Perfect for 85°C/85% RH unwavering quality testing, our chambers offer assistance recognize potential disappointments in circuit sheets, semiconductors, and buyer electronics.
Pharmaceutical Testing
Conduct ICH steadiness ponders with certainty. Our exact natural control guarantees exact medicate shelf-life assurance and bundling astuteness testing.
Automotive Components
Test dampness resistance of insides materials, electronic control units, and weatherproof fixing frameworks beneath extraordinary stickiness conditions.
Material Science
Evaluate coating toughness, cement execution, and composite fabric behavior beneath controlled climatic stress.
Why Choose LIB Humidity Chambers?
Proven Quality Assurance
Following ISO 9001 benchmarks, our items are CE certified and tried by SGS and TUV. Each mugginess chamber experiences thorough quality control to guarantee steady execution and long-term reliability.
Comprehensive Service Support
We give 3-year guarantee scope with lifetime benefit bolster. Our 24/7 worldwide specialized help guarantees negligible downtime. If repairs aren't conceivable amid guarantee, we'll give a total substitution unit.
Custom Engineering Capability
Our experienced R&D group specializes in non-standard plans and custom arrangements. We'll work with you to make the culminate testing environment for your particular necessities.
Global Service Network
With service centers across Malaysia, Canada, the UK, and the US, plus 29 international agents, we provide localized support wherever your business operates.
Get Your Humidity Chamber Quotation
When considering a humidity chamber price, factors include workspace volume, performance specifications, and customization requirements. Ready to enhance your product testing capabilities? Contact us at ellen@lib-industry.com.
