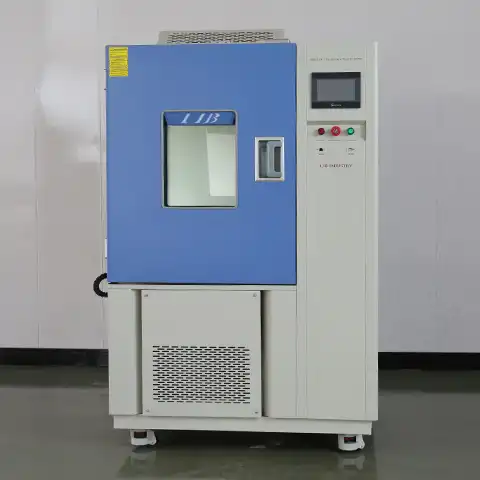

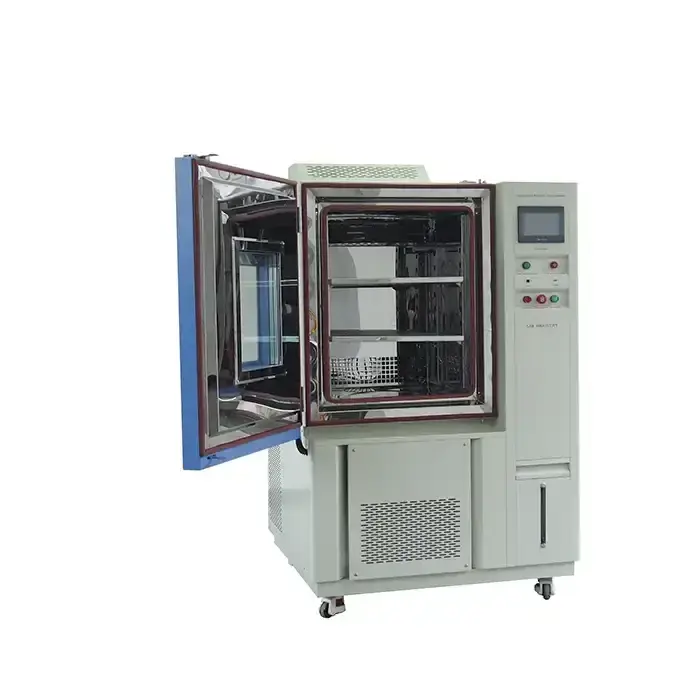

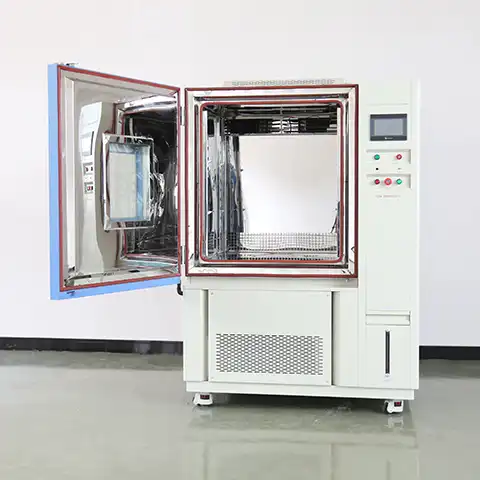

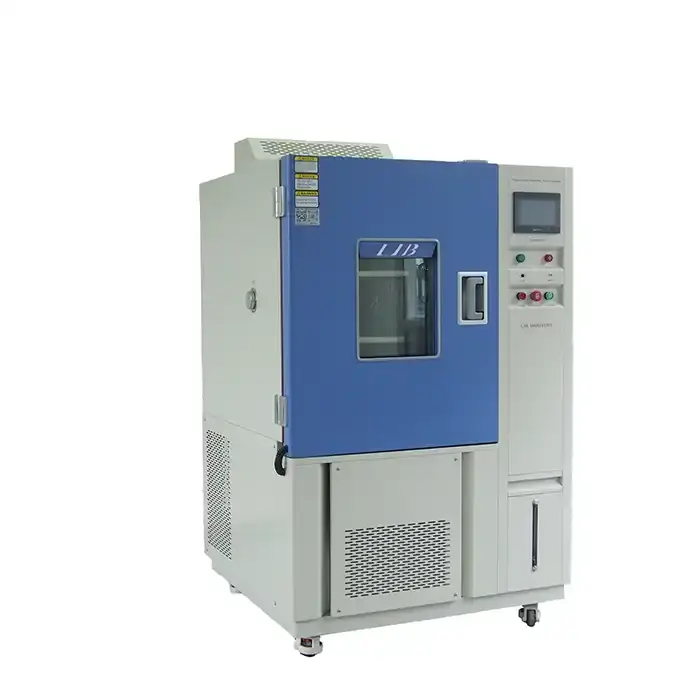

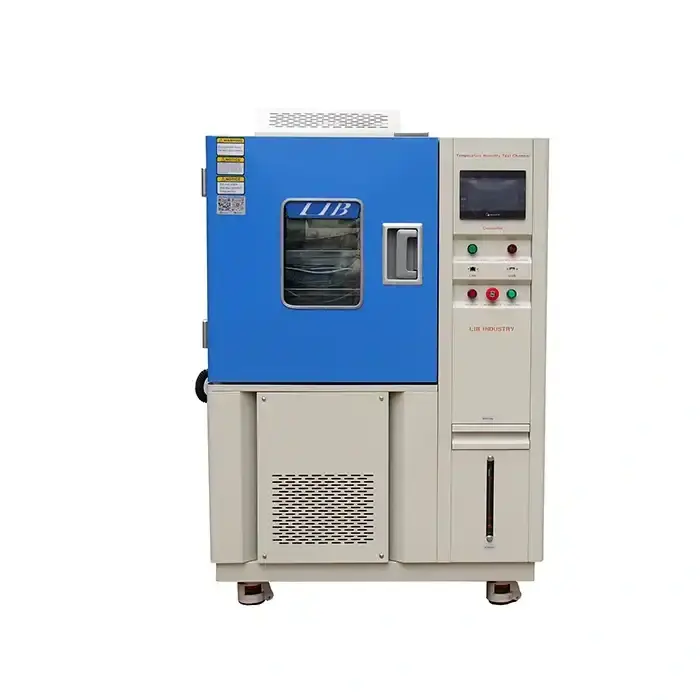

thermal cycling equipment
Model:TR5-500
Lowest Temperature:-20℃/-40℃/-60℃/-70℃;
Cooling Rate:10 ℃ / min （average）
Heating Rate:10 ℃ / min （average)
The temperature ramp rate is controllable at 5℃ / 10℃ / 15℃ per minute.
Volume:100L, 225L, 500L, 800, 1000L, 2000L, 3000L
- Product Description
LIB Industry thermal cycling equipment Manufacturer & Supplier
LIB Industry thermal cycling equipment is used to simulate extreme temperature conditions for testing the performance and reliability of various products. It is commonly used in industries such as aerospace, automotive, electronics, and pharmaceutical. The chamber equipped with a temperature control system that can rapidly and accurately change the temperature within a specified range. The temperature change rate can reach to 5 ℃ / min (10 ℃ / min).
Technical Specifications
Model | TR5-100 | TR5-225 | TR5-500 | TR5-800 | TR5-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 5 ℃ / min | ||||
Heating Rate | 5 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|
| Explosion-proof system Explosion-proof door and viewing window Equip with smoke detector and buzzer Water spray against fire | Cable hole A standard test hole with plugs 50mm/100mm/200mm Soft silicone plug seal; Metal enclosure closed | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
|
|
Key Features
1. Linear Ramp Rate Precision
Our chambers convey genuine straight temperature sloping, not found the middle value of rates. This exactness is basic for assembly benchmarks like IPC-9701. Indeed beneath full stack conditions, the framework keeps up steady incline rates through optimized warming and cooling architecture.
2. Superior Airflow Engineering
The protected three-directional wind current framework guarantees reliable temperature dissemination over all test positions. Amid quick cycling, this plan avoids hot spots and keeps up the indicated consistency all through your test space.
3. Anti-Condensation Technology
Rapid temperature moves can cause condensation that harms electronic components. Our cleverly wind current administration and discretionary dry discuss remuneration avoid dampness arrangement on your samples.
4. Fatigue-Resistant Construction
The welded stainless steel chamber highlights adjusted corners to disperse warm push successfully. This plan withstands thousands of development and compression cycles without creating push fractures.
5. Smart Control and Monitoring
Yourthermal cycling equipment includes advanced control capabilities that bring your testing into the advanced age. The natural interface permits programming of complex temperature profiles with numerous fragments and circles. Real-time checking through versatile gadgets implies you remain associated to your tests from anywhere.
6. Custom Models
LIB Industry offers standard and customized models, allowing clients to customize chambers based on unique specifications. Tell us about your requirements, let us help you.
Why Choose LIB Thermal Cycling Equipment
1. Professional Quality Assurance
Every unit is made beneath ISO 9001 benchmarks and carries CE certification. Third-party testing by SGS and TUV approves our execution determinations, guaranteeing you get hardware that performs as promised.
2. Comprehensive Support
We stand behind our items with a 3-year guarantee and lifetime benefit commitment. Our worldwide arrange gives 24/7 bolster, and if we cannot repair your unit inside the guarantee period, we give a total replacement.
3. Global Partnership Network
With service centers in Malaysia, Canada, the United Kingdom, and the United States, you have access to local support wherever your operations are located. Our expanding network ensures continued support as your business grows.
