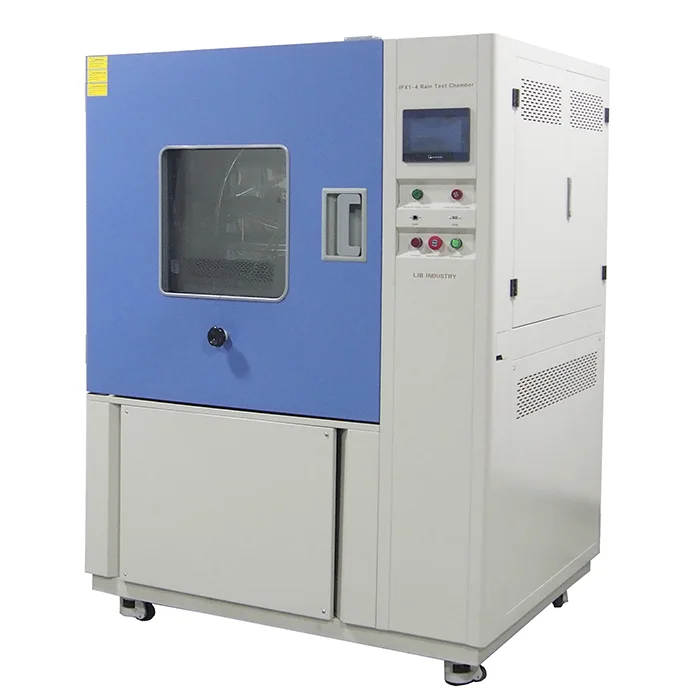

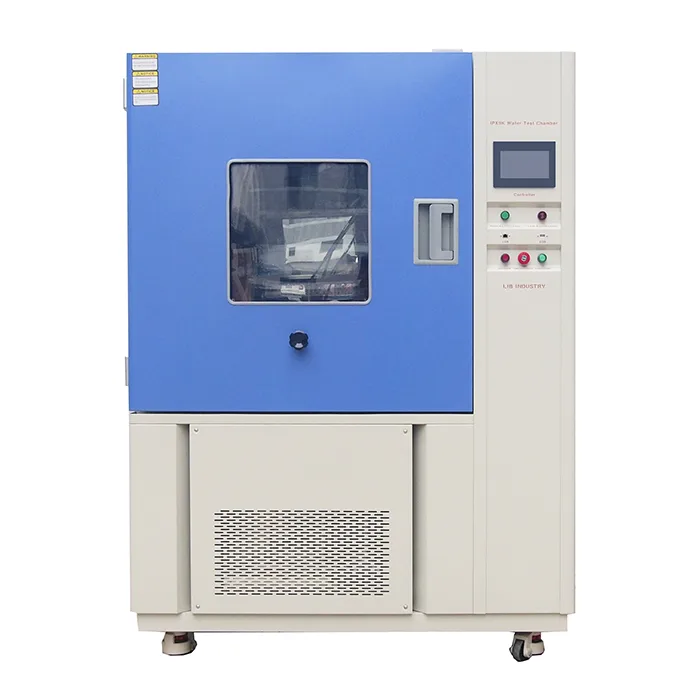

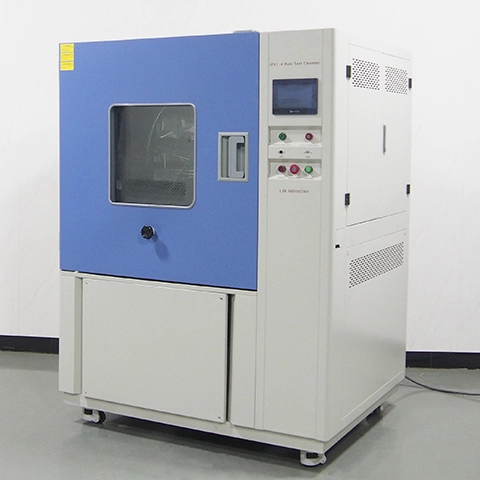

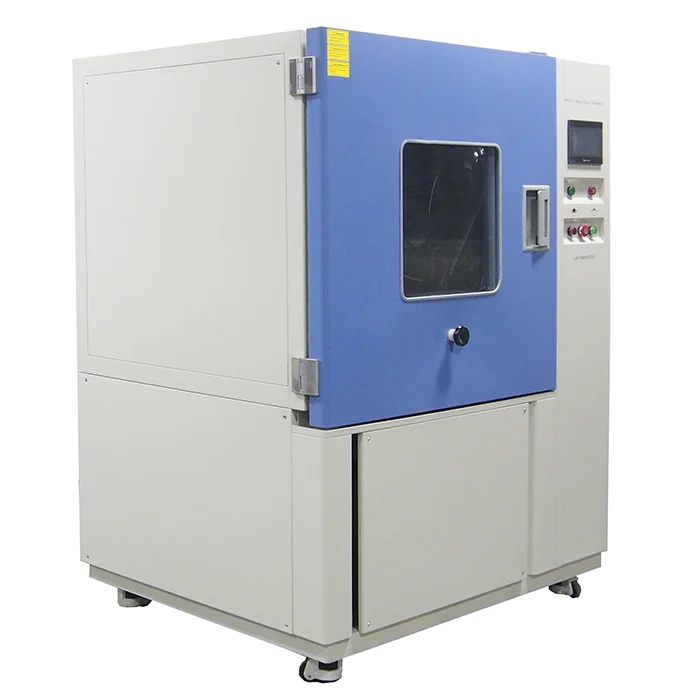

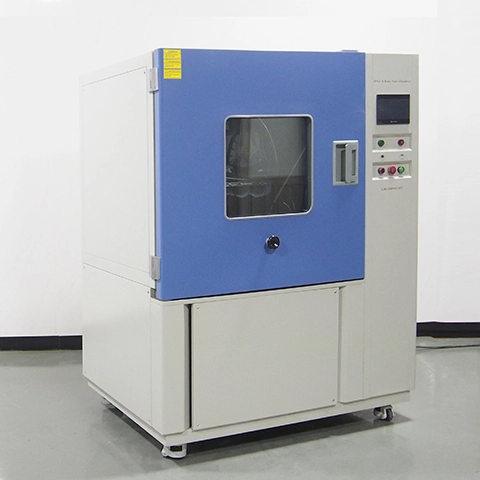

Water Spray Test Chamber
Name: water spray test chamber
Model: RD-800C
Capacity: 800L/1000L/1500L/2000L and more
Standard: IEC 60529, ISO20653
Drip Tray Size: 600*600
Oscillating Tube Radius： 400mm
Door Lock Electromagnetic lock
- Product Description
What Is a Water Spray Test Chamber?
A LIB industry's Water Spray Test Chamber is specialized environmental testing equipment designed to simulate various water exposure conditions, including dripping, spraying, and high-pressure water jets.
It evaluates how effectively a product resists water penetration under controlled conditions, ensuring compliance with international standards such as IEC 60529 and ISO 20653.
By reproducing consistent and repeatable water spray patterns, the chamber allows manufacturers to identify sealing weaknesses, improve product design, and validate waterproof performance before market release.
LIB Industry Water Spray Test Chamber
The LIB industry Water Spray Test Chamber provides a complete and efficient solution for ingress protection testing from IPX1 to IPX6.
Realistic water simulation combined with an intelligent control system ensures accurate, automated testing across multiple IP levels—helping you streamline validation and reduce testing time.
Key Features & Advantages
Full IPX1–IPX6 Testing Capability
Covers dripping (IPX1, IPX2), oscillating spray (IPX3, IPX4), and powerful water jets (IPX5, IPX6).Programmable Automatic Control
Enables precise control of water flow, pressure, angle, and test duration.Durable Stainless Steel Structure
1 m³ corrosion-resistant chamber ensures long-term operation under continuous water exposure.Realistic Water Spray Simulation
Equipped with oscillating tubes and high-pressure nozzles to replicate real-world conditions.Repeatable & Standard-Compliant Testing
Ensures accurate results in accordance with IEC 60529 and ISO 20653.
Technial Parameters of Water Spray Test Chamber
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Drip Tray Size | 600*600 | 1000*1000 |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
Product Details of Water Spray Test Chamber
|
|
|

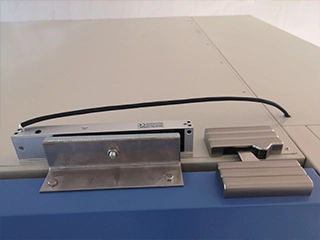

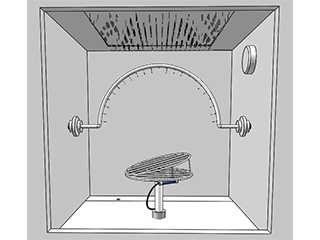

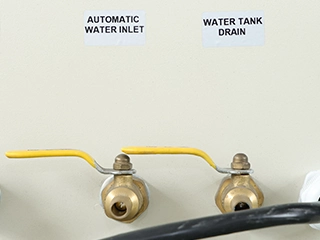

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion | Electromagnetic Lock Electromagnetic lock to strong lock the door Unlocking is operated on the controller for safety and prevent malfunction | Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing |
|
|
Advanced Water Management System
O water spray test chamber highlight an coordinates water circulation framework that addresses key operational concerns:
Smart Water Conservation: The multi-stage filtration framework reuses up to 80% of test water. This altogether diminishes working costs whereas keeping up steady water quality.
Anti-Clogging Technology: Precision-machined stainless steel spouts with 50-micron filtration anticipate blockages amid expanded testing cycles. Your gear runs easily for over 1000 hours without upkeep interruptions.
Automatic Water Control: Built-in water level sensors and programmed refill frameworks empower 24/7 unattended operation. You can run expanded test cycles without manual intervention.
Safety Features for Live Testing
Many test tests require electrical control amid water introduction testing. Our chambers incorporate comprehensive security measures:
·Waterproof Power Connectors: Inside electrical outlets permit secure control supply to test specimens
·ELCB Protection: Ground blame circuit interrupters avoid electrical hazards
·Emergency Stop Systems: Prompt shutdown capability for administrator safety
·Sealed Cable Ports: Different gasket seals avoid water spillage around flag cables
Why Choose LIB Industry?
Proven Quality Standards: All our hardware takes after ISO 9001 quality administration frameworks. Each unit gets CE certification and third-party testing by SGS and TUV.
Comprehensive Warranty: We give 3-year guarantees with lifetime benefit back. Our 24/7 worldwide help guarantees negligible downtime. If repairs aren't conceivable amid guarantee periods, we offer total gear replacement.
Custom Engineering Capability: Our experienced R&D group makes custom-made arrangements for one of a kind testing necessities. We adjust standard plans to meet your particular application needs.
Global Benefit Arrange: With 29 universal specialists and benefit centers over Malaysia, Canada, UK, and USA, you get nearby bolster wherever you work.
Get Started Today
Email us at: ellen@lib-industry.com. Experience the difference that professional-grade testing equipment makes for your product development success. Choose LIB Industry for your next water spray test chamber investment.
