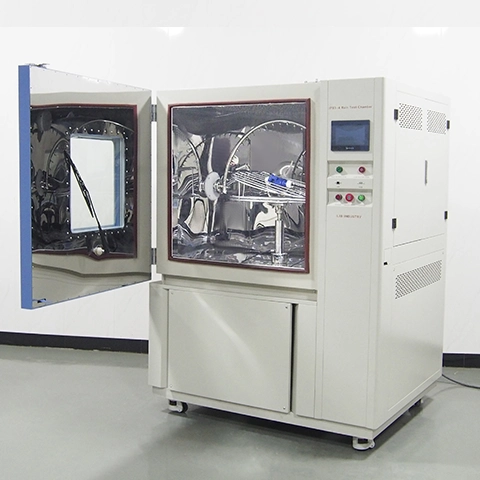

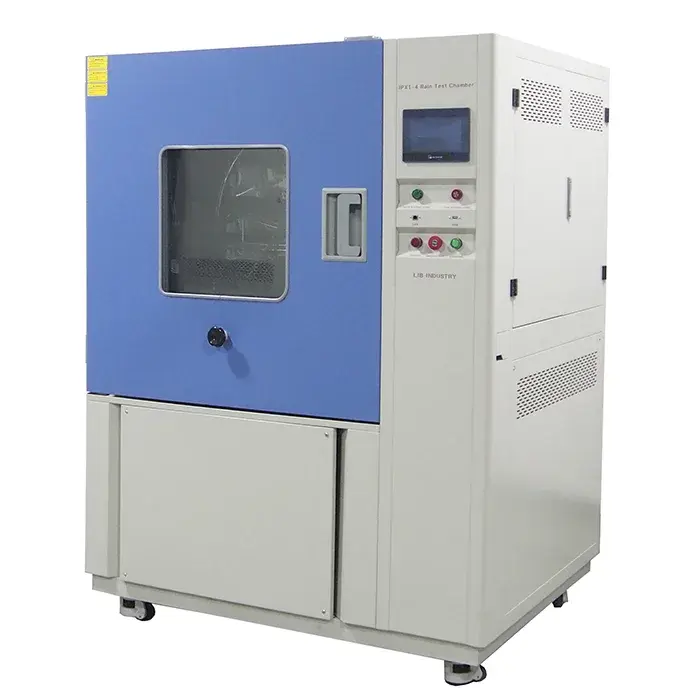

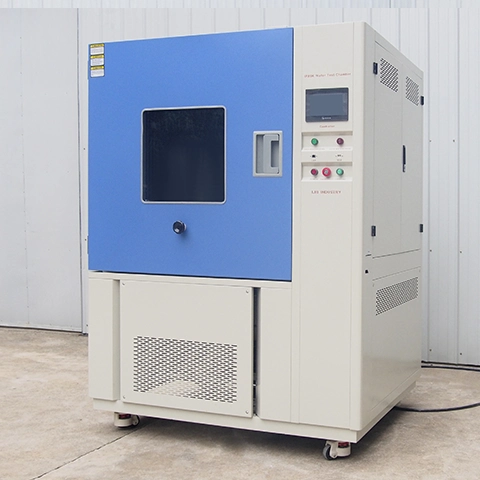

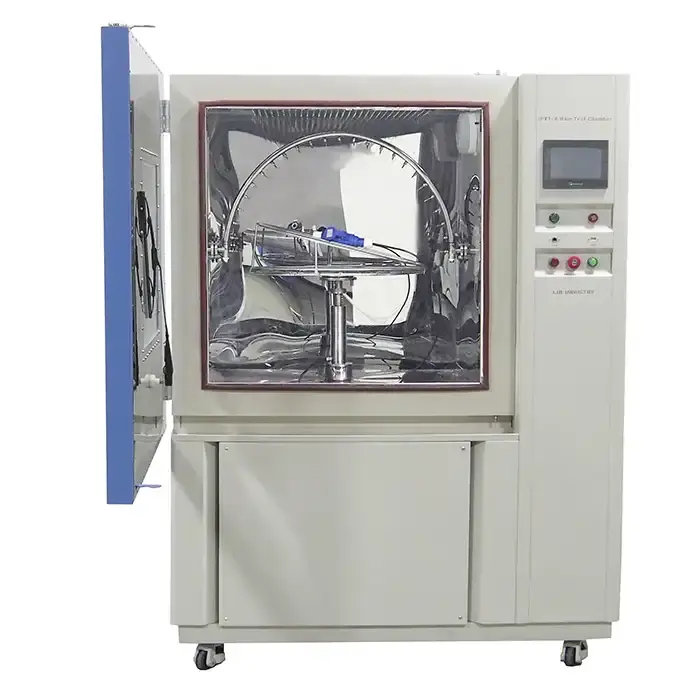

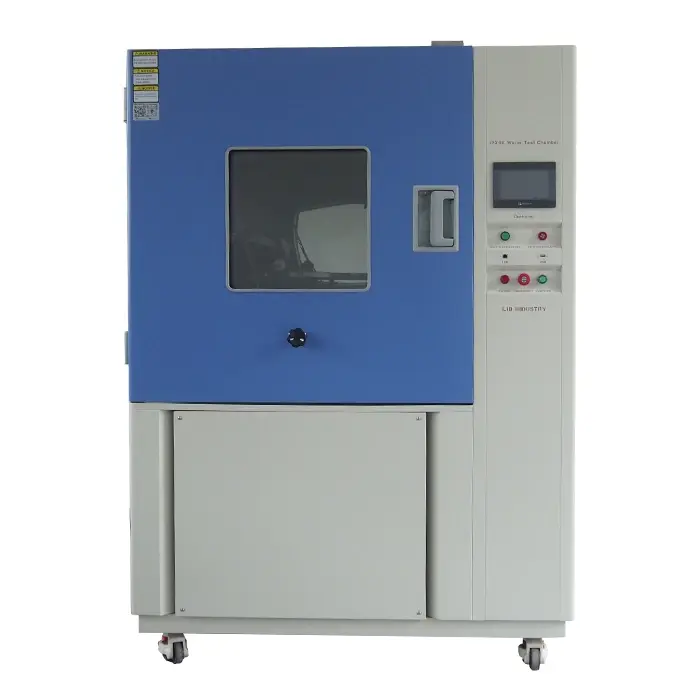

Waterproof Test Machine - Professional IPX Testing Solutions

Xi'an LIB Environmental Simulation Industry offers comprehensive water ingress protection testing equipment that covers IPX1 through IPX6 standards. Our advanced testing chambers help you ensure your products meet international waterproof requirements with precision and reliability. Whether you're testing consumer electronics, automotive components, or industrial equipment, our waterproof test machine delivers accurate results every time.

LIB Industry waterproof test machine delivers realistic rain simulation testing to evaluate enclosure protection and component reliability. Customizable rain profiles combined with automated operation ensure efficient testing to major industry standards.

The waterproof test machine of LIB Industry is divided into two categories according to its appearance: shell and no shell. IP rating 1-9k are supported.

Key Features & Benefits

Complete IPX Rating Coverage

Our equipment supports all major waterproof testing standards in one integrated system:

· IPX1/IPX2: Precision drip water testing with adjustable drip plates

· IPX3/IPX4: Oscillating tube spray testing with variable radius options

· IPX5/IPX6: High-pressure water jet testing with controlled flow rates

· One-touch operation: Pre-programmed testing protocols for each IPX level

Advanced Water Management System

Smart Water Circulation Technology

· Built-in filtration system prevents nozzle clogging

· Saves up to 90% on water costs through recycling

· Automatic water level maintenance

· Easy waste water drainage after testing

Environmental Benefits

· Closed-loop water system reduces waste

· Energy-efficient operation

· Sustainable testing solution for your laboratory

Safe Powered Device Testing

Testing electronic devices requires special safety considerations:

· Waterproof power outlets inside the chamber with protective covers

· Sealed cable ports for external signal connections

· Leak current protection (ELCB) for electrical safety

· IP-rated electrical components throughout the system

Product Parameter

Model	R-800C	R-1200C
Internal Dimensions (mm)	900950950	130013501370
Overall Dimensions (mm)	118014201920	154018202200
Useful Volume (L)	810	2400
Oscillating Tube Radius	400mm	600mm
Drip Tray Size	600*600	1000*1000
Spraying Hole Diameter	φ0.4mm
Hole Spacing	50 mm
Swing Angle of Oscillating Tube	0 ~ ±180° (Adjustable）
Turntable Rotation Speed	1r/min (Adjustable speed)
Water Pressure Control	Flow meter
Controller	Programmable color LCD touch screen controller, Ethernet connection
Water supply system	Water tank, booster pump, Automatic water supply, Water purification system
Safety Device	Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Observation Window	Double layer insulating glass with wiper

Product Details

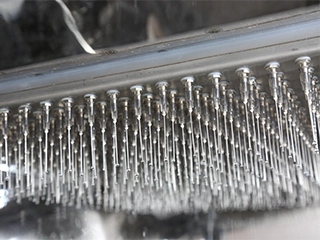

Drip Tray

The drip tray is made of stainless steel

Drip holes are evenly distributed

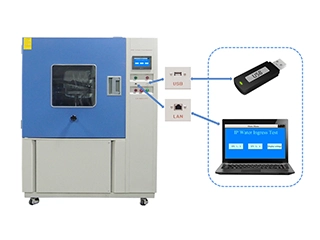

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data

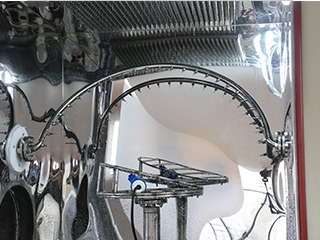

Oscillating Tube

Oscillating tube is made of stainless steel.

Oscillating tube range can be reached to ±45°, ±60°, ±90°, ±180°

Key Features

1. Realistic Rain Simulation: Precision water streams

2. Powerful Water Jets: water Pressures

3. Articulating Nozzles: Vary rain angles 0 to 180°

4. Heated Water: Temperature cycling up to 90°C

5. Fully Automated: Programmable spray profiles and logging

6. Rugged Construction: Durable stainless steel

7. Enclosure Protection Testing: Verifies resistance to rain ingress

Space-Efficient Laboratory Design

The all-in-one plan solidifies different testing capabilities into a single unit. Instep of obtaining partitioned gear for distinctive IPX levels, you get comprehensive testing scope whereas optimizing your research facility space utilization.

Advanced Control Features

Exactness Stream Monitoring

Digital stream meters give precise water stream control for reliable test comes about. The electronic show appears real-time stream rates, guaranteeing compliance with testing standards.

Automated Turntable Operation

The turning turntable guarantees uniform water scope amid testing. Clockwise and counterclockwise revolution choices ensure total introduction of your test samples.

User-Friendly Interface

The PLC control framework with touchscreen interface makes operation straightforward. Pre-programmed testing arrangements diminish setup time and minimize administrator error.

Durable Construction

Corrosion-Resistant Materials

Complete SUS304 stainless steel development withstands cruel testing conditions. The fabric choice guarantees long-term unwavering quality indeed beneath nonstop high-humidity and water shower operations.

Environmental Compliance

Our economical plan meets natural directions whereas giving tried and true execution for a long time of testing operations.
