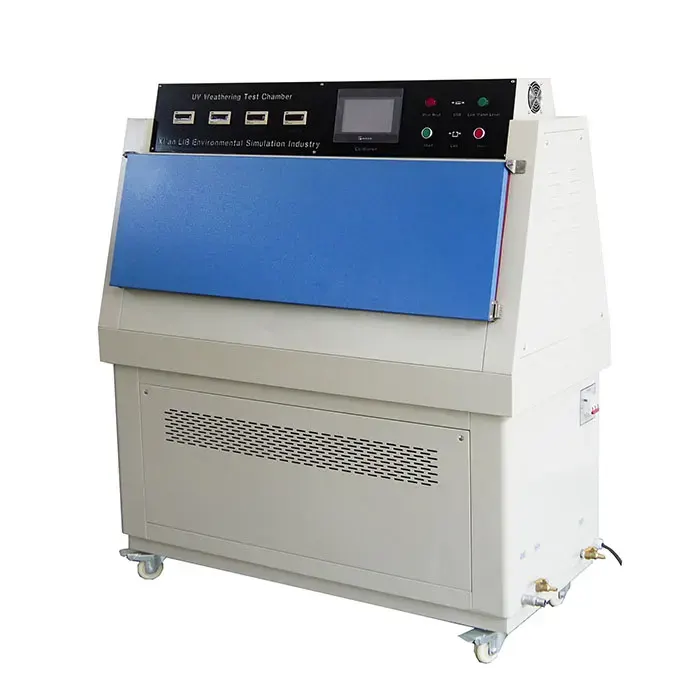

UV Test Machine
Irradiation Source:Fluorescent UV lamps (8) - 40 W
Temperature Range: Ambient ～ 90 ℃ ±2℃
Bandwidth:290 ~ 400nm
Irradiance Control:0.3~20 W/㎡
Water Spray Cycle:1~9999H59M (Adjustable)
Distance of Specimen and lamp:50mm
Standards：ASTM G154 ISO 4892-3 SAE J2020
UV Test Machine: Accelerate Material Durability Testing with Precision
The UV Test Machine from Xi'an LIB Environmental Simulation Industry provides the answer. This progressed UV testing hardware mimics decades of weathering harm in fair days or weeks. By concentrating the most forceful parcel of the sun based spectrum—short-wave bright light—our item quickens fabric debasement forms, making a difference you anticipate item life expectancies, avoid expensive disappointments, and guarantee quality some time recently showcase dispatch. Whether you're testing car coatings, building materials, or open air materials, our chambers provide solid, repeatable comes about that secure your notoriety and foot line.
Technical Specifications
Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 610*1330*1470 |
Specimen Holder Size(mm) | 75*150 |
Specimen Capacity | 56 Pieces |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400nm |
Irradiance Control | 0.3~20 W/㎡ |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Distance of Specimen and lamp | 50mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Product Details
|
|
|

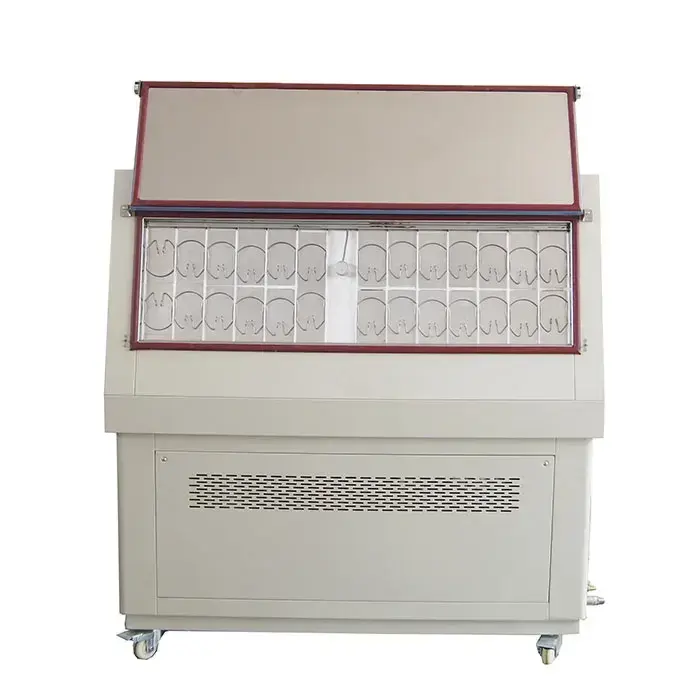

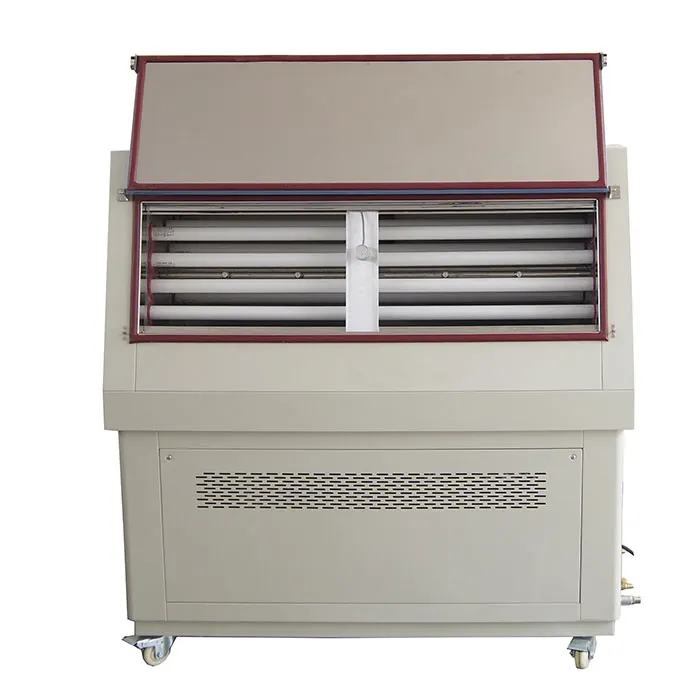

Sample Shelf Flat specimen holders& 3D specimen holders The sample holder is removable | Water Spraying Equipped with ten nozzles, the diameter of the nozzle is 0.5mm, the settlement is 0.8 ~ 1.0mm / 80cm2 / H | Irradiation Source UVA 340 nm and UVB 313 nm fluorescent UV lamps are available Easy to change UV lamps |
|
|
What Makes Our UV Test Machine Different
High-Performance UV Lamp System
Our chambers use internationally recognized UVA-340 and UVB-313 lamps for highly repeatable weathering results.
UVA-340 Lamps
| UVB-313 Lamps
|
Typical lamp life up to 5,000 hours
Automatic replacement reminder
Simplified maintenance scheduling
Solar Eye Irradiance Control
The Solar Eye system continuously monitors and adjusts UV intensity to maintain stable test conditions.
Closed-loop irradiance control
Automatic lamp aging compensation
Consistent UV output throughout testing
ASTM G154 compliant calibration
This ensures highly repeatable and comparable test results.
Moisture Simulation System
UV exposure alone is not enough. Our chamber combines UV, condensation, and water spray to replicate real outdoor weathering conditions.
Condensation Cycle
| Water Spray System
| DI Water Supply
|
Precise Temperature Control
Black panel temperature monitoring
Temperature control accuracy within ±2°C
Programmable temperatures up to 70°C
Independent UV and temperature control
Uniform UV Exposure
Optimized lamp arrangement for even irradiance
UV uniformity typically within ±5%
Optional rotating sample rack
Flexible specimen capacity for various sample sizes
Why Choose LIB Industry
Certified Quality Manufacturing
Since 2009, LIB industry has operated under the ISO 9001 Quality Management System. All equipment is CE certified and verified by third-party organizations such as SGS and TUV.
Comprehensive After-Sales Support
We provide long-term support to keep your testing operations running smoothly.
3-year warranty
Lifetime technical support
24/7 global service
Warranty replacement guarantee
Global service centers and local partners ensure fast response wherever you are.
Trusted by Global Industry Leaders
Our equipment is used by leading organizations across automotive, electronics, materials, and testing industries, demonstrating proven reliability in demanding applications.
Custom Solutions Available
From special fixtures and chamber dimensions to complete testing system integration, our engineering team delivers customized solutions tailored to your testing requirements.
