Blowing Sand Test Chamber: Industrial-Grade Erosion & Durability Testing Solution

The blowing sand test chamber is particularly designed to reenact high-velocity sand disintegration conditions that can crush unprotected gear in minutes. Not at all like conventional clean testing equipment that centers on fine particle infiltration, our industrial-grade framework impels coarse sand particles (150–850 μm) at wind speeds of 18–29 m/s, imitating the brutal conditions your items will experience in dry situations. Whether you're creating car lighting frameworks, aviation optical hardware, or military-grade hardware, this specialized testing chamber makes a difference you recognize vulnerabilities some time recently they gotten to be field disappointments. With wear-resistant inner structures and precise sand circulation frameworks, it conveys repeatable test comes about that meet MIL-STD-810H and ISO 20653 standards.

What Makes Our Equipment Different

Sand vs. Dust: Understanding the Industrial Boundary

Many producers confuse sand testing with dust testing, but the distinction is basic. Sand particles are essentially bigger and carry significantly more motor vitality at high speeds. This implies your test hardware must withstand ceaseless grating ambush whereas keeping up accuracy.

LIB blowing sand test chamber highlights a genuine Anti-Erosion Armor Framework that ensures inside components whereas guaranteeing test accuracy. This isn't just thicker steel—it's deliberately designed assurance where it matters most.

Specifications of Blowing Sand Test Chamber

Product Details

Why Choose Us

Industrial-Grade Anti-Erosion Armor System

We don't just build thicker walls. Our chamber interior featureswear-resistant alloy steel liningin critical impact zones, with modular replaceable liner panels in ceramic-rubber composite. This isn't cosmetic—it's structural engineering designed for Mohs 7 hardness quartz sand impacts. High-velocity erosion zones receive independent structural reinforcement, extending chamber life far beyond standard designs.

Military-Standard Airflow Architecture

Achieving true MIL-STD-810H compliance requires more than powerful fans. Ourhigh-pressure centrifugal blowersystem uses anti-erosion impeller geometry specifically optimized for particle-laden airflow. The airflow straightening vanes and laminar acceleration ducts eliminate turbulence that causes uneven test conditions. You get uniform 18–29 m/s velocities across the entire test area, not just at the measurement point.

Precision Continuous Feed Control

Amateur systems dump sand and hope for the best. Ourelectromagnetic vibratory feederwith gravimetric calibration maintains concentration stability within ±0.1 g/m³. The closed-loop density control algorithm automatically compensates for particle depletion, ensuring your two-hour test delivers the same conditions in minute 120 as minute 1. This is what separates real data from approximate results.

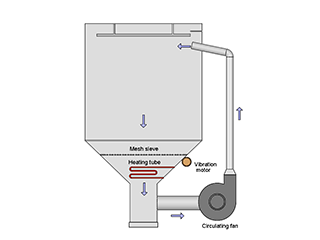

Intelligent Sand Recovery System

Sand is expensive and test schedules are tight. Ourautomated recycling architecturefilters, dries, and recirculates sand without operator intervention. The heated storage hopper prevents moisture absorption that causes clumping and flow problems. The large-angle conical design (≥45°) eliminates dead zones where sand accumulates and humidity breeds inconsistency. You'll reuse the same sand batch across multiple tests with confidence.

Particle Size Quality Control

Mixed particle sizes destroy test validity. We integrateoptional sieve classification modulesthat verify your sand meets the 150–850 μm specification before and after testing. This prevents the "test failure" that's actually just contaminated sand media. Your results remain comparable across weeks and months of testing.

Real-Time Test Intelligence

Oursmart control and logging systemrecords every parameter at one-second intervals. Wind velocity, sand concentration, chamber temperature, and elapsed time are automatically documented and exportable via USB or Ethernet. Multi-program auto-cycle capability means you can run complex test sequences overnight or over weekends without supervision. The 7-inch touchscreen interface makes setup intuitive, not intimidating.

Certified Standards Compliance

We don't claim compliance—we prove it. Every chamber ships with calibration documentation traceable to:

· MIL-STD-810H Method 510.7(Blowing Sand)

· IEC 60068-2-68(Environmental testing)

· ISO 20653(Degrees of protection - automotive)

Your test reports will withstand customer audits and certification body scrutiny.

Global Service, Local Support

Since 2009, LIB has served customers in over 60 countries across Europe, Asia, North America, and Africa. We operate underISO 9001quality management withCE certificationand third-party validation from SGS and TUV. But certifications mean nothing without support.

Every blowing sand test chamber includes a 3-year warranty with lifetime service. If we can't repair it during warranty, we replace it—no arguments. Our 24/7 global support network, backed by service centers in Malaysia, Canada, the UK, and the US, means you're never waiting days for answers. By 2030, we'll have expanded to South America, Central Asia, and Russia.

Proven by Industry Leaders

When Apple, IBM, Intel, Amazon, SGS, TUV, CERN, BYD, Great Wall Motors, and Mercedes-Benz need environmental simulation equipment, they trust LIB. We've built our reputation by delivering solutions that work in actual production environments, not just in sales literature.

Customization Without Compromise

Standard chambers don't fit non-standard problems. Our engineering team specializes in custom configurations—oversized test areas, extended temperature ranges, specialized sand types, or integration with your existing quality systems. We listen first, then design solutions that address your actual challenges.

Get Started Today

Contact our technical team at ellen@lib-industry.com to discuss your specific testing requirements. We'll help you configure the right solution for your application, explain exactly what our blowing sand test chamber can achieve, and provide transparent pricing without sales pressure.
