How to Choose a Temperature Cycling Chamber Manufacturer for Battery Testing?
Battery cells, modules, and packs are exposed to repeated temperature changes throughout their service life. Cold starts, high-temperature charging, seasonal changes, and thermal management failures can all create stresses that affect electrical performance, seals, interfaces, and mechanical structures.
For battery manufacturers and test laboratories, the challenge is not simply finding a chamber that can reach a specific temperature.
The real question is whether the temperature cycling chamber can reproduce the required cycle accurately, accommodate the battery under test, and operate safely throughout long qualification programs.
When selecting a temperature cycling chamber manufacturer, buyers should evaluate temperature range, ramp rate, chamber size, specimen loading, safety requirements, and long-term service support together.
Need a temperature cycling chamber for your battery test standard? Request a quote in 24 hours.
Request a Quote → ellen@lib-industry.com
What Does a Battery Temperature Cycling Chamber Need to Do?
A temperature cycling chamber repeatedly changes between high and low temperature setpoints according to a programmed test profile.
A typical cycle may include:
- Heating to the specified high temperature
- Holding for a defined dwell period
- Cooling to the required low temperature
- Maintaining the low-temperature dwell
- Repeating the cycle for hundreds or thousands of cycles
For battery testing, this process can help identify failures associated with repeated thermal expansion and contraction before the product enters production or field use.
Potential issues include:
- Seal degradation
- Material cracking or delamination
- Leakage
- Mechanical stress at interfaces
- Degradation of battery-related components
- Changes in electrical performance
The required chamber configuration depends on the battery type, specimen dimensions, test cycle, and applicable qualification method.
Which Chamber Specifications Matter Most for Battery Testing?
Temperature Range
The first question is the actual temperature range required by your test.
Many battery and automotive applications require testing across sub-zero and elevated temperatures, while some projects require extended low-temperature capability.
LIB Industry's TR5 temperature cycling chamber can be configured from -70°C to +150°C, allowing the chamber to cover a wide range of battery, electronics, and automotive cycling applications.
However, buyers should avoid selecting a deeper temperature range than necessary. The refrigeration system required for -70°C operation is more complex than one designed for -40°C, which can affect both equipment cost and energy consumption.
Ramp Rate
Ramp rate determines how quickly the chamber changes temperature.
A faster rate requires greater heating capacity, refrigeration performance, and optimized airflow.
The LIB TR5 series offers controllable ramp-rate options of:
5°C/min
10°C/min
15°C/min
The correct choice should be based on the actual test program rather than automatically selecting the fastest configuration.
Temperature Performance
For multi-cell or module testing, temperature consistency inside the workspace is important because uneven conditions can affect the repeatability of test results.
The TR5 series provides:
Temperature fluctuation: ±0.5°C
Temperature deviation: ±2.0°C
These parameters should be evaluated together with specimen loading and airflow requirements, especially when testing large battery modules or multiple samples at the same time.
Chamber Volume and Specimen Size
Battery test specimens range from individual cells to large modules and energy storage components.
LIB Industry provides temperature cycling chamber capacities from 100L to 3000L.
Selecting the right chamber size requires more than checking whether the specimen physically fits inside. Adequate clearance is also required for airflow, instrumentation, fixtures, and safety devices.
For example, a small chamber may be suitable for consumer battery cells, while automotive modules or larger battery assemblies may require 500L, 1000L, or customized configurations.
Why Is Battery Testing Different from General Temperature Cycling?
Battery testing may involve energized specimens, external monitoring equipment, and additional safety considerations.
Depending on the application, the chamber may need features such as:
- Over-temperature protection
- Over-current protection
- High-pressure protection
- Leakage protection
- Emergency stop functions
- External cable ports
Integration with battery cyclers or measurement systems
The required safety configuration should be determined according to the actual battery type and test procedure.
A supplier should therefore understand the specimen, test conditions, external equipment, and potential hazards before recommending the final chamber design.
How Does LIB Industry Configure Temperature Cycling Chambers for Battery Testing?
LIB Industry provides the TR5 temperature cycling chamber series for repeated high- and low-temperature testing.
The system can be configured according to the required temperature range, ramp rate, chamber volume, and specimen setup.
Key capabilities include:
| Parameter | LIB TR5 Series |
|---|---|
| Temperature range | -70°C to +150°C |
| Ramp rate | 5 / 10 / 15°C/min |
| Temperature fluctuation | ±0.5°C |
| Temperature deviation | ±2.0°C |
| Chamber volume | 100L–3000L |
| Control | Programmable controller |
| Connectivity | Ethernet / PC communication |
The chamber can also be customized with cable ports, specimen fixtures, and other application-specific configurations.
LIB Industry provides temperature cycling chambers for battery cells, modules, and packs with configurable temperature range, ramp rate, chamber volume, and safety options. Check specifications and pricing → temperature cycle test chamber
What Should You Ask a Temperature Cycling Chamber Manufacturer?
Before comparing quotations, make sure every supplier is quoting against the same technical requirements.
Ask the manufacturer:
1. Can the chamber achieve the required temperature profile with the actual specimen load?
Performance can change depending on specimen mass, heat generation, and external equipment. The empty-chamber specification alone may not fully represent the actual testing condition.
2. What ramp rate is required for the test?
Confirm whether the quoted rate is based on average performance and clarify the conditions under which it is measured.
3. What chamber volume is actually required?
Provide the dimensions of the battery, fixture, cables, and monitoring equipment so the manufacturer can recommend adequate workspace.
4. What safety features are included?
Battery testing requirements can differ significantly from ordinary material testing. Confirm the required protection and emergency functions before ordering.
5. Can the chamber be customized?
Battery designs continue to change. A chamber with suitable cable ports, specimen fixtures, and external equipment interfaces may be more useful than a standard configuration.
Which LIB Industry Test Equipment Is Suitable for Battery Testing?
Different battery reliability tests require different environmental conditions. In addition to temperature cycling, LIB Industry provides other environmental test equipment that can support a broader qualification program.
|
 |
|
|

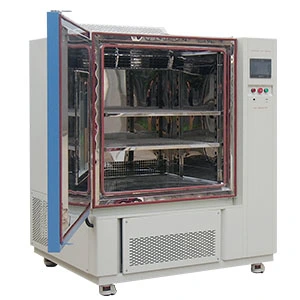

Temperature Cycling ChamberThe Temperature Cycling Chamber is designed for repeated transitions between high and low temperatures. |

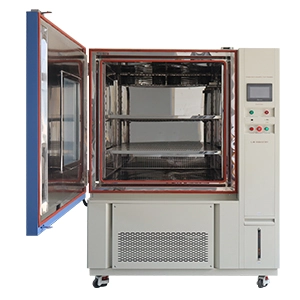

Temperature & Humidity ChamberSome battery components must be evaluated under combined temperature and humidity conditions. A Temperature & Humidity Chamber can be used for environmental aging, moisture resistance, and reliability testing where controlled relative humidity is required. |

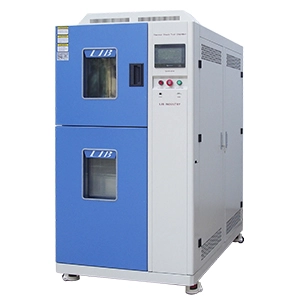

Thermal Shock ChamberWhen the test requires very rapid transfer between hot and cold environments, a Thermal Shock Chamber provides a different testing approach from conventional programmed temperature cycling. It can be used for evaluating the effects of sudden thermal stress on battery-related components, electronics, and materials. |
Why Choose LIB Industry for Battery Temperature Cycling Testing?
Choosing a chamber is not only about selecting a temperature range.
The equipment must match the test cycle, specimen dimensions, loading conditions, monitoring requirements, and laboratory workflow.
LIB Industry can provide:
- Standard and customized chamber configurations
- Temperature ranges down to -70°C
- Ramp rates of 5, 10, or 15°C/min
- Chamber capacities from 100L to 3000L
- Programmable temperature cycling
- Cable ports and specimen fixtures
- Ethernet and PC communication
- Factory testing before shipment
- Installation and technical support
- 3-year warranty
- Lifetime service support
The engineering team can recommend a configuration based on your battery type, specimen dimensions, temperature profile, required ramp rate, cycle quantity, and external instrumentation.
Conclusion
Selecting a temperature cycling chamber manufacturer for battery testing requires more than comparing catalog specifications.
The right system should match your actual test requirements for temperature range, ramp rate, chamber volume, specimen load, safety configuration, and external instrumentation.
LIB Industry's TR5 temperature cycling chamber series provides configurations from 100L to 3000L, with temperature capability from -70°C to +150°C and controllable ramp rates of 5, 10, or 15°C/min.
Whether you are testing individual cells, battery modules, automotive components, or energy storage systems, LIB Industry can provide a temperature cycling solution based on your specific application.
FAQ
What temperature range is suitable for battery temperature cycling?
The required range depends on the applicable test method and battery application. LIB Industry's TR5 series can be configured from -70°C to +150°C, allowing the system to support a wide range of battery and automotive testing requirements.
What ramp rate should I choose for battery testing?
LIB Industry provides controllable options of 5°C/min, 10°C/min, and 15°C/min. The appropriate rate should be selected according to the required test profile and specimen loading conditions.
What chamber size is suitable for a battery module?
The required volume depends on the physical dimensions of the module, fixture, instrumentation, and required airflow clearance. LIB Industry provides chamber capacities from 100L to 3000L and can recommend a suitable configuration based on the actual specimen size.
Can a temperature cycling chamber be customized for battery testing?
Yes. LIB Industry can configure cable ports, specimen fixtures, chamber dimensions, ramp rates, and other features according to the testing application.
What information should I provide when requesting a quotation?
Provide your test standard or temperature profile, battery dimensions and weight, required temperature range, ramp rate, cycle quantity, heat load, external instrumentation, and any required safety functions. This allows LIB Industry to recommend a more suitable chamber configuration.
