How to Source a Thermal Cycling Test Chamber for Battery Testing

When sourcing a thermal cycling test chamber for battery testing, many engineers focus only on temperature range or equipment price. However, selecting the right chamber requires matching the test requirements, battery sample type, safety needs, and required standards.

A suitable thermal cycling test chamber should provide stable temperature changes, reliable safety protection, and enough space for cells, modules, or battery packs. Before comparing suppliers, it is important to define your testing requirements clearly.

Need a thermal cycling test chamber for battery testing? Request a quote in 24 hours.

Define Battery Testing Requirements Before Choosing a Thermal Cycling Test Chamber

Before purchasing a thermal cycling test chamber, create a clear testing specification. Providing detailed information about the battery sample and test procedure helps suppliers recommend the correct chamber configuration.

Identify the Battery Sample and Testing Standard

First, confirm what will be tested, including:

• Battery cells, modules, or complete packs
• Sample dimensions and weight
• Number of samples per test cycle
• Required temperature range
• Test duration and dwell time

Battery testing standards such as UN 38.3 and IEC 62133 define different environmental requirements. The thermal cycling test chamber should be selected according to the applicable standard and customer testing procedure.

Understand the Failure Risks You Need to Evaluate

Thermal cycling testing helps identify potential failures caused by repeated temperature changes, including:

• Micro-cracks caused by thermal expansion differences
• Weak solder joints
• Damaged seals
• Busbar or electronic connection failures

Understanding the expected failure modes helps determine the required temperature range, cycling speed, and chamber performance.

Prepare a Testing Requirement Sheet

A simple requirement sheet can make supplier communication more efficient.

Key Specifications for a Battery Thermal Cycling Test Chamber

After defining the testing requirements, convert them into chamber specifications.

Temperature Range

The required temperature range depends on the battery application and testing standard.

LIB industry thermal cycling test chambers support temperature ranges from -20°C, -40°C, and -70°C to +150°C, covering many battery reliability testing requirements.

For applications requiring extremely low temperatures, a cascade refrigeration system may be needed to achieve stable performance.

Temperature Change Rate

The temperature transition speed is another important factor.

LIB thermal cycling test chambers support adjustable ramp rates. However, the actual performance depends on the battery load because large battery packs absorb and release heat differently from empty chamber conditions.

When comparing suppliers, confirm the ramp rate under actual testing conditions rather than only checking empty chamber specifications.

Temperature Stability and Control Accuracy

Accurate temperature control ensures repeatable test results.

LIB chambers use PT100 Class A temperature sensors and provide temperature control accuracy suitable for laboratory testing. Anti-condensation functions also help protect battery samples during rapid temperature changes.

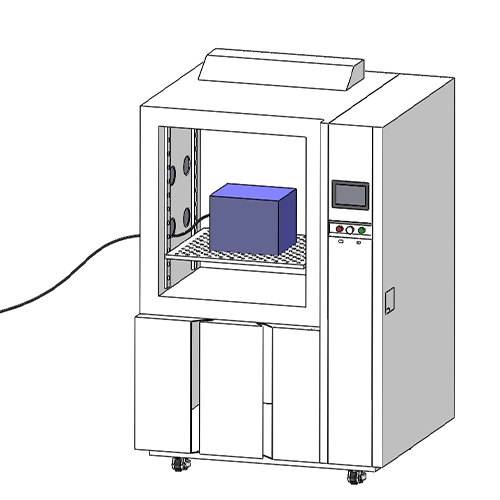

Choose the Right Thermal Cycling Test Chamber Size for Battery Samples

Chamber size affects testing efficiency, energy consumption, and temperature uniformity.

Match Chamber Volume to Battery Load

A chamber should not only fit the battery samples but also allow sufficient airflow around each sample.

LIB thermal cycling test chambers are available from 100L to 1000L, including:

For larger battery packs or customized testing requirements, LIB industry can provide customized chamber designs.

Safety Features for Battery Thermal Cycling Testing

Battery testing requires reliable safety protection because batteries can release heat, gas, or energy when tested outside normal operating conditions.

Chamber Safety Protection

LIB thermal cycling test chambers include safety functions such as:

• Over-temperature protection
• Over-current protection
• High-pressure protection
• Leakage protection
• Door alarms
• Emergency shutdown functions

For special battery abuse testing, additional safety requirements such as gas detection or fire suppression should be confirmed according to the application.

Data Monitoring and Test Management

Long-term battery testing requires accurate data recording.

LIB chambers support:

• Data logging
• Remote monitoring
• Ethernet communication
• USB data export

Recording both chamber temperature and battery temperature helps engineers analyze test results more accurately.

How to Compare Thermal Cycling Test Chamber Manufacturers?

Choosing a supplier is not only about the equipment price. Consider product quality, technical support, and long-term service.

Quality Certifications and Manufacturing Capability

LIB industry follows an ISO9001 quality management system and provides equipment with CE certification. Products are also supported by third-party verification from organizations such as SGS and TÜV.

Key components include:

• TECUMSEH refrigeration system
• SUS304 stainless steel chamber interior
• High-performance insulation structure
• Reliable temperature control system

Service and Warranty Support

A testing chamber is a long-term laboratory investment. LIB industry provides:

• 3-year warranty
• Lifetime service support
• Installation and operator training
• One-stop environmental testing solutions
• Global technical support

With service centers and support teams covering multiple regions, LIB industry helps customers maintain stable testing performance after installation.

What Should Be Confirmed Before Ordering a Thermal Cycling Test Chamber?

Before placing an order, confirm the following details with the supplier:

Technical Confirmation

Make sure the quotation includes:

• Temperature range
• Ramp rate under load conditions
• Chamber volume
• Shelf loading capacity
• Safety functions
• Data monitoring options

Commercial Confirmation

The total investment should include:

• Equipment cost
• Shipping
• Installation
• Training
• Warranty coverage
• Future maintenance support

LIB industry provides complete support from design and manufacturing to delivery, installation, and training.

Request a Battery Testing Chamber Solution from LIB Industry

Choosing the right thermal cycling test chamber for battery testing requires careful consideration of temperature performance, chamber size, safety features, and after-sales support.

LIB industry provides customized thermal cycling test chambers and complete environmental testing solutions for battery manufacturers, research laboratories, and testing organizations.

With 3-year warranty, lifetime service support, and professional technical assistance, LIB industry helps customers build reliable battery testing capabilities.

Contact LIB industry at inquiry@libtestchamber.com to discuss your battery testing requirements and receive a suitable chamber configuration.

Related Testing Equipment

FAQ

What temperature range is suitable for battery thermal cycling tests?

The required range depends on the battery type and testing standard. Many battery testing programs require temperatures around -40°C to +85°C, while some applications require wider ranges.

How do I choose the right thermal cycling test chamber size?

Select the chamber according to the battery sample dimensions, quantity, weight, and required airflow space. A larger chamber is usually needed for battery modules or packs.

What should be included in a thermal cycling test chamber quotation?

A complete quotation should include chamber specifications, temperature performance, safety functions, installation, training, warranty, and after-sales support.
