Accelerated weathering testing for outdoor LED products evaluates how prolonged UV radiation, temperature fluctuations, and moisture exposure affect critical components like polycarbonate lenses, housing materials, and protective coatings. An accelerated weathering tester simulates years of outdoor exposure within weeks using xenon arc lamps that replicate the complete solar spectrum. Testing protocols assess lens yellowing, impact resistance degradation, seal integrity loss, and coating adhesion failures that compromise LED performance. By exposing samples to controlled cycles of irradiance (35-150 W/㎡), temperature variations (35-100°C), and humidity (50-98% RH), manufacturers identify design weaknesses before market deployment. This methodology ensures outdoor LED luminaires maintain optical efficiency, weather protection, and aesthetic appearance throughout their projected 50,000+ hour operational lifespan.



Environmental Challenges Facing Outdoor LED Systems

---

Solar Radiation Photodegradation

Outdoor LED fixtures endure relentless ultraviolet bombardment that breaks molecular bonds in polymeric materials. The 280-400nm UV spectrum drives photochemical reactions causing lens discoloration, diffuser brittleness, and housing embrittlement. High-power streetlights positioned without canopy protection receive annual UV doses equivalent to 150 kWh/m², accelerating material breakdown that reduces light transmission and structural integrity.

Thermal Cycling Stress

LED luminaires experience dramatic temperature swings between daytime solar heating and nighttime cooling. Metal housings in desert climates reach 85°C surface temperatures while internal electronics generate additional heat. These thermal cycles induce differential expansion between dissimilar materials - aluminum heat sinks, polycarbonate optics, and silicone seals - creating mechanical stress that propagates cracks and compromises ingress protection ratings.

Moisture Infiltration Mechanisms

Rain, fog, and condensation challenge LED enclosure designs. Water intrusion corrodes electrical connections, fogs optical cavities, and accelerates photodegradation through combined UV-moisture attack. Coastal installations face additional salt spray corrosion affecting aluminum die-cast housings and stainless steel fasteners. IP65/IP66 ingress protection requires validated seal performance across temperature and humidity extremes.

Environmental Factor	Impact on LED Components	Failure Mechanism
UV Radiation (280-400nm)	Polycarbonate lens yellowing	Photooxidation, chromophore formation
Thermal Cycling (-40°C to +85°C)	Seal degradation, housing cracks	Differential thermal expansion
Humidity & Condensation	Electrical corrosion, optics fogging	Moisture infiltration, galvanic corrosion



UV Exposure Effects on LED Housing Materials

---

Polycarbonate Lens Degradation

Polycarbonate dominates outdoor LED optics due to impact resistance and optical clarity. Unprotected polycarbonate yellows dramatically under UV exposure as photooxidation creates aromatic ketone chromophores. Transmission losses exceeding 20% within two years reduce luminaire efficacy below specification. UV-stabilized grades incorporating benzotriazole absorbers and hindered amine light stabilizers extend service life, requiring validation through accelerated weathering tester protocols.

Acrylic Diffuser Embrittlement

Polymethyl methacrylate (PMMA) diffusers offer superior light transmission but inferior weathering resistance compared to polycarbonate. Extended UV exposure causes surface crazing - microscopic cracks that scatter light and harbor contaminants. Impact resistance declines sharply as crosslink density increases through photooxidative chain scission. Accelerated testing quantifies embrittlement through standardized impact testing post-UV exposure.

Powder Coating Chalking and Erosion

Die-cast aluminum housings receive polyester or polyurethane powder coatings providing corrosion protection and aesthetic finish. UV-induced binder degradation manifests as surface chalking - loose pigment particles indicating resin breakdown. Coating erosion exposes substrate to corrosion initiation. High-durability polyester-TGIC and acrylic-polyurethane systems demonstrate superior gloss retention and chalking resistance validated through xenon arc weathering chamber testing.



Temperature and Humidity Cycling in LED Reliability Testing

---

Black Panel Temperature Simulation

The black panel thermometer within accelerated weathering testers measures actual surface temperatures under solar loading - the realistic condition LED housings experience. Dark-colored aluminum luminaires reach BPT values 20-30°C above ambient, driving accelerated thermal aging. LIB Industry accelerated weathering testers maintain BPT precision of ±2°C across the 35-85°C range, enabling accurate thermal stress simulation.

Condensation and Spray Cycles

Programmable water spray systems replicate rain events and dew formation. Alternating dry irradiation with spray intervals (adjustable 1-9999 hours) creates wet/dry cycling that stresses gasket seals and tests drain path effectiveness. Water purification systems ensure spray water lacks minerals that could create misleading deposit artifacts. This cycling reveals seal compression set and adhesive bond degradation invisible during dry-only testing.

Combined Environmental Stress Testing

Realistic weathering combines simultaneous UV, temperature, and moisture exposure. Synergistic effects exceed individual stressor impacts - elevated temperature accelerates UV-driven polymer degradation while moisture hydrolyzes stabilizer additives. Test protocols incorporating 8-hour UV exposure at 70°C BPT followed by 4-hour spray at reduced irradiance compress years of actual exposure into weeks while maintaining degradation mechanism fidelity.

Test Parameter	LIB Accelerated Weathering Tester	Outdoor LED Application
Irradiance Control	35-150 W/㎡ at 340nm or 420nm	Simulates global solar conditions
Black Panel Temperature	35-85°C (±2°C accuracy)	Matches dark housing surface temps
Humidity Range	50-98% RH (±5% deviation)	Covers humid tropical to arid climates
Water Spray Cycling	Programmable intervals	Replicates rain and condensation



Evaluating Lens Clarity and Coating Durability

---

Spectrophotometric Transmission Measurement

LED optical performance depends on maintaining lens transmission across visible wavelengths. Spectrophotometric analysis at 400-700nm quantifies yellowing through yellowness index (YI) calculations per ASTM E313. Premium UV-stabilized polycarbonate maintains YI below 3.0 after weathering equivalent to five-year outdoor exposure, while unstabilized materials exceed YI 10.0, indicating severe discoloration affecting color rendering.

Haze and Clarity Assessment

Surface degradation creates light scattering measured as haze percentage per ASTM D1003. Clean polycarbonate exhibits haze below 2%, while weathered samples developing surface microcracks show haze exceeding 15%. This scattering reduces contrast and visual comfort in architectural lighting applications. Accelerated weathering tester protocols identify haze development rates guiding material selection and stabilizer optimization.

Anti-Reflective and Hydrophobic Coating Adhesion

Advanced LED optics incorporate multi-layer coatings enhancing transmission and preventing dirt accumulation. UV exposure and moisture cycling stress coating-substrate interfaces. Tape adhesion testing post-weathering per ASTM D3359 quantifies coating retention - critical as delaminated coatings reduce performance below uncoated optics. Silane coupling agents and plasma surface treatments improve durability validated through xenon arc exposure.



Standards for Outdoor LED Weather Resistance Testing

---

ASTM G155 Xenon Arc Exposure

ASTM G155 provides standardized xenon arc weathering procedures applicable to outdoor LED components. Practice A specifies daylight filters with controlled irradiance and spray cycles. LED manufacturers adapt these protocols to emphasize critical wavelengths - 340nm for polymer degradation assessment. Minimum 1,000-hour exposures provide preliminary screening while 2,000+ hour tests enable long-term performance prediction.

IEC 60598 and IP Rating Verification

IEC 60598-1 establishes safety requirements for luminaires including housing durability. While the standard doesn't mandate specific weathering tests, IP ingress protection ratings (IP65/IP66/IP67) require seal integrity verification. Accelerated weathering followed by IP testing validates that UV-aged gaskets maintain compression and that housing materials resist cracking that compromises protection ratings.

LM-80 and TM-21 Lumen Maintenance Extrapolation

LED lumen depreciation testing per LM-80 occurs at elevated temperatures but excludes UV and moisture. Comprehensive outdoor LED qualification combines thermal LM-80 data with optical component weathering results from accelerated weathering testers. TM-21 lifetime projections incorporate both LED chip degradation and optical system transmission losses, providing realistic performance predictions.

Testing Standard	Scope	Relevance to Outdoor LEDs
ASTM G155	Xenon arc weathering procedures	Validates housing, lens, coating durability
IEC 60598-1	Luminaire safety and construction	Establishes ingress protection requirements
LM-80/TM-21	LED lumen maintenance	Quantifies light source degradation (excludes optics)



Extending LED Product Lifespan with Accelerated Weathering Tests

---

Material Selection Optimization

Comparative weathering testing guides informed material decisions. Testing multiple polycarbonate grades with varying UV stabilizer packages reveals cost-performance relationships. A 15% material cost increase for premium UV-stabilized resin may deliver 200% longer optical clarity retention - economically justified for high-value architectural installations. Accelerated weathering tester data transforms material selection from supplier claims to validated performance metrics.

Coating System Development

LED housing finishes require balancing aesthetics, corrosion protection, and UV durability. Accelerated weathering enables rapid coating formulation iteration - testing alternative resin chemistries, pigment selections, and topcoat systems. Quantitative gloss retention and color stability data after 1,500-hour xenon exposure identifies optimal systems before expensive field trials. This methodology compressed development cycles from years to months.

Quality Control and Supplier Validation

Manufacturing consistency directly impacts field performance. Periodic accelerated weathering testing of production components verifies supplier adherence to specifications. Detecting formulation drift - reduced UV stabilizer levels cutting costs - before product shipment prevents warranty claims and brand damage. Establishing weathering acceptance criteria creates objective quality gates protecting long-term reliability.



LIB Industry Ensures UV and Climate Resistance Validation for LEDs

---

xenon lamp and filters

Full Spectrum Xenon Arc Technology

LIB Industry's accelerated weathering tester features a 4500W water-cooled xenon arc lamp delivering stable spectral output across 280-800nm wavelength range. Multiple interchangeable filter systems - daylight, window glass, and UV-extended configurations - enable testing under various exposure conditions. The 1,600-hour lamp lifespan with consistent output ensures repeatable long-duration testing essential for LED qualification programs.

Precision Environmental Control Systems

The intelligent PID control system maintains black panel temperature stability (±2°C) and humidity precision (±2.5% RH) throughout extended test cycles. This accuracy ensures consistent dose delivery critical for comparative testing. The rotating specimen holder accommodates 42 LED components simultaneously, with continuous rotation guaranteeing uniform exposure eliminating positional bias. Real-time monitoring through Ethernet/Wi-Fi connectivity enables remote supervision.

Comprehensive Testing Capabilities

LIB weathering chambers integrate multiple environmental stressors in programmable sequences. Alternate 8-hour UV exposure at 0.55 W/㎡@340nm and 70°C BPT with 4-hour spray cycles and condensation periods. This flexibility enables customized protocols matching specific geographic deployment conditions - tropical high-humidity, desert high-UV, or temperate moderate exposure. The closed-loop water circulation system with multi-stage filtration supports economical operation.

LIB Weathering Tester Feature	Specification	LED Testing Advantage
Xenon Lamp System	4500W water-cooled, 1600hr lifespan	Stable full-spectrum simulation
Sample Capacity	42 specimens with rotation	High-throughput component testing
Irradiance Range	35-150 W/㎡, 340nm/420nm	Adjustable intensity for various climates
Temperature Control	Ambient-100°C chamber, BPT 35-85°C	Replicates global deployment conditions
Humidity Capability	50-98% RH with ±5% control	Comprehensive moisture exposure



Conclusion​​​​​​​

---

Accelerated weathering testing represents an essential validation step for outdoor LED products facing harsh environmental exposure throughout multi-decade service lives. By subjecting critical optical and protective components to controlled UV radiation, temperature cycling, and moisture stress, manufacturers identify design vulnerabilities before market release. LIB Industry's advanced weathering testing systems deliver the spectral accuracy, environmental control precision, and testing flexibility required for comprehensive LED reliability validation. Implementing rigorous weathering protocols ensures outdoor LED luminaires maintain optical performance, structural integrity, and aesthetic appearance across diverse global climates.



FAQ

---

How does accelerated weathering testing correlate with actual outdoor LED performance?

Correlation studies comparing accelerated weathering tester results with outdoor exposure sites establish equivalency factors. Typical xenon arc testing at elevated irradiance delivers 4:1 to 8:1 acceleration, meaning 1,000 chamber hours approximates 1-2 years outdoors. Geographic-specific correlation accounts for latitude, altitude, and climate affecting actual UV dose and temperature exposure.

What LED components require accelerated weathering evaluation?

All optically-critical and environmentally-exposed components need testing: polycarbonate lenses, acrylic diffusers, silicone gaskets, powder-coated housings, printed graphics, and UV-cured adhesives. Even internal components near optical cavities warrant evaluation as secondary light paths can transmit UV into enclosed spaces. Comprehensive testing prevents unexpected field failures.

Can accelerated weathering testing predict exact LED product lifespan?

Weathering testing provides comparative degradation rates rather than absolute lifespan predictions. Combined with thermal testing (LM-80) and electrical stress data, manufacturers develop probabilistic lifetime models. Testing identifies which component fails first - chip degradation versus optical transmission loss - enabling targeted improvements. Regular testing revision incorporating field return analysis refines predictive accuracy.



Partner with a Leading Accelerated Weathering Tester Manufacturer

---

LIB Industry delivers comprehensive environmental testing solutions as a trusted accelerated weathering tester manufacturer and supplier. Our turn-key services encompass design, production, installation, commissioning, and technical training customized to your LED product testing requirements. Contact our engineering team at ellen@lib-industry.com to discuss weathering test chamber configurations optimized for outdoor LED component validation.

Plastic manufacturers face mounting pressure to deliver products that withstand years of outdoor exposure without compromising appearance or structural integrity. Xenon weathering tests conducted in a xenon test chamber provide the critical answer to this challenge by simulating decades of real-world conditions in just weeks or months. Through controlled exposure to UV radiation, temperature fluctuations, and moisture cycles, these tests reveal how plastic formulations respond to environmental stress before products reach the market. This accelerated aging process helps manufacturers identify weaknesses, optimize material selection, refine stabilizer packages, and confidently predict product lifespan - ultimately protecting brand reputation and reducing costly field failures.



Understanding UV Degradation in Plastic Materials

---

The Photochemical Process Behind Plastic Deterioration

When plastic materials encounter ultraviolet radiation, photons with sufficient energy break molecular bonds within the polymer chains. This photochemical reaction initiates a cascade of degradation processes that fundamentally alter the material's properties. The carbon-hydrogen bonds in most plastics absorb UV wavelengths between 290-400nm, triggering free radical formation. These reactive molecules propagate chain scission reactions, creating shorter polymer segments that compromise mechanical strength and surface characteristics.

Visible Signs of UV-Induced Damage

Surface chalking represents one of the earliest indicators of photodegradation, appearing as a powdery residue when UV exposure breaks down polymer chains near the surface. Color shifts occur as chromophores within pigments or the base polymer undergo chemical changes, typically manifesting as yellowing, fading, or complete discoloration. Gloss reduction follows as surface roughness increases from differential degradation rates across the material matrix.

Long-Term Structural Consequences

Beyond aesthetic deterioration, UV exposure severely impacts mechanical performance. Tensile strength declines as polymer chain length decreases, making materials brittle and prone to cracking under stress. Impact resistance drops dramatically when degraded surface layers propagate fractures through the bulk material. Dimensional stability suffers as cross-linking or chain scission alters the polymer network, leading to warping or shrinkage that compromises assembly tolerances.



How Xenon Exposure Simulates Outdoor Environments?

---

Spectral Matching with Natural Sunlight

A xenon test chamber employs water-cooled xenon arc lamps that generate a continuous spectrum remarkably similar to solar radiation reaching Earth's surface. Unlike fluorescent UV lamps that produce discrete spectral lines, xenon sources deliver broad-spectrum output from 290nm through the visible range into infrared wavelengths. Advanced optical filter systems customize this output to match specific exposure conditions - whether simulating direct sunlight through window glass or outdoor weathering with full UV spectrum.

Controlled Environmental Parameters

Temperature management within xenon test chambers goes beyond simple heating. Black panel temperature sensors measure the actual surface temperature of dark-colored specimens, which often exceeds ambient air temperature by 20-30°C under intense irradiation. This metric better represents real-world conditions where black automotive dashboards or dark building panels experience extreme thermal stress. Humidity control adds another dimension, cycling between dry periods and high-moisture conditions that accelerate hydrolytic degradation mechanisms.

Accelerated Time Compression

The fundamental advantage of xenon weathering lies in concentrating months or years of outdoor exposure into manageable test durations. By operating at irradiance levels of 0.35 to 1.5 W/m² at 340nm - significantly higher than typical outdoor conditions - test cycles compress aging timelines while maintaining proportional degradation mechanisms. A properly designed test protocol achieves reliable correlation factors, where 1000 hours of chamber exposure equates to specific outdoor exposure periods depending on geographic location and application.



Common Plastic Failures Detected During Weathering Tests

---

Color Stability Failures

Color shift measurements using spectrophotometry reveal how pigment systems respond to sustained UV bombardment. Organic colorants often show significant fading within 500-1000 hours of xenon exposure, while inorganic pigments generally demonstrate superior lightfastness. Manufacturers testing automotive exterior trim discover whether their chosen colorant package maintains acceptable ΔE values below 2-3 units, the threshold where human eyes perceive noticeable color differences.

Mechanical Property Degradation

Tensile testing at intervals throughout xenon exposure quantifies strength retention. High-density polyethylene formulations without adequate UV stabilizers may lose 40-60% of original tensile strength after 2000 hours exposure. Elongation at break typically declines even more dramatically, dropping from 500% to below 50% as chain scission creates brittle surface layers. Impact testing reveals embrittlement that renders products susceptible to catastrophic failure during handling or use.

Surface Integrity Breakdown

Microscopic examination after weathering cycles exposes surface cracking patterns invisible to naked eyes. Micro-cracks initiated at stress concentration points propagate through degraded polymer matrices, eventually creating visible crazing networks. Gloss measurements track surface roughening quantitatively - initial gloss values of 85-90 units declining to 30-40 units signal significant surface deterioration. Adhesion testing evaluates whether coatings or printing remain bonded to substrates after UV exposure compromises surface chemistry.

Table 1: Common Degradation Modes Detected in Xenon Weathering Tests

Degradation Type	Initial Detection Time	Measurement Method	Acceptance Criteria
Color Fading	200-500 hours	Spectrophotometry (ΔE)	ΔE < 3.0
Gloss Reduction	300-800 hours	60° Gloss Meter	>50% retention
Tensile Strength Loss	500-1500 hours	ASTM D638	>70% retention
Surface Cracking	800-2000 hours	Visual/Microscopy	No visible cracks
Embrittlement	1000-2500 hours	Impact Testing	>60% retention



Industry Standards for Plastic Weathering Evaluation

---

ISO 4892 Series Requirements

The ISO 4892 standard series provides comprehensive guidance for xenon arc weathering tests conducted in a xenon test chamber across multiple parts. ISO 4892-2 specifically addresses xenon lamp exposure methods, defining filter types, irradiance levels, temperature parameters, and moisture cycling protocols. Manufacturers targeting European markets rely on these specifications to ensure testing aligns with regulatory expectations and customer requirements.

ASTM G155 Protocol Details

ASTM G155 offers detailed procedures for xenon arc exposure testing adapted to North American industry practices. This standard outlines specific test cycles including continuous light exposure, light with water spray, and light-dark cycling with controlled humidity transitions. The protocol specifies calibration procedures using reference materials and radiometer verification to ensure consistent irradiance delivery throughout test duration.

Material-Specific Test Methods

Beyond general weathering standards, material-specific protocols address unique requirements. ASTM D4459 covers outdoor weathering of polyolefins, while ASTM D6662 focuses on polyolefin-based plastic lumber. These specialized methods define appropriate exposure doses, relevant property measurements, and performance benchmarks tailored to specific polymer families and applications. Automotive specifications like SAE J2527 establish weathering requirements for exterior plastic components with pass/fail criteria tied to warranty expectations.

Table 2: Key International Standards for Plastic Weathering Testing

Standard	Region	Application Focus	Key Parameters
ISO 4892-2	International	General xenon exposure	Filter types, irradiance, temperature
ASTM G155	North America	Xenon arc weathering	Test cycles, calibration procedures
SAE J2527	Automotive	Exterior components	Color stability, gloss retention
ASTM D4459	North America	Polyolefin weathering	UV stabilizer evaluation
ISO 11341	International	Paints and varnishes	Coating performance on plastics



Improving Product Lifespan Through Accelerated Aging

---

Stabilizer Package Optimization

Xenon weathering tests enable systematic evaluation of UV stabilizer effectiveness before committing to full-scale production. Hindered amine light stabilizers (HALS) function through radical scavenging mechanisms, while UV absorbers like benzotriazoles convert harmful radiation into harmless heat. Testing multiple concentrations and combinations reveals optimal loading levels that balance performance against cost constraints. Manufacturers discover whether 0.2% or 0.5% stabilizer addition provides adequate protection for their specific application's exposure severity.

Material Selection Validation

Comparative weathering studies guide material selection decisions among competing polymer grades or suppliers. Testing demonstrates whether a premium-grade polycarbonate justifies higher material costs through superior UV resistance compared to standard grades. Manufacturers evaluate engineering plastics like ASA (acrylonitrile styrene acrylate) against ABS to confirm whether enhanced outdoor durability warrants material substitution for exterior applications.

Quality Control Benchmarking

Establishing baseline weathering performance for approved formulations using a xenon test chamber creates quality control benchmarks for ongoing production monitoring. Periodic testing of production batches against historical data ensures formulation consistency and detects raw material variations before they cause field failures. When a batch shows premature degradation at 800 hours compared to the typical 1200-hour threshold, investigation can identify whether stabilizer concentration drifted below specifications or if a pigment supplier changed formulations.



Selecting the Right Xenon Test Parameters for Plastics

---

Irradiance Level Determination

Choosing appropriate irradiance settings depends on balancing acceleration factors against maintaining realistic degradation mechanisms. Standard testing at 0.55 W/m² at 340nm provides moderate acceleration suitable for general material screening. Higher irradiance levels up to 1.5 W/m² dramatically reduce test duration but risk introducing artificial degradation modes not encountered outdoors. Conservative approaches start at lower irradiance for initial correlation studies, then increase intensity once correlation with outdoor exposure is validated.

Temperature and Humidity Cycling

Black panel temperature settings should reflect actual end-use conditions. Automotive interior components may experience 90°C surface temperatures in closed vehicles during summer, justifying aggressive 85°C test temperatures. Outdoor building products in temperate climates rarely exceed 70°C, suggesting lower test temperatures better represent service conditions. Humidity cycling between 50-98% RH simulates dew formation and rain events that accelerate degradation through hydrolytic mechanisms and contaminant concentration cycles.

Spray Cycle Configuration

Water spray introduces mechanical stress from thermal shock while simulating moisture exposure. Front-face spray directly impacts specimens with room-temperature water while lamps remain energized, creating rapid cooling followed by reheating. This thermal cycling stresses adhesive bonds and tests coating flexibility. Spray duration and frequency depend on application - outdoor furniture testing might include 18-minute spray cycles every 120 minutes, while automotive testing follows OEM-specific protocols matching their correlation data.

Table 3: Recommended Xenon Test Parameters for Common Plastic Applications

Application	Irradiance (W/m²)	Black Panel Temp (°C)	Relative Humidity	Spray Cycle
Automotive Exterior	0.55 @ 340nm	70-85	50-70% RH	18 min/2 hr
Building Products	0.35-0.55 @ 340nm	60-75	60-90% RH	18 min/2 hr
Consumer Electronics	0.55 @ 340nm	55-70	50-65% RH	Optional
Outdoor Furniture	0.55-0.80 @ 340nm	65-80	50-80% RH	18 min/102 min
Agricultural Film	0.80-1.20 @ 340nm	60-75	60-90% RH	Not required



LIB Industry Enables Reliable Plastic UV Aging Performance Testing

---

xenon lamp and filters

Precision Environmental Control Technology

LIB Industry's xenon test chamber delivers the controlled conditions essential for reproducible weathering studies. The 4500W water-cooled xenon arc lamp provides stable spectral output across the critical 300-400nm bandwidth measurement range, with irradiance adjustable from 35-150 W/m². Built-in Solar Eye technology continuously monitors light intensity and automatically compensates for lamp aging, maintaining consistent irradiance levels throughout multi-thousand-hour test programs. This closed-loop control eliminates the variations that compromise result validity when testing plastic formulations.

Comprehensive Testing Capacity

The rotating sample holder accommodates 42 specimens simultaneously, each measuring 95×200mm, providing statistical validity through multiple replicates per test condition. Continuous rotation ensures uniform exposure as each sample passes through identical positions relative to the light source and spray nozzles. Black panel temperature control maintains 35-85°C ±2°C accuracy, while humidity ranges from 50-98% RH with ±5% deviation. Programmable spray cycles from 1-9999 hours 59 minutes enable precise moisture exposure matching specific test protocols.

Global Standards Compliance

LIB Industry's chambers meet international testing requirements including ISO 4892, ASTM G154, and ASTM G155 specifications. The programmable color LCD touch screen controller simplifies protocol setup for complex multi-stage test sequences. Automatic water supply with integrated purification systems ensures consistent water quality for spray cycles. Multiple safety protections including over-temperature, over-current, water shortage, earth leakage, and phase sequence safeguards protect samples and operators. CE certification and third-party validation by SGS and TUV confirm compliance with international quality standards.

Customization and Support Infrastructure

Understanding that different industries face unique testing challenges, LIB Industry offers custom solutions tailored to specific plastic weathering applications. The engineering team collaborates with manufacturers to configure chamber parameters, sample holders, and control sequences matching proprietary test protocols. A 3-year warranty backed by lifetime service commitment provides peace of mind, while 24/7 global support ensures technical assistance across time zones. The closed-loop water circulation system with multi-stage filtration reduces operational costs while maintaining environmental responsibility.



Conclusion

---

Xenon weathering testing has become indispensable for plastic manufacturers committed to delivering durable products that maintain appearance and performance throughout their service life. By simulating years of outdoor exposure in controlled laboratory conditions, these tests reveal material vulnerabilities, validate stabilizer systems, and guide formulation optimization before costly production begins. Understanding UV degradation mechanisms, selecting appropriate test parameters aligned with industry standards, and partnering with reliable testing equipment providers creates the foundation for successful product development programs that minimize field failures and maximize customer satisfaction.



FAQ

---

How long should plastic manufacturers run xenon weathering tests to predict outdoor lifespan?

Test duration depends on acceleration factors and correlation studies, but typical automotive plastics undergo 2000-3000 hours of exposure. Manufacturers should establish correlation between chamber hours and actual outdoor years through parallel testing. Geographic location, orientation, and application significantly influence required exposure time for meaningful predictions.

What's the difference between xenon arc and fluorescent UV weathering chambers for plastic testing?

Xenon arc lamps provide full-spectrum output closely matching natural sunlight, including visible and infrared wavelengths that affect temperature-dependent degradation. Fluorescent UV lamps offer only UV wavelengths with discrete spectral peaks, making them suitable for UV-dominant degradation screening but less representative of actual outdoor conditions for comprehensive material evaluation.

Can xenon weathering tests predict how plastic products perform in different climates?

Yes, through parameter adjustment including irradiance intensity, temperature settings, and moisture cycling. Florida subtropical exposure requires different test cycles than Arizona desert conditions. Manufacturers develop multiple protocols representing various geographic markets, validating correlation through outdoor exposure sites in target regions before relying solely on accelerated testing.



Contact LIB Industry for Your Xenon Test Chamber Needs

---

As a leading xenon test chamber manufacturer and supplier, LIB Industry delivers turn-key environmental testing solutions worldwide. Contact our team at ellen@lib-industry.com to discuss your plastic weathering testing requirements and discover how our chambers can support your quality assurance goals.

Marine hardware operates in one of Earth's most unforgiving environments - a relentless combination of salt spray, humidity, and temperature fluctuations that systematically dismantles unprotected materials. A single corroded bolt or degraded fitting can compromise entire systems, leading to catastrophic failures, safety hazards, and astronomical replacement costs. Salt fog validation in a controlled salt spray chamber isn't just a regulatory checkbox; it's a predictive engineering tool that compresses a decade of marine exposure into months of testing. This process reveals latent weaknesses in materials, coatings, and designs before they ever touch seawater, ensuring that every component - from deck cleats to offshore rigging - can withstand the ocean's persistent, corrosive embrace.

An Australian coatings manufacturer recently integrated a salt spray corrosion test system into its marine coating validation program. After installation, testing began immediately on offshore and coastal coating panels.The system delivered stable salt fog distribution and consistent test conditions, allowing engineers to evaluate corrosion resistance, blistering, and edge protection with confidence. Its reliable performance enabled the team to quickly start long-term exposure tests and formulation comparisons, improving validation efficiency and ensuring repeatable results.



Corrosion Challenges in Marine Environment Applications

---

The Electrochemical Onslaught of Seawater

Seawater constitutes an exceptionally aggressive electrolyte due to its high chloride content (approximately 19,000 ppm). When a metal surface is exposed, microscopic anodic and cathodic sites form, initiating galvanic corrosion. Chloride ions penetrate protective oxide layers on stainless steel, causing pitting corrosion that propagates rapidly beneath the surface. This electrochemical process accelerates dramatically with temperature increases common in tropical marine environments, making static laboratory tests insufficient without dynamic thermal cycling.

Beyond Simple Rust: Multifaceted Degradation Modes

Marine hardware faces more than just uniform rust. Crevice corrosion attacks hidden joints and under-heads of bolts where oxygen depletion creates aggressive microenvironments. Galvanic corrosion occurs when dissimilar metals (e.g., stainless steel bolts in aluminum frames) contact each other in seawater, with the more anodic metal sacrificing itself rapidly. Stress corrosion cracking combines tensile stress with a corrosive environment to cause sudden, brittle failure in high-strength alloys like 316 stainless. Fatigue corrosion under cyclic loads from waves and wind further complicates material selection.

Hidden Costs of Corrosion-Induced Failure

The financial impact extends far beyond part replacement. Corrosion-related failures on commercial vessels trigger costly dry-docking, lost revenue from downtime, and potential environmental fines from oil spills or cargo contamination. For recreational boating, a failed stern light bracket or stanchion can create safety hazards leading to liability claims. In offshore energy, a single corroded connector on a subsea control module can necessitate a multi-million dollar intervention. These systemic risks make accelerated validation not just advisable, but essential for risk management.

Table 1: Primary Corrosion Mechanisms in Marine Applications

Corrosion Type	Primary Driver	Vulnerable Materials	Typical Failure Mode
Uniform Corrosion	General seawater exposure	Carbon steel, unprotected aluminum	Thinning, section loss
Pitting Corrosion	Chloride ions	300-series stainless steels	Localized deep penetration
Crevice Corrosion	Stagnant micro-environments	Bolted joints, under gaskets	Hidden severe attack
Galvanic Corrosion	Dissimilar metal couples	Any mixed-metal assembly	Rapid anodic material loss
Stress Corrosion Cracking	Tensile stress + chloride	High-strength austenitic steels	Sudden brittle fracture



How Salt Fog Testing Simulates Coastal Exposure Conditions?

---

Accelerated Electrochemical Replication

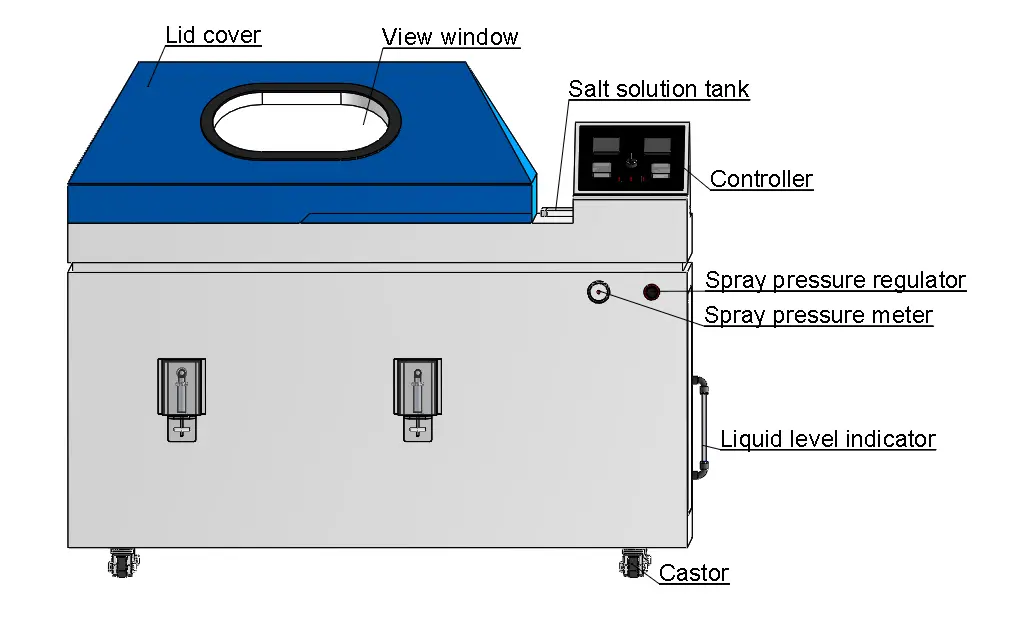

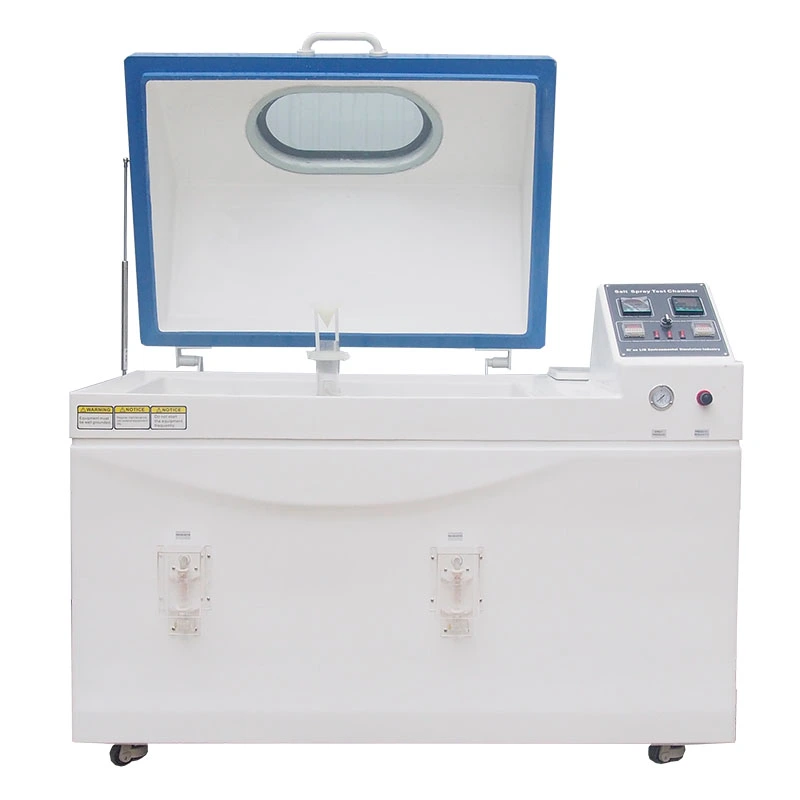

A salt spray chamber creates a controlled, saturated atmosphere (95-98% RH) with a fine mist of sodium chloride solution (typically 5% NaCl). The continuous or periodic fog deposition rate of 1-2 ml per 80 cm² per hour ensures consistent electrolyte film formation on all specimen surfaces. This environment dramatically accelerates the electrochemical corrosion processes that would take years in a marine setting, allowing engineers to observe failure modes in 500-2000 hours instead of waiting for real-world exposure.

Critical Parameters for Realistic Simulation

The chamber's temperature stability (±0.5°C fluctuation, ±2.0°C deviation) is crucial because corrosion rates double with every 10°C rise. Testing at 35°C simulates tropical conditions, while 25°C represents temperate climates. The fog's particle size distribution - controlled by the atomizer tower and nozzle design - determines whether droplets deposit as a film (simulating sea spray) or as discrete droplets (simulating wave splash). LIB's adjustable spray tower allows fine-tuning to match specific geographic exposure conditions, from the misty Pacific Northwest to the arid, salty air of the Red Sea.

Cyclic Testing for Realistic Wet/Dry Transitions

Continuous salt fog is the ASTM B117 standard, but many marine components experience wet-dry cycles as tides change and waves splash and recede. Periodic spray cycles (e.g., 10 minutes on, 50 minutes off) simulate these transitions, allowing corrosion products to form during wet periods and then concentrate during drying - a condition that often accelerates attack. This cyclic approach better predicts the performance of coatings that rely on film formation and self-healing mechanisms.

Table 2: Salt Spray Test Parameters for Different Marine Applications

Application	Test Standard	Temperature (°C)	Spray Type	Duration (Typical)	Primary Assessment
Fasteners & Hardware	ASTM B117	35	Continuous	500-1000 hrs	Base metal corrosion, coating adhesion
Marine Coatings	ISO 9227 (NSS)	35	Continuous	1000-2000 hrs	Blistering, rust-through, edge corrosion
Electrical Connectors	ASTM B117 + Humidity	35	Periodic	750-1500 hrs	Contact resistance, insulation degradation
Anodized Aluminum	ASTM B117	35	Continuous	500-1000 hrs	Pitting at coating defects
Welded Assemblies	ISO 9227 (Cyclic)	35/25 cycling	Periodic	1000+ hrs	Weld zone attack, crevice at joints



Evaluating Protective Coatings for Marine Hardware

---

Coating Failure Modes Under Salt Fog

Salt fog testing exposes coating weaknesses that might not appear in simple humidity tests. Blistering occurs when water vapor pressure builds at the coating-substrate interface due to poor adhesion or soluble contaminants. Delamination starts at edges or scratches where electrolyte penetrates. Cathodic disbondment happens when a coating's dielectric breakdown allows current to flow, generating alkali at the metal surface that lifts the coating. These modes progress at different rates depending on coating chemistry - epoxies may blister early but resist disbondment, while polyurethanes might chalk but maintain adhesion.

Measuring Corrosion Progression Quantitatively

Beyond visual inspection (rating per ASTM D1654), modern salt spray testing uses quantitative metrics. Weight loss measurements after cleaning corrosion products determine corrosion rate in mils per year (mpy). Cross-sectional microscopy reveals coating thickness loss and pit depth. Electrochemical impedance spectroscopy (EIS) can be performed periodically during testing to monitor coating degradation in real-time. The salt deposition rate (1-2 ml/80cm²·h) must be verified with a fallout collector to ensure test validity - a key feature in LIB's design.

Accelerated Validation for New Coating Systems

Developing a new marine coating involves testing multiple formulations. A salt spray chamber allows side-by-side comparison of primers, intermediates, and topcoats. Test coupons with intentional scribes (through to bare metal) simulate coating damage. The time to first red rust appearance at the scribe is a critical benchmark. For topcoats, gloss retention and color shift (ΔE) measurements before and after testing quantify aesthetic durability - a major selling point for yacht hardware and premium boat fittings.



Material Selection for Improved Corrosion Resistance

---

Stainless Steels: Not All Are Created Equal

The 300-series austenitic stainless steels (304, 316) are common but have limits. 316's molybdenum content improves pitting resistance in seawater, but its critical pitting temperature (CPT) can be exceeded in warm tropical waters. Duplex stainless steels (2205) offer superior resistance but at higher cost. Salt fog testing quickly identifies whether a specified grade meets the required threshold - a 316 part that shows pitting after 500 hours at 35°C may need upgrading to a super duplex or requiring cathodic protection.

Aluminum Alloys and Anodizing Strategies

Marine-grade aluminum alloys (5000-series like 5086, 6000-series like 6061-T6) rely on passive oxide films. Salt fog testing evaluates both the base alloy's inherent resistance and the quality of anodizing or conversion coatings. Hardcoat anodizing (Type III) provides thicker, more wear-resistant protection but can be brittle. Testing reveals if the anodic coating cracks under thermal cycling or if sealant degradation leads to pitting at pores. For critical applications, testing compares different sealing methods (hot water, nickel acetate, sol-gel).

Non-Metallic Alternatives: Composites and Plastics

Fiber-reinforced polymers (FRP) and thermoplastics like acetal (POM) or polypropylene are increasingly used in marine hardware to eliminate corrosion entirely. However, they face different challenges: galvanic corrosion of embedded metal fasteners, hydrolysis in hot, humid environments, and UV degradation on deck. Salt fog testing at elevated temperatures (40-50°C) accelerates hydrolytic attack on plastics, while the constant humidity tests for water absorption that can swell dimensions and affect tolerances in precision components.



Industry Standards for Marine Corrosion Testing

---

Foundational Standards: ASTM B117 and ISO 9227

ASTM B117 is the original and most widely recognized salt spray (fog) testing standard. It specifies a 5% NaCl solution at 35°C with continuous fog, but notably does not define test duration or acceptance criteria - those come from product-specific standards. ISO 9227 offers three variations: Neutral Salt Spray (NSS, identical to ASTM B117), Acetic Acid Salt Spray (AASS, more aggressive for electroplated coatings), and Copper-Accelerated Acetic Acid Salt Spray (CASS, highly aggressive for decorative coatings). Understanding which variant applies is critical for meaningful results.

Industry-Specific Protocols

The automotive industry uses SAE J2334 for cyclic corrosion testing that includes humidity, dry, and salt spray phases, better simulating road salt environments. The aerospace sector references ASTM B117 but with specific pre-treatments and evaluation criteria for aircraft alloys. Marine hardware often follows National Marine Manufacturers Association (NMMA) guidelines or ASTM F1941 for fasteners. Compliance requires not just running the test, but documenting specimen preparation, orientation, and evaluation methods per the referenced standard.

Calibration and Laboratory Accreditation

To ensure results are defensible in warranty disputes or liability cases, testing must be performed in an accredited laboratory (ISO/IEC 17025). This requires regular calibration of the salt spray chamber's temperature, humidity, and salt deposition rate using traceable instruments. LIB's inclusion of a calibration certificate addresses this need. The chamber's design - with its fog collector and measuring cylinder - facilitates the required verification of deposition rate (1-2 ml/80cm²·h) during routine operation.

Table 3: Key Standards Governing Marine Hardware Corrosion Testing

Standard	Issuing Body	Test Environment	Primary Application	Key Parameter
ASTM B117	ASTM International	5% NaCl, 35°C, continuous fog	Baseline corrosion resistance	Deposition: 1-2 ml/80cm²·h
ISO 9227 (NSS)	ISO	5% NaCl, 35°C, continuous fog	Coatings, fasteners (global)	Identical to ASTM B117
ISO 9227 (AASS)	ISO	5% NaCl + acetic acid, pH 3.1-3.3	Electroplated coatings	More aggressive than NSS
ASTM B368	ASTM International	Copper-accelerated acetic acid salt spray (CASS)	Decorative chromium/nickel plating	Highly aggressive
SAE J2334	SAE International	Cyclic: humidity, dry, salt spray	Automotive body components	Simulates road salt cycles
NEMA TR-1	NEMA	Various salt solutions, temperatures	Electrical enclosures	Industry-specific variants



Extending Marine Equipment Lifespan Through Validation Tests​​​​​​​

---

Design Iteration Before Production

Salt fog testing during the prototyping phase identifies design flaws that cause trapped moisture or crevices. A cleat design with a hidden cavity might hold salt solution, leading to severe localized corrosion. Testing reveals this, prompting a design change to add drainage holes or seal seams. Similarly, testing different fastener materials in an assembly shows if galvanic coupling will cause rapid failure, allowing specification changes before costly tooling is committed.

Warranty and Life Prediction

Data from accelerated salt fog tests feeds into life prediction models. If a coating system shows first rust at 1000 hours in a chamber, engineers can correlate this to a certain number of years in a specific marine environment (e.g., 5 years in a Florida boatyard). This quantitative backing justifies warranty periods and informs maintenance schedules. For components where failure is catastrophic (e.g., steering linkage), the test data supports conservative replacement intervals.

Supplier Qualification and Quality Control

Salt fog validation becomes a receiving inspection criterion for critical hardware. A batch of stainless steel shackles from a new supplier can be tested alongside the approved vendor's product. If the new batch shows pitting at 300 hours versus 800 hours for the control, it fails acceptance. This ongoing monitoring ensures production consistency, especially when sourcing from regions with varying metallurgical quality controls.

Selecting the Right Test Cycles for Marine Applications

Matching Test Aggressiveness to Service Severity

Not all marine environments are equal. A component for a freshwater lake boat faces far less challenge than one for a deep-sea fishing vessel in the tropics. The test cycle must match this severity. For mild service (inland waterways), a 500-hour NSS test might suffice. For severe service (commercial offshore, tropical), 1000-2000 hours or even cyclic tests are required. Using an overly aggressive test (like CASS) for a mild application can reject viable materials, while an insufficiently aggressive test for severe service creates a false sense of security.

Beyond the Salt Fog: Combined Stresses

Real marine exposure combines salt with UV, temperature cycling, and mechanical wear. For above-deck hardware, a salt fog test alone is insufficient. It should be combined with UV weathering (xenon arc) to evaluate coating degradation from sunlight. For submerged or tidal zone components, testing might incorporate immersion cycles or wet/dry cycling to simulate tidal exposure. LIB's salt spray chambers can be integrated into multi-stress testing protocols, though pure salt fog remains the baseline for submerged and splash-zone parts.

Specimen Preparation and Orientation Matter

How you mount specimens drastically affects results. Horizontal orientation promotes solution pooling and faster corrosion. Vertical orientation with 15-30° tilt mimics natural runoff and is standard for many tests. The number and placement of specimens affect airflow and fog distribution - overloading the chamber creates shadowing and invalid results. LIB's chambers with adjustable spray towers and multiple shelf configurations (6 round bars, 5 V-grooves) allow proper specimen arrangement per standard requirements.



LIB Industry Delivers Reliable Salt Fog Corrosion Testing Solutions

---

Durable, Leak-Resistant Workspace	Flexible Sample Rack System	Water-Sealed Lid Design
Uniform Salt Solution Agitation	Intelligent Controller	Included Industrial-Grade Salt

Engineering for Precision and Uptime

LIB's salt spray chambers are built around consistent, repeatable test conditions. The saturated air barrel preheats and humidifies compressed air before it reaches the atomizer, ensuring fog droplets are the correct size and salinity. The external portable salt solution tank (sizes from 73L to 115L+) allows easy refilling without disturbing the test. The pneumatically operated 'easy open' canopy with timed purge cycle safely vents corrosive fog before access, protecting operators and preventing condensation on newly opened specimens.

Compliance and Documentation Built-In

Every chamber comes with a calibration certificate and meets ASTM B117, ISO 9227, and JIS Z 2371 standards. The PID controller with multi-language support (English, French, Spanish, German, Russian) ensures proper setup by global teams. The central viewing window with interior lighting allows non-intrusive observation. The dry seal gasket on the canopy prevents fog leakage onto lab floors - a critical feature for facilities with sensitive equipment nearby. These details reflect an understanding of real-world laboratory constraints.

Global Support and Customization for Niche Applications

LIB's service centers in Malaysia, Canada, the UK, and the US provide localized technical support. Their customization capability addresses unique needs: oversized specimens for wind turbine components, special fixturing for complex assemblies, or modified control programs for proprietary cyclic protocols. The fall-out measuring kit and consumables spares kit included with purchase ensure customers can maintain chamber performance and validate deposition rates themselves. This turn-key approach - from consultation through training - de-risks the investment for manufacturers whose product reputation depends on flawless corrosion performance.



Conclusion

---

Salt fog validation in a purpose-built chamber is the cornerstone of confidence for any marine hardware manufacturer. It transforms subjective notions of "marine-grade" into quantifiable, repeatable data on corrosion resistance. By simulating years of ocean exposure in months, this testing guides material selection, validates coating systems, and identifies design flaws before products face real saltwater. For companies committed to safety, reliability, and brand integrity in marine environments, investing in rigorous salt spray testing isn't an expense - it's the foundation of product excellence and customer trust.



FAQ

---

How long should marine hardware be tested in a salt spray chamber?

There is no single duration. It depends on the material, coating, and service severity. Basic hardware might require 500 hours for screening, while premium marine coatings often specify 1000-2000 hours. Always refer to the relevant product standard (e.g., NMMA, ASTM) for your specific application. Validation requires establishing correlation to real-world exposure for your target market.

Can a salt spray chamber test large assemblies like boat ladders or railings?

Yes, LIB offers models up to 1600L internal volume (S-020: 1000x2000x800mm). For very large structures, you may need to test representative sections or use a custom oversized chamber. The key is ensuring all critical surfaces receive uniform fog exposure, which requires proper specimen orientation and spacing within the chamber's fog distribution envelope.

What's the difference between continuous and periodic salt spray tests?

Continuous spray (ASTM B117) maintains a constant fog, simulating constant immersion or heavy spray environments. Periodic spray introduces dry intervals, simulating wet-dry tidal cycles or splash zones. Periodic cycles are often more aggressive for coatings because corrosion products concentrate during drying, and repeated wetting stresses the coating-substrate bond. Choose based on your product's actual service condition.



Contact LIB Industry for Your Marine Corrosion Testing Needs

---

As a global manufacturer and supplier of salt spray chambers, LIB Industry provides turn-key corrosion testing solutions compliant with ASTM B117, ISO 9227, and JIS Z 2371. Our chambers feature precise fog deposition control, robust construction, and comprehensive global support. Contact our engineering team at ellen@lib-industry.com to discuss your specific marine hardware testing requirements and receive a customized configuration.

PVC window frame durability testing relies on accelerated weathering testers to compress decades of outdoor exposure into controlled laboratory timeframes, ensuring long-term performance before installation. These sophisticated testing chambers replicate the cumulative effects of UV radiation, temperature extremes, moisture cycling, and thermal shock that cause discoloration, embrittlement, and mechanical failure in polyvinyl chloride profiles. By subjecting samples to intensified xenon arc lamp exposure at controlled black panel temperatures (35-85°C) and humidity conditions (30-98% RH), manufacturers validate formulation stability, predict service life expectancy, and optimize stabilizer packages. This proactive validation prevents premature field failures, reduces warranty costs, and ensures compliance with international building material standards like ASTM G155 and ISO 4892.



Environmental Factors Affecting PVC Window Frame Performance

---

Solar Ultraviolet Radiation Degradation

UV radiation represents the primary degradation mechanism threatening PVC window frame longevity, particularly wavelengths between 280-400 nm that possess sufficient energy to break polymer backbone bonds. Unprotected PVC undergoes photodegradation through dehydrochlorination reactions, releasing hydrochloric acid that autocatalyzes further degradation. This cascade effect manifests as yellowing, surface chalking, and progressive loss of impact resistance. Modern PVC window profiles incorporate titanium dioxide pigments and organotin heat stabilizers that absorb destructive UV wavelengths.

Temperature Fluctuation and Thermal Stress

Window frames endure extreme temperature variations from sub-freezing winter conditions to surface temperatures exceeding 70°C during summer solar exposure. Dark-colored profiles absorb more radiant heat, experiencing greater thermal expansion cycles that stress welded corner joints and gasket seals. Repeated expansion-contraction cycling fatigues the polymer matrix, creating microcracks that propagate into structural failures. Temperature cycling also affects dimensional stability, potentially causing warping that compromises weather sealing and operational functionality.

Moisture Exposure and Hygrothermal Effects

While PVC exhibits inherently low water absorption compared to wood alternatives, moisture still influences long-term durability through surface interactions and hygrothermal stress mechanisms. Water condensation on cooler surfaces during diurnal temperature cycles creates localized humidity conditions promoting fungal growth and surface contamination. Rain exposure combined with UV radiation creates synergistic degradation, as water accelerates photochemical reactions and leaches degradation products from weathered surfaces.



Simulating UV Exposure and Temperature Cycling Conditions

---

Xenon Arc Spectral Distribution Technology

Xenon arc lamps provide superior spectral accuracy compared to alternative UV sources, delivering full-spectrum radiation from 280-800 nm that authentically replicates natural sunlight. The 4500W water-cooled xenon arc lamp generates sufficient irradiance intensity (35-150 W/㎡) to accelerate degradation reactions while maintaining spectral fidelity through precision optical filter systems. Window glass filters simulate transmission through architectural glazing, replicating the actual UV exposure PVC frames receive when installed.

Black Panel Temperature Control Systems

Surface temperature measurement proves critical for PVC weathering simulation, as degradation rates follow Arrhenius kinetics with exponential temperature dependence. Black panel temperature (BPT) sensors replicate the actual surface temperature of dark-colored window profiles absorbing solar radiation. Accelerated weathering testers maintain BPT ranges from 35-85°C with ±2°C precision, enabling controlled testing at elevated temperatures that accelerate chemical reactions without exceeding thermal decomposition thresholds.

Programmable Cycling for Realistic Stress Patterns

Natural outdoor exposure involves complex patterns of light/dark cycles, temperature variations, and intermittent moisture from rain and dew. Modern weathering chambers feature programmable cycling capabilities creating test sequences alternating between dry UV exposure, high-temperature stress, humidity conditioning, and water spray phases. A typical window frame protocol might include 102 minutes of UV irradiance followed by 18 minutes of water spray, simulating afternoon thunderstorms following intense solar heating.

Table 1: Natural vs. Accelerated Exposure Comparison

Exposure Parameter	Natural Outdoor (Annual)	Accelerated Tester
UV Dose (340nm)	150-250 MJ/m²	500-1000 MJ/m² (1000-2000 hours)
Peak Surface Temp	-20°C to 70°C	35-85°C (controlled)
Moisture Cycles	Variable	Programmable (1-9999 hours)
Test Equivalent	5-10 years field	6-12 months laboratory



Evaluating Color Stability and Surface Cracking Resistance

---

Colorimetric Analysis of Discoloration Progression

Color stability represents a critical aesthetic and functional concern for PVC window frames, as discoloration indicates ongoing photochemical degradation compromising mechanical properties. Spectrophotometric measurement using CIELAB color space quantifies color changes expressed as ΔE values tracking total color difference from unexposed controls. Measurements at regular intervals throughout accelerated exposure (typically every 250-500 hours) reveal degradation kinetics and identify stabilizer depletion points. Industry specifications commonly require ΔE < 3-5 after equivalent 10-year outdoor exposure.

Surface Crack Initiation and Propagation

Embrittlement from UV-induced polymer chain scission eventually manifests as visible surface cracking that compromises both aesthetics and weather resistance. Crack formation typically initiates at stress concentration points like welded corners, mechanical fastener locations, or areas experiencing maximum solar exposure. Microscopic examination at 10-50X magnification detects early-stage crazing before macroscopic crack development, enabling predictive service life assessment.

Gloss Retention and Chalking Resistance

Surface gloss reduction and chalking indicate progressive degradation of the PVC surface layer through polymer chain breakdown and titanium dioxide particle exposure. Glossmeter measurements at 60° incidence angle track gloss retention percentages throughout weathering exposure, with specifications typically requiring >50% gloss retention after accelerated aging. Tape adhesion tests quantify chalking severity by measuring pigment powder adherence to pressure-sensitive tape pressed against weathered surfaces.



Accelerated Aging Standards for Building Material Testing

---

ASTM G155 Xenon Arc Exposure Protocols

ASTM G155 establishes standardized operating procedures for xenon arc exposure testing of non-metallic materials including PVC building products using an accelerated weathering tester. This standard defines specific test conditions including Practice A (daylight behind glass at 0.35 W/m²/nm @ 340nm, 63°C BPT) and Practice B (daylight with extended UV at 0.51 W/m²/nm @ 340nm, 70°C BPT) commonly applied to window frame testing.

ISO 4892 International Weathering Test Methods

ISO 4892-2 provides globally harmonized xenon arc lamp weathering test methodology recognized across European, Asian, and international markets. This standard addresses filter selection (daylight, window glass, extended UV), irradiance measurement (at 300-400nm bandwidth with specific monitoring at 340nm or 420nm), and exposure cycling parameters. The rotating sample rack accommodating 42 specimens simultaneously enables efficient comparative testing.

European Window Profile Standards

European harmonized standards including EN 12608 address PVC-U profiles specifically designed for window and door applications. Testing protocols typically specify minimum exposure durations (1000-2000 hours xenon arc exposure) and performance criteria (maximum allowable ΔE values, minimum gloss retention) that PVC window profiles must satisfy for CE marking compliance enabling European market access.

Table 2: International Standards for PVC Weathering Testing

Standard	Geographic Scope	Key Requirements	Test Duration
ASTM G155	North America	0.51 W/m²/nm @ 340nm	1000-2000 hours
ISO 4892-2	International	Irradiance control, cycling	1000-3000 hours
EN 12608	European Union	ΔE < 5, mechanical properties	2000 hours minimum



Comparing Outdoor Exposure and Laboratory Weathering Results

---

Correlation Studies and Acceleration Factors

Establishing reliable correlation between accelerated laboratory testing and actual outdoor weathering validates test protocol relevance and enables service life predictions. Correlation studies expose identical PVC samples simultaneously to outdoor weathering racks (typically in Florida, Arizona, or other high-solar-intensity locations) and laboratory accelerated weathering testers. Well-designed protocols achieve 5:1 to 10:1 acceleration factors, compressing 5-10 years outdoor exposure into 6-12 months laboratory testing.

Geographic Variability and Representative Testing

Outdoor weathering conditions vary dramatically by geographic location. Miami, Florida experiences approximately 1800 kWh/m² annual UV radiation with high humidity and warm temperatures year-round, while Phoenix, Arizona receives similar UV intensity but minimal moisture and extreme temperature cycling. Accelerated weathering testers accommodate this geographic variability through programmable exposure cycles replicating specific climate patterns.

Limitations of Accelerated Testing

Despite sophisticated environmental control, accelerated weathering cannot perfectly replicate every aspect of decades-long outdoor exposure. Intensified irradiance levels may activate degradation mechanisms absent in natural weathering, while compressed timeframes eliminate long-term effects like slow stabilizer migration. Comprehensive validation programs combine accelerated laboratory testing with limited-duration outdoor exposure providing confidence that laboratory predictions align with real-world performance.



Improving PVC Formulations Through Weathering Analysis

---

Stabilizer Package Optimization

PVC window frame formulations incorporate complex stabilizer systems including heat stabilizers (organotin, calcium-zinc), UV absorbers (benzotriazoles, benzophenones), and antioxidants preventing oxidative degradation. Accelerated weathering testing enables systematic evaluation of stabilizer effectiveness, dosage optimization, and synergistic combinations. Time-series sampling throughout extended weathering exposure reveals stabilizer depletion kinetics, distinguishing formulations providing sustained protection from those offering only short-term resistance.

Pigment Selection and Loading Optimization

Titanium dioxide pigment serves dual functions in PVC window profiles—providing white coloration and UV protection through light scattering and absorption. Pigment loading levels (typically 4-8 phr) significantly impact weathering resistance. Weathering tests compare various pigment grades (rutile vs. anatase crystal structure), surface treatments, and loading levels to optimize the performance-cost balance.

Impact Modifier and Processing Aid Evaluation

Impact modifiers maintain PVC toughness across temperature extremes while processing aids facilitate extrusion and surface finish quality. Accelerated weathering followed by mechanical property testing (Charpy impact, tensile strength, modulus) quantifies how UV exposure affects impact modifier performance. Formulations maintaining >75% impact strength retention after accelerated aging demonstrate superior long-term durability.



LIB Industry Accelerated Weathering Solutions for Long-Term PVC Stability

---

xenon lamp and filters

Comprehensive Spectral Control for Authentic Simulation

LIB Industry's accelerated weathering tester features a 4500W water-cooled xenon arc lamp with 1600-hour operational lifespan, delivering stable spectral output across the critical 280-800 nm wavelength range. Multiple interchangeable optical filter configurations including daylight, window glass, and UV-extended systems enable precise simulation of various exposure scenarios. Irradiance range spanning 35-150 W/㎡ with bandwidth measurement at 300-400nm ensures compliance with ASTM G155 and ISO 4892 international testing standards.

Precision Environmental Control for Complex Cycling

LIB weathering chambers maintain chamber temperatures from ambient to 100°C (±2°C accuracy) while black panel temperature control spans 35-85°C (±2°C precision). Humidity control across 50-98% RH range with ±5% RH deviation simulates diverse climate conditions. Programmable water spray cycles (1-9999 hours adjustable) replicate rain exposure patterns, while dry/wet alternating modes create realistic hygrothermal stress combinations.

High-Capacity Uniform Exposure System

The rotating specimen holder system accommodates 42 PVC profile samples simultaneously, maximizing testing throughput essential for formulation development programs. Continuous rotation around the central xenon lamp ensures uniform light exposure and water spray distribution across all sample positions. The robust SUS304 stainless steel interior construction resists corrosion from continuous moisture exposure.

Intelligent Data Management and Remote Monitoring

Built-in PID control systems provide real-time monitoring of critical parameters including irradiance intensity, black panel temperature, chamber temperature, and relative humidity. Ethernet and Wi-Fi connectivity enables remote chamber monitoring via smartphone applications or web browsers, allowing researchers to verify proper operation without laboratory visits.



Conclusion

---

Accelerated weathering testing provides PVC window frame manufacturers with essential data validating long-term durability before market introduction, compressing decades of outdoor exposure into controlled laboratory timeframes. Through precise xenon arc spectral simulation, programmable temperature-humidity cycling, and standardized testing protocols, these chambers identify formulation weaknesses, optimize stabilizer systems, and predict service life across diverse climatic regions.



FAQ

---

How do accelerated weathering test results translate to expected outdoor service life for PVC window frames?

Correlation studies comparing accelerated laboratory exposure with outdoor weathering establish acceleration factors typically ranging from 5:1 to 10:1. A PVC formulation showing acceptable color stability (ΔE < 5) after 2000 hours xenon arc exposure typically correlates to 10-20 years outdoor performance in temperate climates, though tropical high-UV environments may reduce this prediction.

What weathering test duration is recommended for qualifying new PVC window frame formulations?

Comprehensive qualification protocols typically specify 2000-3000 hours xenon arc exposure with periodic evaluation intervals every 250-500 hours. This duration provides sufficient cumulative UV dose to identify stabilizer depletion points and predict long-term degradation trends. Shorter screening tests (500-1000 hours) enable rapid formulation comparison during development phases.

Can accelerated weathering testers simulate regional climate differences for global window frame markets?

Advanced programmable weathering chambers replicate diverse climate patterns through adjustable temperature, humidity, and spray cycling parameters. Mediterranean climates feature moderate UV with seasonal temperature variation, while tropical regions require high temperature/humidity cycling with frequent rain simulation. Custom test protocols incorporating region-specific parameters enable validation for targeted geographic markets.



Partner with LIB Industry for Advanced Weathering Testing Solutions

---

LIB Industry serves as a leading accelerated weathering tester manufacturer and supplier, delivering precision environmental simulation equipment to building material manufacturers worldwide. Our comprehensive solutions encompass design, installation, validation support, and operator training tailored to PVC profile testing requirements. Contact our team at ellen@lib-industry.com to discuss your testing needs.

Automotive manufacturers face a relentless challenge: ensuring every component - from headlights to engine control units - withstands the brutal, high-pressure assault of automated car washes, engine bay steam cleaning, and off-road water fording. The IEC 60529 IPX9K rating is the definitive validation for this extreme exposure. Specialized IEC 60529 IPX9K equipment replicates these conditions with precise, repeatable high-pressure, high-temperature water jets. This testing is not optional for modern vehicle development; it's the critical filter that separates components that will fail in the field from those that will earn customer trust through years of reliable service in the wettest, dirtiest conditions.



Understanding IPX9K Requirements in Automotive Standards

---

Decoding the IP Code: What "9K" Truly Means

The IP (Ingress Protection) code's second digit indicates liquid protection. IPX9K represents the highest water protection level, specifically designed for "high-pressure, high-temperature water jets." The "K" suffix denotes this is a separate, more severe test than the standard IPX9 test. For automotive, this translates to withstanding water jets at 8,000-10,000 kPa (80-100 bar) pressure and 80±5°C temperature from a distance of 100-150mm, with the test object rotating. This simulates the most intense industrial washing processes and extreme environmental exposure.

Why IPX9K is Non-Negotiable for Modern Vehicles?

The shift toward higher vehicle electrification and sophisticated electronics has intensified the stakes. A compromised seal on an LED headlight can lead to internal condensation, lens damage, and premature failure. Water ingress into a sensor housing can cause erratic readings or complete failure. For autonomous driving systems reliant on camera and radar cleanliness, internal fogging is catastrophic. IPX9K validation ensures these critical enclosures maintain integrity under the most demanding wash-down scenarios, protecting both safety systems and costly electronics.

The Regulatory and Specification Landscape

Automotive OEMs mandate IPX9K testing through internal specifications that often exceed the base IEC 60529 standard. These may include specific spray patterns, durations per nozzle position, and acceptance criteria like "no water ingress" or "ingress limited to non-critical areas." Suppliers must demonstrate compliance not just to the standard, but to the specific OEM test protocol. This makes the precision and programmability of the testing equipment - like LIB's four-nozzle, 30-second-per-position system - a cornerstone of qualification.

Table 1: Key IPX9K Test Parameters vs. Common Automotive Applications

Parameter	IEC 60529 IPX9K Spec	Typical Automotive Application Focus
Water Pressure	8,000 - 10,000 kPa	Engine bay component cleaning, heavy-duty truck wash systems
Water Temperature	80±5°C (min. 15°C rise)	Simulates hot engine bay steam cleaning, hot road spray
Nozzle Angles	0°, 30°, 60°, 90° from vertical	Tests all potential spray angles encountered in car washes and fording
Spray Distance	100-150mm	Replicates close-proximity high-pressure spray nozzles
Turntable Speed	5±1 rpm	Ensures uniform exposure of all surfaces on complex geometries
Test Duration	Minimum 30 sec per nozzle position	Adequate time for water to penetrate potential seal weaknesses



High-Pressure High-Temperature Water Jet Test Conditions

---

The Physics of the Assault: Pressure, Temperature, and Impact

The core of the IPX9K test is the synergistic effect of extreme pressure and heat. At 10,000 kPa, the water jet possesses significant kinetic energy, capable of forcing its way past imperfect seals or through microscopic cracks. The 88°C temperature (as adjustable in LIB's system) softens many sealing polymers (like EPDM or silicone), reducing their elasticity and closing force, while simultaneously lowering water's surface tension, enhancing its ability to wet and penetrate surfaces. This combination is far more aggressive than cold-water pressure washing.

Precision Control of the Four-Nozzle System

A compliant test uses four nozzles positioned at the cardinal angles (0°, 30°, 60°, 90°). The test specimen rotates at 5±1 rpm on a turntable. Each nozzle sprays for 30 seconds in sequence. This choreography ensures every square millimeter of the specimen's surface experiences the full jet impact from multiple directions. LIB's IEC 60529 IPX9K equipment precisely controls this sequence via its programmable touchscreen controller, with real-time monitoring of pressure and temperature to guarantee no deviation invalidates the test. The adjustable spray distance (10-15cm) must be strictly maintained, as force dissipates rapidly with distance.

The Critical Role of the Turntable and Fixturing

The rotating platform is not merely a convenience; it's a test requirement. A stationary part would only be tested on its facing surfaces. Rotation exposes sidewalls, recesses, and the backside of protrusions to the jet stream. The turntable must be robust (LIB's handles up to 50kg standard, 200kg optional) and maintain exact speed under load. Fixturing must hold the part securely without shielding any area and must not itself degrade or shed particles that could be mistaken for test specimen failure. The 600mm diameter platform in the R9K-1200 model accommodates large automotive modules like headlamp assemblies or ECU housings.

Table 2: IPX9K Test Sequence and Parameter Verification

Test Phase	Action	Parameter to Verify	Acceptance Criteria
Setup	Mount specimen centered on turntable	Alignment, fixturing security	No part movement, no shielding
Pre-test	Measure water temperature at nozzle	≥80°C	80-88°C (adjustable setpoint)
Pre-test	Measure water pressure at nozzle	8,000-10,000 kPa	Within range, stable
Test Cycle 1	Nozzle 1 (0°) sprays for 30s	Spray pattern, pressure, temp	Consistent jet, no fluctuation
Rotation	Turntable rotates during spray	Speed	5±1 rpm
Test Cycle 4	Nozzle 4 (90°) sprays for 30s	Repeat all parameters	Identical to Cycle 1
Post-test	Inspect specimen immediately	Visual for water ingress	No water droplets inside enclosure
Post-test	Internal inspection after drying	Moisture indicators, corrosion	No residue, no corrosion



Key Automotive Components Requiring IPX9K Validation

---

Lighting Systems: Headlights, Taillights, and Fog Lights

Modern sealed-beam and multi-LED headlight assemblies are complex, with intricate housings, lenses, and multiple seals. The high-pressure jet can exploit the smallest defect in a gasket or a pin-hole in a housing weld. IPX9K testing verifies that no water enters the lamp cavity, which would cause immediate fogging, long-term corrosion of reflective surfaces, and LED driver failure. The test also validates the durability of polycarbonate or glass lenses against surface etching from prolonged jet impact.

Sensors and Cameras: The Eyes of the Vehicle

Advanced Driver Assistance Systems (ADAS) rely on cameras, radar, and lidar sensors. Their housings must be perfectly sealed. A single drop of water on a camera lens can blind the system. Water ingress into a radar housing can detune the antenna. IPX9K testing subjects these critical sensors to the most severe wash-down scenario, ensuring the sealing system (often a combination of gaskets and adhesive bonds) can withstand the pressure and temperature without allowing vapor or liquid ingress that would cause fogging or short circuits.

Electrical and Electronic Control Units (ECUs)

Under-hood and in-cabin ECUs, battery management systems, and charging controllers face a harsh environment. While not directly hit by car wash jets, they encounter high-pressure steam cleaning during service and intense spray in off-road or flood conditions. Their connectors and housing seams must prevent water entry. The IPX9K test's high temperature also simulates the thermal cycling these components experience, testing seal compression set and housing material warpage under combined thermal and mechanical stress.

Exterior Trim and Functional Ornaments

Chrome-plated badges, grille inserts, and decorative trim often have hidden cavities and are made from multiple materials (plastic, metal, adhesive). Water trapped in these cavities can cause galvanic corrosion between dissimilar metals or degrade adhesives, leading to delamination. IPX9K testing with its forceful jets and heat ensures these components remain visually pristine and structurally sound over the vehicle's life, protecting brand aesthetics.



Evaluating Seal Integrity and Housing Durability Performance

---

The Water Ingress Detection Protocol

The test's outcome is binary: pass or fail based on water ingress. However, the evaluation method is nuanced. Immediately after testing, the specimen is opened and inspected for free water. More critically, it is dried and then examined for moisture indicators (like cobalt chloride paper placed inside before the test) or signs of water trails leading to sensitive areas. For electronics, a functional test follows to check for operational impairment. LIB's IEC 60529 IPX9K equipment design, with its large viewing window and interior lighting, allows for real-time observation of spray patterns and initial responses.

Quantifying Seal Performance Under Stress

Beyond the pass/fail, test data informs engineering. By testing multiple seal designs (e.g., different durometer EPDM, silicone with or without fabric reinforcement, or lip geometry variations), engineers quantify performance. A seal that shows no ingress at 8,000 kPa but fails at 8,500 kPa defines its operational limit. Testing at different water temperatures reveals the seal's compression set resistance. This data feeds directly into design specifications and supplier quality agreements.

Housing Material and Construction Integrity

The high-pressure jet is a mechanical stressor. It can reveal weaknesses in housing welds, thin-walled sections, or poor mold transitions. Cracks or crazing may appear after repeated cycles. The test also evaluates the durability of coatings and platings - peeling or blistering under the jet indicates poor adhesion. For plastic housings, the test assesses material toughness and resistance to impact wear from the water droplets themselves. The 88°C water temperature additionally tests for thermal softening or distortion of the housing material.

Table 3: Failure Mode Analysis in IPX9K Testing

Failure Mode	Likely Root Cause	Affected Component Type	Detection Method
Water in cavity	Seal extrusion, inadequate compression	Gasketed joints, connector seals	Internal moisture indicator, visual inspection
Seal tearing/ cracking	Material not rated for temperature/pressure, sharp edge	Dynamic seals, boot seals	Post-test seal inspection
Housing crack	Stress concentration, material defect, thermal shock	Plastic housings, welded seams	Visual inspection, dye penetrant
Coating blister/peel	Poor adhesion, trapped moisture under coating	Painted or plated surfaces	Visual inspection, tape test
Connector pin corrosion	Ingress into connector, capillary action	Electrical connectors	Electrical continuity test, pin inspection
Lens etching/fogging	Surface damage from jet impact, seal failure	Polycarbonate/glass lenses	Visual inspection, light transmission test



Common Failure Modes in Automotive Waterproof Testing​​​​​​​

---

Seal Extrusion and Compression Set

Under high pressure, a soft seal can be forced (extruded) into the gap it's meant to seal, permanently deforming and losing its sealing force. After the pressure is removed, a seal with poor compression set resistance does not return to its original shape, leaving a gap. Both lead to immediate or delayed ingress. Testing with different seal materials and groove designs identifies the optimal combination. The high temperature (88°C) accelerates this failure mechanism, making the test a severe screening tool.

Inadequate Seal Groove Design

The seal's groove (the channel it sits in) is as important as the seal itself. If the groove is too shallow, the seal is under-compressed. If too deep, it's over-compressed and strained. Sharp corners in the groove can cut the seal. The IPX9K jet's force magnifies any design flaw. Testing prototypes with different groove dimensions and radii quickly identifies the most robust design before tooling is finalized.

Material incompatibility and Galvanic Corrosion

A seal material may be compatible with the housing polymer but degrade when in contact with a metal fastener or a different plastic. The hot, pressurized water can accelerate this incompatibility, causing the seal to swell, shrink, or become sticky. Furthermore, if water does ingress and pools around dissimilar metals (e.g., steel screw in aluminum housing), galvanic corrosion can rapidly destroy the fastener or housing, a secondary failure the test can reveal.

Housing Warpage and Dimensional Instability

Injection-molded plastic housings can warp during cooling or under thermal cycling. The IEC 60529 IPX9K equipment used for IPX9K testing imposes a hot water jet that creates rapid, localized thermal shock. This can cause a marginally warped housing to shift enough to open a seal gap. Testing multiple production batches of housings from different mold cavities or after different molding parameters (cooling time, pack pressure) identifies processes that yield dimensionally stable parts.



Improving Vehicle Reliability Through IPX9K Certification

---

Reducing Warranty Costs and Field Failures

Water-related electrical failures are a top cause of warranty claims. A single failed sensor or ECU can trigger multiple dashboard warnings, leading to a dealership visit, diagnosis, and part replacement. The cost per incident, including logistics and labor, can exceed the part's value. IPX9K testing at the component level catches sealing defects before assembly, preventing these cascading warranty costs. The data provides objective evidence for supplier negotiations and design holds.

Enabling Aggressive Design and Marketing Claims

Achieving IPX9K certification is a powerful marketing tool. It allows automakers to market "pressure washer safe" exterior components, "engine bay certified" electronics, or "off-road ready" sensor suites. This technical validation translates directly into consumer confidence and can justify premium pricing. For suppliers, being an "IPX9K certified" vendor is often a prerequisite for bidding on certain programs, opening doors to high-volume contracts.

Informing Design for Serviceability

The test also informs how components should be serviced. If a seal is designed to be replaceable, the IPX9K test can verify that the replacement procedure (involving disassembly, cleaning, and reassembly) does not compromise the new seal's integrity. It can also identify if a component's design makes it prone to water trapping during service, suggesting a need for drainage holes or different assembly sequences.



LIB Industry IPX9K Solutions for Automotive High-Pressure Validation

---

---

SUS 304 workroom

Engineering Built for Automotive-Grade Rigor

LIB's IEC 60529 IPX9K equipment is engineered around the specific demands of automotive validation. The 1000L (1m³) interior volume accommodates large assemblies like complete headlight units or under-hood modules. The 1000x1000x1000mm chamber dimensions provide ample space for proper specimen mounting and rotation without splash interference. The four-nozzle system with adjustable angles (0°, 30°, 60°, 90°) and individual 30-second spray timing fully complies with IEC 60529's requirement for comprehensive angular coverage.

Uncompromising Control and Data Integrity

The programmable color LCD touchscreen controller is the brain. It allows engineers to create and store complex test profiles, automatically executing the precise nozzle sequence and turntable synchronization. Ethernet connectivity enables integration with laboratory data management systems for automated result logging and audit trails - essential for ISO/IEC 17025-accredited labs. Real-time monitoring of water pressure (8000-10000 kPa) and temperature (Ambient ~88°C) ensures the test never drifts out of specification, which would invalidate a multi-thousand-hour certification campaign.

Safety and Sustainability in Design

Testing at 10,000 kPa and 88°C is inherently hazardous. LIB integrates multiple safeguards: an electromagnetic door lock that prevents opening during pressurization, over-temperature and water shortage protection, and earth leakage protection. The double-layer insulating glass observation window with wiper allows safe monitoring. The closed-loop water circulation system with purification not only saves water but also maintains consistent water quality, preventing nozzle clogging from mineral deposits that would alter spray patterns - a critical factor for repeatable results.

Global Support and Customization for Unique Challenges

Automotive testing often involves unique fixtures for complex geometries or proprietary test cycles. LIB's customization expertise means they can modify the turntable, add special specimen clamps, or adjust the control software for a specific OEM's test protocol. With service centers globally and a 3-year warranty backed by a lifetime service commitment and a promise of replacement if repair isn't possible, they de-risk the investment. This turn-key approach - from consultation through installation and training - makes them a partner in achieving and maintaining IPX9K certification.



Conclusion

---

IEC 60529 IPX9K equipment provides the definitive, laboratory-controlled method to validate automotive components against the most severe high-pressure, high-temperature water exposure. This testing transforms guesswork into quantifiable data on seal and housing integrity, directly preventing field failures, reducing warranty costs, and enabling bold marketing claims. For automotive engineers and quality managers, investing in a precise, reliable IPX9K test system like LIB's is an investment in product integrity, brand reputation, and ultimately, customer safety and satisfaction in the face of the world's harshest cleaning and environmental conditions.



FAQ

---

How long does a standard IPX9K test cycle take for an automotive headlight?

The core test sequence for one full rotation (all four nozzles) is 2 minutes (4 nozzles x 30 seconds). However, standards often require multiple rotations or extended exposure. A typical validation test might run for 5-10 minutes total, but the full test protocol including setup, pre-checks, and post-inspection can take 30-60 minutes per specimen.

Can the LIB IPX9K chamber test a complete car door assembly?

The R9K-1200 model has a 1000mm cubic interior and a 600mm diameter turntable. A complete door assembly would likely be too large. Testing requires representative sub-assemblies (e.g., door module, window regulator housing, lock mechanism) or a custom oversized chamber. LIB offers customization for such applications.

What is the main difference between IPX9K and IPX6/IPX7 testing?

IPX6 tests resistance to powerful water jets (100 kPa, 3 minutes) from any direction, simulating heavy seas or strong rain. IPX7 tests immersion (1m depth, 30 minutes). IPX9K is far more severe, combining much higher pressure (80-100 bar vs. 1 bar for IPX6) with high temperature (80°C+), specifically for high-pressure wash-down scenarios. Passing IPX9K inherently satisfies IPX6 and IPX7.



Contact LIB Industry for Automotive IPX9K Testing Solutions

---

As a global manufacturer and supplier of IEC 60529 IPX9K equipment, LIB Industry delivers turn-key high-pressure water jet testing systems for automotive validation. Our chambers feature 8000-10000 kPa pressure, 88°C temperature, and four-nozzle programmable control. Contact our engineering team at ellen@lib-industry.com to discuss your specific automotive component testing requirements and receive a customized configuration.

Automotive interior durability validation relies heavily on xenon test chambers to simulate years of real-world exposure in controlled laboratory conditions. These chambers use xenon arc lamps to replicate the full solar spectrum, exposing dashboard materials, upholstery, and trim components to UV radiation, heat cycles, and humidity variations that vehicles experience throughout their service life. By accelerating the aging process through intensified light exposure and temperature control, manufacturers can predict how interior materials will perform after 5-10 years of use within just weeks or months of testing. This validation process ensures color stability, prevents premature cracking, and reduces costly warranty claims before vehicles reach consumers.



Key Failure Modes in Automotive Interior Weathering

---

Photodegradation and Polymer Chain Breakdown

UV radiation from sunlight penetrates through vehicle windows and attacks the molecular structure of polymeric materials commonly used in automotive interiors. This photodegradation process breaks down polymer chains in plastics, causing embrittlement and loss of mechanical properties. Dashboard components manufactured from polypropylene or ABS materials are particularly vulnerable to this degradation mechanism, which manifests as surface chalking and reduced impact resistance over time.

Color Fading and Appearance Deterioration

Automotive interior aesthetics depend on consistent color retention across multiple material types. Dyes and pigments embedded in fabrics, leathers, and plastics undergo photochemical reactions when exposed to UV wavelengths between 300-400nm. This wavelength range causes chromophore degradation, resulting in noticeable color shifts that can occur unevenly across different surfaces. Premium vehicle interiors with dark-colored materials face accelerated fading risks due to higher heat absorption.

Surface Cracking and Structural Weakening

Thermal cycling combined with UV exposure creates a synergistic degradation effect on automotive interior surfaces. Materials expand and contract repeatedly as cabin temperatures fluctuate between extreme cold and heat exceeding 80°C on sunny days. This mechanical stress, when combined with UV-induced material weakening, leads to micro-crack formation that propagates into visible surface crazing. Instrument panels and door trim components show particular susceptibility to this combined stress mechanism.



Simulating Sunlight and Heat Inside Vehicle Cabins

---

Full-Spectrum Xenon Arc Technology

The xenon arc lamp produces a spectral power distribution that closely matches natural sunlight across UV, visible, and infrared wavelengths. Unlike fluorescent UV lamps that only replicate narrow UV bands, xenon sources deliver comprehensive spectral accuracy essential for automotive testing. The 4500W water-cooled xenon light system generates sufficient intensity to compress months of outdoor exposure into accelerated test cycles while maintaining spectral fidelity through advanced optical filter systems.

Black Panel Temperature Control Systems

Cabin surface temperatures differ significantly from ambient air temperatures due to solar radiation absorption. Black panel temperature (BPT) sensors replicate the actual surface temperature of dark-colored automotive components exposed to sunlight. Modern xenon chambers maintain BPT ranges between 35-85°C with ±2°C accuracy, matching the temperature extremes experienced by dashboard surfaces during summer months. This precise thermal control ensures test conditions accurately represent real-world cabin environments.

Humidity and Moisture Cycling

Vehicle interiors experience significant humidity variations from morning condensation, passenger respiration, and climate system operation. Advanced xenon test chambers incorporate programmable spray cycles and humidity control systems maintaining 50-98% RH ranges. This moisture simulation tests adhesive bond stability, leather grain tightness, and fabric dimensional stability under combined hygrothermal stress conditions. The water spray function replicates rain exposure through open windows or sunroof condensation scenarios.

Table 1: Comparison of Real-World vs. Accelerated Exposure Conditions

Parameter	Real-World Cabin Exposure	Xenon Chamber Simulation
UV Intensity	35-50 W/㎡ (peak midday)	35-150 W/㎡ (adjustable)
Temperature Range	-20°C to 85°C	35-100°C (controlled)
Humidity Variation	20-95% RH	50-98% RH (programmable)
Annual UV Dose	150-200 kWh/㎡	Achievable in 500-1000 hours
Testing Duration	5-10 years	4-12 weeks (accelerated)



Material Selection for Long-Term UV Resistance

---

UV Stabilizers and Light Absorbers

Material formulation plays a critical role in automotive interior longevity. Hindered amine light stabilizers (HALS) and UV absorbers are incorporated into polymeric materials during manufacturing to intercept damaging radiation before it causes molecular degradation. Xenon testing validates the effectiveness of these additives by measuring retention of mechanical properties after extended UV exposure. Materials with inadequate stabilization show rapid property loss within the first 500 hours of accelerated testing.

Pigment Selection and Colorant Stability

Organic versus inorganic pigment selection dramatically affects color retention performance. Inorganic pigments generally demonstrate superior lightfastness but offer limited color palette options compared to organic alternatives. Xenon test chamber testing using spectrophotometric measurement tracks color shifts expressed as ΔE values throughout exposure cycles. Automotive OEM specifications typically require ΔE < 3.0 after 1000 hours of xenon exposure to ensure acceptable color retention.

Material Compatibility and Multi-Component Assembly Testing

Automotive interiors comprise multiple materials assembled together - plastics, elastomers, adhesives, textiles, and coatings. These materials respond differently to UV exposure and thermal stress, potentially creating visual mismatches or mechanical failures at interfaces. Xenon testing of complete assemblies rather than individual materials reveals compatibility issues such as differential expansion, adhesive delamination, or color mismatch development that wouldn't appear in single-material testing.



Accelerated Aging Standards Used in Automotive Testing

---

ISO 4892 International Weathering Standards

The ISO 4892 standard series provides comprehensive methodologies for accelerated weathering testing using xenon arc lamps. ISO 4892-2 specifically addresses xenon arc lamp exposure procedures, defining light source specifications, filter types, and exposure cycle parameters. Automotive manufacturers reference this standard when establishing internal test protocols, ensuring global consistency across different testing facilities and enabling reliable comparison of material performance data.

ASTM G155 and Automotive-Specific Protocols

ASTM G155 establishes xenon arc light exposure procedures with specific provisions for automotive interior applications. This standard defines irradiance measurement wavelengths at 340nm or 420nm depending on material sensitivity, exposure cycles combining light and dark periods, and moisture introduction timing. Many automotive OEMs develop proprietary test methods based on ASTM G155 frameworks, adjusting intensity levels and cycle durations to match their specific durability targets.

SAE J2412 and J2527 Automotive Interior Testing

The Society of Automotive Engineers (SAE) publishes automotive-specific accelerated exposure standards addressing interior component testing. SAE J2412 covers controlled accelerated exposure testing for automotive interior trim components, while SAE J2527 addresses performance-based specifications for seat fabrics. These standards define acceptance criteria, test durations, and evaluation methods specifically tailored to automotive quality requirements rather than generic weathering applications.

Table 2: Common Automotive Xenon Testing Protocols

Standard	Irradiance Level	Black Panel Temp	Cycle Structure	Typical Duration
ISO 4892-2	60 W/㎡ @ 340nm	65°C	102 min light / 18 min spray	1000-2000 hours
ASTM G155	0.51 W/㎡ @ 420nm	70°C	102 min light / 18 min spray	500-1500 hours
SAE J2412	0.55 W/㎡ @ 420nm	89°C	100 min light / 20 min spray	450-900 kWh/㎡
SAE J2527	0.55 W/㎡ @ 340nm	70/89°C	Continuous or cyclic	300-600 hours



Evaluating Color Stability and Surface Cracking

---

Spectrophotometric Color Measurement Techniques

Quantitative color stability assessment in a xenon test chamber uses spectrophotometric instrumentation measuring reflectance across the visible spectrum. The CIELAB color space provides standardized metrics for color change evaluation, calculating ΔE values representing total color difference from original samples. Measurements taken at regular intervals throughout xenon exposure (every 100–250 hours) track degradation progression and identify acceleration points where color shift rates increase due to protective additive depletion.

Visual Grading and Gray Scale Comparison

Subjective visual assessment complements instrumental color measurement through standardized gray scale comparison methods. Trained evaluators compare exposed samples against unexposed controls under controlled lighting conditions (D65 illuminant), assigning numerical grades corresponding to perceptibility thresholds. This approach captures appearance changes that numerical color data might not fully represent, such as gloss reduction, surface texture changes, or inhomogeneous degradation patterns.

Crack Detection and Mechanical Property Retention

Surface crack formation represents critical failure for automotive interior components. Visual inspection under magnification identifies crack initiation, while mechanical testing quantifies property degradation. Flexural testing, tensile strength measurement, and impact resistance evaluation performed on xenon-exposed samples determine retention percentages compared to unexposed controls. Automotive specifications typically require >80% property retention after accelerated exposure to ensure adequate service life performance.



How Xenon Testing Reduces Warranty and Recall Risks?

---

Early Detection of Material Incompatibilities

Comprehensive xenon testing during product development identifies material and design weaknesses before production commitment. Testing complete interior assemblies under accelerated conditions reveals problems such as adhesive failures, color mismatches, or premature degradation that would generate warranty claims years after vehicle sale. The relatively modest investment in thorough pre-production testing prevents exponentially higher costs associated with field failures and customer satisfaction issues.

Validation of Cost-Reduction Material Substitutions

Automotive manufacturers continually seek cost reductions through alternative material sourcing and supplier changes. Xenon chamber validation ensures replacement materials meet original durability specifications despite formulation differences. Side-by-side testing of incumbent and proposed materials under identical exposure conditions provides objective performance comparison, preventing inadvertent quality degradation that could compromise long-term reliability and brand reputation.

Regulatory Compliance and Consumer Protection

Government regulations and consumer protection standards increasingly address product durability and longevity expectations. Documented xenon testing demonstrates due diligence in product validation, providing legal protection against claims of inadequate testing or premature failure. Test records showing compliance with industry standards support defense against warranty disputes and demonstrate manufacturer commitment to quality assurance.

Table 3: Cost Impact of Xenon Testing vs. Field Failures

Scenario	Pre-Production Testing Cost	Field Failure Cost (per incident)	Break-Even Point
Material validation	$15,000-30,000	$200-500 (warranty claim)	60-150 claims prevented
Complete interior assembly	$50,000-100,000	$50,000-200,000 (recall campaign)	1-2 recalls prevented
Supplier qualification	$25,000-50,000	$1M-10M (widespread failure)	Single major issue prevented



LIB Industry Xenon Chambers Deliver High-Precision Automotive Aging Simulation

---

xenon lamp and filters

Advanced Spectral Control and Irradiance Monitoring

LIB Industry's XL-S-750 xenon test chamber incorporates Solar Eye technology providing closed-loop irradiance control throughout extended test campaigns. This intelligent monitoring system continuously compensates for lamp aging, maintaining consistent UV exposure levels across multi-thousand-hour test programs. The bandwidth measurement capability at 300-400nm with specific monitoring at 340nm or 420nm ensures compliance with both ISO 4892 and ASTM G155 automotive testing standards.

Uniform Sample Exposure and High Throughput

The rotating sample rack system accommodates 42 specimens simultaneously (95×200mm size), ensuring equivalent exposure for all test samples through continuous rotation. This design eliminates position-dependent variations common in static sample configurations, delivering statistically valid results across multiple material variants. High specimen capacity enables comprehensive material screening and comparative evaluation essential for automotive development programs with tight timelines.

Precise Environmental Control for Automotive Conditions

LIB Industry chambers replicate extreme automotive interior environments through integrated control systems managing temperature (ambient to 100°C), black panel temperature (35-85°C with ±2°C accuracy), and humidity (50-98% RH). The programmable spray cycle system (1-9999H59M adjustability) simulates moisture exposure patterns matching real-world scenarios. This comprehensive environmental control delivers testing conditions that authentically replicate vehicle cabin stress factors rather than simplified laboratory approximations.

Quality Assurance and Global Support Infrastructure

Every LIB Industry xenon chamber undergoes rigorous quality validation following ISO 9001 Quality Management System protocols, with CE certification and third-party verification by SGS and TUV. The 3-year warranty coverage and lifetime service commitment provide long-term operational security for critical automotive testing programs. Global 24/7 support infrastructure ensures minimal downtime, maintaining testing schedule integrity essential for time-sensitive automotive development cycles. The closed-loop water circulation system with multi-stage filtration reduces operational costs while supporting sustainability objectives through water conservation.



Conclusion

---

Xenon test chambers represent indispensable tools for validating automotive interior durability, compressing years of real-world exposure into weeks of controlled testing. Through precise simulation of solar radiation, thermal cycling, and moisture exposure, these chambers identify material weaknesses before production, enabling informed material selection and design optimization. Compliance with international standards like ISO 4892 and ASTM G155 ensures global consistency, while advanced features like closed-loop irradiance control and uniform sample rotation deliver reliable, repeatable results that protect manufacturers from costly warranty claims and recalls.



FAQ

---

How long does xenon testing take to simulate 5 years of vehicle interior aging?

Accelerated xenon testing typically compresses 5 years of real-world exposure into 500-1000 hours of chamber operation, depending on intensity settings and geographic solar radiation baselines. Testing protocols using 0.55 W/㎡ irradiance at 340nm with elevated black panel temperatures can achieve this acceleration factor while maintaining correlation with outdoor weathering results.

Can xenon test chambers evaluate all automotive interior materials simultaneously?

Yes, modern xenon chambers accommodate multiple material types including plastics, fabrics, leathers, and coatings in single test runs. The 42-specimen capacity of chambers like the LIB XL-S-750 enables comprehensive material screening, though evaluation methods may differ - spectrophotometry for color, mechanical testing for structural properties, and visual inspection for surface degradation across various substrates.

What maintenance requirements ensure xenon chamber accuracy over time?

Regular xenon lamp replacement (typically 1500-2000 operating hours), radiometer calibration verification (annually or per manufacturer specifications), and filter inspection maintain testing accuracy. Water purification system maintenance ensures spray quality, while temperature and humidity sensor calibration confirms environmental control precision. Proper maintenance preserves correlation between accelerated and real-world exposure throughout the chamber's service life.



Partner with LIB Industry for Automotive Testing Excellence

---

LIB Industry stands as a leading xenon test chamber manufacturer and supplier, delivering turn-key environmental testing solutions globally. Our expertise spans research, design, production, commissioning, installation, and training tailored to automotive validation requirements. Contact our technical team at ellen@lib-industry.com to discuss how our high-precision xenon chambers can strengthen your material qualification processes and accelerate your product development timeline.

Sensor accuracy degrades silently over time due to environmental stressors, material fatigue, and contamination. Inaccurate humidity readings compromise product quality, safety, and regulatory compliance across pharmaceuticals, electronics, and food production. Benchtop humidity tests provide a controlled, repeatable method to validate and calibrate sensors under precise temperature-humidity combinations. These compact systems simulate real-world conditions, revealing performance drift before it causes costly failures. Regular validation with a benchtop environmental chamber ensures measurement integrity, extends sensor lifespan, and supports reliable decision-making in critical applications.



Why Humidity Calibration Matters for Sensor Performance?

---

The Hidden Drift Problem in Humidity Sensors

Humidity sensors experience gradual accuracy loss from chemical contamination, polymer relaxation, and electronic component aging. Capacitive polymer sensors absorb moisture irreversibly, shifting baseline readings. Resistive sensors develop oxide layers that alter conductivity. Even high-quality sensors can drift 2-5% RH annually in typical industrial environments. Without regular calibration, these small errors compound, leading to significant measurement deviations that undermine process control and product consistency.

Real-World Consequences of Inaccurate Readings

Pharmaceutical manufacturing relies on precise humidity control for drug stability; a 3% RH error can invalidate batch release testing. Electronics assembly faces electrostatic discharge risks when humidity falls below 40% RH, while condensation damage occurs above 60% RH in cooling cycles. Food packaging integrity depends on accurate moisture monitoring - inaccuracies cause spoilage or compromised barrier performance. These failures result in product recalls, regulatory citations, and damaged brand reputation.

Cost-Benefit of Regular Calibration

Investing in routine humidity calibration prevents exponentially higher costs from scrap, rework, and warranty claims. A single batch failure in biopharma can exceed $500,000, while consistent calibration using a benchtop chamber costs a fraction. Preventive calibration extends sensor life by 30-50%, delaying replacement expenses. The return on investment becomes evident when comparing annual calibration budgets against potential loss from undetected sensor drift in high-stakes environments.



Simulating Real-World Environmental Conditions in the Lab

---

Replicating Extreme Climates with Compact Systems

Modern benchtop environmental chambers accurately mimic desert aridity (10% RH at 50°C) or tropical saturation (98% RH at 35°C) within a 50-liter workspace. The LIB Industry TH-50 model achieves this with a temperature range from -40°C to +150°C and humidity control precision of ±2.5% RH. This allows engineers to test sensors against the exact conditions they'll face in automotive, aerospace, or agricultural applications without field deployment risks.

Rapid Cycling for Accelerated Stress Testing

Benchtop chambers execute complex humidity ramps - from 20% to 90% RH in under 30 minutes - to simulate daily weather cycles or seasonal changes. This acceleration reveals failure modes that might take years to manifest outdoors. For instance, cycling sensors through dew point transitions tests condensation resistance, while sustained high-humidity exposure at elevated temperatures evaluates long-term material compatibility in tropical climates.

Controlled Moisture Introduction Techniques

Advanced chambers use steam injection or ultrasonic humidification to achieve rapid humidity changes without temperature destabilization. The water purification and recirculation system prevents mineral deposits that could contaminate test specimens or clog sensor ports. This level of control is impossible with simple humidity generators, making benchtop chambers indispensable for validation protocols requiring repeatable moisture profiles.

Table 1: Environmental Parameters Simulated for Sensor Testing

Application Scenario	Temperature Range	Humidity Range	Test Duration	Key Failure Mode
Pharmaceutical Storage	15-30°C	30-70% RH	72 hours	Drift in critical control points
Automotive Electronics	-40 to +85°C	10-95% RH	1000 cycles	Condensation-induced shorts
Food Packaging	5-40°C	40-90% RH	14 days	Moisture transmission errors
Industrial Process	20-60°C	20-80% RH	500 hours	Polymer sensor saturation
Medical Devices	10-40°C	20-90% RH	168 hours	Biofouling in humid environments



Temperature and Humidity Effects on Sensor Accuracy

---

Thermal Expansion and Material Response

Temperature fluctuations cause mechanical stress in sensor housings and sensing elements. Metal components expand at different rates than ceramics or polymers, altering calibration offsets. A sensor calibrated at 25°C may read +1.5% RH at 50°C due to dimensional changes in the capacitive gap. Benchtop chambers with ±0.5°C temperature stability isolate humidity effects from thermal interference, allowing pure humidity response characterization.

Condensation Risks at Dew Point Transitions

When surface temperatures drop below ambient dew point during rapid cooling, condensation forms on sensor elements. This temporarily shorts capacitive sensors or corrodes exposed contacts. Testing with programmed cooling rates (1°C/min in LIB chambers) identifies condensation thresholds. Sensors with hydrophobic coatings resist this failure mode, while unprotected designs require careful placement away from cold surfaces.

Long-Term Hysteresis in Polymer-Based Sensors

Polymer-based humidity sensors exhibit hysteresis - different readings when humidity rises versus falls - due to moisture absorption kinetics. Repeated cycling between 30% and 90% RH reveals whether hysteresis exceeds acceptable limits (typically <1% RH). The chamber's uniform environment ensures all test specimens experience identical moisture gradients, making hysteresis measurements statistically valid.



Common Failure Modes Detected During Humidity Testing

---

Sensor Drift Beyond Acceptable Tolerance

Calibration curves shift as sensing materials age. A sensor initially accurate at 50% RH might read 52% RH at high humidity and 48% at low humidity after 1000 test hours. Benchtop testing at multiple humidity points (20%, 50%, 80% RH) maps this drift across the operating range. Acceptable drift varies by application - laboratory instruments require <0.5% RH change, while industrial controls may tolerate 2% RH.

Mechanical Failure from Condensation Cycles

Repeated condensation and evaporation stress adhesive bonds, seals, and circuit boards. Microscopic inspection after 500 humidity cycles often reveals cracked conformal coatings or delaminated PCB layers. The benchtop environmental chamber's observation window with interior lighting allows visual monitoring without disturbing tests. Failures manifest as intermittent errors or complete sensor death, both detectable during programmed test sequences.

Electrical Shorts in High-Humidity Conditions

High humidity reduces insulation resistance, causing leakage currents between sensor terminals. This is critical for low-voltage sensors (3.3V or 5V systems). Testing at 95% RH and 40°C with powered sensors identifies insulation breakdown. LIB chambers include earth leakage protection and over-current safeguards during such tests, preventing damage to both test specimens and chamber electronics when failures occur.

Table 2: Failure Mode Identification Through Humidity Testing

Failure Mode	Detection Method	Test Parameter	Acceptance Criteria
Calibration Drift	Multi-point calibration check	20/50/80% RH at 25°C	<1% RH deviation
Condensation Damage	Visual inspection + electrical test	Cooling from 50°C to 10°C at 1°C/min	No moisture ingress
Hysteresis	Ascending/descending humidity sweep	30→90→30% RH cycle	<1% RH difference
Insulation Breakdown	Megger test at high humidity	95% RH at 40°C, powered	>100 MΩ resistance
Material Swelling	Dimensional measurement	90% RH for 168 hours	<0.1% size change



Standards and Test Methods for Sensor Validation​​​​​​​

---

ISO/IEC 17025 Calibration Requirements

This international standard mandates documented procedures, uncertainty analysis, and traceability for calibration labs. Benchtop chambers must demonstrate uniformity within ±1% RH across the test space to meet ISO 17025 humidity calibration requirements. The LIB chamber's ±2.5% RH deviation specification supports compliance when combined with proper mapping and uncertainty budgeting.

ASTM E337 Standards for Moisture Testing

ASTM E337 outlines methods for evaluating moisture effects on materials, including sensor validation. The standard specifies humidity equilibration times, temperature stabilization periods, and measurement intervals. Benchtop chambers execute these protocols through programmable sequences - maintaining 50±2% RH for 24 hours before measurement, then stepping through required humidity points with adequate dwell times.

Industry-Specific Validation Protocols

Medical device manufacturers follow IEC 60601-1-11 for humidity performance in home healthcare environments. Automotive suppliers use SAE J1211 for under-hood sensor durability. Each industry defines unique humidity profiles - pharmaceutical stability chambers operate at 75% RH±5% for drug testing, while agricultural sensors face 90%+ RH with condensation. Benchtop chambers accommodate these diverse protocols through customizable programming.



Enhancing Long-Term Reliability Through Environmental Testing

---

Accelerated Aging with Humidity Stress

Elevated temperature and humidity accelerate degradation mechanisms. The Arrhenius equation predicts that testing at 40°C and 90% RH approximates years of tropical exposure. By subjecting sensors to these conditions for 500 hours, engineers predict 5-year field performance. LIB benchtop environmental chambers reach -70°C to +150°C, enabling accelerated testing across all climate zones from arctic to desert.

Predictive Modeling from Test Data

Humidity test data feeds reliability prediction models like MIL-HDBK-217F. Failure rates derived from chamber testing inform warranty periods and maintenance schedules. For example, if 5% of sensors fail 1000-hour humidity testing, field failure rates might reach 0.5% per year. This quantitative approach replaces guesswork with data-driven reliability engineering.

Quality Control Integration in Production

Benchtop chambers move from R&D to production floors for incoming sensor inspection. Sampling each batch against humidity performance specifications catches supplier variations. The compact size fits beside assembly lines, while the touchscreen interface allows operators to run standard tests without engineering expertise. This inline validation prevents defective sensors from reaching final products.



LIB Industry Enables High-Precision Humidity Validation Testing

---

Chamber Specifications for Sensor Testing

LIB Industry's benchtop chambers deliver the precision required for sensor validation. The TH-50 model maintains 20-98% RH with ±2.5% deviation across its 50-liter volume - sufficient for testing dozens of sensors simultaneously. Temperature stability of ±0.5°C eliminates thermal cross-sensitivity artifacts. The -40°C to +150°C range covers all operational environments from cold chain logistics to industrial ovens.

Safety Features for Hazardous Testing

Testing lithium-ion battery sensors requires explosion-proof designs. LIB chambers include over-temperature protection, earth leakage safeguards, and refrigerant high-pressure monitoring. The mechanical compression refrigeration system safely handles low-temperature testing without flammable refrigerants. These protections allow aggressive testing of sensors in hazardous applications without facility modifications.

Customization and Support Services

LIB Industry engineers modify chamber interiors for non-standard sensor sizes or mounting configurations. They develop custom humidity profiles matching specific geographic climate data. The 3-year warranty and 24/7 global support ensure minimal downtime. Training includes calibration procedures, data interpretation, and preventive maintenance - turning equipment into a long-term validation asset rather than a consumable tool.



Conclusion

---

Benchtop humidity testing transforms sensor validation from periodic checks to continuous quality assurance. These compact chambers deliver laboratory-grade environmental control in spaces as small as 820×1160×950 mm, making precision testing accessible to any development team. By revealing drift, hysteresis, and failure modes early, manufacturers prevent field failures and extend product lifespans. Investing in a reliable benchtop environmental chamber pays dividends through reduced warranty costs, regulatory compliance, and enhanced brand trust in measurement-critical applications.



FAQ

---

How frequently should humidity sensors be calibrated using a benchtop chamber?

Calibration intervals depend on application criticality. High-accuracy laboratory sensors require quarterly calibration, while industrial process sensors may need annual checks. Sensors in harsh environments (≥85% RH or rapid cycling) should be tested semi-annually. Always follow manufacturer guidelines and regulatory requirements for your industry.

Can a single benchtop chamber test all humidity sensor types?

Yes, a chamber with 10-98% RH range and -40°C to +150°C capability accommodates most sensor types - capacitive, resistive, thermal conductivity. Ensure chamber uniformity meets your sensor's accuracy specification. For ultra-precise <0.1% RH sensors, additional mapping and validation may be needed to confirm chamber performance.

What's the ROI of investing in a benchtop chamber for sensor testing?

ROI manifests through reduced scrap (catching bad sensors before assembly), avoided recalls (preventing field failures), and extended sensor life (proper calibration maintenance). A $15,000 chamber pays for itself by preventing one major batch failure in pharmaceuticals or electronics. Additional value comes from faster R&D cycles and compliance with ISO/ASTM standards.



Contact LIB Industry for Your Sensor Testing Needs

---

As a leading benchtop environmental chamber manufacturer, LIB Industry provides turn-key solutions for sensor validation worldwide. Our compact chambers feature 10-98% RH control, -86°C capability, and lithium-ion safety options. Contact our engineering team at ellen@lib-industry.com to discuss your specific humidity testing requirements and receive a customized configuration quote.

Selecting the right waterproof test machine for IP rating compliance requires understanding your product's protection requirements, applicable international standards, and operational testing volumes. The ideal equipment must support specific IPX levels (IPX1 through IPX9K) relevant to your product category, comply with IEC 60529 and ISO 20653 standards, and provide reproducible test conditions through precision flow control, programmable spray patterns, and automated data logging. Key selection criteria include chamber capacity matching your largest test specimens, water management systems reducing operational costs, safety features supporting powered device testing, and certification documentation supporting regulatory submissions. The right testing solution streamlines product certification while ensuring compliance accuracy across consumer electronics, automotive, and industrial applications.



Understanding IP Rating and Waterproof Test Requirements

---

Decoding the IP Rating System

The Ingress Protection (IP) rating system uses two digits indicating protection against solid objects (first digit, 0-6) and liquid ingress (second digit, 0-9K). IPX ratings specifically address water protection, with the X serving as a placeholder when solid particle protection is unspecified. IPX1 represents minimal protection against vertical drips, while IPX9K validates resistance to high-pressure, high-temperature water jets. Understanding precise rating requirements proves essential before selecting testing equipment, as different IPX levels demand specific spray geometries, water pressures, and exposure durations defined in international standards.

Application-Specific Protection Requirements

Different product categories require distinct IP protection levels based on intended use environments. Smartphones typically target IPX7 or IPX8 ratings demonstrating temporary immersion resistance, while outdoor lighting fixtures require IPX5 or IPX6 protection against directional water jets. Automotive components face stringent ISO 20653 requirements addressing road spray, high-pressure washing, and engine compartment exposure. Industrial equipment installed in washdown environments demands IPX6 or higher ratings ensuring sustained reliability. Identifying target protection levels guides equipment selection toward chambers supporting required testing capabilities.

Regulatory and Market Access Considerations

IP rating certification often determines market access across global regions and product categories. European markets require IEC 60529 compliance documentation supporting CE marking processes, while specific industries like medical devices reference IP ratings within broader regulatory frameworks. Marketing claims about waterproof performance face increasing scrutiny from consumer protection agencies and class-action litigation, making documented IP compliance testing essential risk mitigation. Investment in proper testing equipment supports defensible product claims and demonstrates due diligence in product development processes.



Key Features of an IP Compliance Waterproof Test Machine

---

Multi-Level IPX Testing Capability

Comprehensive waterproof testing equipment supports multiple IPX levels within a single integrated system rather than requiring separate chambers for each protection level. Advanced testing chambers accommodate IPX1/IPX2 drip testing through adjustable drip plates, IPX3/IPX4 oscillating tube spray testing with variable radius options, and IPX5/IPX6 high-pressure water jet testing through dedicated nozzles. This integration maximizes laboratory efficiency while reducing capital investment, particularly valuable for manufacturers testing diverse product lines requiring different protection level validations.

Programmable Control Systems

Modern waterproof test machines feature programmable LCD touchscreen controllers enabling pre-set testing protocols for each IPX level. One-touch operation reduces operator training requirements and minimizes procedural errors that could invalidate test results. Programmable parameters include spray duration, oscillation angles, flow rates, turntable rotation speeds, and water temperatures. Ethernet connectivity supports laboratory information management system integration, automated data logging, and remote test monitoring essential for high-throughput certification operations.

Water Management and Recirculation Systems

Sustainable water management represents a critical feature distinguishing professional waterproof testing equipment from basic alternatives. Closed-loop water circulation with built-in filtration reduces water consumption by up to 90% while preventing nozzle clogging that compromises test accuracy. Automatic water level maintenance, integrated booster pumps, and easy waste water drainage simplify operational procedures. Water purification systems remove contaminants that could affect test specimens or damage equipment over extended operational periods.

Table 1: IP Rating Requirements and Testing Specifications

IP Rating	Protection Description	Test Method	Test Duration
IPX1	Vertical dripping water	Drip tray (1mm/min)	10 minutes
IPX2	Dripping water at 15° tilt	Drip tray (3mm/min)	10 minutes (each face)
IPX3	Spraying water up to 60°	Oscillating tube/spray nozzle	5 minutes/m²
IPX4	Splashing water from all directions	Oscillating tube/spray nozzle	10 minutes
IPX5	Water jets (6.3mm nozzle)	Hose nozzle (12.5 L/min)	1 minute/m²
IPX6	Powerful water jets (12.5mm nozzle)	Hose nozzle (100 L/min)	1 minute/m²
IPX7	Temporary immersion (1m depth)	Immersion tank	30 minutes
IPX8	Continuous immersion	Manufacturer-specified	Per specification
IPX9K	High-pressure, high-temperature jets	Specialized fan jet	30 seconds per position



Selecting Test Methods for Different Product Categories

---

Consumer Electronics and Mobile Devices

Consumer electronics manufacturers face unique waterproof testing challenges balancing miniaturization with protection requirements. Smartphones, smartwatches, and wireless earbuds typically require IPX5 through IPX8 ratings demonstrating splash, jet, and immersion resistance. Testing protocols often combine multiple IPX levels validating different use scenarios - accidental splashes during outdoor use, rain exposure during commuting, and brief submersion incidents. The compact size of consumer electronics enables testing in smaller chamber configurations, though high production volumes demand efficient automated testing supporting statistical sampling protocols.

Automotive Component Validation

Automotive applications follow ISO 20653 standards addressing more aggressive protection levels including IPX6K (powerful temperature-controlled water jets) and IPX9K (extreme high-pressure cleaning resistance). Headlamp assemblies, sensor modules, electrical connectors, and infotainment systems require validation under conditions simulating road spray, car wash exposure, and engine bay environments. The larger size of automotive components and assemblies necessitates spacious test chambers accommodating complete subassemblies during testing.

Industrial and Outdoor Equipment

Industrial equipment installed outdoors or in washdown environments demands rigorous IPX6 through IPX9K testing validating sustained reliability. Outdoor lighting, security cameras, HVAC controls, and agricultural equipment face continuous environmental exposure requiring robust protection. Marine applications introduce additional saltwater corrosion considerations often requiring combined waterproof and salt spray testing protocols. Industrial product testing typically involves lower production volumes but larger physical sizes, favoring spacious waterproof test machine with versatile mounting capabilities accommodating diverse equipment configurations.



IEC 60529 Standards for Waterproof Performance Evaluation

---

Standard Scope and Methodology Framework

IEC 60529 establishes the international framework for IP rating classification and testing methodology, recognized globally as the authoritative standard for ingress protection assessment. The standard defines specific test apparatus configurations, water flow rates, spray patterns, and observation methods ensuring reproducible evaluation across testing facilities worldwide. Test specimens must demonstrate no harmful water ingress affecting safety or operational performance during specified exposure conditions. The standard's prescriptive nature enables consistent interpretation reducing certification disputes.

Equipment Specifications Within IEC 60529

The standard prescribes specific equipment configurations for each test level including drip plate hole patterns (1mm diameter on 20mm centers for IPX1/IPX2), oscillating tube dimensions and spray hole specifications (0.4mm holes on 50mm centers), and hose nozzle internal diameters for water jet testing. Water pressure, flow rates, and distances from test specimens are precisely defined ensuring consistent stress application. Professional waterproof test machines build to these specifications with calibrated flow meters and adjustable parameters confirming compliance during certification testing.

Documentation and Reporting Requirements

IEC 60529 compliance demands thorough documentation including test conditions, observations during exposure, post-test inspection findings, and pass/fail determinations. Test reports must specify exact equipment configurations, water flow rates, exposure durations, and any deviations from standard protocols. Programmable testing systems with automated data logging streamline documentation creation while ensuring completeness and accuracy. The Ethernet-connected color touchscreen controllers in advanced waterproof testing equipment generate comprehensive electronic records supporting certification submissions and quality system audits.



Common Challenges in Waterproof Compliance Testing

---

Specimen Positioning and Mounting Considerations

Proper test specimen positioning significantly affects waterproof test validity and result interpretation. IEC 60529 requires testing all enclosure surfaces likely to face water exposure during normal use, often requiring multiple test orientations for complex products. Turntable rotation enables systematic exposure of all surfaces during single test cycles, while adjustable mounting fixtures accommodate diverse product geometries. The 1 rpm turntable rotation in standard waterproof test machine provides controlled specimen exposure, though variable speed options support specialized testing requirements.

Water Quality and Contamination Issues

Water quality directly affects test reproducibility and equipment longevity. Tap water contains minerals and contaminants that can deposit within nozzles causing flow restrictions altering spray patterns, while dissolved chemicals may interact with test specimens producing non-representative results. Recirculated water requires filtration removing particles introduced from test specimens. Periodic water quality verification through conductivity measurement and visual inspection identifies contamination requiring water replacement, maintaining test accuracy throughout extended operational campaigns.

Powered Device Testing Safety

Testing electrically powered products during water exposure introduces safety considerations beyond standard waterproof testing protocols. Energized devices undergoing IPX testing demonstrate functional waterproof performance, but operator safety requires comprehensive electrical protection systems. Earth leakage circuit breakers (ELCB), waterproof power outlets within chambers, sealed cable ports for external connections, and IP-rated electrical components ensure safe testing of powered specimens. These safety features prove essential for consumer electronics, automotive components, and industrial equipment requiring functional waterproof verification.

Table 2: Common Product Categories and Recommended IP Ratings

Product Category	Typical IP Rating	Test Standard	Key Considerations
Smartphones	IPX7/IPX8	IEC 60529	Pressure compensation, port sealing
Outdoor luminaires	IPX5/IPX6	IEC 60598	Long-term seal integrity
Automotive lamps	IPX6K/IPX9K	ISO 20653	Thermal cycling effects
Industrial sensors	IPX6/IPX7	IEC 60529	Chemical compatibility
Marine electronics	IPX7/IPX8	IEC 60945	Salt water resistance
Medical devices	IPX1-IPX8	IEC 60601	Sterilization compatibility



Improving Product Certification Efficiency with Automated Testing​​​​​​​

---

Pre-Programmed Test Protocols

Automated waterproof test machines feature pre-programmed protocols for each IPX level eliminating manual parameter setup that introduces operator variability. One-touch test initiation ensures consistent application of standard parameters including flow rates, oscillation angles, exposure durations, and specimen positioning sequences. This standardization reduces operator training requirements and enables less-experienced personnel to conduct routine compliance testing reliably. Custom protocol programming accommodates specialized testing beyond standard IPX requirements supporting unique product validation needs.

Data Logging and Traceability

Automated data acquisition systems continuously record test parameters throughout exposure cycles, creating comprehensive electronic records supporting certification documentation requirements. Time-stamped logs capture water flow rates, pressure measurements, temperature variations, and any alarm conditions occurring during testing. USB data download capabilities and Ethernet connectivity facilitate integration with laboratory information management systems, eliminating manual transcription errors while accelerating report generation. Complete traceability supports regulatory submissions and customer audits demanding documented test integrity.

Throughput Optimization Strategies

High-volume certification testing benefits from chamber configurations supporting multiple specimens per test cycle. Large internal dimensions (1300×1350×1370mm in larger models) accommodate batch testing of small consumer products or large automotive subassemblies. Automated turntable rotation systematically exposes all specimens to identical conditions ensuring fair comparative evaluation. Quick-release fixturing systems minimize specimen changeover times between test cycles, maximizing daily throughput essential for production qualification testing supporting manufacturing release decisions.



LIB Industry IP Waterproof Testing Solutions for Accurate Certification

---

Comprehensive IPX Coverage in Integrated Systems

LIB Industry waterproof test machines provide complete IPX1 through IPX9K coverage within unified testing platforms, eliminating capital investment for multiple specialized chambers. The integrated design supports drip testing, oscillating tube spray testing, high-pressure jet testing, and immersion testing within single configurable systems. Models ranging from R-800C (810L capacity) to R-1200C (2400L capacity) accommodate diverse specimen sizes from compact consumer electronics to substantial automotive assemblies. This versatility maximizes laboratory return on investment while supporting evolving product testing requirements.

Precision Engineering for Standards Compliance

LIB chambers feature precision-engineered components meeting IEC 60529 and ISO 20653 specifications. Spray hole diameters of 0.4mm on 50mm centers ensure compliant oscillating tube performance, while adjustable swing angles (0 to ±180°) support all standard test configurations. Variable oscillating tube radii (400mm or 600mm) accommodate different specimen sizes maintaining proper standoff distances. Calibrated flow meters provide accurate water pressure control essential for IPX5 and IPX6 testing precision. Complete SUS304 stainless steel construction resists corrosion ensuring long-term reliability under continuous moisture exposure.

Advanced Safety and Control Features

Multiple safety protection systems protect operators, specimens, and equipment during testing operations. Over-temperature protection, over-current protection, water shortage detection, earth leakage protection, and phase sequence protection ensure safe operation across diverse testing scenarios. The programmable color LCD touchscreen controller enables intuitive operation with multi-language support facilitating global deployment. Double-layer insulating glass observation windows with integrated wipers maintain visibility throughout testing despite continuous water spray, enabling real-time observation of specimen behavior during exposure.

Sustainable Operation Through Water Recirculation

LIB Industry waterproof test machines incorporate sophisticated water recirculation systems reducing consumption by up to 90% compared to single-pass alternatives. Built-in filtration prevents nozzle clogging maintaining consistent spray patterns throughout extended test campaigns. Automatic water level maintenance and integrated booster pumps ensure stable operating conditions without operator intervention. This sustainable design reduces operational costs while supporting corporate environmental objectives, particularly important for facilities conducting high-volume certification testing.

Global Support and Customization

LIB Industry serves customers across 60+ countries with comprehensive after-sales support including 3-year warranty coverage and lifetime service commitment. Custom design capabilities accommodate specialized testing requirements beyond standard IPX protocols, supporting unique product validation needs. Service centers in Malaysia, Canada, United Kingdom, and United States provide localized technical support minimizing equipment downtime. ISO 9001 quality management certification and third-party verification by SGS and TUV demonstrate manufacturing quality supporting customer vendor qualification requirements.



Conclusion

---

Selecting the appropriate waterproof test machine requires careful evaluation of target IP rating requirements, applicable standards, product categories, and operational throughput needs. Modern integrated testing systems supporting comprehensive IPX coverage maximize laboratory efficiency while ensuring certification accuracy through precision engineering and automated operation. Investment in quality testing equipment supports defensible product claims, regulatory compliance, and competitive market positioning across consumer electronics, automotive, and industrial applications.



FAQ

---

What's the difference between IPX6 and IPX9K testing requirements?

IPX6 testing uses a 12.5mm nozzle at 100 L/min flow rate for 1 minute per square meter, validating protection against powerful water jets. IPX9K, defined in ISO 20653, requires high-pressure water (8000-10000 kPa) at 80°C delivered through specialized fan jet nozzles, simulating high-pressure cleaning applications common in automotive and industrial environments.

Can a single waterproof test machine handle all IPX rating levels?

Yes, integrated waterproof testing systems support multiple IPX levels through interchangeable components and programmable controls. LIB Industry chambers accommodate IPX1 through IPX9K testing within unified platforms by switching between drip plates, oscillating tubes, and hose nozzles. This integration reduces capital investment and laboratory space requirements compared to separate specialized chambers.

How important is water recirculation for waterproof testing operations?

Water recirculation provides significant operational and environmental benefits, reducing consumption by up to 90% during extended testing campaigns. Built-in filtration prevents nozzle clogging that could compromise test accuracy, while automatic water level maintenance reduces operator workload. Sustainability benefits align with corporate environmental objectives increasingly important for global manufacturing operations.



Partner with LIB Industry for IP Compliance Testing Excellence

---

LIB Industry serves as a leading waterproof test machine manufacturer and supplier, delivering IEC 60529 and ISO 20653 compliant testing equipment to certification laboratories worldwide. Our turn-key solutions include design consultation, installation, operator training, and comprehensive technical support. Contact our applications team at ellen@lib-industry.com to discuss your IP compliance testing requirements.

Pharmaceutical stability studies demand precise environmental control to evaluate how active pharmaceutical ingredients (APIs) and finished drug products withstand storage conditions throughout their shelf life. Benchtop environmental chambers provide space-efficient, cost-effective solutions for these critical assessments, delivering accurate temperature and humidity regulation in compact laboratory footprints. These specialized testing units enable pharmaceutical manufacturers to comply with ICH stability guidelines while conducting accelerated aging studies, long-term stability protocols, and packaging integrity evaluations. With programmable control systems maintaining conditions like 25°C/60% RH or 40°C/75% RH, benchtop chambers compress years of real-time shelf-life data into weeks or months of testing, supporting regulatory submissions and ensuring patient safety through reliable drug quality validation.

A Vietnam-based aerospace research team selected the TH-50 small climatic chamber to conduct environmental simulation testing for flight system components. During operation, the chamber provided accurate temperature and humidity control, uniform test conditions, and stable long-term performance. These capabilities enabled the team to efficiently evaluate component reliability under controlled environmental stresses. The project highlights the TH-50’s suitability for precision research applications requiring dependable and repeatable test results.



Key Environmental Factors Affecting Drug Stability

---

Temperature-Induced Chemical Degradation

Temperature represents the most influential variable affecting pharmaceutical stability, directly governing reaction kinetics that drive chemical degradation pathways. The Arrhenius equation demonstrates that each 10°C temperature increase approximately doubles degradation rates, making precise thermal control essential. APIs undergo various temperature-dependent reactions including hydrolysis, oxidation, decarboxylation, and isomerization that compromise therapeutic efficacy. Benchtop environmental chambers maintain setpoint accuracy within ±0.5°C, preventing temperature excursions that could invalidate stability data or accelerate degradation beyond predictable parameters.

Moisture-Related Degradation Mechanisms

Humidity profoundly impacts pharmaceutical stability through multiple mechanisms beyond simple moisture absorption. Water acts as both reactant and catalyst in hydrolytic degradation, affecting solid dosage forms through deliquescence, crystalline structure changes, and coating failures. Hygroscopic excipients can absorb atmospheric moisture, creating localized high-humidity microenvironments within tablets or capsules that accelerate API degradation. Humidity deviation control of ±2.5% RH in benchtop chambers ensures reproducible moisture exposure, enabling accurate shelf-life predictions based on water activity relationships.

Light Exposure and Photostability Concerns

Photolytic degradation affects photosensitive compounds through direct photochemical reactions or light-catalyzed oxidation processes. While comprehensive photostability testing follows ICH Q1B protocols using specialized light chambers, benchtop environmental chambers contribute by maintaining light-protected conditions during routine stability studies. The double-layer tempered glass observation windows with interior LED lighting allow visual inspection without exposing samples to uncontrolled ambient light that could confound temperature-humidity stability data with photodegradation artifacts.



Temperature and Humidity Control in Stability Testing

---

Precision Control Systems and PID Technology

Modern benchtop chambers employ proportional-integral-derivative (PID) control algorithms that continuously adjust heating, cooling, and humidification to maintain setpoint conditions. These sophisticated systems anticipate temperature drift through derivative calculations, preventing the overshoot and oscillation common in simpler on-off controllers. The programmable color touchscreen interface enables users to create complex testing profiles with up to 120 programs containing 100 segments each, automating transitions between different stability conditions without manual intervention.

Mechanical Refrigeration for Low-Temperature Stability

Pharmaceutical products requiring refrigerated storage (2-8°C) or frozen conditions demand chambers capable of sub-ambient temperature control. Benchtop environmental chambers with mechanical compression refrigeration systems achieve temperatures from -20°C to -70°C depending on configuration, supporting cold-chain product development. The 1°C/min cooling rate enables gradual temperature transitions that prevent thermal shock to sensitive biologics or temperature-sensitive formulations during freeze-thaw stability evaluation.

Humidity Generation and Control Technologies

Achieving stable humidity conditions, particularly at elevated temperatures, requires sophisticated humidification systems. Advanced benchtop chambers utilize stainless steel surface evaporation humidifiers operating independently from the main chamber, preventing contamination risks and enabling precise moisture delivery. The humidifier dry-combustion protection system prevents element damage during low-water conditions, ensuring continuous operation during extended stability studies lasting months or years.

Table 1: Standard ICH Stability Storage Conditions

Study Type	Temperature	Relative Humidity	Typical Duration	Purpose
Long-term	25°C ± 2°C	60% ± 5% RH	12-60 months	Real-time shelf life
Intermediate	30°C ± 2°C	65% ± 5% RH	6-12 months	Supporting data
Accelerated	40°C ± 2°C	75% ± 5% RH	6 months	Predictive modeling
Refrigerated	5°C ± 3°C	Ambient	12-36 months	Cold-chain products



ICH Guidelines for Pharmaceutical Stability Studies

---

ICH Q1A Stability Testing Requirements

The International Council for Harmonisation (ICH) Q1A guideline establishes globally harmonized stability testing protocols for drug registration in ICH member regions. This guidance defines storage conditions, testing frequencies, and study durations based on climatic zones and intended product markets. Benchtop environmental chambers supporting ICH Q1A compliance must demonstrate calibrated accuracy meeting the specified temperature and humidity tolerances (±2°C and ±5% RH), with documentation systems providing audit trails for regulatory inspections.

Climatic Zone Classifications

ICH divides global regions into four climatic zones based on prevalent temperature and humidity conditions: Zone I (temperate), Zone II (subtropical/Mediterranean), Zone III (hot/dry), and Zone IV (hot/humid). Products marketed in Zone IVb regions (hot and very humid) require additional accelerated testing at 30°C/75% RH beyond standard 25°C/60% RH protocols. The wide temperature range capability of benchtop chambers (-40°C to +150°C) accommodates all climatic zone testing requirements within a single versatile platform.

Photostability Testing Integration

While ICH Q1B photostability testing typically employs dedicated light chambers, comprehensive stability programs integrate photostability and thermal-humidity data. Benchtop environmental chambers support this integration by maintaining controlled dark storage conditions for light-protected controls while photostability chambers provide UV/visible exposure. The cable port feature (Φ50mm) enables temperature probe insertion for monitoring samples undergoing parallel testing protocols without compromising chamber integrity.



Packaging Evaluation Under Accelerated Aging Conditions

---

Primary Packaging Moisture Barrier Testing

Pharmaceutical packaging systems provide critical protection against environmental moisture ingress that could destabilize hygroscopic formulations. Accelerated stability studies at 40°C/75% RH stress-test moisture barrier performance, revealing packaging inadequacies within months rather than years required for real-time evaluation. Benchtop chambers accommodate intact packaged units, enabling moisture vapor transmission rate (MVTR) validation through periodic sample weighing or moisture content analysis throughout exposure periods.

Container Closure Integrity Evaluation

Parenteral products, ophthalmics, and other sterile formulations depend on hermetic container closure systems preventing microbial contamination and maintaining sterility throughout shelf life. Environmental chamber testing subjects vials, ampoules, and prefilled syringes to temperature cycling and humidity exposure while monitoring for seal failures. The SUS304 stainless steel interior with adjustable shelving accommodates various container formats, from small vials to larger bottles, enabling comprehensive packaging validation programs.

Blister Pack and Strip Packaging Assessment

Solid oral dosage forms commonly utilize blister packaging combining thermoformed plastic cavities with aluminum foil lidding. Stability testing evaluates whether these systems adequately protect tablets or capsules from moisture and oxidative degradation. The 50L and 80L chamber capacities provide sufficient volume for statistically significant sample quantities while maintaining uniform environmental conditions across all shelf positions through forced-air circulation systems that eliminate thermal gradients.

Table 2: Typical Packaging Failure Modes Detected in Stability Studies

Packaging Type	Common Failure Mechanism	Detection Method	Stability Condition
Blister packs	Aluminum delamination	Visual inspection, moisture content	40°C/75% RH
HDPE bottles	Cap seal leakage	Weight gain monitoring	25°C/60% RH
Glass vials	Stopper moisture permeation	Karl Fischer titration	30°C/65% RH
Foil pouches	Pinhole defects	Dye ingress testing	Cyclic temperature/humidity



Data Monitoring and Validation in Stability Chambers

---

Continuous Monitoring and Ethernet Connectivity

Modern pharmaceutical quality systems demand real-time visibility into stability chamber performance throughout extended study periods. Benchtop environmental chambers equipped with Ethernet connectivity enable remote monitoring via smartphone applications or web browsers, alerting quality personnel immediately to temperature or humidity excursions. This connectivity supports 21 CFR Part 11 compliance efforts by maintaining continuous electronic records that supplement traditional chart recorders or manual log sheets.

Mapping Studies and Spatial Uniformity

Chamber qualification requires mapping studies demonstrating temperature and humidity uniformity throughout the usable testing volume. Multiple calibrated sensors positioned across chamber height, width, and depth record simultaneous readings under loaded and unloaded conditions. The forced-air circulation design in benchtop chambers minimizes spatial variation, typically achieving temperature uniformity within ±1.0°C across all measurement points, ensuring samples experience equivalent stress regardless of shelf position.

Calibration Protocols and Metrological Traceability

Regulatory compliance depends on documented evidence that chamber instrumentation maintains accuracy throughout operational life. Annual calibration against NIST-traceable standards verifies temperature and humidity sensor performance, with calibration certificates providing metrological traceability chains. The over-temperature protection, water shortage protection, and refrigerant high-pressure protection systems safeguard against equipment malfunctions that could compromise stability samples representing months of product development investment.



Improving Regulatory Compliance with Benchtop Chambers

---

Documentation and Audit Trail Requirements

Pharmaceutical stability programs generate extensive documentation supporting regulatory submissions and responding to health authority inspections. Benchtop chambers with programmable controllers automatically record temperature, humidity, elapsed time, and alarm events, creating comprehensive electronic records. These audit trails demonstrate protocol adherence and document any deviations requiring investigation, supporting Good Manufacturing Practice (GMP) requirements for stability data integrity.

Deviation Management and Out-of-Specification Handling

Even well-maintained chambers occasionally experience excursions outside specification limits due to power interruptions, refrigeration system issues, or door openings. The multiple safety protection systems including over-temperature shutdown and earth leakage protection minimize deviation frequency. When excursions occur, automated alarm systems enable rapid intervention while time-stamped records document exact deviation magnitude and duration, supporting scientific assessment of whether affected samples remain valid.

Qualification Protocols: IQ, OQ, and PQ

Regulatory agencies expect documented evidence that stability chambers perform as intended before generating GMP-relevant data. Installation Qualification (IQ) verifies correct installation and component specifications, Operational Qualification (OQ) demonstrates performance across the operating range, and Performance Qualification (PQ) confirms sustained performance under actual-use conditions. The comprehensive 3-year warranty and lifetime service commitment from LIB Industry supports ongoing qualification maintenance and requalification after repairs or modifications.

Table 3: Chamber Qualification Timeline and Activities

Qualification Phase	Key Activities	Timeline	Documentation
Installation Qualification (IQ)	Verify specifications, utilities, safety features	1-2 days	IQ protocol and report
Operational Qualification (OQ)	Temperature/humidity accuracy, uniformity, recovery	3-5 days	OQ protocol and report
Performance Qualification (PQ)	Loaded chamber testing, alarm verification	7-14 days	PQ protocol and report
Ongoing Monitoring	Routine calibration, preventive maintenance	Annual	Calibration certificates, maintenance logs



LIB Industry Benchtop Chambers for Precise Pharmaceutical Stability Control​​​​​​​

---

Compact Design Maximizing Laboratory Efficiency

Laboratory space represents premium real estate in pharmaceutical facilities, making benchtop chambers' minimal footprint particularly valuable. The TH-50 (320×350×450mm internal) and TH-80 (400×400×500mm internal) models provide generous testing volumes of 50L and 80L respectively while occupying standard laboratory bench space. This space efficiency enables distributed stability testing across multiple development laboratories rather than centralized testing requiring sample transport that introduces contamination risks and logistical complexity.

Whisper-Quiet Operation for Laboratory Environments

Traditional environmental chambers generate disruptive noise levels incompatible with laboratory settings housing precision analytical equipment and researchers requiring concentration. LIB Industry benchtop chambers operate below 65dB through advanced vibration damping and acoustic insulation - equivalent to normal conversation levels. This quiet operation permits chamber placement directly adjacent to analytical instruments like HPLC systems, enabling efficient workflow from stability storage to chemical analysis without sample transportation delays.

Plug-and-Play Installation Without Infrastructure Upgrades

Unlike large walk-in stability rooms requiring dedicated HVAC systems, electrical substations, and structural modifications, benchtop chambers connect to standard single-phase electrical supplies (110V/220V). This plug-and-play capability eliminates capital costs for electrical upgrades and accelerates deployment timelines from months to days. Pharmaceutical startups and academic research laboratories particularly benefit from this accessibility, obtaining ICH-compliant stability testing capability without major facility investments.

Advanced Safety Features for Pharmaceutical Applications

Pharmaceutical stability studies often involve valuable clinical trial materials or investigational drugs representing years of development effort. Multiple redundant safety systems protect these irreplaceable samples: over-temperature protection prevents thermal runaway, water shortage protection preserves humidification systems, and refrigerant high-pressure protection prevents compressor damage. The earth leakage protection system ensures operator safety, particularly important when chambers operate unattended during overnight or weekend periods spanning long-term stability protocols.

Quality Assurance and Regulatory Support

Every LIB Industry benchtop chamber undergoes rigorous factory acceptance testing following ISO 9001 Quality Management System protocols, with CE certification demonstrating conformity to European safety and performance standards. Third-party verification by SGS and TUV provides independent validation of specifications, supporting pharmaceutical quality systems requiring vendor qualification. The comprehensive documentation package including installation, operation, and maintenance manuals facilitates chamber qualification protocols required before GMP use.

Global Service Network and Application Support

Pharmaceutical stability programs cannot tolerate extended chamber downtime that could invalidate ongoing studies. LIB Industry's 24/7 global support network provides rapid response to technical issues, with replacement unit commitment if repairs cannot restore functionality within warranty periods. Beyond reactive support, the applications engineering team assists with protocol development, chamber mapping study design, and troubleshooting unexpected stability results, serving as an extension of pharmaceutical development teams.



Conclusion

---

Benchtop environmental chambers deliver pharmaceutical laboratories the precise environmental control essential for ICH-compliant stability studies without the space requirements and infrastructure investments of traditional walk-in rooms. Their compact footprint, advanced control systems, and comprehensive safety features make them ideal for drug development programs requiring accelerated aging data, packaging validation, and regulatory submission support. As pharmaceutical development timelines compress and laboratory space becomes increasingly valuable, these versatile testing platforms provide the accessibility and performance necessary for robust stability programs ensuring medication safety and efficacy throughout product shelf life.



FAQ

---

What chamber capacity is needed for typical pharmaceutical stability studies?

Chamber capacity depends on sample quantity, packaging size, and study scope. The 50L benchtop chamber accommodates approximately 200-300 blister cards or 40-60 bottled samples, sufficient for early-stage development. The 80L model suits larger programs with multiple formulations or strengths. Both sizes maintain ICH-required uniformity while fitting standard laboratory benches without facility modifications.

How do benchtop chambers compare to walk-in stability rooms?

Benchtop chambers offer superior temperature and humidity control precision (±0.5°C vs. ±2°C typical for rooms), faster condition changes, and lower capital costs. Walk-in rooms provide greater total capacity for commercial-scale testing. Many laboratories use benchtop units for development studies requiring frequent condition changes, reserving walk-in rooms for long-term commercial product monitoring at fixed conditions.

Can benchtop environmental chambers support photostability testing requirements?

Standard benchtop environmental chambers maintain dark, temperature-humidity controlled conditions serving as dark controls for photostability studies. Dedicated light chambers provide required UV and visible light exposure per ICH Q1B. Some manufacturers offer benchtop chambers with integrated light sources, though separate light and environmental chambers provide greater experimental flexibility for comprehensive stability programs addressing multiple degradation mechanisms.



Partner with LIB Industry for Pharmaceutical Testing Solutions

---

LIB Industry specializes as a benchtop environmental chamber manufacturer and supplier, delivering precision testing equipment to pharmaceutical laboratories worldwide. Our comprehensive turn-key solutions encompass design, production, installation, and validation support tailored to your stability testing requirements. Contact our pharmaceutical applications team at ellen@lib-industry.com to discuss how our chambers can strengthen your development programs and accelerate regulatory pathways.
