Common Causes of Plastic Degradation in Outdoor Environments

---

The Tripartite Assault: UV, Heat, and Moisture

Outdoor plastic degradation stems from a synergistic interaction of three primary stressors. Ultraviolet radiation initiates photochemical chain scission in polymer backbones. Elevated temperatures accelerate oxidative reactions and plasticizer migration. Moisture, especially when combined with pollutants, drives hydrolysis and facilitates biological attack. These factors rarely act in isolation; a scorching, humid day with intense sun creates a perfect storm that no single stressor test can fully replicate.

Photochemical Breakdown Mechanisms

UV photons with wavelengths below 400 nm possess sufficient energy to break carbon-hydrogen and carbon-carbon bonds in common polymers like polypropylene and polyethylene. This creates free radicals that propagate chain reactions, leading to molecular weight reduction. The surface layer degrades first, creating a brittle, chalking skin that cracks under stress. Additives like UV absorbers and HALS (Hindered Amine Light Stabilizers) sacrificially absorb this energy, but their depletion dictates the material's ultimate endurance.

Environmental Multipliers: Pollution and Mechanical Stress

Industrial pollutants like sulfur dioxide and nitrogen oxides catalyze oxidative degradation. Salt spray in marine environments accelerates corrosion of metal inserts and promotes hydrolysis. Repeated thermal cycling between day and night causes differential expansion and contraction, inducing internal stresses that amplify UV damage. Even seemingly benign factors like rainwater's slight acidity (pH ~5.6) or condensed dew can leach plasticizers or create concentration gradients of degraded material.

Table 1: Degradation Drivers by Application Environment

Environment	Primary UV Stress	Temperature Range		Moisture Factor	Key Degradation Mode
Automotive Exterior	High (full sun)		-40°C to +90°C	Rain, dew, humidity cycles	Surface chalking, gloss loss, embrittlement
Agricultural Films	Very High (full sun)		-10°C to +60°C	High humidity, soil contact	Photo-oxidation, hydrolysis, biofouling
Building & Construction	Moderate (incl. window glass filtered)		-30°C to +70°C	Rain, condensation, humidity	Color shift, tensile strength loss
Marine Applications	High (reflected UV)		-5°C to +50°C	Salt spray, immersion	Hydrolysis, stress corrosion cracking
Consumer Outdoor Furniture	High		-20°C to +50°C	Rain, pool chemicals	Fading, surface cracking, material swelling



How Accelerated Weathering Simulates Real Climate Conditions?

---

Full-Spectrum Xenon Arc Technology

A true accelerated weathering tester uses a xenon arc lamp to replicate the entire solar spectrum from 280 nm (UV-B) through visible light to infrared (800 nm). Unlike fluorescent UV lamps that emit only narrow bands, xenon's continuous spectrum includes the infrared wavelengths that cause thermal aging. The 4500W water-cooled lamp in LIB's tester provides stable output for 1600 hours. Interchangeable filters - daylight, window glass, or UV-extended - tailor the spectrum to specific test standards like ASTM G155 or ISO 4892.

Dynamic Control of Temperature and Humidity

Real climates aren't static. The chamber's black panel temperature control (35-85°C ±2°C) mimics the actual surface temperature of a dark plastic object under the sun, which can be 20-30°C above ambient air temperature. Humidity cycling between 30-98% RH with ±2.5% precision simulates tropical humidity, desert dryness, and the dew formation that occurs during night cooling. This dynamic moisture exposure is critical for hydrolytic degradation studies.

Realistic Moisture Simulation via Spray Cycles

The programmable water spray system introduces a mechanical stress component. Spray nozzles deliver fine mist or coarse droplets, depending on the application. For automotive parts, an 18-minute spray every 120 minutes replicates rain events. This thermal shock - from hot, dry irradiation to sudden cooling - stresses coatings and adhesive bonds. The closed-loop water circulation with purification and recycling maintains water quality while conserving resources, a feature often overlooked in sustainability calculations.

Table 2: Xenon Test Parameters for Different Plastic Applications

Plastic Application	Irradiance (W/m²)	Black Panel Temp (°C)	Humidity (% RH)	Spray Cycle	Typical Test Duration
Automotive Bumpers	0.55 @ 340nm	70-85	50-70	18 min/120 min	1000-2000 hrs
Polycarbonate Glazing	0.35 @ 340nm	60-75	60-90	18 min/120 min	2000-3000 hrs
PVC Siding	0.55 @ 340nm	65-80	50-80	18 min/102 min	1500-2500 hrs
Polyethylene Geomembranes	0.80-1.20 @ 340nm	60-75	60-90	Not typically used	500-1000 hrs
Medical Device Housings	0.55 @ 340nm	55-70	50-65	Optional	500-1000 hrs



Measuring Color Fading, Brittleness, and Surface Damage​​​​​​​

---

Spectrophotometric Color Analysis

Color change (ΔE) is the most visible failure. A spectrophotometer measures Lab values before, during, and after exposure. A ΔE > 2.0 is generally perceptible to the human eye; > 3.5 is considered a failure for most automotive and architectural applications. The accelerated weathering tester's uniform exposure - ensured by the 42-specimen rotating holder - allows statistical comparison between formulations. Testing reveals not just total fade, but whether color shifts toward yellow (b) or loses saturation (C).

Mechanical Property Retention Testing

Periodic removal of specimens for tensile, impact, and flexural testing quantifies embrittlement. Polypropylene might retain 80% of its original tensile strength after 1000 hours, but its elongation at break could plummet from 500% to 20%, indicating catastrophic surface degradation. The chamber's ability to maintain precise temperature (±2°C) is crucial here, as mechanical properties are highly temperature-sensitive during testing.

Surface Integrity and Microscopic Examination

Surface chalking is quantified by rubbing with a felt pad and measuring mass loss or reflectance change. Gloss loss is tracked with a 60° gloss meter - a drop from 90 to 50 units signifies severe surface roughening. Microscopy (SEM or optical) reveals micro-cracks, filler exposure, and the depth of the degraded layer. These measurements correlate directly with end-use performance, such as a car panel's resistance to stone chipping or a cable jacket's abrasion resistance.



Industry Standards for Plastic Weathering Evaluation

---

ASTM G155: The North American Benchmark

This standard governs non-metallic materials exposed to laboratory light sources. It specifies the xenon arc apparatus, filter combinations, and exposure cycles. Key parameters include irradiance at 340 nm (commonly 0.35 or 0.55 W/m²) and black panel temperature. The standard mandates calibration procedures using certified radiometers and reference materials. LIB's tester's built-in Solar Eye technology automates irradiance monitoring, simplifying compliance with ASTM G155's stringent reproducibility requirements.

ISO 4892 Series: Global Methodology

The ISO 4892-2 part details xenon arc exposure methods. It defines two primary filter types: "Daylight" (cut-on ~320nm) and "Window Glass" (cut-on ~300nm with IR rejection). The standard emphasizes reporting all conditions - irradiance, temperature, humidity, spray - to enable inter-laboratory comparison. For plastics, ISO 11341 provides specific methods for paints and varnishes on plastic substrates, a common automotive requirement.

Industry-Specific Protocols

Automotive OEMs like Ford, GM, and Volkswagen have proprietary specifications (e.g., SAE J2527, J2412) that define exact cycles, acceptance criteria (e.g., max 30% gloss loss after 1000 hrs), and specimen preparation. The aerospace sector references MIL-STD-810 for environmental testing. A accelerated weathering tester's programmability - LIB's controller allows 120 programs with 100 segments each - is essential for executing these complex, multi-stage protocols without manual intervention.



Accelerated Aging Data for Product Quality Improvement

---

Formulation Optimization and Stabilizer Packages

Accelerated weathering data directly informs R&D. Testing a base polypropylene against versions with 0.1%, 0.3%, and 0.5% HALS reveals the optimal loading. The data might show that beyond 0.3%, returns diminish. Similarly, comparing different UV absorber chemistries (benzotriazole vs. hindered amine light stabilizer) under identical xenon exposure identifies the most cost-effective package for a given application. This reduces the number of physical prototypes needed.

Supplier Qualification and Material Selection

When sourcing resins from multiple suppliers, identical weathering tests provide an apples-to-apples comparison. A "grade A" polycarbonate from Supplier X might retain 90% impact strength after 2000 hours, while Supplier Y's grade drops to 60%. This data becomes a critical factor in supplier scorecards. It also guides the selection between commodity and engineering grades - justifying a higher material cost with demonstrable longer service life.

Warranty and Life Prediction Modeling

The accelerated test data feeds into life prediction models using the Arrhenius or Peck equations. If a plastic formulation shows a 50% tensile strength loss at 2000 hours under aggressive xenon conditions (1.0 W/m² @340nm), engineers can correlate this to a specific number of years in a Florida or Arizona climate using established acceleration factors. This quantitative backing supports warranty periods and marketing claims about durability.



Selecting the Right Test Cycles for Plastic Applications

---

Matching Spectrum to End-Use

The filter choice is paramount. For outdoor furniture or automotive exterior trim, a "Daylight" filter (cut-on ~320nm) is standard. For materials behind glazing (e.g., automotive interior, window frames), a "Window Glass" filter removes short-wave UV-B, simulating the filtering effect of glass. Testing with the wrong filter yields misleading data - a material might pass a window-glass test but fail in direct sun. LIB's interchangeable filter system allows easy switching between these modes.

Balancing Acceleration with Realism

Higher irradiance (e.g., 1.2 W/m² vs. 0.55 W/m²) shortens test time but risks non-linear degradation or failure modes not seen outdoors. The key is establishing a correlation. Many manufacturers run parallel tests: a low-irradiance, long-duration test (e.g., 0.35 W/m² for 3000 hours) alongside a high-irradiance, short test (1.0 W/m² for 500 hours). If degradation modes and relative performance rankings match, the high-irradiance test is validated for screening.

Humidity and Spray: Critical for Certain Plastics

For polyamides (nylons) and polyesters, hydrolytic degradation is a major failure mode. These require high humidity (90%+ RH) cycling. For automotive headlamps (polycarbonate lenses), the spray cycle is critical to test coating adhesion under thermal shock. Conversely, for rigid PVC siding, continuous high humidity without spray might be sufficient. The test cycle must mimic the dominant stressors of the actual application.



LIB Industry Delivers Reliable Plastic Aging and Durability Testing

---

xenon lamp and filters

Engineering for Repeatability and Uptime

LIB's accelerated weathering tester is built for the long haul. The 4500W xenon lamp's 1600-hour lifespan reduces replacement frequency and cost. The mechanical compression refrigeration system provides reliable cooling without the maintenance issues of cryogenic systems. The rotating specimen holder for 42 samples ensures every specimen sees identical exposure, eliminating positional bias. This design focus on uptime and data integrity is what separates industrial-grade equipment from laboratory curiosities.

Intelligent Control and Data Integrity

The full-color touchscreen controller with Ethernet/Wi-Fi connectivity allows remote monitoring and centralized data management. This is invaluable for 24/7 testing in global labs. The system logs irradiance, black panel temperature, chamber air temperature, and humidity at user-defined intervals. Automatic data export via USB or network ensures no manual transcription errors. For regulated industries (medical, automotive), this audit trail is non-negotiable for compliance.

Global Support and Customization

With service centers in Malaysia, Canada, the UK, and the US, LIB provides localized support. Their expertise in non-standard design means they can modify chamber interiors for oversized specimens, integrate special fixtures for complex geometries, or develop custom humidity profiles based on a client's specific geographic climate data. The 3-year warranty and lifetime service commitment, including a promise of a brand-new replacement if repair isn't possible, de-risks the investment. This turn-key approach - from consultation through training - makes LIB a partner, not just a supplier.



Conclusion

---

An accelerated weathering tester is the crystal ball for plastic manufacturers. It transforms guesswork about outdoor performance into quantifiable, repeatable data on colorfastness, mechanical integrity, and surface durability. By selecting the right xenon-based system with precise environmental control, manufacturers optimize formulations, qualify suppliers, and extend product lifespans with confidence. This investment pays for itself through reduced warranty claims, stronger market positioning, and the ability to innovate with new materials knowing their true performance limits.



FAQ

---

How long should I test my plastic part in an accelerated weathering tester to predict 5 years of outdoor life?

There's no universal multiplier. Correlation requires outdoor exposure data from your target climate (e.g., Florida, Arizona). Typically, 1000-2000 hours at 0.55 W/m² @340nm might correlate to 3-5 years in a severe environment. Always validate with real-world field panels for your specific material.

Can I test large automotive bumper assemblies in a standard chamber?

Standard chambers hold 42 specimens of ~200mm length. For full assemblies, you need a custom large-capacity chamber or test representative coupons. LIB offers custom sizing. The key is ensuring the test specimen's surface experiences the same irradiance and temperature as a full part would.

What's the biggest mistake manufacturers make when starting weathering tests?

Using the wrong filter or irradiance for their application. Testing a behind-glass application with a "Daylight" filter overestimates degradation. Not establishing a correlation to real-world exposure renders the data meaningless for life prediction. Start with the standard for your industry and validate.



Contact LIB Industry for Your Weathering Testing Solution

---

As a global manufacturer and supplier of accelerated weathering testers, LIB Industry provides turn-key environmental testing solutions. Our chambers feature 4500W xenon arc lamps, 42-specimen rotating holders, and full ASTM G155/ISO 4892 compliance. Contact our engineering team at ellen@lib-industry.com to discuss your specific plastic durability testing requirements and receive a customized configuration.

ASTM B117 represents the internationally recognized standard practice for operating salt spray apparatus, establishing rigorous protocols for evaluating the corrosion resistance of metallic coatings, surface treatments, and substrate materials. This standardized methodology, titled "Standard Practice for Operating Salt Spray (Fog) Apparatus," defines precise parameters including 5% sodium chloride solution concentration, 35°C chamber temperature (±2°C), continuous fog generation producing 1-2 ml/80cm² hourly deposition, and pH maintenance between 6.5-7.2. Salt spray chambers designed to ASTM B117 specifications provide manufacturers across automotive, aerospace, marine, and electronics industries with reproducible accelerated corrosion testing, compressing years of environmental exposure into days or weeks of laboratory evaluation.

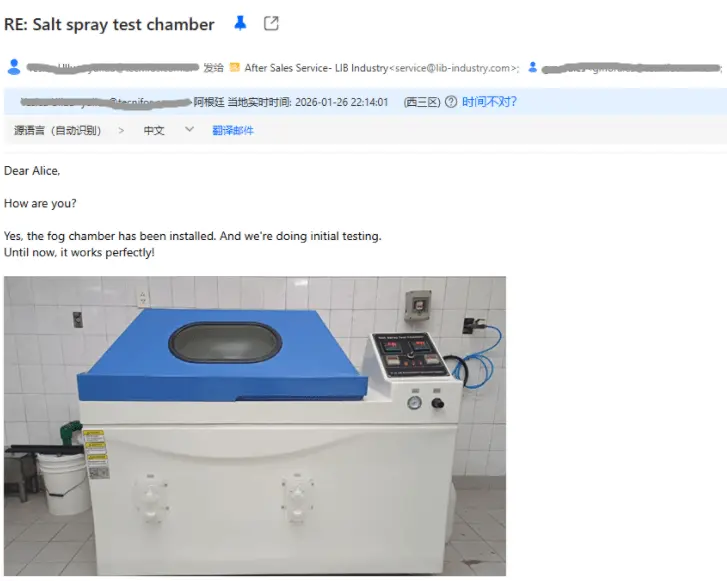

An Australian coatings manufacturer recently integrated a salt spray corrosion test system into its marine coating validation program. Following installation, the team began testing offshore and coastal coating panels and reported: “The salt spray chamber has been installed, and our first test runs are operating smoothly.”

The system delivered stable salt fog exposure and consistent test conditions, allowing engineers to efficiently evaluate coating durability, blister resistance, and corrosion protection. The successful startup enabled the team to move forward with extended exposure testing and formulation comparisons, demonstrating how a reliable salt spray system can accelerate validation while ensuring repeatable results.



Understanding the Purpose of ASTM B117 Testing

---

Accelerated Corrosion Assessment Methodology

ASTM B117 testing serves as a fundamental accelerated corrosion evaluation tool, subjecting materials to aggressive chloride environments far exceeding typical atmospheric exposure. This methodology exposes test specimens to continuous salt fog, creating surface moisture saturation that sustains electrochemical corrosion reactions without the drying periods inherent in natural weathering. The acceleration effect derives from elevated chloride concentration, constant humidity levels (95-98% RH), and optimized temperature maintaining active corrosion mechanisms.

Comparative Performance Evaluation Framework

The standard provides a controlled framework for comparing different protective coating systems, plating processes, or substrate materials under identical exposure conditions. Manufacturers testing zinc versus zinc-nickel plating, evaluating powder coat formulations, or qualifying alternative passivation treatments rely on ASTM B117's standardized parameters ensuring reproducible results. This comparative capability proves invaluable during material selection and supplier qualification where relative performance ranking matters more than absolute service life prediction.

Quality Control and Specification Compliance

ASTM B117 testing functions as a quality assurance checkpoint verifying production processes maintain consistent corrosion resistance characteristics. Automotive suppliers testing batch samples after electroplating operations, appliance manufacturers validating coating adhesion, and fastener producers qualifying surface treatments utilize salt spray chambers as go/no-go quality gates. Many industry specifications reference ASTM B117 exposure durations as acceptance criteria - automotive standards may require 240-720 hours without red rust appearance.



Key Components of a Salt Spray Chamber System

---

Exposure Chamber Construction and Materials

Salt spray chambers require specialized construction materials resisting the highly corrosive testing environment. LIB Industry chambers utilize glass fiber reinforced plastics (FRP) providing superior corrosion resistance compared to traditional coated metals. The chamber interior must maintain uniform temperature distribution while preventing condensate from dripping onto test specimens - a requirement addressed through proper ventilation design and heated chamber lids. The transparent viewing window enables visual inspection without opening the chamber, preventing environmental disruption during multi-day or multi-week test cycles.

Atomization System and Fog Generation

The atomizing nozzle represents the critical component generating uniform salt fog throughout the exposure chamber. ASTM B117 specifies that fog must be produced by atomizing a 5% sodium chloride solution using compressed air at 10-25 psi. The spray tower height adjustment capability allows calibration meeting the standard's deposition rate requirement of 1-2 ml per 80 cm² per hour, measured using fog collectors positioned within the exposure zone. LIB chambers feature adjustable spray towers and precision nozzles constructed from corrosion-resistant materials.

Temperature and Humidity Control Systems

Maintaining chamber temperature at 35°C ±2°C requires integrated heating elements and precise temperature control. The saturated air barrel preheats compressed air before atomization, preventing temperature fluctuations that would affect fog generation consistency. Humidity levels of 95-98% RH occur naturally from continuous fog generation, though monitoring systems verify these conditions throughout testing. The PID control system continuously adjusts heating elements maintaining setpoint temperature despite ambient variations.

Table 1: ASTM B117 Critical Test Parameters

Parameter	ASTM B117 Specification	Tolerance
Salt Solution Concentration	5% NaCl by mass	±0.1%
Chamber Temperature	35°C	±2°C
Solution pH	6.5-7.2	±0.2 units
Fog Collection Rate	1.0-2.0 ml/80cm²/hour	±0.5 ml
Humidity Range	>95% RH	Not specified



Preparing Test Specimens for Corrosion Evaluation

---

Surface Preparation and Cleaning Requirements

ASTM B117 emphasizes proper specimen preparation as critical to reproducible results. Test panels must undergo thorough cleaning removing manufacturing oils, cutting fluids, handling contamination, and other surface residues interfering with corrosion processes. The standard recommends cleaning methods appropriate to substrate material - degreasing with suitable solvents, alkaline cleaning, or ultrasonic cleaning depending on contamination type. Improper cleaning creates non-representative failure modes where corrosion initiates at contaminated sites rather than coating deficiencies.

Specimen Positioning and Orientation

Test panel positioning within the salt spray chamber significantly affects exposure uniformity and result validity. ASTM B117 specifies specimens should be positioned 15-30 degrees from vertical, preventing direct impingement of atomized spray while allowing condensate drainage. Panels must not contact each other or chamber walls, ensuring complete exposure to salt fog environment. The rotating sample rack design in LIB salt spray chambers supports multiple specimen orientations simultaneously, accommodating 6 round bars and 5 V-shaped grooves in standard configuration.

Masking and Edge Protection Considerations

Sharp edges, sheared surfaces, and drilled holes often corrode preferentially, potentially confusing test interpretation when evaluating coating performance rather than substrate corrosion resistance. ASTM B117 permits edge masking using inert materials like wax or tape, isolating coating performance from edge effects. However, masking must not interfere with intended test objectives - evaluating complete part performance including edges requires unmasked exposure. Documentation should specify masking approach enabling consistent test-to-test comparisons.



Controlling Salt Concentration and Chamber Conditions

---

Solution Preparation and Concentration Verification

Preparing proper salt solution proves fundamental to ASTM B117 compliance, requiring precisely 5% ±0.1% sodium chloride dissolved in distilled or deionized water. The standard specifies water purity requirements including electrical conductivity <20 microsiemens/cm and total solids <200 ppm. Solution concentration verification through specific gravity measurement (1.0255-1.0400 at 25°C) ensures accuracy. The external portable salt solution tank in LIB chambers simplifies solution preparation and replacement, with capacities ranging from 73L to 115L depending on chamber size.

pH Control and Adjustment Protocols

Salt solution pH significantly affects corrosion rates and mechanisms, necessitating strict pH control between 6.5-7.2 as measured at 25°C. Freshly prepared solutions typically fall within this range, but pH may shift during extended testing from carbon dioxide absorption or specimen corrosion products. ASTM B117 permits pH adjustment using dilute hydrochloric acid or sodium hydroxide, though frequent adjustment suggests contamination requiring solution replacement. The water shortage protection system prevents spray operation during low solution levels.

Continuous Monitoring and Documentation

ASTM B117 compliance demands continuous monitoring and documentation of critical parameters throughout test duration. Temperature must be verified at least daily using calibrated instrumentation, with continuous recording recommended for extended tests. Fog collection rate verification should occur at test initiation and regularly throughout exposure, using standardized fog collectors. The PID controller in LIB chambers provides real-time monitoring with multi-language interface options (English/French/Spanish/German/Russian), enabling global laboratory standardization.

Table 2: LIB Salt Spray Chamber Model Specifications

Model	Internal Dimensions (mm)	Volume (L)	Temperature Range
S-150	590×470×400	110	Ambient ~ +60°C
S-250	1000×640×500	320	Ambient ~ +60°C
S-750	1100×750×500	410	Ambient ~ +60°C
S-010	1000×1300×600	780	Ambient ~ +60°C
S-016	900×1600×720	1030	Ambient ~ +60°C
S-020	1000×2000×800	1600	Ambient ~ +60°C



Interpreting Corrosion Results and Failure Criteria

---

Visual Inspection and Rating Systems

ASTM B117 focuses on test execution methodology rather than prescribing specific pass/fail criteria, leaving result interpretation to individual specifications or customer requirements. Visual inspection represents the primary evaluation method, documenting corrosion product formation, substrate attack, coating blistering, delamination, and color changes. Rating systems like ASTM D610 (degree of rusting) or ASTM D714 (degree of blistering) provide standardized descriptive scales enabling objective documentation. The central viewing window in LIB salt spray chambers allows in-situ observation without environmental disruption.

Time-to-Failure Assessment

Many specifications define acceptance criteria based on time-to-failure metrics - hours of exposure before specific corrosion manifestations appear. Automotive specifications might require 480 hours exposure before appearance of red rust, while cosmetic coatings focus on discoloration or gloss reduction timing. Regular inspection intervals (daily for short tests, every 2-3 days for extended tests) enable precise failure time determination. The timed canopy lock feature automatically purges LIB chamber interiors with fresh air before opening, protecting operators while enabling safe inspection access.

Comparative Performance Analysis

The most valuable ASTM B117 application involves comparing multiple coating systems, plating processes, or material variants under identical exposure conditions. Specimens tested simultaneously in the same chamber experience identical environmental stress, eliminating chamber-to-chamber variability. Performance ranking based on red rust appearance timing, coating degradation severity, or maintained adhesion provides actionable data for material selection decisions. Statistical analysis of replicate specimens (typically 3-5 per condition) quantifies performance consistency.



Industry Applications of ASTM B117 Corrosion Testing

---

Automotive Component Qualification

Automotive manufacturers extensively utilize ASTM B117 testing for validating corrosion resistance of painted body panels, electroplated fasteners, brake components, exhaust systems, and underbody parts exposed to road salt environments. Specifications typically require 240-1000 hours salt spray exposure depending on component location and criticality, with cosmetic exterior panels demanding superior performance compared to concealed structural elements. The automotive industry combines ASTM B117 with cyclic corrosion tests providing more realistic simulation of wet/dry cycling.

Aerospace and Marine Applications

Aerospace components and marine hardware face demanding corrosion environments from salt-laden coastal atmospheres or direct seawater exposure. ASTM B117 testing validates protective coating systems on aluminum aircraft structures, cadmium-plated steel fasteners, and anodized aluminum marine fittings. Extended exposure durations (1000-3000 hours) screen for long-term durability essential in applications where maintenance access proves difficult. The 95-98% RH humidity range in salt spray chambers replicates constant moisture exposure characteristic of marine service environments.

Electronics and Consumer Products

Electronic device housings, appliance exteriors, and consumer hardware utilize decorative and protective coatings requiring corrosion resistance validation. ASTM B117 testing evaluates electroplated zinc, nickel-chromium systems, powder coatings, and conversion coatings protecting steel and aluminum substrates. Consumer products often emphasize cosmetic corrosion resistance rather than structural integrity, requiring shorter exposure durations (96-240 hours) but strict appearance standards. The ergonomic loading threshold and easy-open pneumatically operated canopy facilitate frequent specimen inspection.



LIB Industry Salt Spray Chambers Ensure Accurate ASTM B117 Compliance Testing

---

​​​​​​​

Corrosion-Resisitant Workroom	Modular grooves are used for holding samples

salt spray tower

cylinder

spray collector

Precision Environmental Control Systems

LIB Industry salt spray chambers incorporate advanced control systems maintaining ASTM B117's stringent environmental parameters throughout extended test campaigns. The PID controller continuously regulates chamber temperature within ±0.5°C fluctuation and ±2.0°C deviation from the 35°C setpoint, ensuring stable corrosion kinetics. The saturated air barrel preheats compressed air preventing temperature depression during atomization. Multiple safety protection systems including over-temperature protection, water shortage detection, and earth leakage protection safeguard both operators and valuable test specimens.

Adjustable Spray System for Standards Compliance

The height-adjustable spray tower and precision spray nozzles enable calibration achieving the 1-2 ml/80cm²·hour fog deposition rate specified in ASTM B117. Fog collectors and measuring cylinders included in standard configuration facilitate periodic verification maintaining compliant deposition throughout test duration. Transparent acrylic construction of spray atomizers enables visual inspection confirming proper operation without chamber access, accommodating slight variations in compressed air supply pressure or solution properties.

Ergonomic Design and Comprehensive Support

The low loading threshold design reduces operator fatigue and handling errors during specimen placement. Pneumatically operated canopies with safety interlocks prevent accidental opening during active testing. Every LIB salt spray chamber ships with comprehensive test reports, calibration certificates, and documentation supporting ASTM B117 compliance verification. Beyond standard ASTM B117 compliance, LIB Industry offers customization options supporting related corrosion testing standards including ISO 9227 and JIS Z 2371. Chamber sizing from 110L to 1600L accommodates diverse testing volumes from R&D screening to production quality assurance.



Conclusion

---

ASTM B117 salt spray testing remains an indispensable tool for evaluating corrosion resistance across industries despite limitations in directly predicting outdoor service life. Its value lies in providing standardized, reproducible comparative assessment enabling material selection, process qualification, and quality verification. Modern salt spray chambers combining precise environmental control, ergonomic design, and comprehensive documentation capabilities ensure testing accuracy supporting product development and regulatory compliance objectives.



FAQ

---

Does passing ASTM B117 testing guarantee specific outdoor service life for coated components?

ASTM B117 provides comparative corrosion resistance assessment rather than direct service life prediction. The aggressive constant-fog environment differs fundamentally from natural weathering's wet/dry cycling, temperature variations, and UV exposure. Correlation between salt spray hours and outdoor service years varies by coating system, environment, and application.

What causes variability between different salt spray chambers testing identical specimens?

Chamber-to-chamber variability arises from differences in fog uniformity, temperature distribution, solution preparation, specimen positioning, and inspection timing. ASTM B117 specifies critical parameters but allows some operational latitude. Using calibrated chambers, standardized procedures, and consistent inspection intervals minimizes variability across testing facilities.

Can ASTM B117 testing be interrupted and resumed without invalidating results?

ASTM B117 specifies continuous exposure without interruption, as stopping the spray and opening the chamber alters specimen surface conditions. Brief interruptions for inspection may be acceptable depending on specification requirements, though extended shutdowns typically necessitate test restart. The timed canopy lock feature enables safe brief inspections while minimizing disruption.



Partner with LIB Industry for Reliable Corrosion Testing Solutions

---

LIB Industry serves as a premier salt spray chamber manufacturer and supplier, delivering ASTM B117-compliant testing equipment to quality laboratories worldwide. Our turn-key solutions include design, installation, operator training, and ongoing technical support tailored to your corrosion testing requirements. Contact our applications specialists at ellen@lib-industry.com.
