Temperature Cycling Chamber Price: What Affects Cost and How to Choose the Right Equipment

The cost of a temperature cycling chamber can vary significantly between suppliers, even when the chamber volume and temperature range appear similar. The difference usually comes from refrigeration technology, temperature control, component quality, chamber construction, safety systems, automation, and after-sales service.

For example, a chamber designed for -20°C cycling does not require the same refrigeration architecture as a -70°C system. Similarly, a chamber with a basic controller and standard sensor provides a different level of data management from one equipped with a programmable touchscreen, PT100 sensor, Ethernet communication, and automated test profiles.

Therefore, when purchasing a temperature cycling chamber, the most important question is not simply “How much does it cost?” but “What testing capability does the equipment provide for the investment?”

LIB Industry manufactures temperature cycling chambers for electronics, automotive components, batteries, aerospace products, materials, and other reliability testing applications, with configurable temperature ranges, chamber volumes, control systems, and safety functions.

Need a temperature cycling chamber for your specific test standard? Request a quote in 24 hours.

What Determines Temperature Cycling Chamber Cost?

banner Several technical configurations directly influence the final equipment cost. Understanding these factors makes it easier to compare different suppliers and avoid paying for unnecessary functions.

1. Temperature Range and Refrigeration System

The required low-temperature limit is one of the most important factors.

A chamber operating down to -20°C can use a relatively simple refrigeration configuration, while applications requiring -40°C, -60°C, or -70°C need progressively more powerful refrigeration systems.

For deep-low-temperature applications, cascade refrigeration is commonly used to provide stable cooling performance. Compressor selection, refrigeration circuit design, condenser capacity, and expansion valve technology all influence the chamber's ability to repeatedly transition between temperature extremes.

LIB Industry can configure temperature cycling chambers with different refrigeration systems according to the required operating range rather than applying the same configuration to every application.

2. Heating and Cooling Rate

Temperature cycling is not simply about reaching a target temperature. The chamber must also transition between hot and cold conditions at the required rate.

For applications involving rapid thermal cycling, a stronger refrigeration system, optimized airflow, heating capacity, and control algorithm may be required.

LIB temperature cycling chambers can be configured with ramp rates such as:

5°C/min

10°C/min

15°C/min

The appropriate rate depends on the applicable test procedure and product requirements.

3. Chamber Volume and Specimen Capacity

Chamber size also affects equipment configuration.

LIB offers temperature cycling chamber volumes from approximately 100 L to 3000 L, allowing customers to select a suitable workspace for individual components, electronic assemblies, battery modules, automotive parts, or larger test loads.

A larger chamber is not automatically better. Excessive unused space increases the equipment footprint and operating requirements, while insufficient space can affect specimen arrangement and airflow.

The correct volume should therefore be determined by specimen dimensions, quantity, fixture requirements, and airflow considerations.

Explore LIB Temperature Cycling Chamber Models

Which Components Matter Most in a Temperature Cycling Chamber?

Rapid Thermal Cycling Chamber Price differences become more meaningful when the actual components are compared.

Refrigeration Components

Professional temperature cycling systems may use established compressor brands such as Tecumseh or Bitzer, combined with optimized refrigeration circuits and electronic expansion valves.

Electronic expansion valves allow more precise refrigerant flow control, which is particularly useful when the chamber repeatedly changes between high and low temperatures.

For demanding cycling programs, refrigeration stability directly affects recovery time, energy consumption, and long-term equipment reliability.

Temperature Sensors and Control

Sensor accuracy determines how precisely the chamber can measure and regulate the test environment.

LIB systems can use PT100 Class A sensors, together with programmable PID control. The controller can store multiple test programs and temperature segments, allowing automated execution of complex cycling profiles.

Ethernet, PC communication, and USB data export can also be integrated for laboratories that require test data management and remote monitoring.

Chamber Construction and Insulation

The internal chamber should withstand repeated heating, cooling, and condensation.

SUS304 stainless steel is commonly selected for the working chamber because of its corrosion resistance and durability. High-quality insulation also helps reduce heat transfer and refrigeration workload during long-term operation.

These construction details may not be obvious when comparing supplier quotations, but they directly influence equipment service life and operating stability.

LIB Industry temperature cycling chambers combine programmable control, precision temperature sensing, robust refrigeration, and corrosion-resistant construction. [Check specifications and configuration options → thermal cycling test chamber ]

How Do Testing Standards Affect Equipment Configuration?

The applicable test standard should be confirmed before purchasing equipment because different procedures can require different temperature ranges, transition rates, dwell times, and cycle profiles.

Common references include:

IEC 60068-2-14 temperature cycling standard guide

IEC 60068-2-14 – Environmental testing and temperature change methods

JEDEC JESD22-A104 – Temperature cycling for semiconductor devices

MIL-STD-810H – Environmental testing for military equipment

AEC-Q100 – Automotive integrated circuit qualification

For example, semiconductor testing may emphasize rapid temperature transitions and controlled dwell periods, while automotive components can require extensive cycling programs over a broad temperature range.

A suitable chamber should therefore be selected according to the actual test profile, rather than purchasing the lowest-priced unit that reaches the required maximum and minimum temperatures.

What Features Should Buyers Look for?

Beyond basic temperature performance, several functions can improve testing efficiency and data reliability.

Programmable Test Profiles

A modern temperature cycling chamber should allow users to create multi-step temperature programs rather than manually changing settings.

LIB controllers can store programmable test sequences with multiple temperature segments, supporting repeated automated cycles and reducing operator intervention.

Data Recording and Communication

For research laboratories and quality departments, test data should be easy to record, export, and review.

Ethernet and PC communication allow the chamber to connect with laboratory systems, while USB interfaces provide convenient data transfer.

Safety Protection

Thermal cycling can place significant stress on both the specimen and the chamber. Depending on the application, safety functions may include:

Independent over-temperature protection
Compressor high/low-pressure protection
Over-current protection
Door protection
Emergency shutdown
Refrigeration system alarms
Specimen protection functions

Battery and other high-risk applications can also require additional safety systems such as smoke detection and fire suppression.

Standard or Customized Temperature Cycling Chamber?

Standard equipment is generally suitable for common component and material testing. However, some laboratories require customized configurations.

Customization may include:

Non-standard chamber dimensions
Special specimen racks
Additional cable ports
Large or heavy specimens
Battery testing fixtures
External equipment interfaces
Special temperature profiles
Customized safety systems

LIB Industry provides engineering support for both standard models and customized temperature cycling chambers.

For example, if a customer's test specimen is too large for a conventional chamber or requires a specific electrical connection during cycling, the chamber can be modified around the actual test setup.

How to Compare Temperature Cycling Chamber Suppliers?

Instead of comparing quotations based only on the final number, procurement teams should check several technical and service factors.

Evaluation Item	What to Check
Temperature range	Required high/low temperature
Ramp rate	Required heating and cooling speed
Chamber volume	Specimen size and quantity
Refrigeration	Compressor and refrigeration configuration
Sensor	Sensor type and measurement accuracy
Controller	Programs, segments, data recording
Construction	SUS304 and insulation quality
Safety	Protection functions and alarms
Calibration	Calibration and test documentation
Service	Warranty, spare parts, technical support

This approach makes quotations easier to compare because it evaluates actual testing capability rather than equipment appearance or price alone.

What Does LIB Industry Provide?

LIB Industry develops temperature cycling chambers for a wide range of environmental reliability applications.

Model	TR5-100	TR5-225	TR5-500	TR5-800	TR5-1000
Internal Dimension (mm)	400500500	500600750	700800900	80010001000	100010001000
Overall Dimension (mm)	90010501620	100011401870	120013402020	130015402120	150015402140
Interior Volume	100L	225L	500L	800L	1000L
Heat load	1000W
	A : -20℃ ~ +150 ℃
Temperature Range	B : -40℃ ~ +150 ℃
	C: -70℃ ~ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5 ℃/min
Heating Rate	5 ℃/min
Controller	Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System	Mechanical compression refrigeration system
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel

Key configurations include:

100–3000 L chamber volumes
Temperature ranges according to application requirements
5°C/min, 10°C/min, and 15°C/min ramp options
Programmable touchscreen control
PT100 temperature sensors
Ethernet and PC communication
USB data export
SUS304 stainless steel working chamber
Multiple safety protection systems
Standard and customized specimen fixtures

The equipment can be configured for electronics, automotive components, batteries, aerospace products, polymers, connectors, and other products requiring repeated thermal exposure.

Why Choose LIB Industry as Your Temperature Cycling Chamber Manufacturer?

Equipment reliability depends not only on the initial design but also on the support available throughout its service life.

LIB Industry has manufactured environmental simulation equipment since 2009 and provides international customers with installation guidance, technical training, spare parts support, and long-term service.

The standard service package includes:

3-year warranty
Lifetime technical support
Installation and commissioning guidance
Operator training
Spare parts support
Remote troubleshooting
Customized engineering support

If a chamber cannot be repaired during the warranty period, LIB provides a replacement solution according to the applicable warranty terms.

This service structure helps laboratories reduce downtime and maintain testing continuity after equipment installation.

Recommended LIB Environmental Test Equipment

If your reliability program involves more than temperature cycling, LIB also provides related environmental simulation equipment.

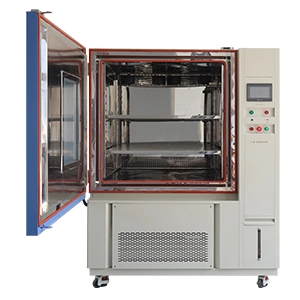

Temperature & Humidity Chamber

Combined temperature and humidity reliability testing

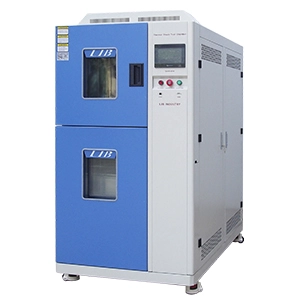

Thermal Shock Chamber

Rapid transfer between extreme hot and cold zones

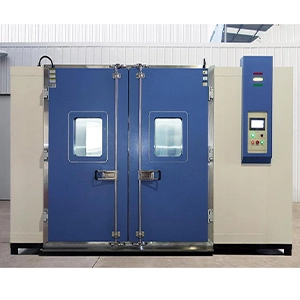

Walk-in Environmental Chamber

Large components, assemblies, and production-level testing

FAQs

Why can temperature cycling chambers with the same volume have different prices?

Their refrigeration systems, temperature ramp rates, sensors, controllers, materials, safety functions, and service packages may be different. Chamber volume alone does not represent the complete testing capability.

What temperature range should I choose?

The required range should be based on your test standard and product operating conditions. LIB can provide different configurations for applications requiring -20°C, -40°C, -60°C, or -70°C low-temperature performance.

Is a customized temperature cycling chamber more expensive?

Customization normally requires additional engineering and manufacturing work, so the initial investment may be higher. It becomes valuable when standard equipment cannot accommodate the specimen size, fixture, connection, test profile, or safety requirements.

What after-sales service does LIB Industry provide?

LIB Industry provides a 3-year warranty, lifetime technical support, installation guidance, operator training, spare parts support, and remote troubleshooting. Customized service and engineering support are also available for specialized testing applications.

Choose a Temperature Cycling Chamber Based on Testing Capability

The cost of a temperature cycling chamber reflects much more than chamber size. Refrigeration performance, ramp rate, temperature control, construction materials, automation, safety systems, and service support all contribute to the equipment's long-term value.

LIB Industry can recommend and configure a chamber based on your temperature range, ramp rate, specimen size, cycle profile, applicable standard, and laboratory requirements.
