Weatherometers for Plastics, Textiles and Exterior Components
A weatherometer exposes plastics, fabrics and exterior parts to controlled xenon arc light, heat, humidity and water spray that simulate sunshine and rain. Different materials fail in different ways: plastics yellow, chalk and become brittle; fabrics fade and lose strength; exterior parts lose color, gloss and mechanical performance. One chamber can run all three kinds of tests, provided its irradiance, temperature, humidity and spray settings are programmable and its specimen holders fit your samples. This guide explains how weatherometer testing works, what each material group needs, and how the data supports material selection and quality control.
How Weatherometers Simulate Outdoor Exposure
Outdoor weathering combines light, heat, moisture and rain. A weatherometer controls each factor so that results can be compared from run to run.
Sunlight-Like Light
LIB’s XL-S-750 uses a 4500 W water-cooled xenon arc lamp to reproduce the spectrum of sunlight. Irradiance is adjustable from 35 to 150 W/m² over a 300–400 nm band, and the control wavelength can be set to 340 nm or 420 nm. UV radiation is the main driver of photodegradation, so stable irradiance control is the core of any weathering test.
Heat, Humidity and Rain
Heat accelerates chemical reactions, while moisture on surfaces causes swelling, breakdown and corrosion. The XL-S-750 offers:
Chamber temperature: 0 °C to 100 °C (±2 °C)
Black panel temperature: 35 °C to 85 °C
Relative humidity: 50% to 98% RH (±5% RH)
A spray system with an adjustable cycle to simulate rain
Why Control Matters
Weatherometer results rank materials by how well they resist a defined stress. Real service life also depends on climate, color and mounting angle. Because cycles are programmable, data is logged and instruments are calibrated, the same sample gets the same exposure every time, and comparisons are fair.
| Outdoor factor | Chamber control in LIB’s XL-S-750 |
|---|---|
| Sunlight | Xenon arc lamp, 35 to 150 W/m² |
| Heat | Chamber to 100 °C, black panel 35 to 85 °C |
| Humidity | 50% to 98% RH, ±5% RH deviation |
| Rain | Spray pipe with adjustable cycle |
Weatherometer Testing for Plastics and Polymers
UV and heat damage plastics, so the chamber must hold irradiance and temperature steady over long runs.
Typical Degradation Signs
Plastics such as vinyl can yellow, lose gloss, crack or become brittle. Pigments and UV stabilizers can speed up or slow down these changes, and a measured exposure shows which formulation performs best. Include a reference material in every run so results can be compared across batches.
Settings and Standards
LIB weatherometers can be set up for ISO 4892-2, ASTM G155 and ASTM D4459. ISO 4892-2 and ASTM G155 cover xenon arc exposure of plastics and other nonmetallic materials, and ASTM D4459 covers plastics for indoor applications. Your standard or customer specification defines the irradiance, black panel temperature, humidity and spray cycle, and the chamber’s programmable controller lets you match them.
Specimen Fit
The XL-S-750 holds 42 specimens on a rotating rack, with a specimen holder of 95 × 200 mm. Plates and coupons of standard size fit directly. For thicker or irregular samples, LIB can supply custom holders, so share your sample dimensions when requesting a quote.
How to Test Textiles for UV, Moisture and Outdoor Weather Resistance
Fabrics for awnings, furniture, apparel and outdoor projects can fade and suffer fiber damage. The test should reflect how the fabric is used.
What Textile Tests Measure
Outdoor fabrics, upholstery and apparel are checked for colorfastness and durability. Color change is rated with a spectrophotometer or the grayscale, and tensile testing after exposure shows strength loss. Dyes, coatings and membranes each need clear acceptance limits.
Moisture and Light Cycles
Rain and dew can weaken fabric, stiffen it or strip its protective finish. Alternating light and dark phases with spray imitate day and night. Many textile methods call for lower irradiance and temperature than plastics methods, and the XL-S-750’s adjustable ranges allow these lower settings.
Filters and Mounting
Daylight filtering suits fabrics used outdoors, while window-glass filtering suits upholstery used behind glass. Tell LIB which filter your method requires and it will be configured for your chamber. Mount fabrics flat on the holders without stretching, and cover a small area of each sample as an unexposed control.
| Textile use | Likely exposure focus | Question for the supplier |
|---|---|---|
| Outdoor fabric | Daylight, spray cycles | Which filter is supplied? |
| Upholstery | Window-glass light, color change | Is low irradiance stable? |
| Apparel | Colorfastness, moisture | Can holders carry fabric samples? |
Weatherometer Applications for Automotive and Exterior Components
Exterior parts face the harshest conditions. LIB weatherometers are used for automotive paints, interior materials and exterior parts.
Automotive Parts
Dashboards, trim, bumpers, cables and painted panels are exposed to sun, heat and rain. A weatherometer shows how long paints, interior materials and exterior parts keep their color and integrity. Automotive customers often specify their own cycles, and the XL-S-750’s programmable multi-step controller handles them.
Building and Exterior Products
Roofing materials, siding, window frames and exterior rubber products are tested for fading and cracking. Since the chamber takes small specimens, test coupons are cut from large sheets and profiles. Cutting every coupon the same way and sealing the edges keeps comparisons fair.
Other Exterior Uses
Building paints, industrial coatings, vehicle finishes and aircraft coatings can also be tested. Each industry has its own rules, so note the method number and edition when requesting a quote, and the chamber will be configured to match.
Case Example: Cable Testing for a French Utility
In April 2023, Électricité de France (EDF) emailed LIB a test standard and an inquiry. The company needed to test cables according to EN 50483-6. Based on the standard, LIB recommended the XL-S-750C low-temperature xenon test chamber, which delivers the specified irradiation and reaches -40 °C. EDF purchased the chamber and received it in November. The case shows how matching the chamber to the standard from the first inquiry leads to a smooth purchase and a chamber ready for the test method.
Comparing Weathering Conditions Across Materials
A chamber with wide ranges can run many protocols, but each material group needs its own settings.
Where Ranges Differ
Paints and plastics typically call for higher black panel temperature and irradiance. Textile methods are gentler, and exterior component cycles are usually set by the customer or OEM. The XL-S-750 covers a broad window: black panel 35 to 85 °C, chamber up to 100 °C and irradiance 35 to 150 W/m².
Side-by-Side View
| Material group | Main concern | Settings to confirm |
|---|---|---|
| Plastics | Yellowing, chalking, embrittlement | Irradiance, black panel temperature |
| Textiles | Fading, strength loss | Filters, humidity, low irradiance |
| Exterior components | Gloss, color, cracking | OEM cycle, spray programming |
Mixed Loads
For best results, group similar materials in the same run, because each material may need its own conditions and exposure dose. The rotating rack spreads irradiance across the specimens. Ask for uniformity data for your rack layout, and rotate or reposition samples during the run to keep exposure even.
How Weatherometer Data Supports Material Selection and Quality Control
Weatherometer data is most useful when it drives a decision: approving a resin, choosing a pigment or accepting a lot.
Material Selection
Expose candidate materials to identical conditions, then compare color change, gloss retention and strength at set doses. These rankings help you choose among pigments, stabilizers, coatings and substrates before committing to costly field trials. Combine lab and outdoor data wherever possible.
Quality Control
Run samples from each batch under the same program to detect changes in raw materials or processing. LIB weatherometers offer a customizable touchscreen controller, an automatic water supply system and data logging of all test parameters, which makes standard runs easy to repeat.
Records and Calibration
The XL-S-750 includes a UV radiometer (±5%). Calibrate it against a reference, log lamp hours and replace aged lamps and filters on schedule. LIB holds ISO 9001 and CE certification, and provides a 3-year warranty, lifetime service and turnkey delivery covering testing, training and installation. Keep complete records, as customers and auditors often ask for them.
Best-Selling LIB Test Chambers for Plastics, Textiles and Exterior Components
|
|
|
|

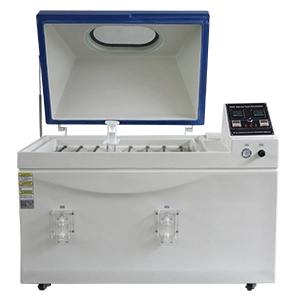

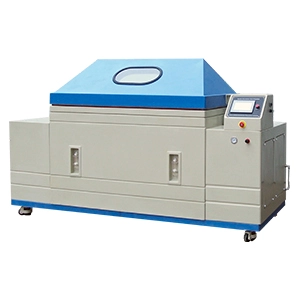

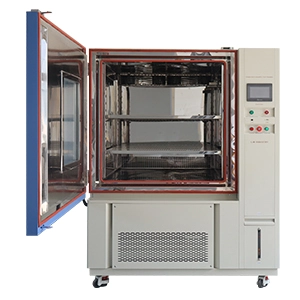

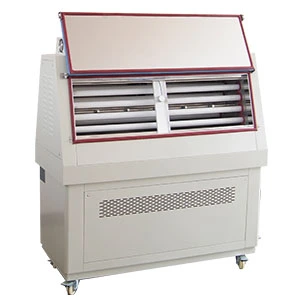

| constant temperature humidity test chamber | salt spray test chambers | uv weather test chamber |
|
|
|
|

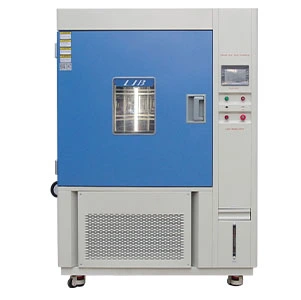

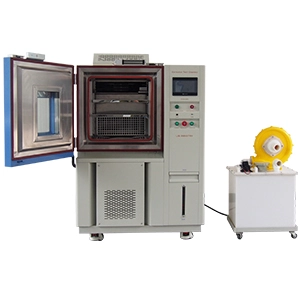

| xenon chamber | SO2 Noxious Gas Test Chamber. | Cyclic corrosion chamber |
What to Confirm Before Ordering a Weatherometer
A short written checklist prevents disputes after delivery.
Technical Confirmation
Agree in writing on maximum irradiance across the full rack, available filters, control wavelength, uniformity data, black panel range and humidity stability at your setpoints. Request an acceptance run using your own samples and sign off on the results.
Facility Readiness
The xenon chamber measures 1400 × 1400 × 1950 mm. Prepare water supply, drainage, heat ventilation, adequate electrical capacity, and door and elevator access. Check local noise rules and lamp disposal requirements.
Running Costs
Budget for lamps, filters, purified water, electricity and sensor calibration. Ask LIB for lamp life, maintenance cost and power consumption for your configuration so you can plan the total cost of ownership.
Conclusion
Weatherometers let labs test plastics, textiles and exterior components under controlled light, heat, humidity and spray, and rank materials with reliable data. Start with the standard, then match the filters, irradiance, temperature, humidity and spray cycle to each material group. Obtain written confirmation of every specification, and keep records of lamp use and setup. Used this way, a weatherometer supports material selection and quality control, and helps you deliver products that stand up to customer review.
Ready to plan your weathering test? LIB Industry is a weatherometer manufacturer and supplier offering turnkey environmental testing solutions. Send your materials and standards to ellen@lib-industry.com for a clear quotation.
FAQ
Can one weatherometer test plastics, textiles and exterior parts?
Yes, in most cases, provided the chamber’s holders and ranges suit all your samples. Use a separate sample group and its own settings for each material type.
Do accelerated results show exact years of outdoor life?
No. Results rank materials by their resistance to a defined stress. Climate, mounting and color also affect real service life, so combine lab results with outdoor exposure whenever possible.
What should I confirm about specimen holders?
Confirm the holder size, the number of specimens it carries, and whether it can be adapted for thick, curved or fabric samples. The XL-S-750 holds 42 specimens with a 95 × 200 mm holder, and LIB can supply custom holders on request.
