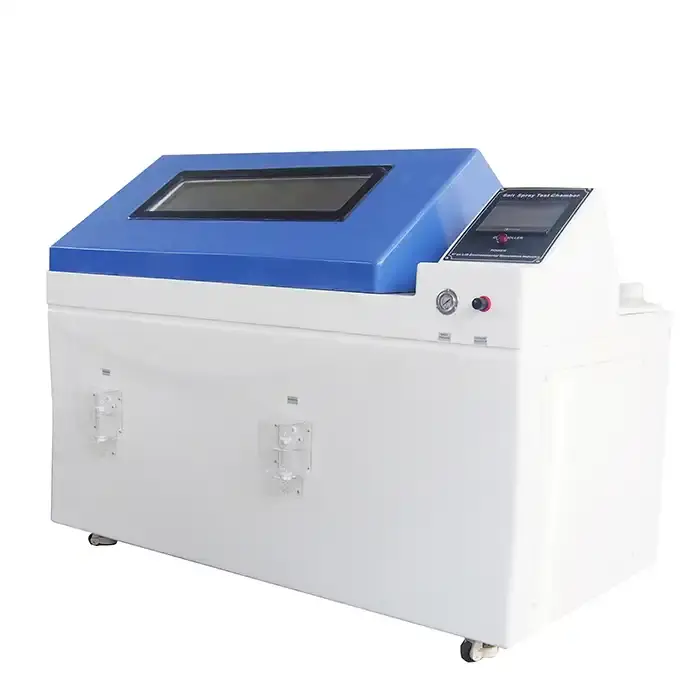

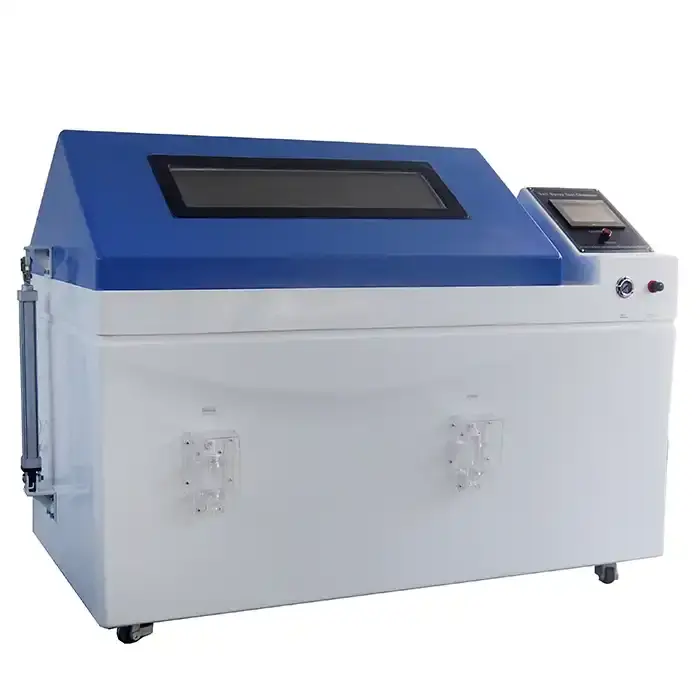

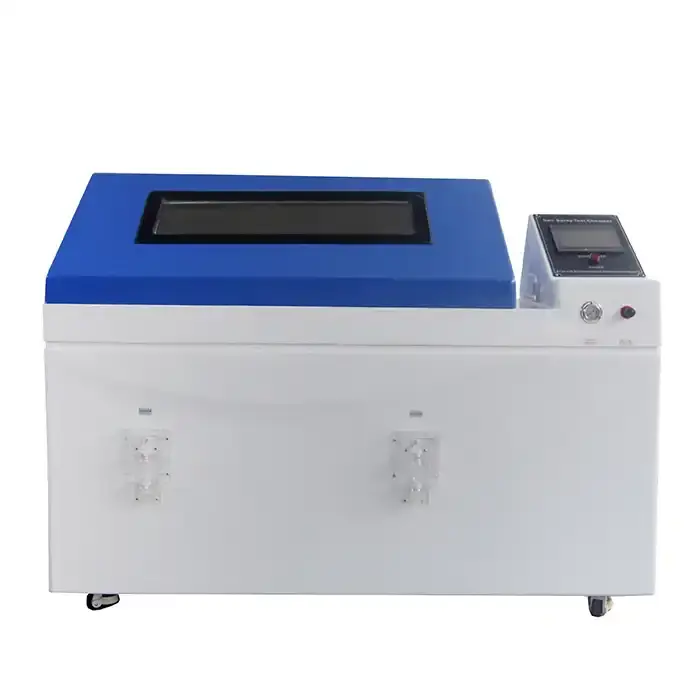

corrosion test cabinet
Temperature Range:+10 ℃ ～ +90 ℃
Humidity Range:30% ~ 98% RH
Temperature Deviation:± 2.0 ℃
Humidity Deviation:+2%, -3%
Salt Fog Deposition:1～2ml / 80cm2 · h
Cooling system Mechanical compression refrigeration system
Corrosion test cabinet Manufacturer & Supplier
Traditional salt spray chambers run a single environment. Real-world corrosion doesn't work that way. Your components face salt exposure, then sunshine and heat, then humid nights, then freezing mornings—all in continuous cycles.
Our equipment replicates this reality. The chamber automatically switches between:
Salt Spray Mode: Generates fine, uniform fog at controlled pH levels
Dry/Air Drying Mode: Rapid forced-air drying with precise temperature control
Controlled Humidity Mode: Maintains exact RH levels from 30% to 98%
Standard Ambient/Dwell Mode: Room-temperature stabilization between cycles
What matters most? Transition speed. Our optimized airflow and heating systems switch from salt fog to dry heat in minutes, not hours. This efficiency means you complete week-long test protocols faster without compromising accuracy.Since 2009, we've been engineering solutions for clients including Mercedes-Benz, BYD, and Great Wall Motors. Our chambers handle the most demanding test standards while maintaining chamber integrity through thousands of cycles.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000*1300*1600 | 2300*1300*1700 | 2700*1300*1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Product Details
|
|
|
| Controller Network connection computer. Language can be selected, English/French/Spanish/German/Russian | Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions |
|  |
Standards Compliance
Your test protocol likely references specific standards. LIB industry corrosion test cabinet is engineered to meet the most stringent requirements:
· ISO 11997– Cyclic corrosion testing international standard
· VDA 233-102 / VDA 621-415– German automotive industry protocols (including sub-zero cycling)
· GMW 14872 / GM 9540P– General Motors core corrosion standards
· SAE J2334– Automotive surface coating evaluation
· ASTM G85– Modified salt spray testing (Annex A1-A5 compatible)
Not sure if your specific protocol is compatible? Contact our engineering team atellen@lib-industry.com. We'll review your test requirements and confirm system capability before you order.
Why Choose LIB Industry Cyclic Corrosion Test Chamber?
① Fully Automated Test Cycles
Automatically perform salt spray, drying, humidity, and dwell stages with programmable multi-step test profiles.
② Fast Mode Switching
Rapid transitions between salt fog, dry heat, and humidity conditions reduce overall test time.
③ Accurate Cycle Control
Precise temperature, humidity, and spray regulation ensures repeatable corrosion testing results.
④ Forced Purge Protection
Efficient exhaust system removes residual salt fog, preventing cross-contamination between test stages.
⑤ Durable Chamber Construction
Reinforced fiberglass and PVC materials withstand long-term thermal cycling without deformation or leakage.
With service centers in Malaysia, Canada, the UK, and the USA, plus 29 agents worldwide, you're never alone. Every chamber includes a 3-year warranty and lifetime service support. If we can't repair it within warranty, we replace it—no exceptions. 24/7 technical support means your testing schedule stays on track.
We operate under ISO 9001 quality management, and all chambers carry CE certification with third-party testing by SGS and TUV. When you specify LIB equipment, you're specifying proven performance.Contact us at ellen@lib-industry.com to discuss you specific requirements for corrosion test cabinet.
