Humidity Calibration Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-70℃;
Temperature Range:-70℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Touch-screen programmble controller,Ethernet access
Safety options for testing lithium-ion batteries
Built-in lighting for observing the test
Humidity Calibration Chamber Manufacturer & Supplier
LIB industry humidity calibration chamber is a controlled environment used to calibrate and test humidity sensors and instruments. It provides a stable and precise humidity level for the calibration process.Our progressed calibration frameworks are particularly built to give traceable, steady reference guidelines for approving hygrometers, information lumberjacks, and dampness sensors. Not at all like standard natural chambers, these accuracy rebellious kill estimation vulnerability through predominant consistency control and reference-grade detecting innovation. Each unit experiences thorough manufacturing plant calibration against national benchmarks some time recently shipment.
During the calibration process, the humidity sensors or instruments are placed inside the chamber, and the readings are compared to a known reference standard. Any discrepancies can be adjusted or corrected to ensure accurate and reliable humidity measurements.
Technical Specifications of Humidity Calibration Chamber
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details of Humidity Calibration Chamber
|
|
|

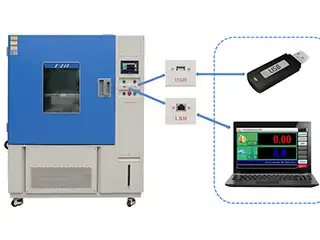

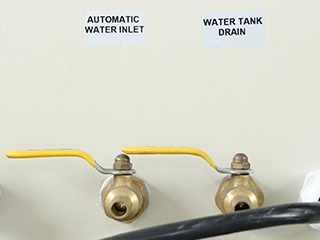

| Automatic water inlet Automatic control of the water intake of equipment Achieve automated testing | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data | Temperature and Humidity Sensor PT-100 Class A sensor, real-time accurate detection and display of temperature and humidity changes
|
|
|
Advanced Features for Metrological Excellence
Reference-Grade Sensor Technology
Our chambers consolidate premium capacitive mugginess sensors with remarkable long-term solidness. The inner reference framework keeps up traceability to national measures, guaranteeing your calibration comes about meet ISO/IEC 17025 necessities. Numerous sensor test ports oblige outside reference benchmarks when needed.
Superior Environmental Control
Achieving estimation exactness requires uncommon consistency all through the chamber workspace. Our restrictive discuss circulation framework keeps up temperature slopes inside ±0.5°C and stickiness varieties beneath ±2.5% RH. This execution empowers certain calibration of indeed the most delicate instrumentation.
Intelligent Control Software
The coordinates control framework gives robotized calibration groupings with comprehensive information logging capabilities. Produce proficient calibration certificates in PDF arrange with total estimation instability calculations. CSV information send out bolsters quality administration framework integration.
Professional Chamber Design
Multi-layer warmed glass windows avoid condensation amid perception. Large-diameter cable feed-through ports suit different sensor associations whereas keeping up natural seal keenness. Stainless steel 304 insides development guarantees chemical compatibility and quick warm response.
Why Choose LIB's Temperature Humidity Calibration Chamber Solutions
Proven Metrological Performance
Since 2009, we've conveyed accuracy calibration arrangements to driving organizations around the world. Our humidity calibration chamber frameworks experience comprehensive production line approval with recorded estimation vulnerability investigation. Each unit ships with NIST-traceable calibration certificates assembly universal metrology standards.
Comprehensive Service Support
Your venture gets total security through our 3-year guarantee and lifetime benefit commitment. Our worldwide bolster organize gives 24/7 specialized help over 60+ nations. Ought to repair demonstrate inconceivable amid guarantee scope, we give total hardware substitution at no charge.
Custom Engineering Capabilities
Our experienced engineering team specializes in non-standard calibration solutions. Whether you need extended humidity ranges, specialized atmospheres, or integrated automation systems, we deliver tailored solutions meeting your exact specifications. This flexibility ensures optimal performance for your specific applications.
Contact us
Ready to enhance your humidity calibration chamber? Contact our technical specialists at ellen@lib-industry.com for detailed specifications and application consultation. LIB'll help design the optimal solution for your metrology requirements.
