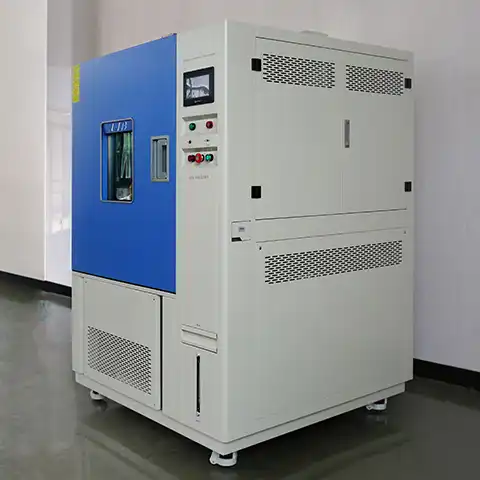

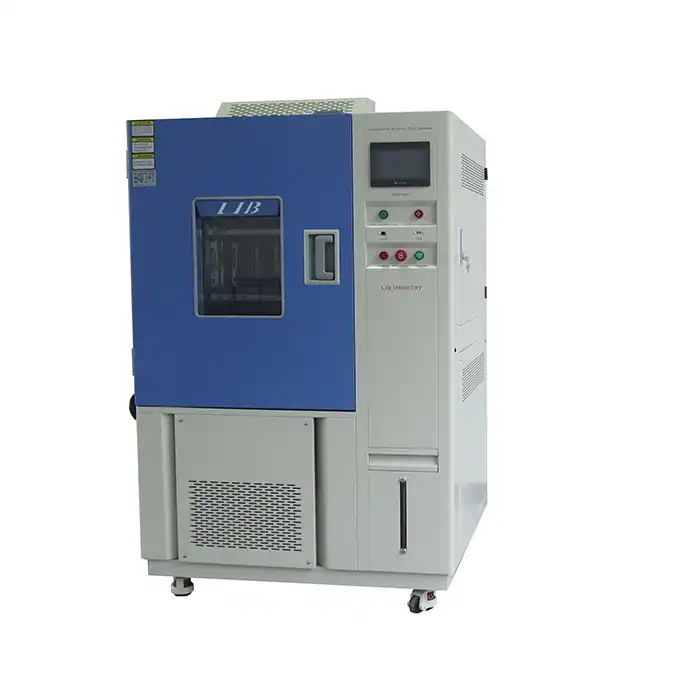

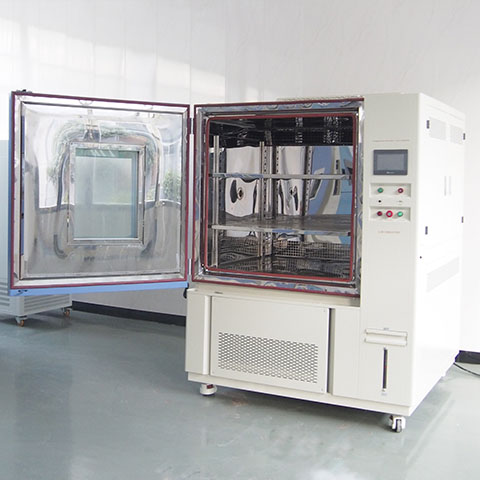

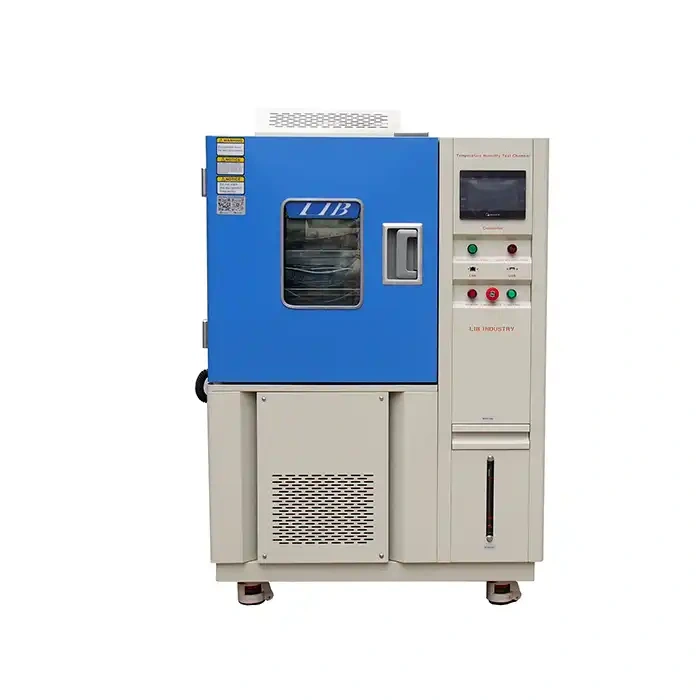

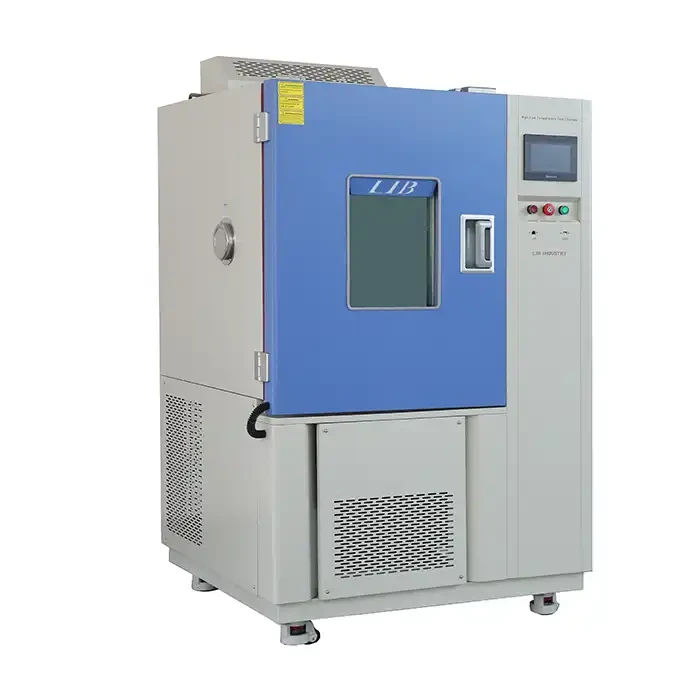

Stability Chamber
Lowest Temperature: -20℃/-40℃/-60℃/-120℃;
Temperature Range:-120℃～+150 ℃;
Humidity Range:10% ~ 98% RH;
Type: Benchtop, Floor Stand & Walk In
Comprehensive Line of Environmental Chambers
50L/80L/100/225L/500/1000/1500L
- Product Description
Stability Chamber Manufacturer & Supplier
LIB industry's Stability Chamber are environmental testing solutions designed to meet the stringent requirements of industries such as pharmaceuticals, biotechnology, and research institutions. These chambers provide a controlled environment for conducting stability tests on a wide range of products, ensuring compliance with international standards.
Technical Specifications
Model | TH-100 | TH-225 | TH-500 | TH-800 | TH-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Humidity Range | 20% ~ 98% RH | ||||
Humidity Deviation | ± 2.5% RH | ||||
Cooling Rate | 1 ℃ / min | ||||
Heating Rate | 3 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller, Ethernet connection | ||||
Water supply system | Automatic water supply, Water purification system | ||||
Humidifier | External isolation, stainless steel surface evaporation humidifier | ||||
Safety Device | Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection; Earth leakage protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole with plug; 2 shelves | ||||
Product Details
|
|
|

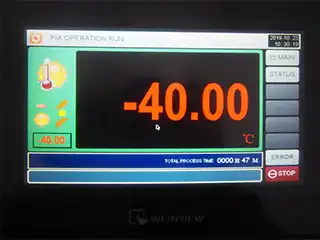

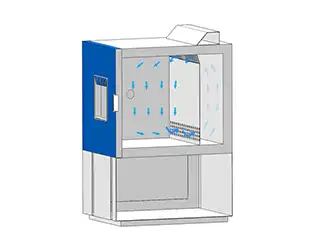

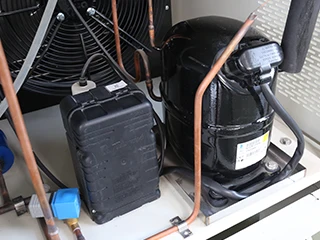

| Air circulation The air is uniformly distributed through the air outlet Air circulates evenly throughout the workroom | Controller Can create120 programs 100 segment. Language can be selected, English/French/Spanish/German/Russian | Cooling system Mechanical compression refrigeration system French TECUMSEH compressor Environmentally friendly refrigerant |
|
|
Features
Customization: Tailored solutions to meet specific testing requirements.
Energy Efficiency: Innovative design for reduced energy consumption.
Durability: Robust construction for long-term use.
Applications
Our Stability Chamber find applications in:
◇Pharmaceutical Stability Testing
◇Biotechnology Research
◇Food and Beverage Shelf Life Studies
◇Electronics Reliability Testing
FAQ
Q: What is the lead time for product delivery?
A: 3-14 days quick ship, some models are in ready to ship.
Q: Can the Stability Chamber be integrated with existing laboratory systems?
A: Yes, our machines are designed to integrate with various laboratory information management systems (LIMS).
