Name: thermal environmental chamber
SKU: N/A

The thermal environmental chamber equipped with a temperature control system that can rapidly and accurately change the temperature within a specified range. The temperature change rate can reach to 5 ℃ / min (10 ℃ / min).

When products are exposed to extreme and rapidly changing temperatures in real-world environments, reliability is no longer optional—it’s essential. A thermal environmental chamber provides precise and repeatable simulation of these conditions, ensuring your products perform consistently under thermal stress.

The LIB industry thermal environmental chamber is specifically engineered to simulate extreme temperature environments with high accuracy and rapid transition rates. It enables manufacturers to evaluate product performance, identify potential failures early, and ensure long-term durability before market release.

What Is a Thermal Environmental Chamber?

A thermal environmental chamber is a controlled testing system designed to reproduce a wide range of temperature conditions, from extreme cold to intense heat. It subjects test samples to predefined temperature cycles, helping engineers assess material behavior, structural integrity, and functional stability under thermal stress.

Unlike conventional chambers, the LIB industry system supports rapid temperature change rates of up to 5°C/min or even 10°C/min, significantly shortening test cycles while improving testing efficiency. This fast transition capability is critical for detecting hidden defects caused by thermal expansion, contraction, and material fatigue.

Technical Specifications

Model	TR5-500
Internal Dimension (mm)	700800900
Overall Dimension (mm)	120013402020
Interior Volume	500L
Heat load	1000W
Temperature Range	A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃
Temperature Fluctuation	± 0.5 ℃
Temperature Deviation	± 2.0 ℃
Cooling Rate	5 ℃ / min
Heating Rate	5 ℃ / min
Cooling system	Mechanical compression refrigeration system
Refrigerating unit	French TECUMSEH compressor
Heating Element	Nichrome heater
Controller	Programmable color LCD touch screen controller Ethernet connection, PC Link
Temperature Sensor	PTR Platinum Resistance PT100Ω/MV A-class
Air Circulation	Centrifugal wind fan
Safety Device	Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection
Exterior Material	Steel Plate with protective coating
Interior Material	SUS304 stainless steel
Thermal Insulation	Polyurethane foam and insulation cotton
Observation Window	Interior lighting, double-layer thermo stability silicone rubber sealing
Standard Configuration	1 Cable hole (Φ 50,) with plug; 2 shelves

Product Details

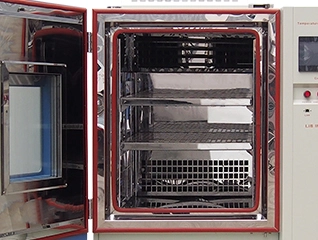

thermal test chamber.jpg

SUS304 Workspace

Compact workspace that ensures samples experience precise hot and cold cycles. Its adjustable racks and smooth interior make testing both safe and convenient.

Cable hole

A standard test hole with plugs

50mm/100mm/200mm

Soft silicone plug seal; Metal enclosure closed

PC Link

Ethernet connect to PC for easy operation

Match to the local laboratory software

USB to download data

Advanced Features for Optimal Performance

Precision Temperature Control

Our environmental thermal chamber utilizes progressed chip controllers with PID control. This guarantees negligible temperature vacillation and great steadiness all through your testing cycles.

Uniform Air Distribution

The inner discuss circulation framework highlights effective centrifugal fans and optimized ductwork plan. This makes reliable temperature dispersion over all test positions inside the chamber.

Safety Protection Systems

Multiple security highlights incorporate autonomous temperature limiters, over-temperature cautions, and programmed shutdown capacities. These secure both your test tests and the hardware itself.

User-Friendly Interface

The touchscreen controller bolsters multi-step programming for complex test cycles. You can effectively set up computerized groupings and screen real-time information all through your testing procedures.

Why Choose Our Thermal Environmental Chambers?

Professional Quality Assurance

We follow strict ISO 9001 Quality Management System standards. All products receive CE certification and undergo third-party testing by SGS and TUV authorities. This ensures international compliance, stable performance, and high reliability.

Comprehensive Service Support

Every chamber comes with a 3-year warranty and lifetime service coverage. Our 24/7 global support team provides assistance whenever you need it. If repairs cannot be completed within the warranty period, we offer brand-new equipment replacement.

Customization Capabilities

Our engineering team specializes in custom design and non-standard configurations. We create tailored solutions to meet your specific testing requirements and deliver optimal results for your industry applications.

Global Presence

With partnerships spanning over 60 countries and service centers in Malaysia, Canada, the United Kingdom, and the United States, we provide localized support worldwide. Our global network ensures quick response times and efficient service delivery.
