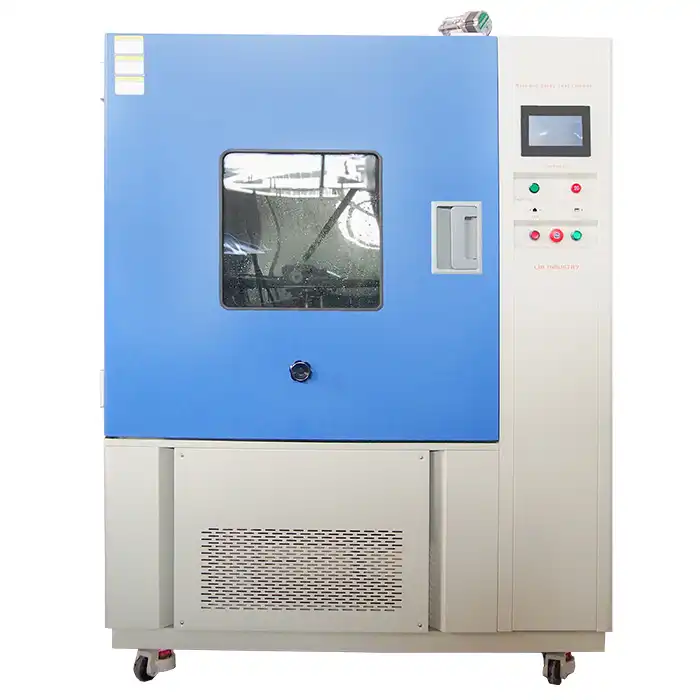

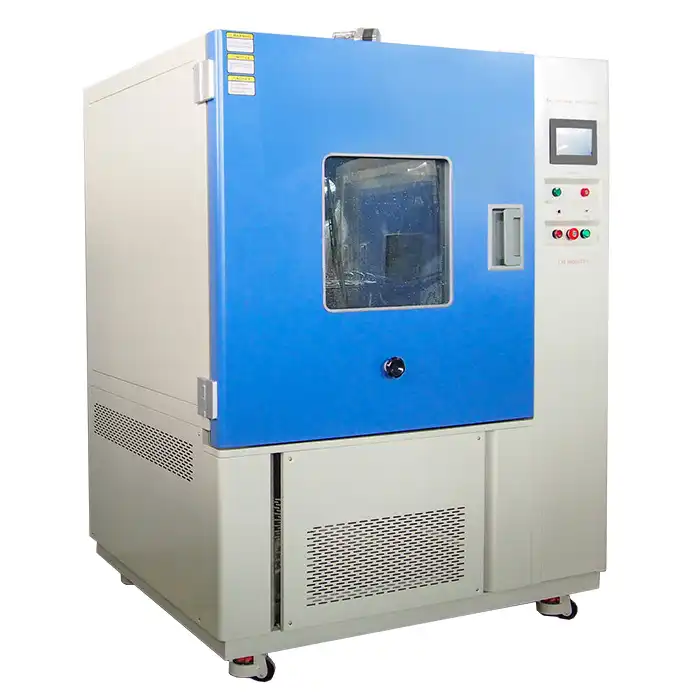

JIS D 0203 R1 R2 Rain Test Equipment
Model: R-1000JIS Capacity: 1000L/1500L/2000L and more
Door Lock: Electromagnetic lock;
Application: Lamps, Electric cabinets;
Standard: JIS D0203;
- Product Description
JIS D 0203 R1 R2 Rain Test Equipment Manufacturer & Supplier
At LIB Industry, we specialize in the manufacturing and supply JIS D 0203 R1 R2 Rain Test Equipment that are essential for evaluating the ingress protection of enclosures against water. Our extensive range of standard and customized chambers is designed to meet the diverse needs of laboratories and industrial applications. It complies with international standards such as IEC 60529 (IP code), ISO 20653, and MIL-STD-810. These standards define the requirements for testing the degree of protection against water ingress for various electrical and mechanical enclosures, ensuring that our chambers meet the water ingerss protection test.
Technical Specifications
Model | R-1000JIS |
Internal Dimensions (mm) | 1000*1000*1000 D*W*H |
Overall Dimensions (mm) | 1100*1460*1900 D*W*H |
Interior Volume (L) | 1000 |
Distance from Specimen to Nozzle | Approx.400mm |
Rain Nozzle | 2 holes |
Rain Nozzle Hole | Φ0.5mm |
R1 Water Flow Rate | 1.9L/min. |
R2 Water Flow Rate | 3.3L/min. |
Spray Nozzle | 40 holes |
Spray Nozzle Hole | Φ1.2mm |
S1 Water Flow Rate | 24.5L/min |
S2 Water Flow Rate | 39.2L/min |
Water Pressure at Nozzle | 0.03 ~ 0.30MPA |
Turntable Rotation Speed | 17r/min |
Water Pressure Control | Flow meter |
Controller | Programmable color LCD touch screen controller |
Ethernet connection, PC Link, USB | |
Build-in Water Tank(mm) | 370*375*950 |
View Window Size(mm) | 475*475 |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Power Supply | 380V 50Hz |
Maximum Noise | 65 dBA |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH |
Standard | JIS D0203 |
Product Details
 |  |  |

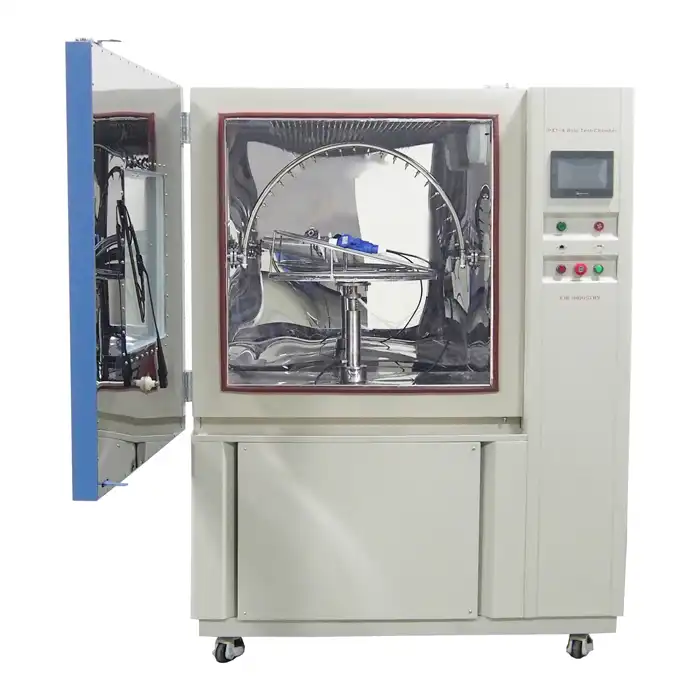

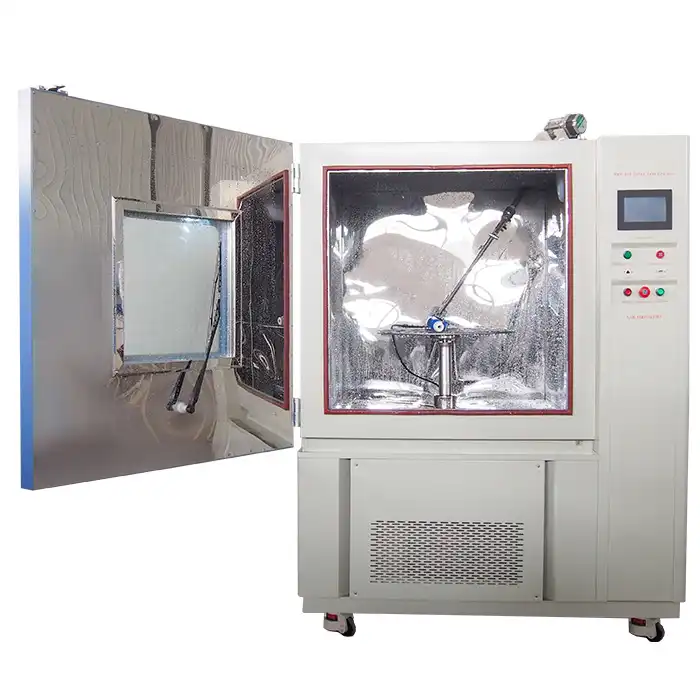

Spray Nozzle The test device consists of pressurized water pump, flow meter, water pipe, shunt device, spray bracket and spray nozzles. | Turntable The turntable is made of 304 stainless steel Speed and angle can be adjusted Sample should be firmly fixed. | PC Link Ethernet connect to PC for easy operation Match to the local laboratory software USB to download data |
Key Features
1. Precision Spray System
The arc-shaped nozzle arrangement creates the exact spray pattern specified in JIS D 0203 R1 R2 Rain Test Equipment standards. Each spout experiences calibration to guarantee steady bead estimate and conveyance. The multi-stage filtration framework anticipates blockages that might compromise your test results.
2. Intelligent Control Interface
Your testing gets to be streamlined with preset modes for both R1 and R2 arrangements. The touchscreen controller shows real-time parameters counting water weight, stream rate, and turn speed. Ethernet network empowers farther checking and information logging for comprehensive test documentation.
3. Durable Construction
The SUS316 stainless steel insides stands up to erosion indeed amid amplified testing cycles. Fixed electrical associations keep up security amid fueled component testing. The vigorous pivoting stage handles different test sizes and weights with steady performance.
4. Water Preservation Technology
Our closed-loop circulation framework decreases water utilization whereas keeping up test consistency. The progressed filtration expels pollutions that might influence splash designs or harm fragile components. This eco-friendly plan essentially decreases operational costs over time.
Why Choose Us
1. Professional Quality Assurance
We follow ISO 9001 Quality Management System protocols throughout manufacturing. Every unit receives CE certification and third-party testing by SGS and TUV authorities. This rigorous quality control ensures international standard compliance and reliable long-term performance.
2. Comprehensive Service Support
Your speculation comes with a 3-year guarantee and lifetime benefit commitment. Our 24/7 worldwide bolster group gives quick help at whatever point required. Ought to repairs gotten to be outlandish inside the guarantee period, we'll give a brand-new substitution unit at no extra cost.
3. Custom Engineering Capabilities
Our experienced building group specializes in non-standard plans and custom R&D arrangements. Whether you require particular chamber measurements, interesting spout setups, or specialized control highlights, we'll make the idealize arrangement for your testing requirements.
