salt testing machine
Temperature Range:+10 ℃ ～ +90 ℃
Humidity Range:30% ~ 98% RH
Temperature Deviation:± 2.0 ℃
Humidity Deviation:+2%, -3%
Salt Fog Deposition:1～2ml / 80cm2 · h
Cooling system Mechanical compression refrigeration system
Salt Testing Machine – Accelerated Corrosion Testing for Reliable Product Quality
LIB industry salt testing machine is designed to simulate and accelerate corrosive environments for evaluating the corrosion resistance of metals, coatings, paints, plated parts, and surface-treated components. During testing, a saline solution is atomized into a fine salt fog and continuously exposed to test specimens inside a controlled chamber.
The system is widely used to assess the durability of electroplated, coated, anodized, and painted products by accelerating corrosion processes that would normally take months or years under natural conditions. It helps manufacturers evaluate protective coatings, compare material performance, verify product quality, and support research and development activities.
Designed to comply with international corrosion testing standards such as ASTM B117 and ISO 9227, LIB industry salt testing machines provide reliable and repeatable test conditions for automotive, aerospace, electronics, hardware, marine, and industrial manufacturing applications.
Technical Specifications
Model | S-150 | S-250 | S-750 | S-010 | S-016 | S-020 |
Internal dimensions (mm) | 590*470*400 | 1000*640*500 | 1100*750*500 | 1000*1300*600 | 900*1600*720 | 1000*2000*800 |
Overall dimensions (mm) | 1460*760*1140 | 1850*960*1350 | 1950*1030*1350 | 2000×1300×1600 | 2300×1300×1700 | 2700×1300×1900 |
Interior Volume (L) | 110 | 320 | 410 | 780 | 1030 | 1600 |
Temperature Range | Ambient ～ +60 ℃ | |||||
Temperature Fluctuation | ± 0.5 ℃ | |||||
Temperature Deviation | ± 2.0 ℃ | |||||
Humidity Range | 95% ~ 98% RH | |||||
Salt Fog Deposition | 1～2ml / 80cm2 · h | |||||
Spray Type | Continuous / Periodic | |||||
Salt Fog Collected | Fog collector and fog measure cylinder | |||||
Air Preheating | Saturated air barrel | |||||
Spraying System | Atomizer tower and Spray nozzles | |||||
Controller | PID controller | |||||
Safety Device | Humidifier Dry-combustion Protection; Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection | |||||
Material | Glass fiber reinforced plastics | |||||
Standard Configuration | 6 round bars and 5 V-shaped grooves | |||||
Why Choose LIB Salt Testing Machine
Anti-Clogging Atomization System
Premium quartz glass or PTFE anti-crystallization nozzles prevent salt buildup and ensure stable, uniform salt fog generation. Designed for long-term continuous testing with minimal maintenance.
Corrosion-Resistant Construction
FRP materials for outstanding corrosion resistance and long service life. Reinforced structures maintain stability during prolonged operation.

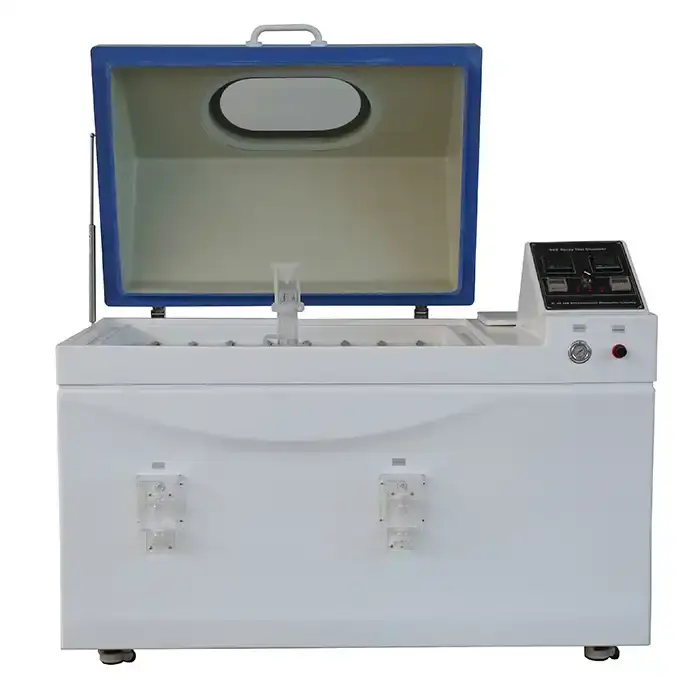

Anti-Drip Chamber Design
The angled chamber lid directs condensate away from test specimens, preventing water droplets from affecting test results. Optional heated lid further reduces condensation.
Precise Salt Spray Deposition Control
Adjustable spray tower and optimized airflow distribution ensure uniform salt fog exposure. Deposition rates remain within international testing standards.
Automatic Solution Management
Automatic water and salt solution replenishment maintains continuous operation. Low-level alarms and dry-burn protection improve safety and reliability.
Uniform Fog Distribution
Optimized nozzle layout ensures consistent salt fog coverage throughout the workspace, providing reliable and repeatable test results
Data Logging & Report Generation
Automatically records temperature, humidity, spray pressure, and other key parameters. Test reports can be generated for quality control and compliance documentation.
Product Details
|
|
|
| Controller Network connection computer. Language can be selected, English/French/Spanish/German/Russian | Salt Water Tank Built-in salt solution tank and external salt water tank Brine mixing system to keep the salt solution even | Collecting cup A spray tower comes with a collection cup The two cups collect the salt spray in opposite directions |
|  |
Built on a Foundation of Global Trust
Since 2009, we've partnered with industry leaders including Apple, IBM, Amazon, Intel, SGS, TUV, CERN, BYD, Great Wall Motors, and Mercedes-Benz. Our ISO 9001-certified manufacturing process and CE certification ensure every unit meets international quality standards.
With 29 global agents and service centers in Malaysia, Canada, the UK, and the United States, you're never alone when you need support. We provide 24/7 assistance backed by our 3-year warranty and lifetime service commitment. If we can't repair it during the warranty period, we replace it—no questions asked.
Ready to upgrade your corrosion testing capabilities? Contact our team at ellen@lib-industry.com to discuss your specific salt testing machine requirements. We'll help you select the ideal configuration and provide detailed technical guidance for your application.
