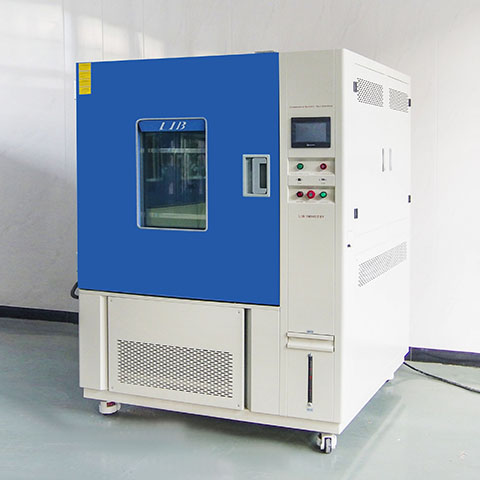

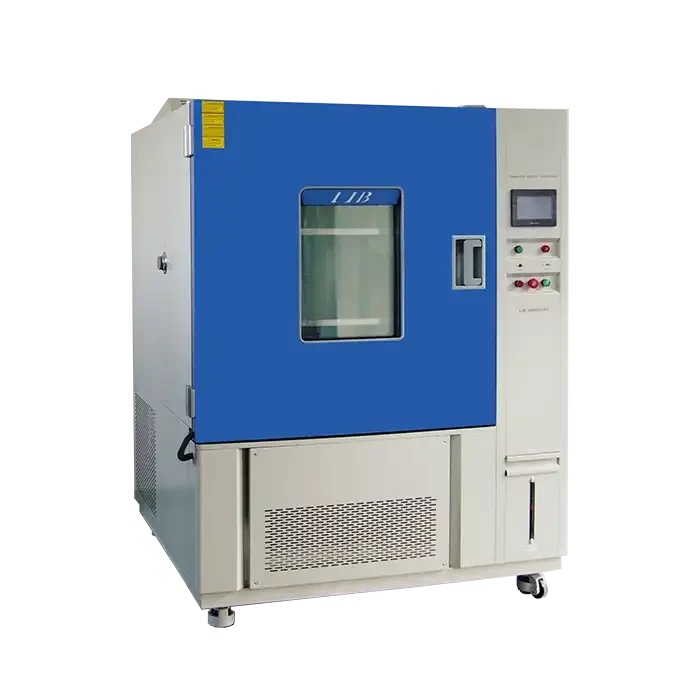

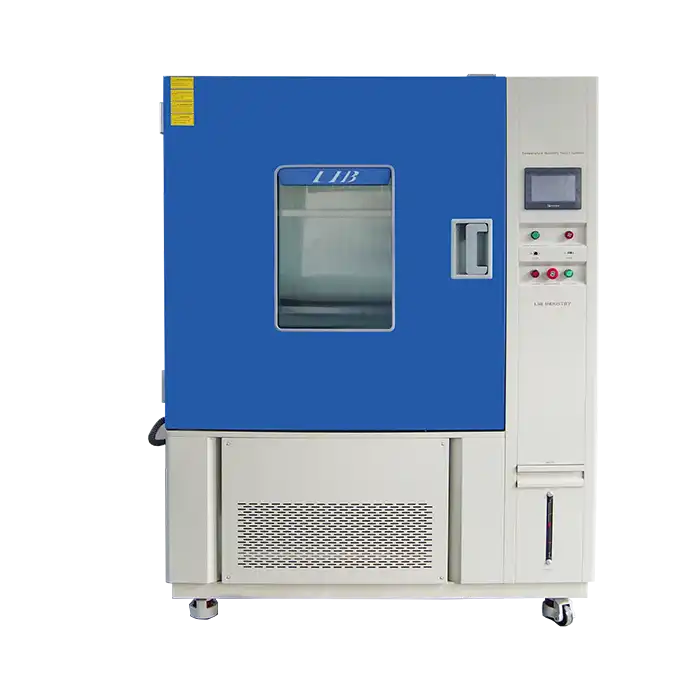

Battery Test Chambers
Lowest temperature options: -20°C / -40°C / -60°C / -70°C
Temperature range: -70°C to +150°C
Humidity range: 20% to 98% RH (humidity models only)
Sample power access port for powering batteries during testing
Standard and custom chambers available
Supported tests: temperature, humidity, vibration, corrosion, altitude, pressure, and combined tests (vibration, altitude, and pressure require optional equipment or a custom configuration)
Manufacturer & Supplier of Battery Environmental Test Equipment
LIB Industry is a manufacturer of environmental chambers and test equipment. We specialize in high-quality battery test chambers designed for precision testing of batteries under a wide range of environmental conditions.
Environmental tests we support include:
Temperature and humidity testing
Vibration and shock testing under different climatic conditions
Dust and salt fog testing
Altitude simulation
IPX ingress protection testing, including immersion and water-spray testing
Our engineering team can help you plan, configure, and carry out these tests according to your requirements.
Technical Specifications
Model | T-100 | T-225 | T-500 | T-800 | T-1000 |
Internal Dimension (mm) | 400*500*500 | 500*600*750 | 700*800*900 | 800*1000*1000 | 1000*1000*1000 |
Overall Dimension (mm) | 900*1050*1620 | 1000*1140*1870 | 1200*1340*2020 | 1300*1540*2120 | 1500*1540*2140 |
Interior Volume | 100L | 225L | 500L | 800L | 1000L |
Heat load | 1000W | ||||
Temperature Range | A : -20℃ ～ +150 ℃ B : -40℃ ～ +150 ℃ C: -70℃ ～ +150 ℃ | ||||
Temperature Fluctuation | ± 0.5 ℃ | ||||
Temperature Deviation | ± 2.0 ℃ | ||||
Cooling Rate | 3 ℃ / min | ||||
Heating Rate | 1 ℃ / min | ||||
Cooling system | Mechanical compression refrigeration system | ||||
Refrigerating unit | French TECUMSEH compressor | ||||
Heating Element | Nichrome heater | ||||
Controller | Programmable color LCD touch screen controller Ethernet connection, PC Link | ||||
Temperature Sensor | PTR Platinum Resistance PT100Ω/MV A-class | ||||
Air Circulation | Centrifugal wind fan | ||||
Safety Device | Over-temperature Protection; Over-current Protection; Refrigerant High-Pressure Protection; Earth leakage Protection | ||||
Exterior Material | Steel Plate with protective coating | ||||
Interior Material | SUS304 stainless steel | ||||
Thermal Insulation | Polyurethane foam and insulation cotton | ||||
Observation Window | Interior lighting, double-layer thermo stability silicone rubber sealing | ||||
Standard Configuration | 1 Cable hole (Φ 50,) with plug; 2 shelves | ||||
Product Details
|
|
|

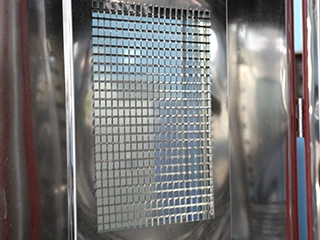

Explosion-proof system

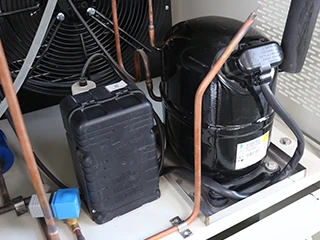

| Cooling system

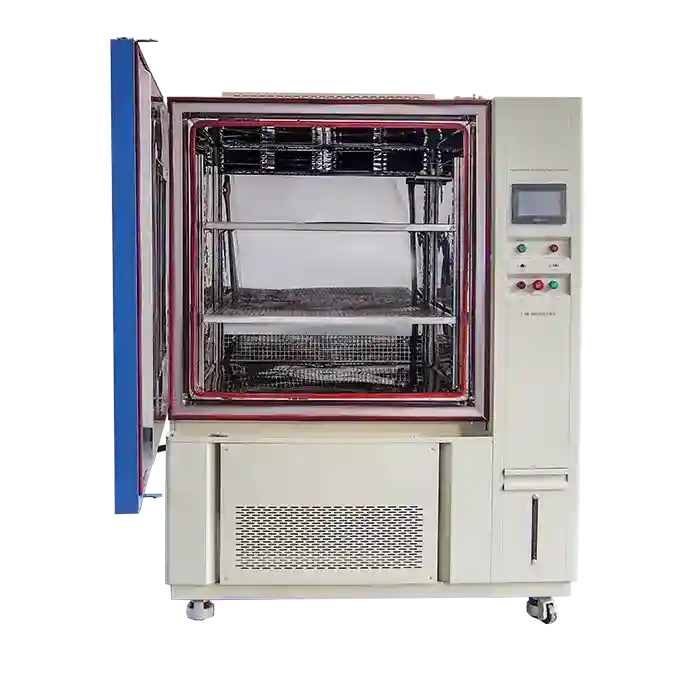

| Workroom The internal material is 304 stainless steel, mirror surface, rust-proof to high and low temperature and moisture corrosion. |
|
|
Product Features
Precision Control: Accurate, stable control of temperature (and humidity on humidity models) for reliable, repeatable test results.
Customization: Chamber size, temperature range, and configuration tailored to your battery type and test requirements.

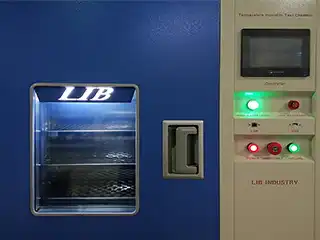

User-Friendly Interface: Intuitive programmable color touch-screen controller makes operation easy and efficient. Remote monitoring and data export via Ethernet / PC link.
Comprehensive Safety: Built-in protection for the chamber, the samples, and the operator.
Durable Construction: SUS304 stainless steel interior and coated steel exterior resist corrosion and ensure long service life.
Energy Efficiency: Advanced cooling and heating systems for efficient operation.
Applications
Our battery test chambers are used in:
Battery performance testing
Environmental stress testing
Quality control in battery manufacturing
Research and development of battery technologies
Suitable for: lithium-ion cells, battery modules, battery packs, and other energy storage products
Standards: Equipment is configured for the required test standard. Common requirements include IEC 62133, UN 38.3, UL 1642, and IEC 60068 series
FAQs on Battery Test Chambers
Q: How do I choose the right chamber for my batteries?
A: Tell us your battery type, sample size, quantity, temperature range, and target test standard. Our engineers will recommend a suitable model and configuration.
Q: What routine maintenance does the chamber need?
A: Keep the interior clean and dry, check the door seals, clean the condenser and air filter, and calibrate the temperature sensor periodically. We provide a maintenance guide and remote support.
Q: What happens if my chamber needs service or spare parts after delivery?
A: We provide 24/7 English support and remote troubleshooting. Spare parts and on-site service are available when needed. Your chamber is covered by a 3-year warranty, plus lifetime technical support.
Q: How do you ensure quality before shipment?
A: Each chamber is tested and calibrated before shipment, where applicable, including up to 72 hours of continuous operation depending on the model. Our quality management system is ISO 9001 certified.
Q: Do you offer a complete project service?
A: Yes. We handle solution design, customization, delivery, installation, commissioning, and operator training, so you get one-stop service from start to finish.
